Metra Electronics 99-7888 Manuale utente
APPLICATIONS
CAR
ACURA
HONDA
ISUZU
KIT COMPONENTS
TOOLS REQUIRED
Cutting tool
Socket wrench
Phillips screwdriver
KIT FEATURES
Equalizer
provisions
Rear support
provisions
Radio Housing
Radio
Support
Mounting Bracket
Equalizer Dummy
Plate
(2) Pal Nuts
99-7888
DW-7888

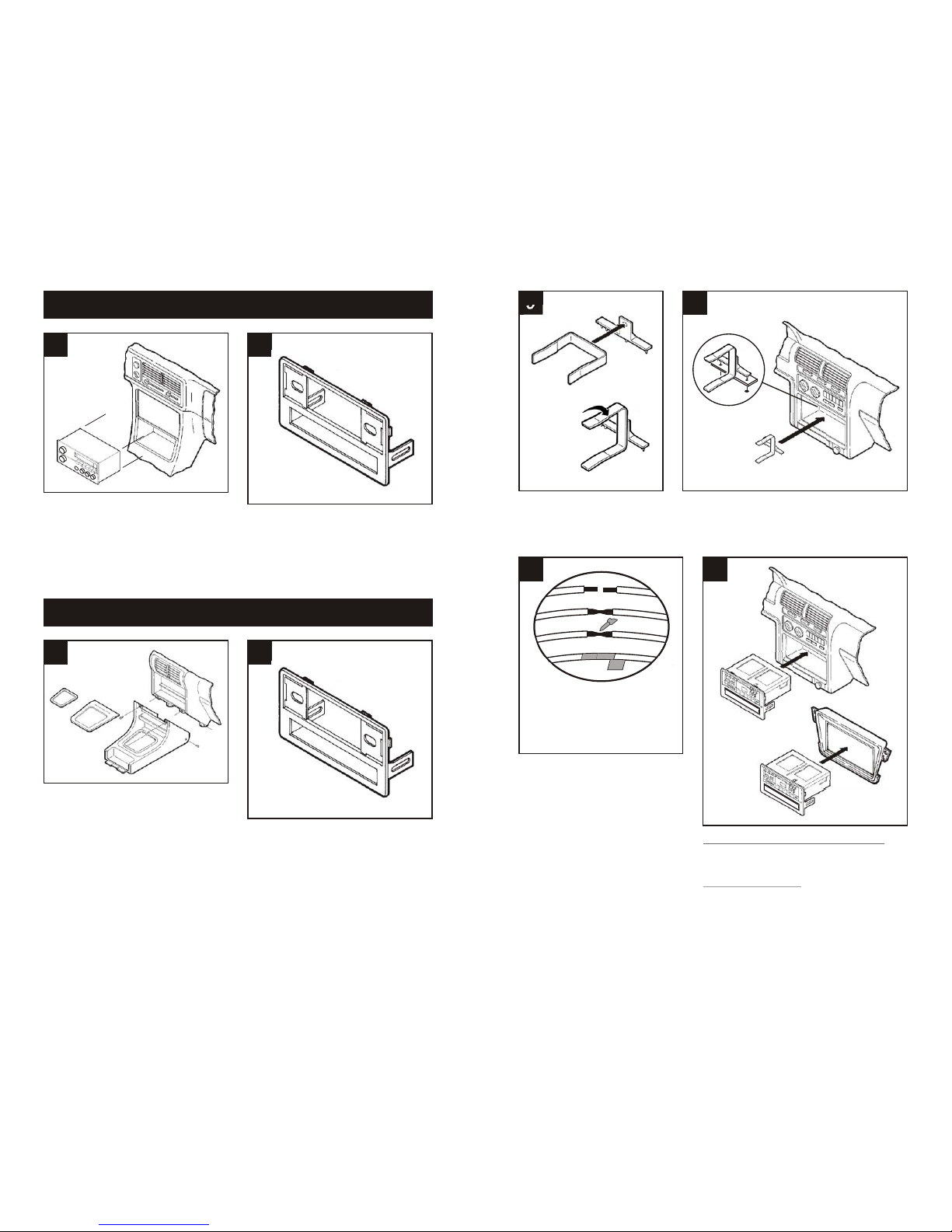

INSTALLATION
INSTRUCTIONS
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(3) screws from each side of the center
console and remove the console. Remove
(2) screws securing the factory head unit to
the sub-dash support bracket. Slide the
head unit/pocket assembly out and
disconnect the wiring.
1
ACURA Integra 1990-93
2
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the cover cap located under the emergency
brake and remove (2) screws exposed.
Remove (2) screws from the rear corners of
the lower dash trim bezel and remove.
Remove the ashtray and (2) screws
exposed. Unsnap the ashtray housing and
disconnect the cigarette lighter harness.
Remove the gear shifter knob and unsnap
the shifter trim. Remove (2) screws below
the radio opening and remove the upper
dash trim bezel. Remove (2) 8mm screws
securing the factory head unit and
disconnect thewiring.
1
ACURA Integra 1994-00
2
7 8
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit). INTEGRA, ACCORD, ODYSSEY, OASIS: Re-
connect the battery terminal and test the unit for
proper operation. Snap the head unit/kit
assembly into the sub-dash. (see Fig. A)
LEGEND, TL, VIGOR: Re-connect the battery
terminal and test the unit for proper operation.
Snap the head unit/kit assembly into the factory
trim bezel. Mount the bezel to the dash with
those screws previously removed in step #1.
(see Fig. B)
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
65
Insert the Radio Support into the
Mounting Bracket. (see Fig. A).
Turn the Radio Support to lock into
place. (see Fig. B)
Mount the assembly to the factory mounting plate in
the sub-dash with (2) Pal Nuts supplied. (see Fig. A)
Fig. A
Fig. B
Fig. A
Fig. A
Fig. B
Locate the Radio Housing.
Locate the Radio Housing.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(2) screws below the ashtray. Unclip the
dash trim bezel. Disconnect the cigarette
lighter wiring and remove the bezel.
Remove (2) bolts securing the rear of the
factory head unit and disconnect the wiring.
ACURA Legend 1990
21
Modify the factory radio housing by cutting
and removing the shaded portions of the
housing lip.
IF AN EQUALIZER WILL BE INCLUDED: Slide the aftermarket equalizer into the back of the
Radio Housing. Using the hardware included with the equalizer, mount the unit to the kit.
(see Fig. A)
IF AN EQUALIZER WILL NOT BE INCLUDED: Snap the Equalizer Dummy Plate into the
Radio Housing. (see Fig. B)
4
Fig. A
Fig. B
¾" ¾"
¼"¼"
1"1" 1¼"1¼"
Factory
radio
housing
opening
Disconnect the negative battery terminal to
prevent an accidental short circuit. Using a
small screwdriver, unclip the perimeter of the
radio trim bezel. Disconnect the climate
control and rear defroster wiring and remove
the bezel. Remove (4) Phillips screws
securing the factory head unit/trim bezel
assembly. Loosen (2) Phillips screws
securing the back of the head unit to the
metal housing and slide the unit out. (It is
NOT necessary to remove the screws
securing the metal housing to the bezel).
Disconnect the wiring.
ACURA TL 1996-98
21
Cut and remove the TOP clips from the
Radio Housing.
ALL VEHICLES
2-SHAFT HEAD UNITS: Slide the aftermarket head unit into the kit and secure with shaft
nuts. (see Fig. A)
DIN HEAD UNITS: Cut and remove the shaft supports from the Radio Housing. Slide the
DIN cage into the kit and secure by bending the metal locking tabs down. Slide the aftermarket
head unit into the cage until secure. (see Fig. B)
3
4
Fig. A
Fig. B
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove (2)
8mm screws under the glove box. Remove (1)
Phillips screw on the glove box arm and remove
the box. Remove (2) Phillips screws exposed in
the glove box cavity. Remove (2) Phillips screws
below the storage box door (under the ashtray).
Remove (2) screws from the left side of the dash
console. Remove (1) Phillips screw from the coin
tray. Remove (1) Phillips screw under the
ignition. Remove (4) Phillips screws securing the
factory cupholder. Remove (2) 8mm hex-head
screws from the rear support bracket and
disconnect the wiring.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the access cap from the climate control
cluster and (1) screw exposed. Unclip the
cluster and remove (2) screws exposed.
Remove the ashtray and (2) Phillips screws
exposed. Remove the cover caps from
each front corner of the center console and
the screws exposed. Open the storage
compartment, lift up the carpet and remove
(2) screws exposed. Lift up on the center
console and remove. Unclip the radio trim
bezel and disconnect the wiring. Remove
(2) bolts from the back of the factory head
unit and disconnect the wiring.
HONDA Odyssey 1995-98 / ISUZU Oasis 1996-99
ACURA Vigor 1992-94
2
21
1
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(4) screws from the lower portion of the
center console. Remove the gear shifter
knob and lift the console out. Remove the
ashtray and ashtray bracket. Remove (2)
screws from the bottom of the head unit
support, slide the unit out and disconnect the
wiring.
1
HONDA Accord 1990-93
2
Locate the Radio Housing.
Modify the factory radio housing by cutting
and removing the shaded portions of the
housing lip.
Locate the Radio Housing.
¾" ¾"
¼"¼"
1"1" 1¼"1¼"
Factory
radio
housing
opening
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(2) screws below the ashtray. Unclip the
dash trim bezel. Disconnect the cigarette
lighter wiring and remove the bezel.
Remove (2) bolts securing the rear of the
factory head unit and disconnect the wiring.
ACURA Legend 1991-96
21
Locate the Radio Housing.
