Metrologic MS 1690 Focus Series Manuale utente

METROLOGIC INSTRUMENTS, INC.

MS1690 Focus®Series

Area Imaging Bar Code Scanner

Installation and User's Guide

work may be reproduced, transmitted, or stored in any form or by any means

without prior written consent, except by reviewer, who may quote brief

passages in a review, or provided for in the Copyright Act of 1976.

Trademarks

Metrologic is a registered trademark of Metrologic Instruments, Inc.

Products identified in this document are hereby acknowledged as

trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their

respective companies.

TABLE OF CONTENTS

Introduction

Product Overview ............................................................................................. 1

Scanner and Accessories................................................................................. 2

Scanner Components....................................................................................... 4

The PowerLink Cable ....................................................................................... 5

Labels............................................................................................................... 6

Maintenance..................................................................................................... 6

Installing the Scanner to the Host System

RS232 .............................................................................................................. 7

Keyboard Wedge.............................................................................................. 8

Stand Alone Keyboard ..................................................................................... 9

RS485 ............................................................................................................ 10

Full Speed USB (Integrated) .......................................................................... 11

Low Speed USB (Integrated).......................................................................... 11

Stand Kits

Stand Components, MLPN 46-00147............................................................. 12

Hard Mounting the Stand................................................................................ 13

Assembling the Stand .................................................................................... 14

Scanner Operation

Two Default Modes of Operation.................................................................... 15

Audible Indicators........................................................................................... 16

Visual Indicators ............................................................................................. 17

Failure Modes................................................................................................. 18

MS1690 Depth of Field by Minimum Bar Code Element Width ...................... 19

MS1691 Depth of Field by Minimum Bar Code Element Width ...................... 20

MS1690 IR Activation Range ......................................................................... 21

MS1691 IR Activation Range ......................................................................... 22

Troubleshooting Guide ....................................................................................... 23

Design Specifications ......................................................................................... 27

Applications and Protocols ................................................................................. 29

iii

TABLE OF CONTENTS

Default Settings – Communication Parameters.................................................. 30

Configuration Modes .......................................................................................... 34

Upgrading the Flash ROM Firmware.................................................................. 35

Scanner and Cable Terminations

Scanner Pinout Connections .......................................................................... 36

Cable Connector Configurations .................................................................... 38

Limited Warranty ................................................................................................ 40

Regulatory Compliance

Safety ............................................................................................................. 41

EMC ............................................................................................................... 42

Patents ............................................................................................................... 44

Index .................................................................................................................. 45

Contact Information and Office Locations........................................................... 47

INTRODUCTION

Product Overview

Metrologic's MS1690 Focus®series of high performance hand-held area imaging

bar code scanners utilizes high-resolution CMOS imaging sensors for superior

image quality. Omniplanar, Inc.’s SwiftDecoder®software, for reliable decoding

of both 1D and 2D bar code symbologies. Sharp images can be captured and

transmitted in a variety of outputs including: .jpg, .bmp, and .tiff.

The MS1690 series provides an extended depth of field and a built in object

detection sensor (IR) that instantly turns on the scanner when an object is

presented within the scanner’s field of view. Automatic in-stand detection

switches the scanner to a “presentation” mode for convenient in-stand scanning.

Model Interface

MS1690 – 11 RS485S, RS232-TXD, RXD, RTS, CTS

MS1690 – 14

MS1691 – 14

RS232 (TX, RX, RTS, CTS, DTR)

MS1690 – 38 Low Speed USB

MS1690 – 40 Full Speed USB

MS1690 – 47

MS1691 – 47

Keyboard Wedge, Stand-Alone Keyboard and

RS232 Transmit/Receive

MS1690 – 106

MS1691 – 106

RS485S, Full Speed USB, and RS232 Transmit/Receive

Decoding and functional capability of the unit is restricted through the

use of license numbers provided by Metrologic. Units will not support

key features such as, but not limited to, the ability to decode PDF, 2D

or OCR fonts without the proper licenses. Desired licenses can be

specified at the time of sale or call a Metrologic representative for more

information. Standard models ship with the ability to read all 1D, PDF

and 2D bar codes. OCR fonts are disabled by default and must be

specifically requested at an additional cost.

SApplicable for IBM®Host applications.

INTRODUCTION

Scanner and Accessories

BASIC KIT

Part # Description

MS1690

MS1691

Area Imaging Bar Code Scanner

Area Imaging HD Bar Code Scanner

00-02544 MetroSelect®Single-Line Configuration Guide*

00-02281 Supplemental Configuration Guide*

00-02098 MS1690 Series Area Imaging Bar Code Scanner

Installation and User’s Guide*

* Available on the Metrologic website - www.metrologic.com

OPTIONAL ACCESSORIES

Part # Description

AC to DC Power Transformer - Regulated 5.2VDC @ 1 A output.

46-00525 90VAC-255VAC United States, Canada, and Japan

46-00526 90VAC-255VAC Continental European

46-00527 90VAC-255VAC United Kingdom

46-00528 90VAC-255VAC Australia

46-00529 90VAC-255VAC China

53-53000-3-FR RS232 PowerLink Cable with Built in Power Jack

coiled cord, long strain relief, black with ferrite

53-53002-3 Keyboard Wedge PowerLink Cable with Adapter Cable

coiled cord, long strain relief, black

53-53020-3 Stand Alone Keyboard PowerLink Cable

coiled cord, long strain relief, black

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

INTRODUCTION

Scanner and Accessories

OPTIONAL ACCESSORIES

Part # Description

53-53213x-N-3-FR USB Full Speed Cable, Locking Plus-Power™ Type A,

coiled cord, long strain relief, black with ferrite

53-53214x-N-3-FR

USB Full Speed Cable, Locking Plus-Power™ Type A,

coiled cord, long strain relief, black with ferrite

This cable is for use with full speed

USB (-40) interface only.

53-53235x-N-3-FR USB Low Speed Communication Cable Type A,

coiled cord, long strain relief, black with ferrite

MVC-2MPC-IB9

RS485SApplications

Metrologic Voltage Converter (MVC) Cable*

±12VDC to +5.2VDC

MVC-3M106C-IB9

RS485SApplications

Metrologic Voltage Converter (MVC) Cable*

±12VDC to +5.2VDC

* Contact a Metrologic customer service representative for additional

information on the MVC cable series and the host connections available.

00-02001 MS1690 Stand (46-00147) Installation Guide

46-00147 Modular Presentation Stand

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

SApplicable for IBM®Host applications.

INTRODUCTION

Scanner Components

Figure 1. Scanner Components

Item Description

1 Yellow LED See Visual Indicators (on page 17)

2 White LED See Visual Indicators (on page 17)

3 Blue LED See Visual Indicators (on page 17)

4 Speaker See Audible Indicators (on page 16)

5 Trigger

6 Red Window LED Aperture

7 Cable Release See The PowerLink Cable (on page 5)

8 Cable Connection 10-pin RJ45, Female Socket,

See Scanner Pinout Connections (on page 36)

INTRODUCTION

The PowerLink Cable

Connecting

Important: If the PowerLink cable is not fully ‘latched’ the unit can

power intermittently.

Figure 2. Figure 3.

Disconnecting

Before removing the cable from the scanner, Metrologic recommends that the

power on the host system is off and the power supply has been disconnected

from the PowerLink cable.

Figure 4. Releasing the PowerLink Cable

1. Locate the small ‘pin-hole’ on the handle of the unit near the cable.

2. Bend an ordinary paperclip into the shape shown above.

3. Insert the paperclip (or other small metallic pin) into the small ‘pin-hole’.

4. There will be a faint ‘click’ when the lock is released. Pull gently on the

strain-relief of the PowerLink cable to remove the cable from the unit.

INTRODUCTION

Labels

Each scanner has a label located on the underside of the head. This label

provides the unit’s model number, date of manufacture, serial number, CE and

caution information. The following figure gives an example of the label and its

location.

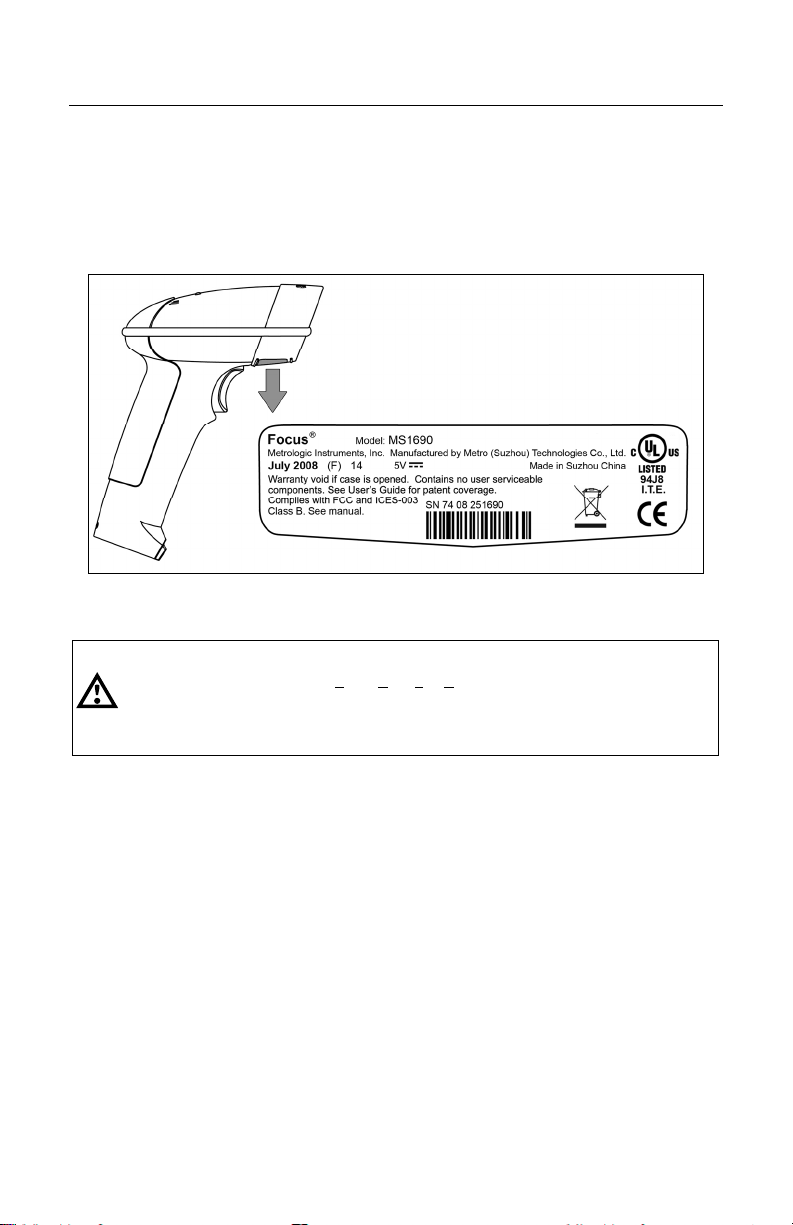

Figure 5. Label Sample and Location

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must

meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950-1.

To maintain compliance with standard CSA-C22.2 No. 60950-1/UL 60950-1 and norm EN/IEC

60950-1, the power source should meet applicable performance requirements for a limited

power source.

Maintenance

Smudges and dirt on the unit's window can interfere with the unit's performance.

If the window requires cleaning, use only a mild glass cleaner containing no

ammonia. When cleaning the window, spray the cleaner onto a lint free, non-

abrasive cleaning cloth then gently wipe the window clean.

If the unit's case requires cleaning, use a mild cleaning agent that does not

contain strong oxidizing chemicals. Strong cleaning agents may discolor or

damage the unit's exterior.
