REMOTE MONITORING SYSTEM FOR HOSPITAL LOCATION
GENERAL
RMS-12 is a device which allow remote monitoring of parameters
originated from insulation’s supervisors for medical use HRI with serial
output RS485.
By serial communication RS485 Modbus-RTU protocol different
supervisors are connected to remote monitoring system.
The RMS-12 remote alarm indicator is used for:
•Indication and visualization of operating status and alarm messages
•Displaying measured values for monitoring Contrel HRI insulation’s
supervisors with Modbus protocol.
APPLICATION
•indication and visualization of operating status and alarm messages
•central network status visualization of HRI devices
•displaying measured values of response values for monitoring purpose
RMS-12 could be connected to a PC and transmits, by Modbus-RTU protocol, all the parameters that it has collected.
AVAILABLE MODELS

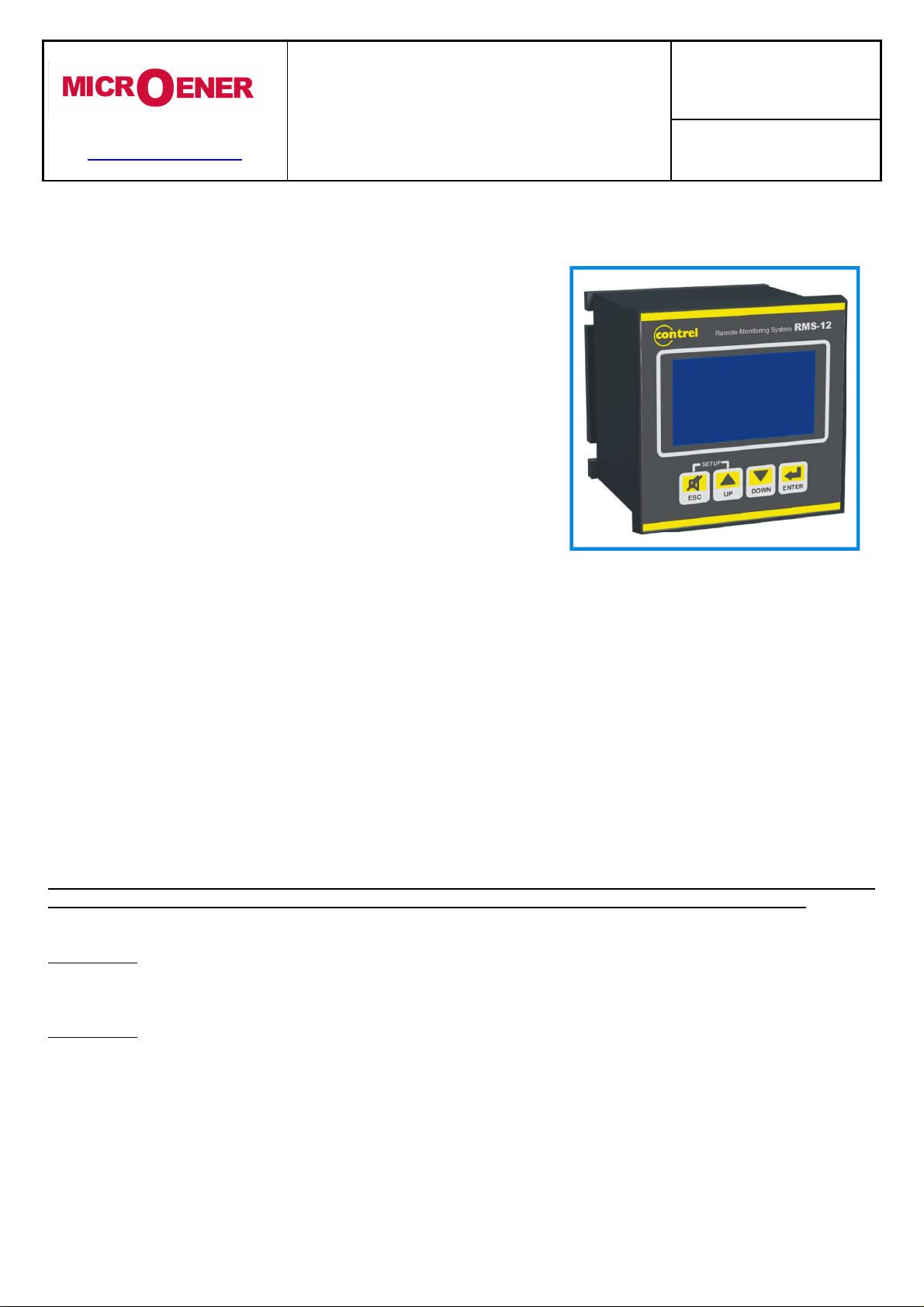

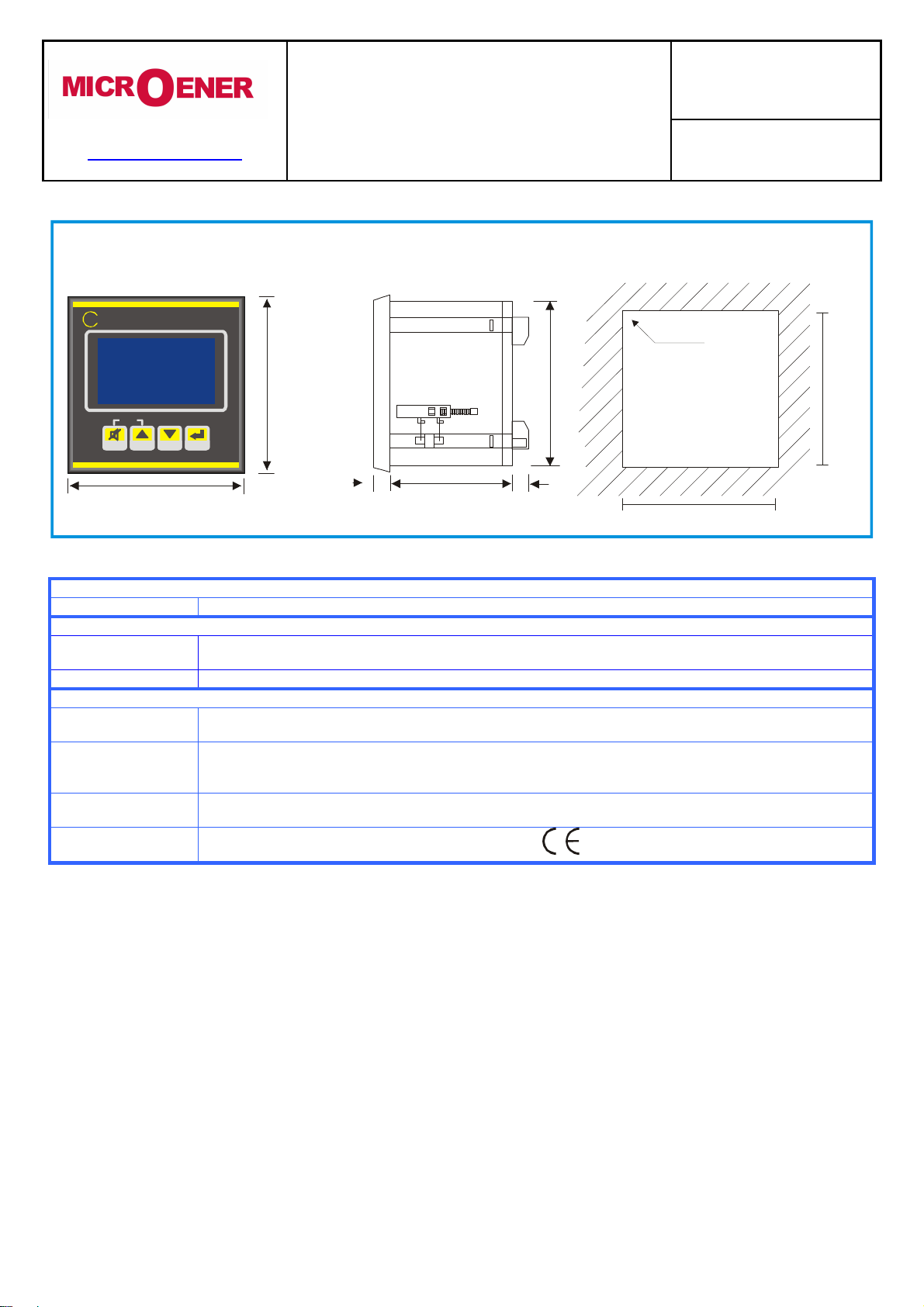

It’s available one model for flush mounting 96 mm x 96 mm.
INSTALLATION
WARNING FOR THE USER
Read carefully the instructions indications contained in this manual before installing and using the instrument.
The instrument described in this manual is intended for use by properly trained staff only.
SAFETY
This instrument has been manufactured and tested in compliance with EN 61010-1standards. In order to maintain these
conditions and to ensure safe operation, the person must comply with the indications and markings contained in the
manual. When the instrument is received, before beginning installation, check that it's O.K. And it has not suffered any
damage during transport. When starting installation make sure that the operating voltage and mains voltage are
compatible with the device instructions. The instrument power supply must not be earthed. Maintenance and or repair
must be carried out only by qualified and authorized personnel. If there is ever the suspicious that, that there is a lack of
safety ,during operation, the instrument must be disconnected and cautions taken against accidental use.
Operation is no longer safe when: - The instrument doesn't work. / - There is clearly visible damage. / -
After serious damage incurred during transport. / - After a storage under unfavourable conditions
PARAMETERS

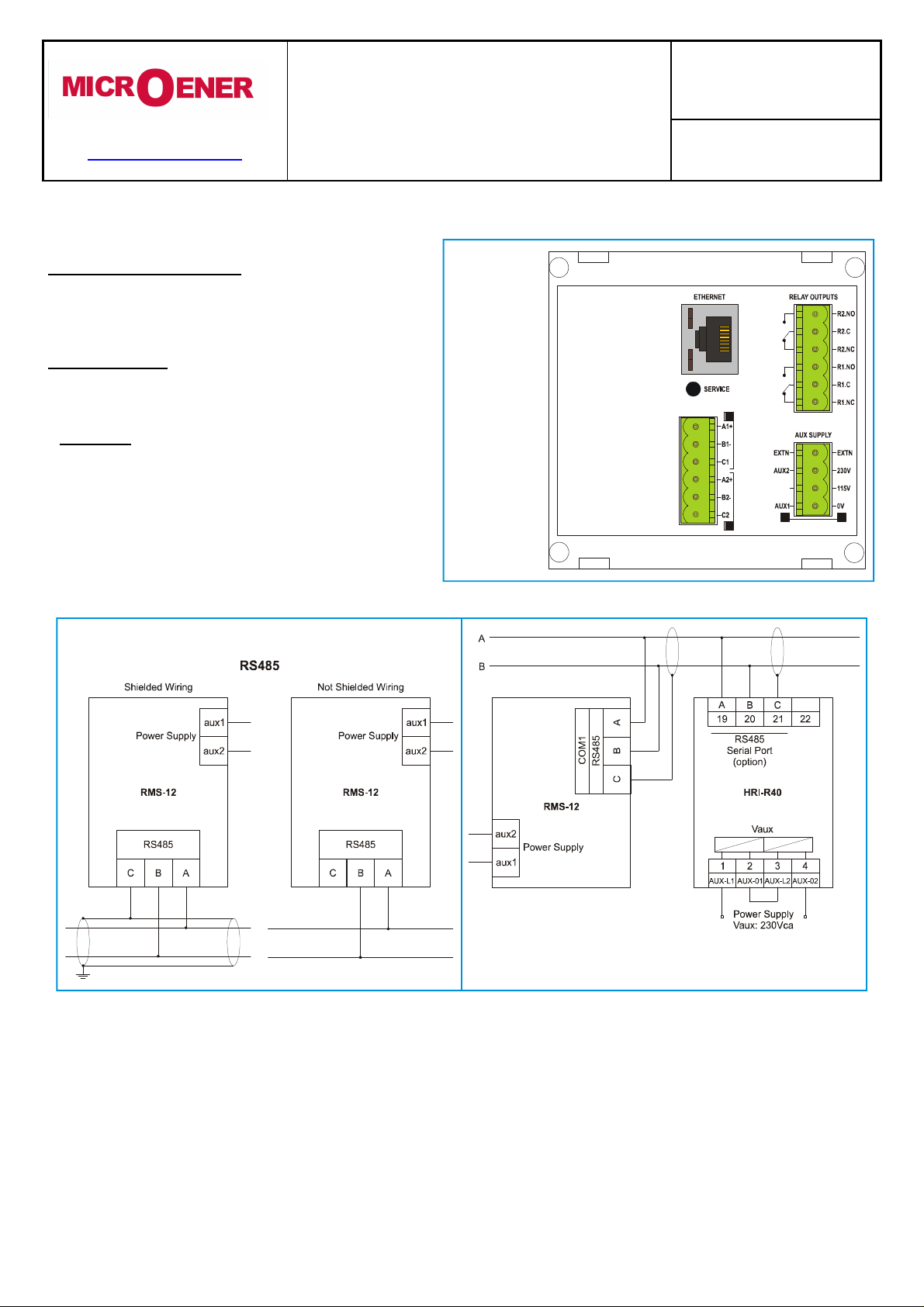

RS485 COM1
Baud rate: 19200
Parity: 1 – N – 8
RS485 COM2
ID Modbus: 1
Baud rate: 19200
Parity: 1 – N – 8
