XP-GT/GTR Programming Manual

v4.00

XP-GT/GTR

SINGLE DOOR ACCESS

CONTROL SYSTEM

PROGRAMMING MANUAL

Version 4.00



2



MicroEn

ine

XP-GT/GTR Programming Manual

v4.00

MicroEngine XP-GT/GTR Controller Programming Manual

Revision History

Version Date Remarks

1.00 1/1/2007 First Release of Manual

2.00 8/3/2008 Updated arrangements and drawings

2.10 17/7/2008 Updated drawings and included the XP-GTR series to the manual. Also

added a page to indicate scope of manual.

3.00 20/7/2009 Updated System Menu, added Alarm Menu and wiring diagram for XP-

GTR to MIO44. Also added the connection for XP-GT/GTR using

sounder and fire release feature.

4.00 3/10/2017 Updated drawings and included new XP-GT3500/GTR1500 series.



3



MicroEn

ine

XP-GT/GTR Programming Manual

v4.00

Scope:

This manual covers the following products

1. XP-GT1200

2. XP-GT3200

3. XP-GT1200L

4. XP-GT3200L

5. XP-GTR1200

6. XP-GTR3000

7. XP-GTR1200L

8. XP-GTR3000L

9. XP-GT3500L

10. XP-GT3500ABL

11. XP-GTR1500L

12. XP-GTR1500ABL



4



MicroEn

ine

XP-GT/GTR Programming Manual

v4.00

Table of Contents

A. XP-GT/GTR Single Door Access Control System......................................................6

i. Powering Up...................................................................................................................6

ii. Idle Mode ......................................................................................................................7

iii. Verification Mode...........................................................................................................7

a. Token Mode ...............................................................................................................7

b. Token+PIN Mode ........................................................................................................8

c. Token+Fingerprint Mode ..............................................................................................8

d. Token+Fingerprint+PIN Mode .......................................................................................8

iv. Symbols.......................................................................................................................................9

B. Programming Environment ......................................................................................10

i. Configuration Menu Layout.............................................................................................10

ii. Keypad Functions.........................................................................................................10

iii. Entering Configuration Mode .........................................................................................10

1. System Menu ...........................................................................................................13

1.1 Set Date and Time .....................................................................................................13

1.2 Door Parameter .........................................................................................................15

1.3 Time Set ...................................................................................................................20

1.4 Time Zone.................................................................................................................22

1.5 Holiday Setting...........................................................................................................25

1.6 General Parameter .....................................................................................................26

1.7 Network Parameters ...................................................................................................28

1.8 Sounder Setting .........................................................................................................30

1.9 O/P Trigger Events .....................................................................................................31

2. Database Menu ........................................................................................................33

2.1 Quick Add User..........................................................................................................33

2.2 Add User...................................................................................................................34

2.3 Delete User ...............................................................................................................36

2.4 Edit User Settings.......................................................................................................37

2.5 Clear Anti PassBack ...................................................................................................39

2.6 Clear Card LockOut ....................................................................................................39

2.7 Clear All User ............................................................................................................40



5



MicroEn

ine

XP-GT/GTR Programming Manual

v4.00

3. Fingerprint Menu ......................................................................................................41

3.1 Add Fingerprint ..........................................................................................................41

3.2 Delete Fingerprint.......................................................................................................43

3.3 Clear Fingerprint ........................................................................................................43

3.4 Template Enrolled ......................................................................................................44

3.5 Set Security Level ......................................................................................................44

4. Maintenance Menu...................................................................................................46

4.1 Change Master PIN ....................................................................................................46

4.2 Clear Transaction.......................................................................................................47

4.3 Test Watchdog...........................................................................................................47

4.4 Show Version ............................................................................................................48

4.5 Show Information .......................................................................................................48

5. Alarm Menu ..............................................................................................................49

5.1 Input Setting ..............................................................................................................49

5.2 Output Setting............................................................................................................51

5.3 Panel Status ..............................................................................................................53

6. Exit Programming Menu ...........................................................................................54

Appendix 1 – General Wiring for XP-GT using MAS-RBT......................................................55

Appendix 2 – General Wiring for XP-GTR using MAS-RBU ...................................................56

Appendix 3 – General Wiring for two XP-GT using MAS-RBT ................................................57

Appendix 4 - Connection for XP-GT using Sounder Feature ..................................................58

Appendix 5 - Connection for XP-GTR using Sounder Feature................................................59

Appendix 6 - Connection for XP-GT and XP-GTR using Fire Release Feature .........................60

Appendix 7 - Connection for XP-GTR to MIO44 ...................................................................61

Appendix 8 – General Wiring for XP-GT using MAS-RBM .....................................................62

Appendix 9 – General Wiring for XP-GTR using MAS-RBU ...................................................63

Appendix 10 – Wiring Connection for two XP-GT using MAS-RBM.........................................64

Appendix 11 – Wiring Connection for XP-GT using Sounder Feature......................................65

Appendix 12 – Wiring Connection for XP-GTR using Sounder Feature ...................................66

Appendix 13 – Wiring Modification for XP-GT to Fire Alarm Signal with Voltage Source ............67

Appendix 14 – Wiring Modification for XP-GTR to Fire Alarm Signal with Voltage Source ..........68



6



MicroEn

ine

XP-GT/GTR Programming Manual

v4.00

A. XP-GT/GTR Single Door Access Control System

i. Powering Up

Before powering up the controller for the first time, check that all the connections to the

hardware are connected properly according to the wiring diagram.

For first time controller start-up, perform a ColdStart operation to reset all controller

settings to default. For all new installation, ColdStart operation only needed to be

performed once unless specifically instructed to do so.

XP-GT/GTR (1200, 3000, 3200, 1200L, 3000L, 3200L) Series

To perform ColdStart, please follow the steps below:

1. Turn ON the power supply. The screen below will be shown:

MicroEngine

XP-GT3200L

v3.00

Starting up...

2. While the controller is starting up, press the #button.

3. Press

√to ColdStart the system, or Xto cancel.

4. Press

√again to confirm the ColdStart operation. Once the ColdStart process

finishes, the controller will automatically enter Idle Mode.

XP-GT/GTR (1500L, 3500L, 1500ABL, 3500ABL) Series

To perform ColdStart, please follow the steps below:

1. Ensure that the power supply is turned off.

2. Press and hold the ColdStart button at the back of the controller.

3. Turn ON the power supply. Release the ColdStart button after 2 seconds.

4. Controller will sound a long beep during the ColdStart operation and will

automatically enter Idle Mode once ColdStart process finishes.



7



MicroEn

ine

XP-GT/GTR Programming Manual

v4.00

ii. Idle Mode

In Idle Mode, the screen below will be shown:

Good Day

Please Present

Token

10:38:55 Tue,07/17

The controller will prompt different audio and visual indications to users under different

circumstances. Table below shows normal response in Idle Mode:

Condition LCD Display

Buzzer

Idle Mode 1. Request for a token to be presented.

OFF

2. Indicate time, date, and da

in “HH:MM:SS”

and “DAY,MM/DD”format.

3. Backli

ht is dimmed.

iii. Verification Modes

The controller can be operated in several verification modes for door access. To set the

verification modes for individual users, refer to Section 2.4 Edit User Setting under

Edit Verification Mode sub-menu.

The different verification modes are explained in the following sections:

a. ‘Token Only’ Mode

‘Token Only’ is the default verification mode of the controller. If the token type is

set as card, users have to present a card as identification. To read a card, place

the card near the keypad area. The time interval between successive readings of

the same card number is 2 seconds. If the token type is selected as pin, then

users have to present a 4-digit authorization pin as identification instead.



8



MicroEn

ine

XP-GT/GTR Programming Manual

v4.00

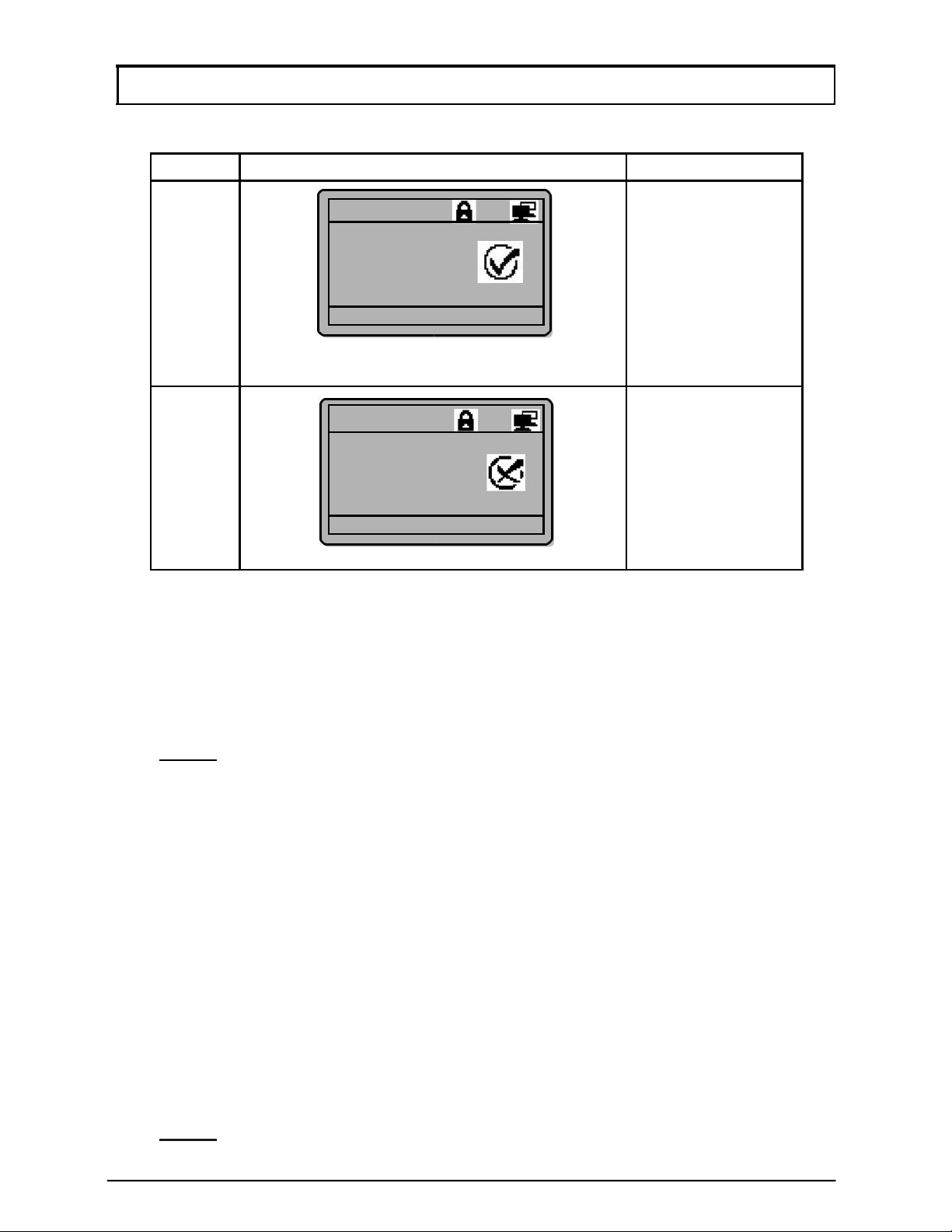

Table below shows controller’s responses in card operation mode:

Condition LCD Display Buzzer

Valid 1 bee

Token

Presented Valid Entry

ID: [801208]

10:38:55

Tue,07/17

Invalid 3 bee

Token

Presented Invalid Access

ID: [801208]

10:38:55

Tue,07/17

b. ‘Token+PIN’ Mode

Every card user will have its own four-digit pin number. In ‘Card+PIN’ mode, users

need to enter their respective pin numbers after flashing the access card. This

translates to a higher security level for the door access application.

NOTE:- All cards installed via the Database Menu will have a default pin

number of “1234”. To change the pin number, please refer to

Section 2.4 Edit User Setting.

c. ‘Token+Fingerprint’ Mode

Alternatively, users can opt to use the ‘Card+Fingerprint’ mode for higher levels of

access security. Each user can enrol up to 5 fingerprints for this purpose. For

enrolment of fingerprint, please refer to Section 3.1 Add Fingerprint.

d. ‘Token+PIN+Fingerprint’ Mode

For maximum security, the controller can be programmed to accept

‘Card+Pin+Fingerprint’ before granting door access.

Alternatively, the controller can also be programmed to accept ‘Fingerprint’ only or

‘Fingerprint+Pin’ verification mode according to the user’s requirements.

NOTE:- Fingerprint functions are only available to all XP-GT series.



9



MicroEn

ine

XP-GT/GTR Programming Manual

v4.00

iv. Symbols

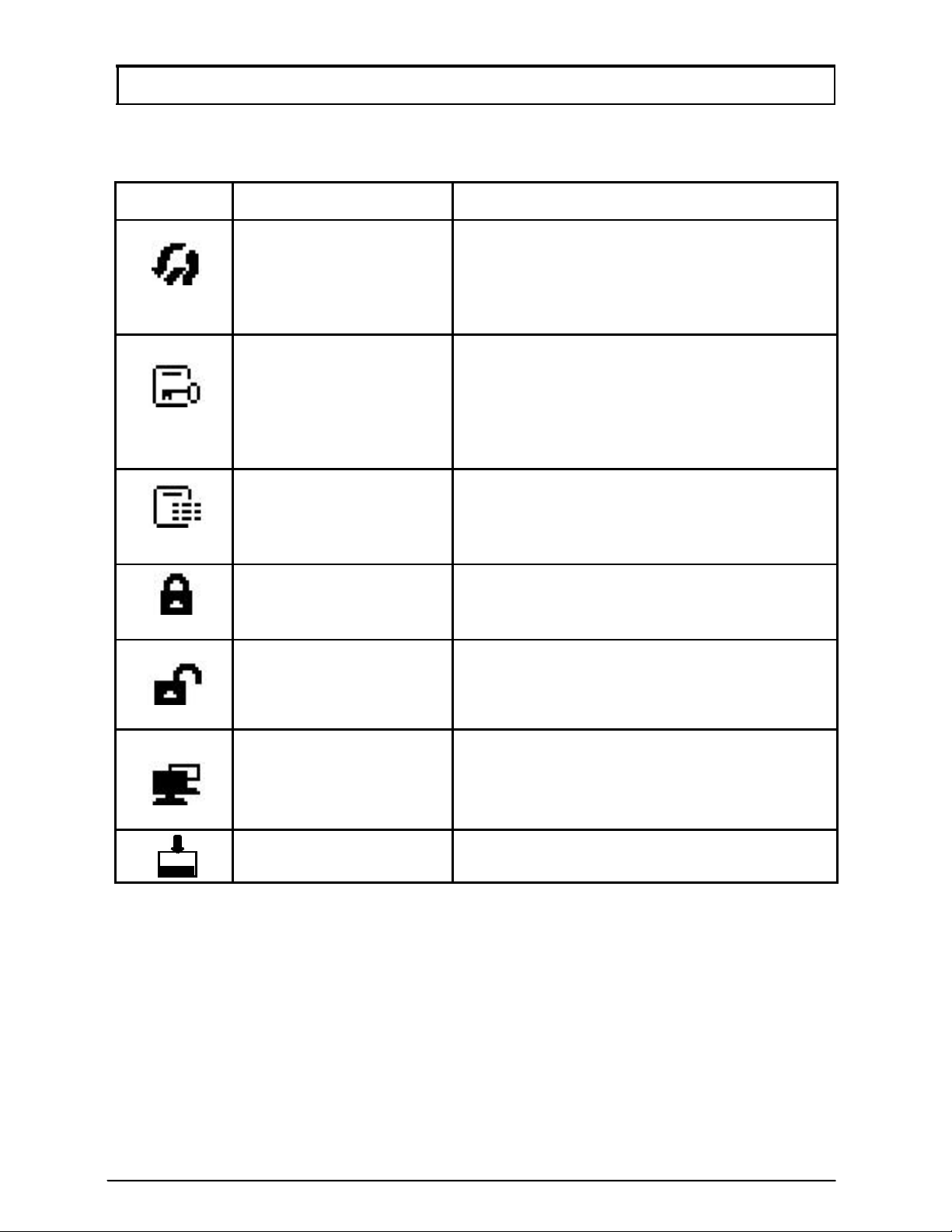

Listed below are the common symbols that are used in the operation:

Symbol Name Description

Anti PassBack Enabled

Anti PassBack Mode enabled. Once enabled,

a user will not be able to use the same

card to gain access through the same

direction successively without first gaining

access from the opposite direction.

Card LockOut Enabled

Card LockOut Mode enabled. Once enabled,

the token will be locked permanently afte

failing to gain access three consecutive

times. The failure can be caused by wrong

pin number, wrong time zone or anti pass

back violations.

High Security Mode

High Security Mode enabled. Users need to

Enabled comply with the pre-set high security

mode requirements to gain access. This

provides higher levels of access security.

Security On

Security Mode enabled. Users must adhere

to the pre-set verification mode to gain

access.

Security Off

Security Mode Disabled. The door lock will be

permanently unlocked for free access.

Uplink communication Communication has been established

with the remote server when this icon is

blinking.

Downlink Communication has been established with

Communication the relay board when this icon appears.



10



MicroEn

ine

XP-GT/GTR Programming Manual

v4.00

B. Programming Environment

The MicroEngine XP-GT/GTR series controllers have an LCD display and a 4 x 4

keypad to allow users to program the functionalities of the controller. The programming

environment on the controller is called the configuration menu.

i. Configuration Menu Layout

The Configuration Menu layout is shown in page 12.

ii. Keypad Functions

1. To choose a menu or function, just enter the number corresponding to the

menu or function.

EXAMPLE:- In the main menu, pressing 1will enter System Menu.

2. Press 0-9 to key in card number, pin number or numeric value for certain

functions.

3. Press Xto cancel a function or return to the previous screen.

4. Press √to select a parameter to change/confirm a setting or value.

5. Press ↑or ↓to toggle between options or to scroll up/down the menu.

iii. Entering Configuration Menu

The controller can be programmed through two methods:

i. MicroEngine xPortal2005/xPortal2007/xPortal3000 software application.

ii. On-board keypad programming.

This manual will describe the steps to configure the controller using the built in keypad.

XP-GT/GTR (1200, 3000, 3200, 1200L, 3000L, 3200L) Series

To enter Configuration Menu, please follow the steps below:

1. Press '*' (asterisk).

2. Enter the 6 digits Master Pin (default Master Pin = “123456”). To change the

Master Pin, refer to Section 4.1 Change Master Pin.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Microengine Sistema di controllo

Microengine

Microengine XP-GT3500L Manuale utente

Manuali Sistema di controllo popolari di altre marche

Pentair Pool Products

Pentair Pool Products Compool Manuale utente

ComfortNET

ComfortNET CTK04 Manuale utente

Fireye

Fireye InSight II 95DSS3 Manuale utente

CAME

CAME G3000 Manuale utente

Idemia

Idemia MorphoAccess VP MD Manuale utente

Axis

Axis P1445-LE-3 Manuale utente

HEIDENHAIN

HEIDENHAIN TNC 150 B Manuale utente

CNC-Step

CNC-Step High-Z T-Series Manuale utente

Doosan

Doosan DVF Series Manuale utente

Honeywell

Honeywell KAP 140 Manuale utente

Honeywell

Honeywell vk41 series Manuale utente

AirBench

AirBench FPW Guida all'installazione

Cypress

Cypress HHR-3160 Manuale utente

CAME

CAME GLT40AOS Manuale utente

Zonex

Zonex GEN II -VVT Guida utente

Altronics

Altronics K 9650 Manuale utente

micro-trak

micro-trak RoadMaster Manuale utente

micro-trak

micro-trak Calc-An-Acre II Manuale utente
