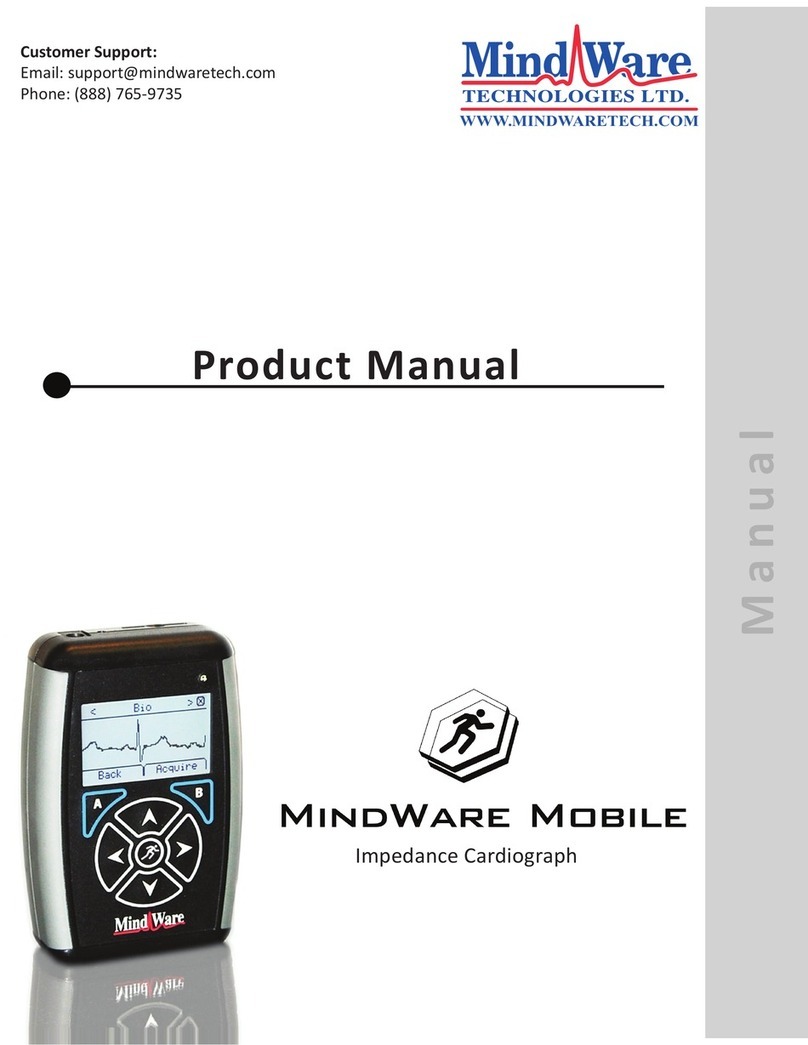

MindWare Technologies Mobile Manuale utente
Standalone Physiology Recording
1. Insert an SD Card
2. Attach signal leads to the Mobile Impedance unit
3. Power on with the Run ( ) button
4. Choose Local mode
5. The main screen summarizes the acquisition settings
a. See the full Local Mode documentation for details on the summary
6. Press A to enter Pre-Acquisition
a. Use the left and right arrows to verify signals
7. Press Bto start acquisition
a. Acquisition time will update in 5-second increments
b. Do not remove the SD card when the lock ( ) is displayed
8. Hold the left and right arrows to unlock the acquisition and press Ato exit
acquisition
9. Press Bto open the menu and select Power Off to turn off unit
Local Mode
MindWare Mobile
Impedance Cardiograph
The following is a basic “Quick Start Guide”. For more details regarding the
operation of the MindWare Mobile Impedance Cardiograph, please refer to the
software installers.
For help please contact: support@mindwaretech.com
Quick Start Guide
MindWare Technologies LTD.
support@mindwaretech.com
www.mindwaretech.com
Made in USA
0981
Wi Mode
Wireless physiology recording
http://www.mindwaretech.com
2. Attach the BioNex or Wireless Data Center over USB and start BioLab
3. Attach signal leads to the Mobile Impedance unit
4. Power on with the Run ( ) button
5. Choose Wifi mode
a. See the section on wireless settings for detailed instructions
6. Wait for the wireless network status to be Connected
8. Press Ato start the auto-connection to BioLab
9. Wait for the Mobile Impedance unit to show up in BioLab
10. Enable the Mobile unit and choose up to 4 channels to record
11. Repeat for multiple Mobile units
12. Click Connect in BioLab to establish connections with all selected Mobile
units
13. Choose Acquire
14. Press Start/Stop to begin acquisition
15. Press Start/Stop to end acquisition and choose Exit to leave acquisition
mode
16. Press Exit in BioLab to exit the application
17. On the Mobile unit, press Bto enter the menu and choose Power Off to
turn off the unit
Quick Start Guide
MindWare Technologies LTD.
support@mindwaretech.com
www.mindwaretech.com
