Minka Group MinkaAire BARN Manuale utente

INSTRUCTION MANUAL WARRANTY CERTIFICATE

BARN

Patents, Trademark, and/or Copyright Laws.

The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer.

This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs

excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling

fan (excluding wall controls and electrical components), to the original purchaser or user.

* The warranty is voided with the use of any non- Minka-Aire®electrical devices, E.g., wall controls or electrical dimmer switches, etc…

* The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.

* The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan specific) other than the hanger bracket supplied & installed

with this specific fan.

Date Purchased Store Purchased Model Number Serial Number

F864L

Warranty Service Information

To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of

purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty

claim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value. This is a

limited warranty; the original purchaser or user is responsible for the cost of removal and reinstallation of repaired or replacement product.

To obtain the name of the Minka-Aire® authorized dealer nearest you call the Minka-Aire® customer care department at 1-800-307-3267, or

contact Minka-Aire® through www.minkagroup.net and select FAQ to answer any questions or if you require additional assistance submit the

question form found there.

CONTENTS

SAFETY RULES...........................................................................................

PACKAGE CONTENTS............................................................................

INSTALLING THE FAN............................................................................

HANGING THE FAN................................................................................

ELECTRICAL CONNECTIONS..............................................................

FINISHING THE INSTALLATION.......................................................

ATTACHING THE FAN BLADES.........................................................

INSTALLING THE MOUNTING PLATE............................................

INSTALLING THE LED LIGHT KIT

..............................................................

INSTALLING THE GLASS SHADE .............................................................

OPERATING THE REMOTE CONTROL...................................................

ENJOY YOUR SMART CEILING FAN......................................................

CARE OF YOUR FAN......................................................................................

TROUBLESHOOTING...................................................................................

SPECIFICATIONS............................................................................................

1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267

SAFETY RULES

1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.

2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.

3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a

do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.

4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the

floor and 18 inches from the tip of the blades to the wall.

5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure the

box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds) Do

not use a plastic box.

6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.

7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).

8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.

9. Do not insert anything into the fan blades while the fan is operating.

10. Turn the fan off and wait for the blades to stop completely before performing any maintenance or cleaning.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM MARKED

ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE

FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED.

CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT

INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE AL-168-1101 SOLID-STATE SPEED

CONTROL WITH DL-6102T REMOTE CONTROL ONLY.

NOTE:

The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may

occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be

supplied by the person (s) installing, caring for and operating the unit.

NOTE: READ AND SAVE ALL INSTRUCTIONS!

14. Balancing kit

A. Mounting hardware:

#10 x 1.5" Wood screws (2 PCs.)

#8 x 3/4" Machine screws (2 PCs.)

Lock washers (2 PCs.)

4mm Star washers (2 PCs.)

Wire nuts (3 PCs. )

Washers (2 PCs.)

B. Blade attachment hardware:

3/16" x 1/2" Screws with lock

washers (31 PCs.)

C. Blade holder attachment hardware:

1/4"*1/2" Screws with lock washers

(11 PCs.)

D. Extension safety cable

1. Fan blades (10)

2. Hanger bracket

3. Canopy

4. Canopy cover

5. Downrod assembly

6. Coupling cover

7. Fan motor/housing assembly

8. Blade holders (5) &

blade medallions (10)

9. Mounting plate

10. 40 Watt LED Light

11. Glass Shade

12. Remote control with holder and 2

mounting screws

13. 12V MN21/A23 battery

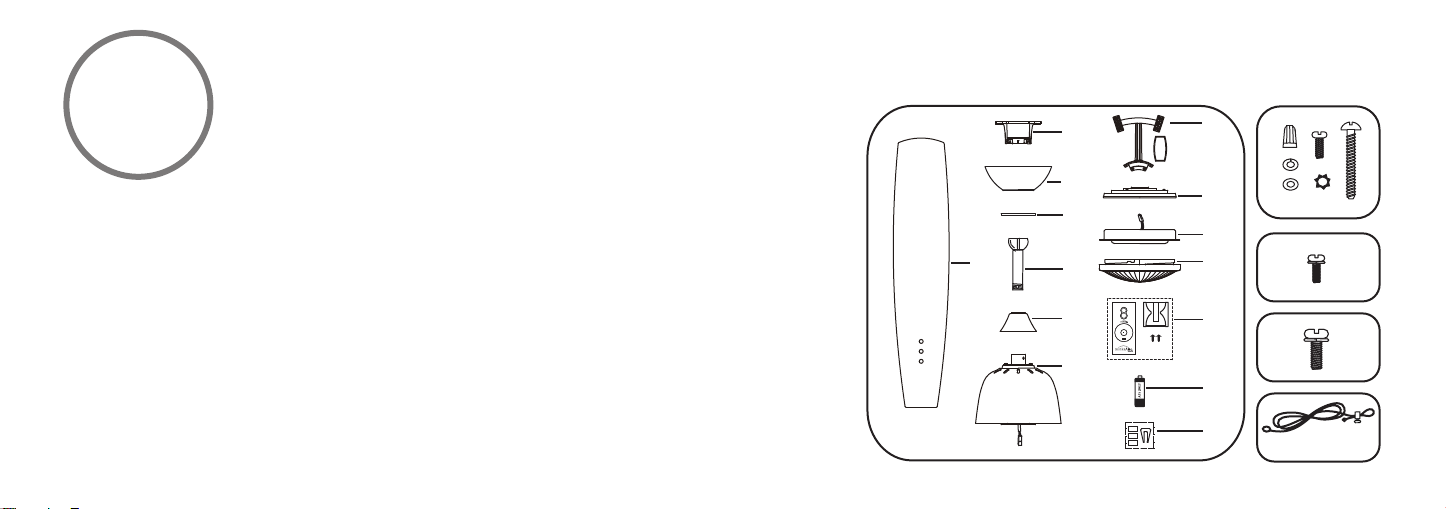

PACKAGE CONTENTS

Unpack your fan and check the contents. You should have the following items:

Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.

INSTALLING THE FAN

MOUNTING OPTIONS

If there isn't an existing mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate fasteners and building

materials. The outlet box and its support must be able to fully support the moving weight of

the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.

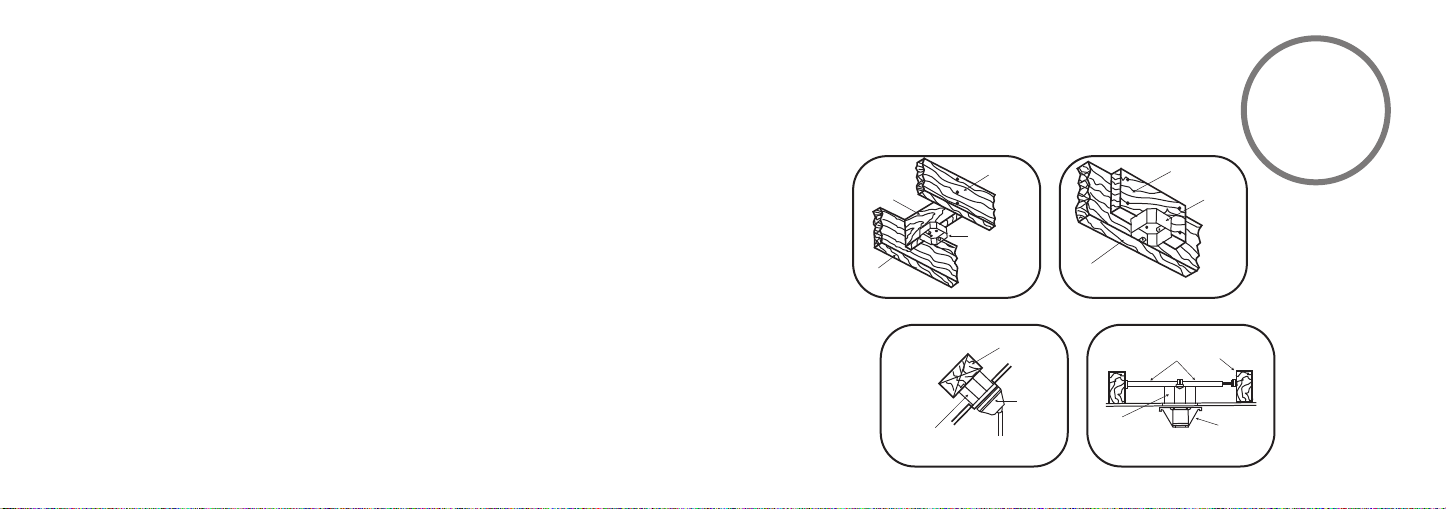

Figure 1, 2 and 3 are examples of different ways to mount the outlet box.

Note: You may need a longer downrod to maintain proper blade clearance when installing on a

steep, sloped ceiling. Longer downrods are available from your Minka-Aire®dealer.

To hang your fan where there is an existing fixture but no ceiling joist, you may need to install

a hanger bar as shown in Fig. 4 (available at your Minka-Aire® dealer).

FIG. 1

FIG. 3

FIG. 2

FIG. 4

CROSS BRACE

CEILING

JOIST

CEILING

JOIST

CEILING

JOIST

OUTLET BOX

PARALLEL WOOD BRACE

(MIN. 2" THICK)

OUTLET

BOX

OUTLET BOX

CEILING JOIST OR

CROSS BRACE

ANGLED CEILING

MAXIMUM 18° ANGLE

PROVIDE

STRONG

SUPPORT

RECESSED

OUTLET BOX

HANGER

OPENING

MUST BE

FACING

UPSIDE

HANGER BAR

(OPTIONAL)

HANGER

BRACKET

WARNING: All of the parts, hardware and components such as the

hanger bracket and hanger ball have been provided for your safety and

the proper installation of your new ceiling fan. The use of other parts,

hardware or components not supplied by Minka Aire®with the fan will

void the Minka Aire®Warranty.

REMEMBER to turn off the power. Follow the steps below to hang your

fan properly:

Step 1. Secure the Hanger Bracket to the ceiling outlet box using the screws

provided with your outlet box in conjunction with the lock-washers

provided with the fan. (Fig. 5)

Step 2. Loosen the two Set Screws and remove the Hitch Pin and Lock Pin

from the coupling located on the top of the Motor Assembly. (Fig. 6)

Step 3. Remove the Hanger Ball from the Downrod Assembly by loosening

the Set Screw and removing the Cross Pin. (Fig. 7)

Step 4. Carefully feed fan wires and safety cable up through the

downrod. (Fig. 8) Thread Downrod into the Coupling until the holes are

lined up and secure with the Lock Pin and Hitch Pin previously removed,

tighten Set Screws. (Fig. 9)

Step 5. Slip coupling cover, canopy cover and canopy onto downrod.

(Fig. 9) Carefully reinstall hanger ball onto rod being sure that cross pin

is in correct position, set screws are tighten and wires are not twisted.

Step 6. Lift the Motor Assembly and place the Hanger Ball into the

Hanger Bracket. Rotate the Motor Assembly as needed until the check

groove from the Hanger Ball rests firmly over the registration tab from

the Hanger Bracket. Motor Assembly should not rotate if this is done

correctly. (Fig. 10)

Step 7. Secure the safety cable to the building structure using a wood

screw (not included). If necessary, connect the extension safety cable to

the safety cable (from fan), feed end of cable into clamp hole and firmly

tighten screw. as noted in the circle inset of Figure 10.

HANGING THE FAN
