magicolor 6110

Installation Guide

1800645-001A

Thank You

Thank you for purchasing a magicolor 6110. Your magicolor 6110 is specially

designed for optimal performance in Windows, Macintosh, and networking

environments.

Trademarks

The following are registered trademarks of MINOLTA-QMS, Inc.: QMS, the MINOLTA-

QMS logo, Crown, CrownNet, and magicolor.

Minolta is a trademark of Minolta Co., Ltd. Other product names mentioned in this

guide may also be trademarks or registered trademarks of their respective owners.

Proprietary Statement

ified, displayed, transferred, or copied in any form or in any manner or on any media,

in whole or in part, without the express written permission of MINOLTA-QMS, Inc.

part, nor transferred to any other media or language, without written permission of

MINOLTA-QMS, Inc.

Notice

MINOLTA-QMS, Inc. reserves the right to make changes to this guide and to the

equipment described herein without notice. Considerable effort has been made to

ensure that this guide is free of inaccuracies and omissions. However, MINOLTA-

QMS, Inc. makes no warranty of any kind including, but not limited to, any implied

warranties of merchantability and fitness for a particular purpose with regard to this

guide. MINOLTA-QMS, Inc. assumes no responsibility for, or liability for, errors

contained in this guide or for incidental, special, or consequential damages arising

out of the furnishing of this guide, or the use of this guide in operating the equipment,

or in connection with the performance of the equipment when so operated.

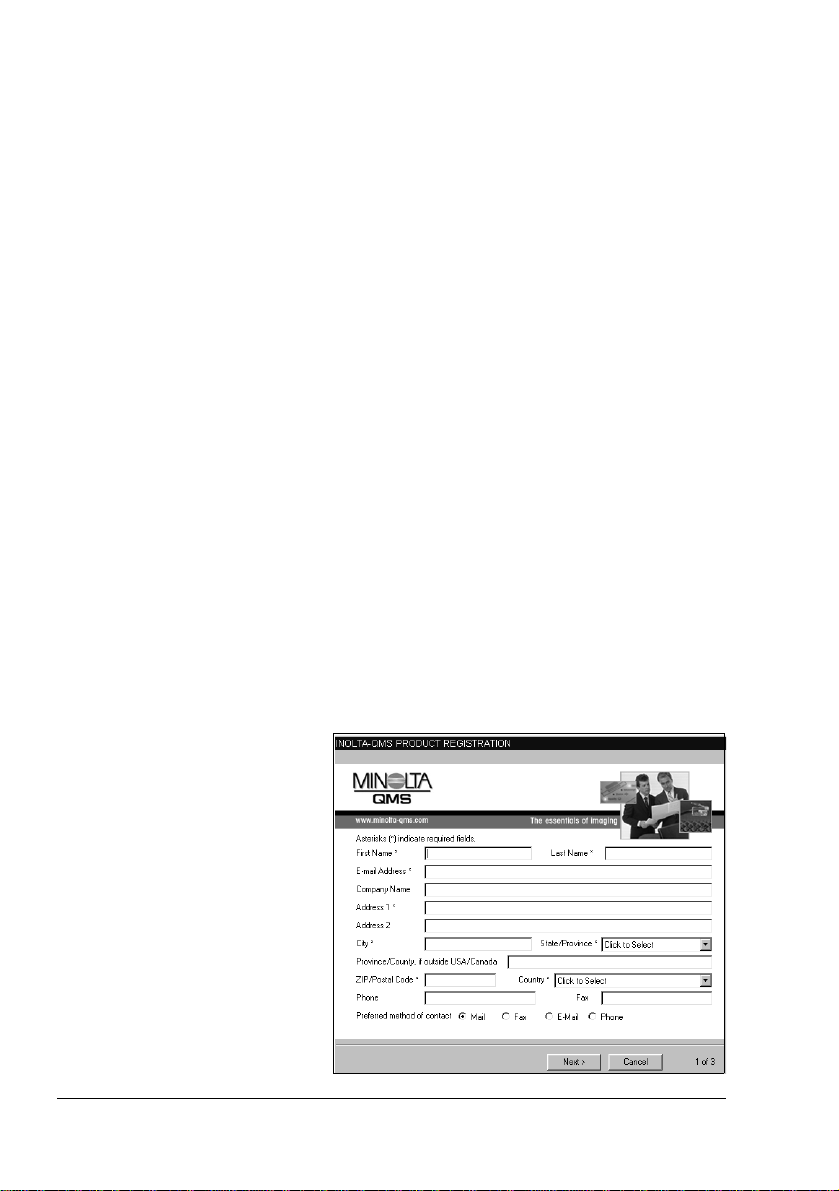

Registering the Printer

Mail—Fill out and send in the

registration card enclosed in your

shipment or downloaded from

www.onlineregister.com/

minolta-qms/

Internet—Follow the instructions

on www.onlineregister.com/

minolta-qms/

Software Utilities

CD-ROM—

Follow the instructions on the

CD-ROM.

Contents

Getting Acquainted with Your Printer............................................ 5

magicolor 6110 Features 5

Location Requirements 6

Printer Parts 8

Front View 8

Top Internal View 8

Front Internal View 8

Cross Section Side View 9

Rear View 9

Rear Internal View—Transfer Unit 9

Documentation Set ....................................................................... 10

Setting up Your Printer .................................................................. 11

Shipment Contents 11

Unpacking the Printer 11

Installing the Toner Cartridges 12

Loading the Media Tray 18

Accessories .................................................................................... 19

Plugging in/Turning on the Printer .............................................. 20

Configuration Menu Overview ...................................................... 21

Menu Chart Conventions 21

Contents4

Installation* Menu 21

Operator Control Menu 22

Administration Menu 23

Administration/Communications/Resident NIC/

CrownNet Menu 24

Selecting a Message Window Language ....................................24

Printer Control Panel 24

About the Control Panel ..............................................................26

Message Window ......................................................................... 26

Control Panel Indicators 26

Control Panel Keys 27

Menu, Select, Previous, and Next Keys 28

About the Interface Panel ............................................................. 29

Software Utilities CD-ROM ........................................................... 29

Regional Settings 29

Drivers and Utilities 30

Installing Printer Drivers and Software ...................................... 31

Installing Windows Drivers and Utilities via a Parallel

Connection 31

Installing Windows Drivers and Utilities via an Ethernet

TCP/IP Interface Configuration 33

Installing Macintosh Drivers and Utilities 35

Installing Drivers and Utilities on UNIX and Others 36

Troubleshooting ............................................................................ 37

Solving Problems during Installation 37

Accessories and Consumables .................................................. 41

Accessories 41

Consumables 43

Regulatory Compliance ............................................................... 44

FCC Compliance Statement 45

EN 55022 45

Canadian Users Notice 46

Laser Safety 46

International Notices 46

Warranty Considerations ............................................................. 47

Manufacturer’s Declarations of Conformity ............................... 49

Getting Acquainted with Your Printer 5

Getting Acquainted with Your Printer

magicolor 6110 Features

Features/Model GN

Print Speed SPM (Letter/A4) 6/24*

SDRAM 256 MB

Resolution 1200 x 1200 dpi

250-sheet Universal Upper

Media Tray z

250-sheet Letter/A4 Upper

Media Tray {

Standard Interfaces IEEE-1284 parallel

Ethernet

Serial RS-232C

Internal IDE Hard Disk {

Time-of-Day Clock {

Lower Feeder Unit (each

lower feeder unit comes with

a 500-sheet media tray)

{

Duplex Unit {

Cabinet {

Number of Cartons in

Shipment 1

Note *Sheets per minute (SPM): 6 = color;

24 = monochrome black.

The 110 and 220 volt printers ship with

an envelope feeder, and the 100 volt

printers ship with a postcard feeder.

z= Standard

{= Optional

Getting Acquainted with Your Printer6

Location Requirements

„On a hard, flat, level (1.5° or less slant at any point around the

machine) surface capable of supporting the printer, accessories, con-

sumables, and media. Weights are shown below.

A surface can be tested for levelness with a standard round

pencil. If the pencil rolls, the surface is not level. Clear the area

of any obstruction or items such as cables that might prevent

the printer from sitting directly on the flat, level surface.

„In an area with an ambient temperature range of 50°–95° F (10°–

35° C) and relative humidity range of 20%–80% (noncondensating).

„Away from cooling and heating sources, extreme temperature or

humidity changes, direct sunlight, excessive dust, corrosive chemicals

Top View

Component Weight

Printer 101 lbs (46 kg)

Consumables (such as toner,

OPC belt) 11 lbs (5.0 kg) (total)

Media 5.2 lbs (1.9 kg) per ream of 20 lb

bond (75 g/m2) paper

Lower feeder unit (each) 14.8 lbs (6.7 kg)

Duplex unit 5.3 lbs (2.4 kg)

015mati.eps

28 inches

(70 cm)

8 inches

(20 cm)

20 inches

(50 cm)

Front

4 inches

(10 cm)

Getting Acquainted with Your Printer 7

or vapors (such as ammonia), water pipes, refrigerators, and

any strong electromagnetic field (such as that created by an air

conditioner).

If the printer is located in a cold room that is rapidly heated, or if the

printer is moved from a cold place to a warm, humid place, condensa-

tion may occur within the printer, degrading print quality. If this occurs,

allow the printer to adapt to the environment for about one hour

before use.

„Away from open flames or items that can easily burn.

„Away from water.

If using a humidifier or water vaporizer in the room with the printer, use

only purified or distilled water. Impurities in the water may be released

into the air, where they can accumulate inside the printer and cause

degraded printer output.

„Away from items that produce excessive vibration.

„At an altitude of 0–8202' (0–2500 m).

„Near your computer—6.5' (2 m) or less for an IEEE 1284 bidirectional

parallel connection; cables for other connections may be longer.

„Close to an easily accessible grounded power supply on an exclusively

dedicated power outlet.

Attention

Do not connect the groundwire to gas or water pipes or grounding

for telephones.

„Not connected to the same electrical outlet as noise-generating equip-

ment. If the printer is connected to the same circuit used by other

high-current machines, such as a copier or air conditioner, or to an

electrically noisy machine, low voltage or noise may cause overheat-

ing, computing errors resulting in data loss, and improper performance.

„In a well-ventilated area, but away from wind.

„With enough space to allow adequate ventilation and easy servicing.

WARNING!

Obstructing the ventilation grilles could present a fire hazard.

Getting Acquainted with Your Printer8

Printer Parts

The drawings on these pages illustrate the parts of your printer referred

to throughout this guide, so please take some time to become familiar

with the printer.

Front View

Top Internal View

Front Internal View

1—Output tray

2—Control panel

and message window

3—Top cover

4—Top cover latch

5—Front cover latch

6—Front cover

7—Power switch

8—Carrying grips (on all 4

corners)

9—Upper universal

media tray (tray also

known as a cassette)

1—Cleaning roller

2—Fuser oil bottle

3—OPC belt cartridge

with corona wire

goes here

1—Laser lens cover (inside)

2—Toner cartridge

3—Waste toner bottle

Getting Acquainted with Your Printer 9

Cross Section Side View

Rear View

Rear Internal View—Transfer Unit

1—Output tray

3—Fuser unit

4—Fuser rollers

5—Transfer drum

6—Pickup rollers

7—Media tray

2—Paper exit

8—Toner cartridges

9—OPC belt

1—Control panel

4—Rear cover

5—Ozone filter

8—AC power connector

3—Ventilation grille

Lower rear cover

6—

2—Top cover

7—Interface panel

1—Registration

rollers

2—Transfer

roller

3—Paper

discharger

and wire

DocumentationSet10

Documentation Set

Your magicolor 6110 comes with two CD-ROMs. All the documentation is on

the

Documentation

CD-ROM unless otherwise noted below. It is provided in

Adobe Acrobat PDF format. Acrobat Reader and QuickTime programs are

provided on both CD-ROMs.

You will discover movie camera icons in the manuals. If you’re using

the Acrobat PDF version of this guide, click the icon to play a Quick-

Time video clip of the procedure described in the text.

Quick Setup

Guide

Use this sheet when unpacking the printer.

Service&Support

Guide

This lists global sources of service and support for

your printer. Further information about MINOLTA-QMS

printers is available through the Internet at

www.minolta-qms.com.

Installation Guide

You’re looking at this document right now. This assists

in setting up the printer, installing accessories, installing

a printer driver, and connecting to a network. It also

briefly describes the control panel and configuration

menu.

User’s Guide

This guides you through the day-to-day operation of

your printer, including information on printing files, re-

filling print media, and replacing toner. It also includes

information on additional accessories and options; han-

dling, cleaning, and maintaining your printer; improving

print quality; and troubleshooting printer problems.

Maintenance

Guide

This guide is a handy item to keep close to the printer

for quick reference information regarding operation and

care of the printer.

CrownBooks

These manuals provide detailed information about

Crown architecture, color printing, menu configuration,

and advanced computer/network connection and con-

figuration. They can be found in PDF format on the

Software Utilities

CD-ROM.

Colorific Monitor

Calibration Card,

Color Encore

Brochure

This card is used to color calibrate your monitor using

Colorific.

The brochure tells you about addtional calibration

alternatives for Color Encore.

Colorific User’s

Manual

This manual contains instructions for using Colorific’s

monitor calibration software and helpful information

about color management, ICC profiles, and color

matching.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali MINOLTA-QMS Stampante

MINOLTA-QMS

MINOLTA-QMS PagePro 9100 Guida rapida

MINOLTA-QMS

MINOLTA-QMS Magicolor 2200 DP Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 4100 Series Manuale utente

MINOLTA-QMS

MINOLTA-QMS magicolor 2350 Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 9100 Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 1200 Series Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 1100L Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 9100 Manuale utente

MINOLTA-QMS

MINOLTA-QMS Magicolor 2 Desklaser Manuale utente

MINOLTA-QMS

MINOLTA-QMS ENord magicolor 3100 Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 1250E Manuale utente

MINOLTA-QMS

MINOLTA-QMS MAGICOLOR 6110 Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 4100E Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 9100 Manuale operativo

MINOLTA-QMS

MINOLTA-QMS ENord magicolor 3100 Manuale utente

MINOLTA-QMS

MINOLTA-QMS magicolor 330 Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 9100 Manuale utente

MINOLTA-QMS

MINOLTA-QMS ENord magicolor 3100 Manuale utente

MINOLTA-QMS

MINOLTA-QMS Magicolor 2210 GN Manuale utente

MINOLTA-QMS

MINOLTA-QMS 2560 Manuale utente

MINOLTA-QMS

MINOLTA-QMS magicolor 2300 DL Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 1100L Manuale utente

MINOLTA-QMS

MINOLTA-QMS PagePro 4100W Manuale utente

MINOLTA-QMS

MINOLTA-QMS 4060 Istruzioni per la costruzione

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente
