MINOURA RS-X Manuale utente

!Be careful not to pinch your finger

between the frames.

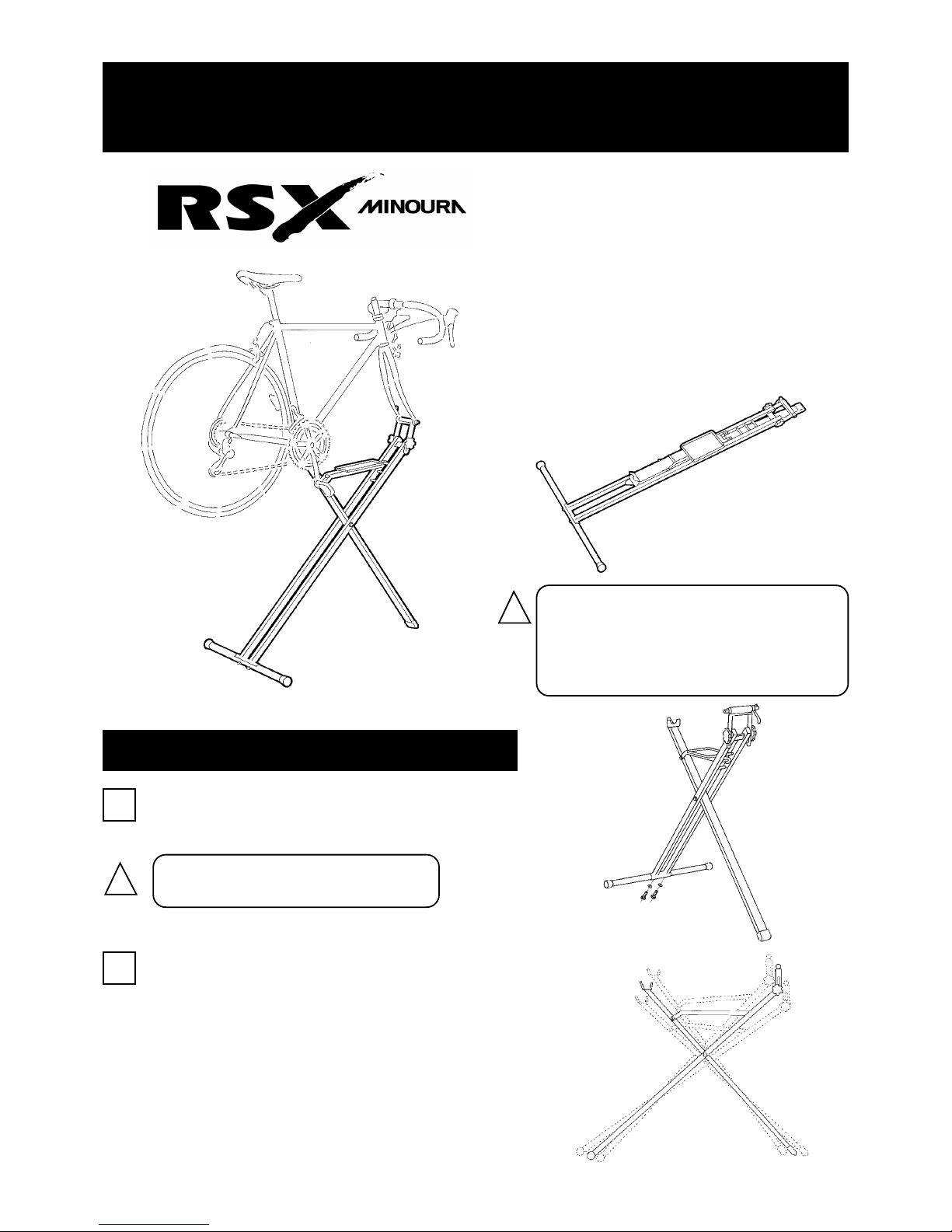

BIKE REPAIR STAND RS-X INSTRUCTION MANUAL

Please read this instructions carefully before use.

Thank you for purchasing the Minoura “RS-X”

bike repair stand.

The RS-X is a simple, elegant and stable stand

with a quick folding mechanism for easy storage

and transportation.

The frame is height adjustable in three levels and

the front fork support is fully adjustable to suit

various bike frame sizes and your favorite work-

ing position.

(in folded down position)

HOW TO SET-UP YOUR RS-X

1Install the leg with supplied two screws and open the

frame. (see Fig. A)

RS-X is used while the front wheel is

removed so it can be used for nor-

mal bicycle only. Do NOT use on

tandems or electric bikes.

(Fig. A)

(Fig. B)

Open the arm and hook one of the three bars which are

located between the main frame. You can choose your

favorite stand height by selecting one of the hooks.

(see Fig. B)

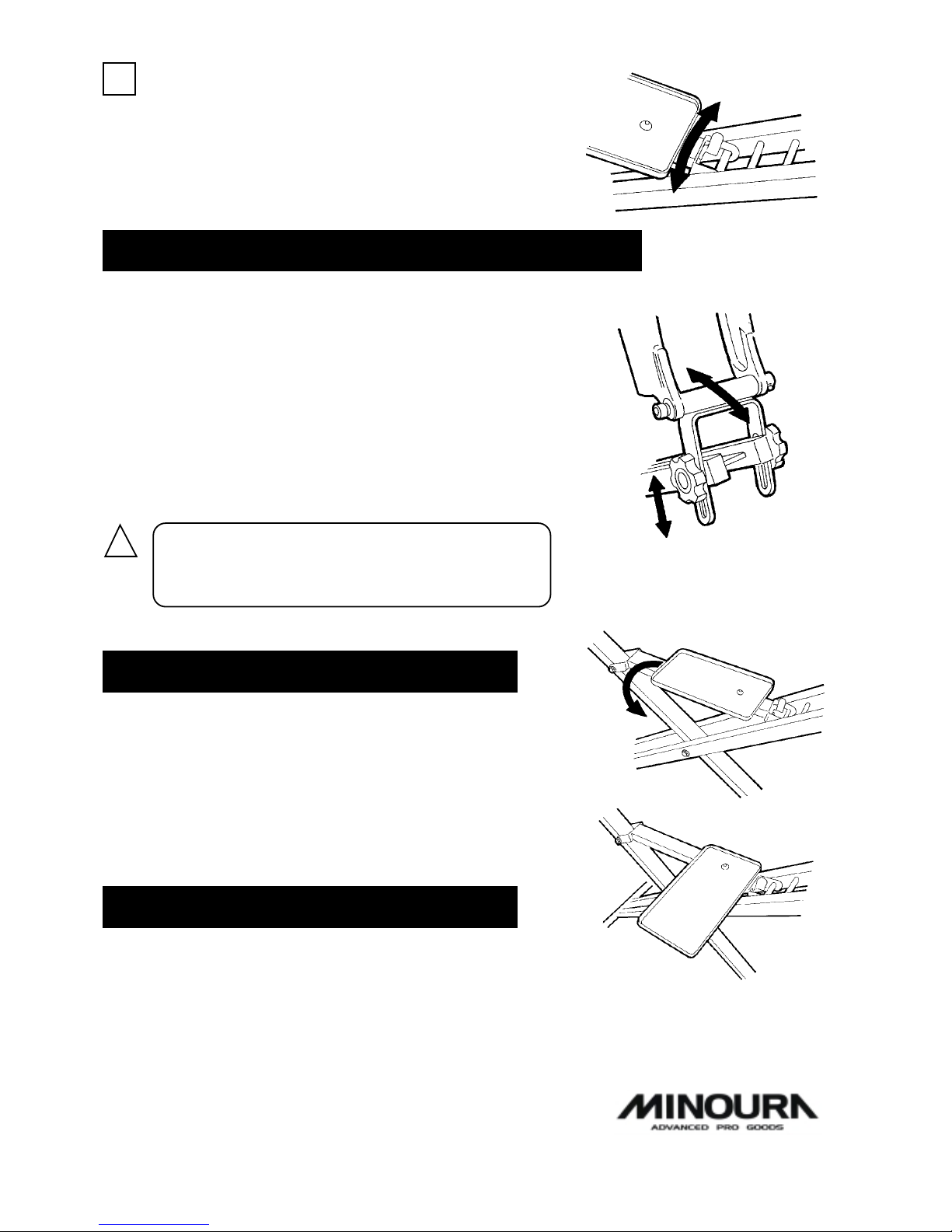

3Once you select the hook you want, push down the lock

lever to lock the position. Otherwise the arm may come

loose if you lift up your bike from the stand.

(see Fig. C)

LOCK

RELEASE (Fig. C)

(Fig. D)

Loosen both side knob bolts to make the front fork mount

loose. (see Fig. D)

Insert the front fork end onto the fork mount, and tighten the

fork securely with the quick release skewer.

Then put the bottom bracket of your bike onto the B/B mount

by holding the bike with your hand.

After setting up your bike, tighten both knob bolts firmly to fix

the position.

If you don’t tighten the knob bolt(s) the bike

may come loose and fall off during your mainte-

nance work.

The parts tray (optional) can be swung for both side as you

need. (see Fig. E & F)

If you put heavy tool or parts on the tray, we strongly recom-

mend you to turn back the tray in the first position (along the

arm). Otherwise the tray may be bent.

(Fig. E)

(Fig. F)

HOW TO MOUNT YOUR BIKE ON THE RS-X

HOW TO USE THE PARTS TRAY

FOR MORE INFORMATION

MINOURA HEAD OFFICEMINOURA HEAD OFFICE

MINOURA HEAD OFFICE

1197-1 Godo Anpachi Gifu 503-2305 Japan

Phone (+81) 584-27-3131 / Fax (+81) 584-27-4258

minoura@minoura.jp / www.minoura.jp

MINOURA NORTH AMERICA MINOURA NORTH AMERICA

MINOURA NORTH AMERICA (for U.S. and Canadian residents only)

1996 East Avenue Hayward CA 94541-5454 U.S.A.

Phone 1-510-538-8599 / Fax 1-510-538-5899

MinouraUSA@ATTglobal.net MADE IN JAPAN
