MINOURA VERGO Manuale utente

VERGO instruction manual

Thank you for purchasing the “VERGO” bike mount kit.

You can hold two or three bikes in the cargo space of your vehicle or on the truck bed easily and

with stability.

Please read the following instructions carefully before use.

HOW TO USE VERGO

Two bikes in a mini-van

1. Place VERGO on aflat floor of the cargo space.

VERGO itself is free standing so uneven

floor design will compromise stability.

2. Remove the front wheel, then clamp the front

fork on the Fork Mount with the supplied

quick release skewer.

When you need to adjust the bikesposition, just

slide the Fork Mount by loosening the knob

bolt and moving the mount in either direction.

Slide to the desired position,then tighten the knob

bolt firmly to fix the position.

Make sure both adjustment position guides are

properly in the rail of the main frame.

4. The Fork Mount can be twisted in 25 degrees in

both directions. This makes for easy adjustment

for handlebar issues and savesspace.

Understand: Bikes on VERGO are not attached to. If you drive hard, the bikes may move around

in your vehicle. To keep the bikes stable, we recommend tying bikes down with a long strap.

Twisted Fork Mount position

CAUTION

VERGO is already assembled so you don’t need

to disassemble the kit.You may want to add

or replaceoptional Fork Mounts. To do so,

follow the steps.

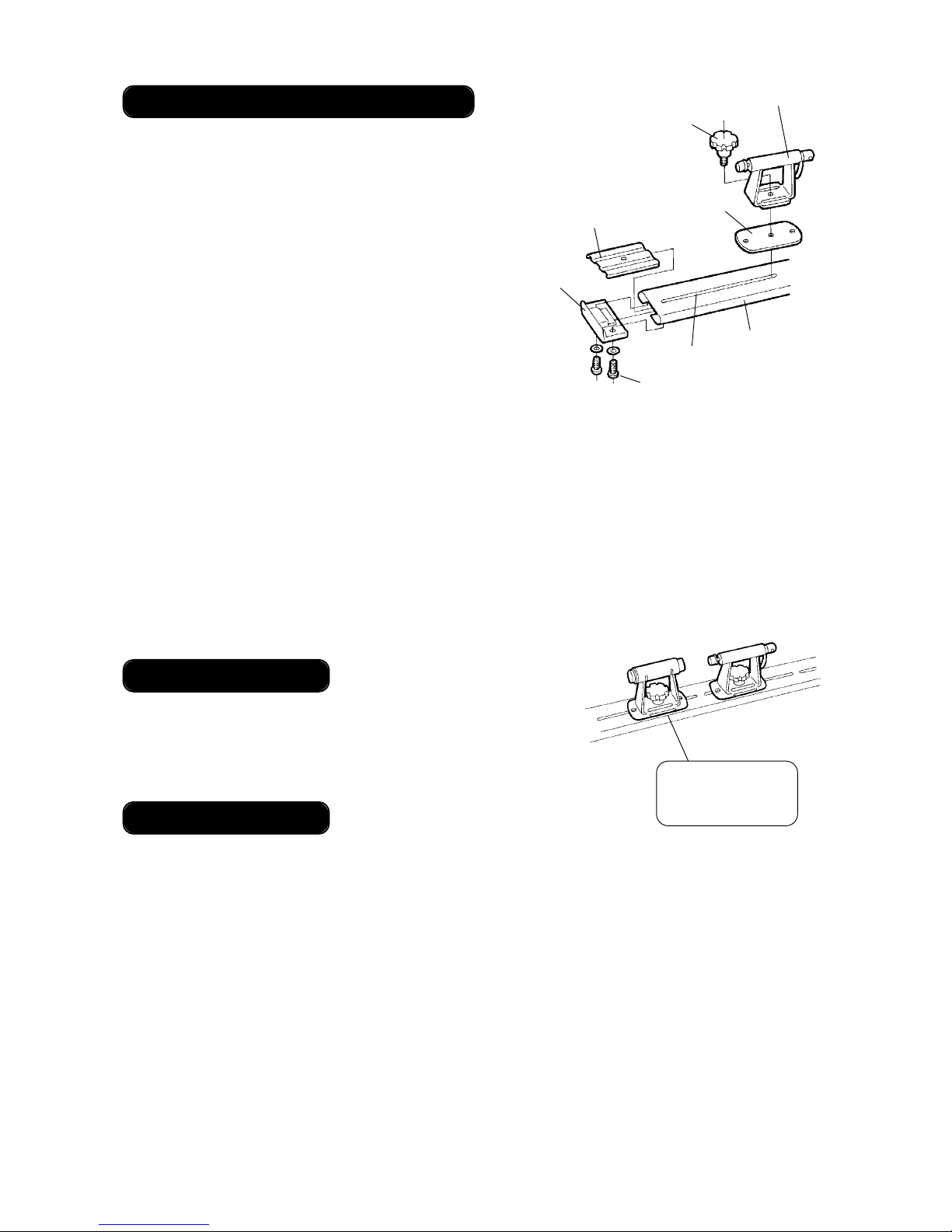

Knob Bolt Fork Mount

Guide Plate

Base Frame

Base Plate

End Cover

Screw & Washer

Rail

1. Remove the two screws under the End

Cover with a phillips screwdriver, then the

End Cover will be removed.

2. Disassemble the Fork Mount. It’s simple,

just remove the knob bolt.

Insert the Base Plate into the Base Frame.

Be sure the direction of the Base Plate must be “M” style, not “W” style.

Place the Guide Plate onto the Base Frame and confirm both adjustment position guides

on the back side are properly fitted to the Rail. The guide will be flush with the base frame.

Place the Fork Mount on the Guide Plate then tighten the Knob Bolt.

6. Finally, insert the End Cover to the Base Frame and tighten the screws.

OPTION

The “DH Fork Mount” for 20mm axle is available as an option.

DH Fork Mount

for 20mm axle
