Mitsubishi Electric GB-24A Manuale utente

Air-conditioner Control System

Centralized Controller

Model: GB-24A Installation Manual

Before installing the controller, please read this Installation Manual carefully to ensure proper operation.

Retain this manual for future reference.

Contents

1. Safety Precautions..................................................... 1

2. Parts List.................................................................... 3

3. Product Features ....................................................... 4

4. System Diagram ........................................................ 5

5. Installation.................................................................. 8

1. Field-supplied parts............................................... 8

2. Maximum length of M-NET transmission lines...... 8

3. Installation............................................................. 9

6. Wiring....................................................................... 12

1. Ground cable. ..................................................... 12

2. Cover removal and installation............................ 12

3. M-NET transmission line..................................... 13

4. LAN connection................................................... 13

7. Initial Setting ........................................................... 14

1. Setting the IP address with dip switches............. 15

2. Setting the service switch.................................... 15

8. Test Run .................................................................. 16

1. Collective operation, ON/OFF............................. 16

2. Service LED display............................................ 16

9. System Wiring Example........................................... 17

10. External Input/Output Usage .................................. 19

1. External signal input function .............................. 19

2. External signal output function............................ 21

This manual describes how to install the centralized controller and wiring. Before installing the controller, read the

section carefully to ensure proper installation.

Safety symbols used in this manual

The following symbols are used in this manual to indicate the type and severity of potential consequences that

may result when given instructions are not followed exactly as stated.

Retain the Installation Manual and the Instruction Book for future reference. Make sure both the Installation

Manual and the Instruction Book are given to any future air condition system users.

WARNING Indicates a risk of death or serious injury.

CAUTION Indicates a risk of injury or damage to the controller.

WARNING

CAUTION

Safety Precautions

The controller must be professionally installed.

Improper installation by an unqualified person may

result in electric shock or fire.

Make sure the controller is securely mounted so

that it will not fall.

Only use specified cables. Securely connect

each cable so that the weight of the cable is not

applied to the connectors.

Loose or improper connections may result in heat

generation or fire.

Do not attempt to modify or repair the controller.

Modification or improper repair may result in electric

shock or fire.

Consult your dealer when repairs are necessary.

Securely install the controller according to the

installation manual.

Improper installation may result in electric shock or

fire.

Electric work must be perform by authorized

personnel according to the local regulations and

the instructions detailed in the installation

manual.

Inadequate circuit capacity or improper installation

may result in electric shock or fire.

Ask your dealer or an authorized technician to

move the controller.

Improper installation may result in electric shock or

fire or damage to the controller.

This appliance must be grounded.

Make sure to install a ground wire.

Do not connect the ground wire to gas or water

pipes, lightning conductors or telephone grounding

lines.

Improper grounding may cause an electric shock.

Do not install the controller where there is a risk

of flammable gas.

If the leaked gas accumulates around the controller,

it may ignite and cause an explosion.

Do not use the controller in an environment high

in oil, steam, or sulfuric gas.

These substances may have adverse effects on the

performance of the controller or damage its parts.

Do not install this controller where the ambient

temperature exceeds 104ºF (40ºC) or drops

below 32ºF (0ºC).

To prevent the controller from being damaged and

malfunctioning, install it away from direct sunlight.

Do not install this controller in a place that has

the potential for steam or condensate formation.

Steam or condensate formation may cause an

electric shock or a unit malfunction.

CAUTION

When installing the controller in a hospital or communication facility, take appropriate measures to

reduce electrical noise interference.

Inverter equipment, generators, high-frequency medical equipment, or radio communication equipment may

interfere with the normal operation of the controller; or the electrical noise from the controller may interfere

with the medical practice or cause image distortion and static.

To prevent over-heating and fire, wire so that the

weight of the cable will not strain the connectors.

Do not expose the controller to water.

Water may damage the controller and cause an

electric shock.

Use specified wires with the proper current

carrying capacity to prevent current leakage,

over-heating, or fire.

Do not touch the PCB (Printed Circuit

Board) with your hand or a tool. Also do

not get dust on the PCB.

It may cause a fire or malfunction.

To reduce the risk of electric shock, install and

wire the unit with the power to power supply unit

turned off.

Do not install this controller where an acid,

alkaline solution, special chemical spray is

used frequently to avoid electric shock or

malfunction.

Do not press the switches with sharp objects.

It may cause an electric shock or malfunction.

To avoid causing damage or fire, do not apply an

AC voltage or a voltage higher than 30V DC to

the M-NET terminal blocks on the controller.

Do not touch the switches with wet hands.

It may cause an electric shock or malfunction.

Use a security device such as a VPN router when

connecting the GB-24A to the Internet to prevent

unauthorized access.

If no security devices are installed, the operation

settings may be changed by an unauthorized person

without the knowledge of the user.

*Please confirm that in addition to this Installation Manual, the following items are shipped with the unit.

* The screws for installing to the metal control panel are not included. (M4 screws)

* In addition to the parts above, a power supply unit for transmission line, which supplies the power to the centralized

controller through the transmission line, must be purchased. If the outdoor unit is a CITY MULTI R410A model, however, the

outdoor unit can also supply the power (Not applicable to the PUMY model).

*1: Each system allows the connection of only one GB-24A.

* Use PAC-SC50/51KUA (power supply unit) when multiple outdoor units are connected. Connect only the M-NET terminal

(TB2) on PAC-SC50/51KUA to the M-NET terminal on GB-24A

No. Part name Qty.

1 Centralized controller 1

2L-fitting 2

3 M3 (8mm (5/16in)) round head screw (for attaching the L-fitting) 4

4 DIN rail attachment 2

5 M3 (6mm (1/4in)) round head screw (for attaching the DIN rail attachment) 8

6 Installation manual (this book) 1

7 Instruction book 1

8 Web browser operation manual 1

9 Operation manual for Initial setting web 1

Unit that supplies the

power to GB-24A

The number of

connectable GB-24A Remarks

PAC-SC51KUA 1 unit *1 xWhen only one GB-24A unit is connected Up to two

other system controllers can be connected to the

transmission line for central control.

(Up to two ON/OFF remote controllers, up to four system

remote controllers, up to four schedule timers, or up to

four group remote controllers can be connected.)

PAC-SC50KUA 1 unit *1 xWhen only one GB-24A unit is connected Up to three

other system controllers can be connected to the

transmission line for central control.

(Up to three ON/OFF remote controllers, up to six

system remote controllers, up to six schedule timers, or

up to six group remote controllers can be connected.)

R410A CITY MULTI

outdoor unit (TB7)

(connected to the

transmission line for

central control)

1 unit x

Replace CN41 (power-supply switch connector) with

CN40 on only one outdoor unit.

Connectable number of indoor units will decrease by

4 units.

CITY MULTI units except the PUMY model (R410A

outdoor units only)

When multiple outdoor units are connected to the

system and the power to the outdoor unit is cut off to

which the GB-24A is connected, that GB-24A will shut

down.

CITY MULTI outdoor unit

(TB3)

(connected to

the indoor/outdoor

transmission line)

1 unit x

Connectable number of indoor units will decrease by

4 units.

When multiple outdoor units are connected to the

system and the power to the outdoor unit is cut off to

which the GB-24A is connected, that GB-24A will shut

down.

2Parts List

1. Specification

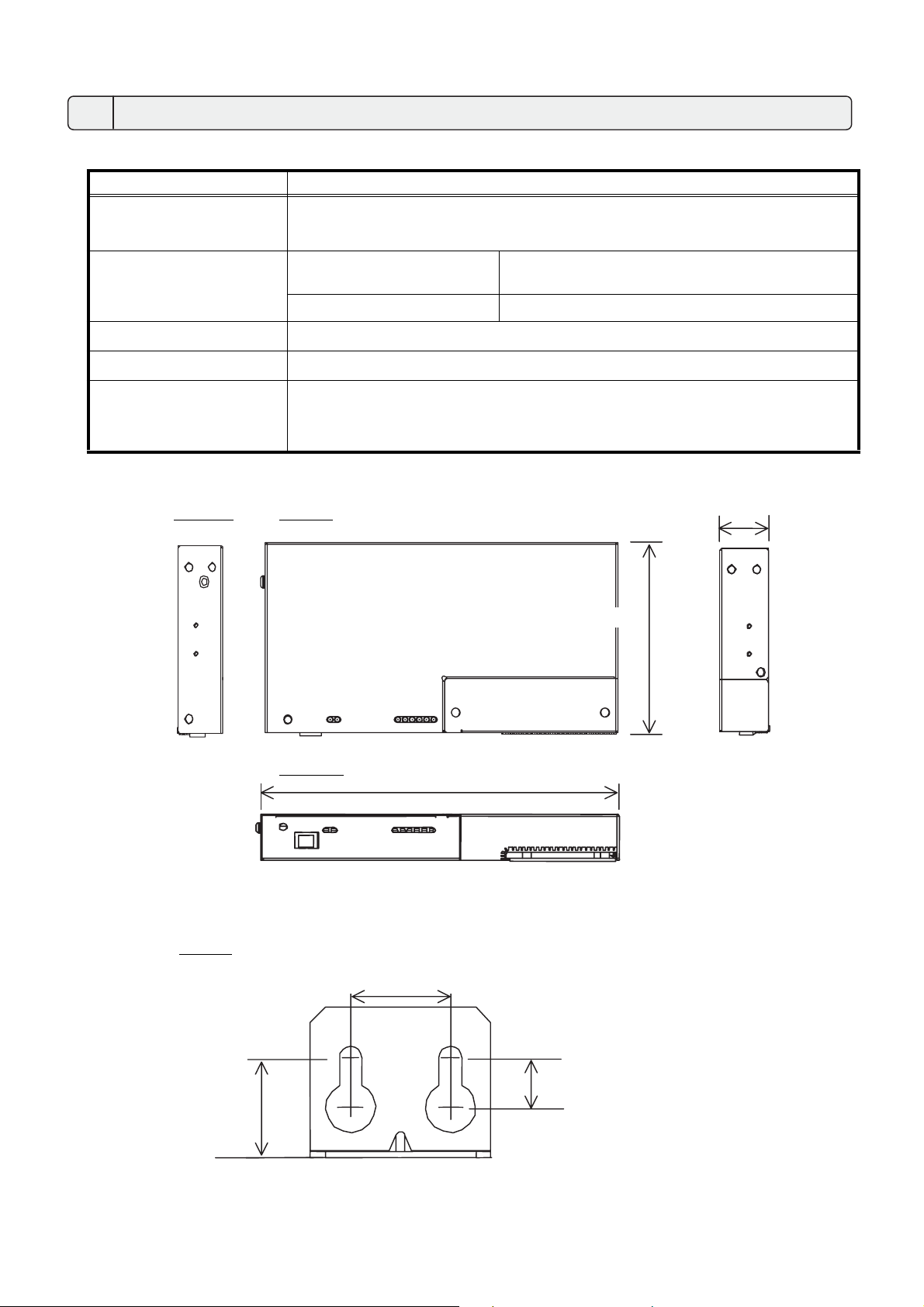

2. Outside dimensions

Fig. 3-1 Unit: in (mm)

Fig. 3-2 Unit: in (mm)

Item Contents

Interface M-NET: 30V/24V DC; 0.13/0.15A

External I/O: 12V DC or 24V DC (External power supply)

Ethernet: 10Base-T

Environmental

conditions

Temperature Operating range: 32 to 104ºF / 0 to 40ºC

Storage range: - 4 to +140ºF / -20 to +60ºC

Humidity 30-90%RH (No condensation)

Dimensions 51/8(H) x 97/8(W) x 11/2(D)in/130 (H) x 250 (W) x 38 (D) mm

Weight 21/2lb. / 1.1kg

Installation Environment In the metal control panel box (indoor)

Install this product indoors.

* This unit is installed and used in a business office, homes or equivalent

environment.

3Product Features

11/2(38)

97/8(250)

POWER LAN LINK/ACT

51/8(130)

1 2 3 4 5 6

Side view Top view

Front view

25/32

(

)

25/64

(

)

25/32

(

)

L-fittings

1. System with a power supply unit

* Address setting for each M-NET device (The address cannot be duplicated.)

Address setting method Address

Indoor unit Set an indoor unit as the master unit, and set the rest of

indoor unit sequentially address in the same group.

1-24

Outdoor unit Min. indoor unit address in same refrigerant system + 50. 51-74

BC controller/OS controller

* OS: Subsidiary Outdoor unit

Set the outdoor unit address in same refrigerant system + 1

However, for Sub-BC controller, set the minimum indoor unit

address that connects the local refrigerant piping + 50.

52-74

Mr.Slim Outdoor unit

(M-NET adapter)

Same address as indoor unit.

An M-NET adapter (sold separately) is required.

1-24

M-NET remote controller Set to the minimum indoor unit master address in the same

group + 100.

101-124

MA remote controller Address setting is unnecessary. -

OA processing unit/LOSSNAY After setting all the indoor units, set an arbitrary address. 1-24

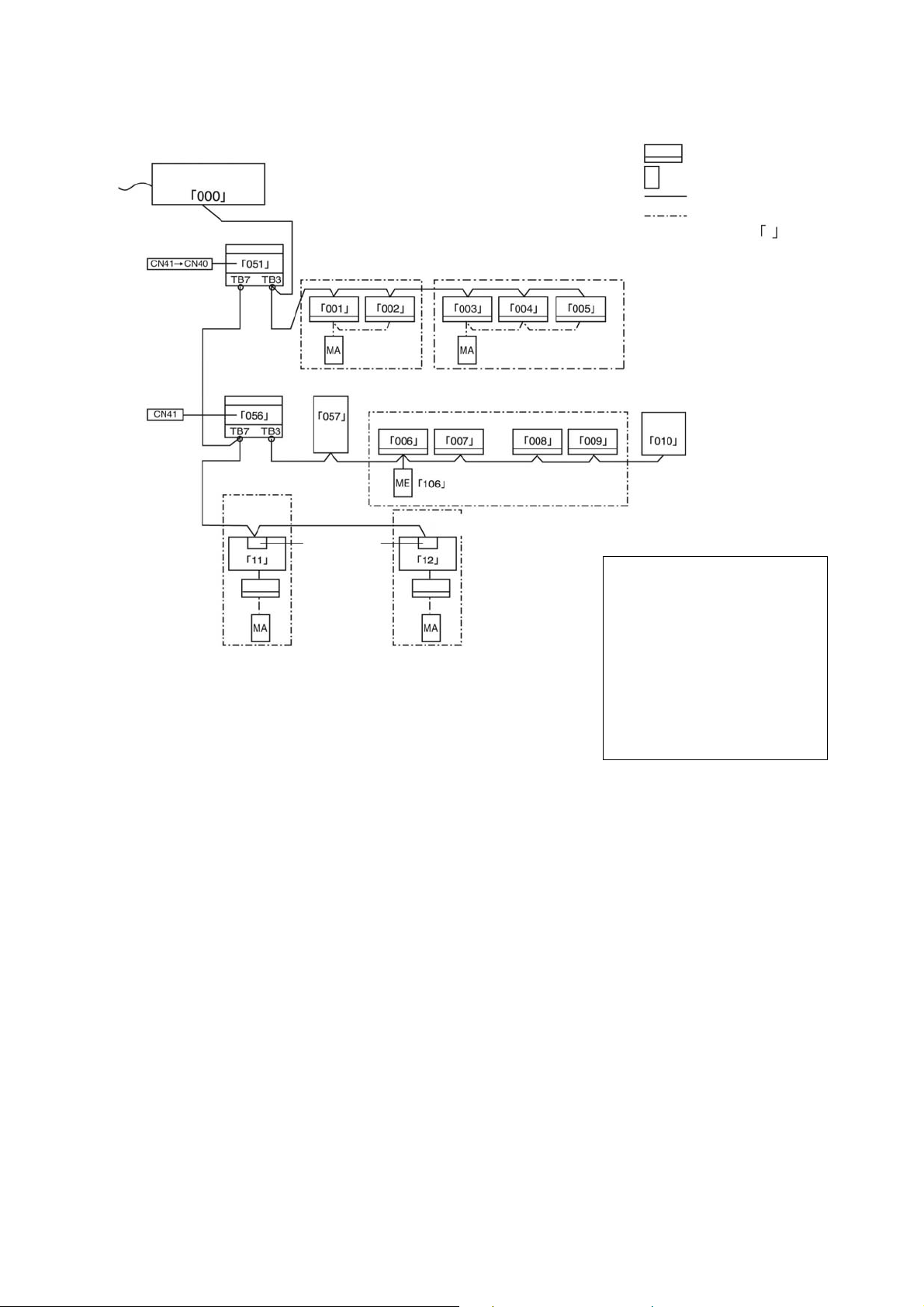

4System Diagram

NOTE

* This diagram does not show

the AC power supply wiring.

Only the configuration for

the transmission line is

shown.

To PC

Centralized controller

Model: GB-24A

Power supply unit (optional)

Model: PAC-SC51KUA, PAC-SC50KUA

LAN

M-NET

outdoor unit

M-NET

Group 1 Group 2

Indoor unit

Local remote controller

M-NET transmission line

MA remote controller line

The numbers in the

indicate the address No.

Group 3 LOSSNAY

M-NET

outdoor unit BC controller

Mr. Slim

Outdoor unit

Group 4 Group 5

Mr. Slim

Outdoor unit

M-NET adapter

2. System in which power is supplied from an outdoor unit

* Address setting for each M-NET device (The address cannot be duplicated.)

NOTE

* If the outdoor unit

malfunctions or is turned

off, the GB-24A that is

connected to the outdoor

unit will also shut down.

* This diagram does not show

the AC power supply wiring.

Only the configuration for

the transmission line is

shown.

To PC

Centralized controller

Model: GB-24A

LAN

M-NET

outdoor unit M-NET

Group 1 Group 2

Indoor unit

Local remote controller

M-NET transmission line

MA remote controller line

The numbers in the

indicate the address No.

Group 3 LOSSNAY

M-NET

outdoor unit BC controller

Mr. Slim

Outdoor unit

Group 4 Group 5

Mr. Slim

Outdoor unit

M-NET adapter

NOTE

*This system controller is designed as a main controller, not as a sub controller.

xMain system controller (main SC)

The main system controller is designed to control all units, including units that other system controllers

control. When there is only one system controller in a system, it will become the main system controller.

Group setting or interlock setting can be made only with the main system controller.

xSub system controller (sub SC)

The sub system controller that controls a local area is controlled overall by the main system controller.

Control area of main SC

Control area of sub SC

Group Group

Group This system controller is designed as a main

controller, so it cannot be controlled by a main

SC (such as Gateway).

1. Field-supplied parts

Please obtain the following parts before unit installation.

*1: When installing DIN rail, prepare 1.38inch (35mm) DIN rail. Mounting screws for DIN rail must be also

field-supplied.

Applicable DIN rail types (IEC 60715/DIN 60715): TH35-7.5Fe, TH35-7.5Al

2. Maximum length of M-NET transmission lines

xMaximum length of M-NET transmission =1640 ft/500m *1

xMaximum power feeding length =656 ft/200m *1

Example

Field-supplied parts Specification

Attaching screws M4 screw x 4pcs (when using L-fittings) *1

Protective ground cable Use sheathed vinyl cord or wire.

Wire type : Wire should not be lighter than ordinary PVC sheathed flexible

cord IEC 60227

(designation 60227 IEC 53)

Wire size : 0.75mm2to 2mm2(AWG 18 to 14)

Wire color : green/yellow

Round terminal M4 screw size terminal (used for protective ground cable)

Transmission cable Type of the cable: Shielded cable which comply with the following specifications

or equivalent:

xCPEV: 1.2mm to 1.6mm

xCVVS: 1.25mm2to 2 mm2(AWG 16 to 14)

*CPEV: PE insulated PVC jacketed shielded communication cable

*CVVS: PVC insulated PVC jacketed shielded control cable

PE: Polyethylene PVC: Polyvinyl chloride

NOTE

* 1: Specifications do not include the remote control cables up to 32 ft (10m) in length. If the remote

control cable exceeds 32 ft (10m), the excess must be added to the total length in order to avoid

exceeding the maximum length.

5Installation

ℓ2

ℓ3

ℓ5

ℓ6

ℓ8

ℓ7

ℓ1

ℓ

Outdoor

unit Indoor Indoor Indoor

Indoor Indoor Indoor

Outdoor

unit

Remote controller

Power

supply

unit

M-NET transmission line

(Centralized control line)

M-NET transmission line

(Indoor control line)

GB-24A

1) Maximum length of M-NET transmission

1 L2+L3+L4+ 1+ 2+ 3 ( 4) =1640 ft/500m

2 L2+L3+L4+ 1+ 5 =1640 ft/500m

3 L2+L3+L5+ 6+ 7 ( 8) =1640 ft/500m

4 3 ( 4)+ 2+ 1+L4+L5+ 6+ 7 ( 8) =1640 ft/500m

5 5+ 1+L4+L5+ 6+ 7 ( 8) =1640 ft/500m

2) Maximum power feeding length for the indoor control line

1 1+ 2+ 3 ( 4) =656 ft/200m

2 1+ 5 =656 ft/200m

3) Maximum power feeding length for the centralized control line

1 L1+L2 =656 ft/200m

2 L1+L3+L4 (L5) =656 ft/200m

3. Installation

Installation methods for the centralized controller GB-24A are shown below.

Method1: Horizontal installation using L-fittings

Attach two L-fittings to GB-24A using the supplied screws (Fig. 5-1), then install GB-24A (Fig. 5-2).

Install the GB-24A in a metal control panel box (steel: thickness 3/64 in (1mm) or more).

When installing follow the metal control panel box clearance space specifications as shown in the Fig. 5-2.

(Install in an area capable of withstanding a 2 1/2 lb (1.1 kg) load.)

Fig. 5-2 Unit: in (mm)

NOTE

If the remote controller cables ( 4, 8) do not exceed 32 ft (10m), the length for 4, 8 do not have to be

factored into the total length.

NOTE

Centralized controller GB-24A is not waterproof.

CAUTION

xL-fittings must be attached at two points on the unit.

xThe unit with L-fittings must be attached at four points to prevent the unit from falling.

NOTE (*1)

When connecting the ground cable after GB-24A is installed, leave some space for mounting screws.

When there is little space for mounting screws, connect the ground cable before GB-24A is installed.

13/16

(

)

13/16

(

)

(

)

13/16 (20) *1

11 13/32

(

290

)

Total of 4 screws

(Both sides)

Top view

Fig. 5-1

Altri manuali per GB-24A

Indice

Altri manuali Mitsubishi Electric Sistema di controllo

Mitsubishi Electric

Mitsubishi Electric AG-150A Manuale utente

Mitsubishi Electric

Mitsubishi Electric BAC-HD150 Manuale utente

Mitsubishi Electric

Mitsubishi Electric AE-200A Manuale utente

Mitsubishi Electric

Mitsubishi Electric MELDAS 600 Series Manuale di istruzioni

Mitsubishi Electric

Mitsubishi Electric AE-200A Manuale utente

Mitsubishi Electric

Mitsubishi Electric Smart ME Controller Manuale utente

Mitsubishi Electric

Mitsubishi Electric M800VW Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric AE-200A Manuale utente

Mitsubishi Electric

Mitsubishi Electric AE-200A Manuale utente

Mitsubishi Electric

Mitsubishi Electric PUD-P-YMF-C Manuale utente

Mitsubishi Electric

Mitsubishi Electric MELSERVO-J2S Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric MCC-50A Guida rapida

Mitsubishi Electric

Mitsubishi Electric MELDAS C6 Manuale del proprietario

Mitsubishi Electric

Mitsubishi Electric MELDAS C6 Manuale utente

Mitsubishi Electric

Mitsubishi Electric C80 Series Guida all'installazione

Mitsubishi Electric

Mitsubishi Electric MELDAS 60 Series Manuale del proprietario

Mitsubishi Electric

Mitsubishi Electric C80 Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric MEHITS MANAGER 3000+ Manuale utente

Mitsubishi Electric

Mitsubishi Electric PAC-WHS01WF-E Manuale utente

Mitsubishi Electric

Mitsubishi Electric AE-200A Manuale utente

Mitsubishi Electric

Mitsubishi Electric MELDAS C6 Manuale utente

Mitsubishi Electric

Mitsubishi Electric MAC-588IF-E Manuale utente

Mitsubishi Electric

Mitsubishi Electric C70 Guida utente

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PAR-40MAAU Manuale utente

Manuali Sistema di controllo popolari di altre marche

Pentair Pool Products

Pentair Pool Products Compool Manuale utente

ComfortNET

ComfortNET CTK04 Manuale utente

Fireye

Fireye InSight II 95DSS3 Manuale utente

CAME

CAME G3000 Manuale utente

Idemia

Idemia MorphoAccess VP MD Manuale utente

Axis

Axis P1445-LE-3 Manuale utente

HEIDENHAIN

HEIDENHAIN TNC 150 B Manuale utente

CNC-Step

CNC-Step High-Z T-Series Manuale utente

Doosan

Doosan DVF Series Manuale utente

Honeywell

Honeywell KAP 140 Manuale utente

Honeywell

Honeywell vk41 series Manuale utente

AirBench

AirBench FPW Guida all'installazione

Cypress

Cypress HHR-3160 Manuale utente

CAME

CAME GLT40AOS Manuale utente

Zonex

Zonex GEN II -VVT Guida utente

Altronics

Altronics K 9650 Manuale utente

micro-trak

micro-trak RoadMaster Manuale utente

micro-trak

micro-trak Calc-An-Acre II Manuale utente
