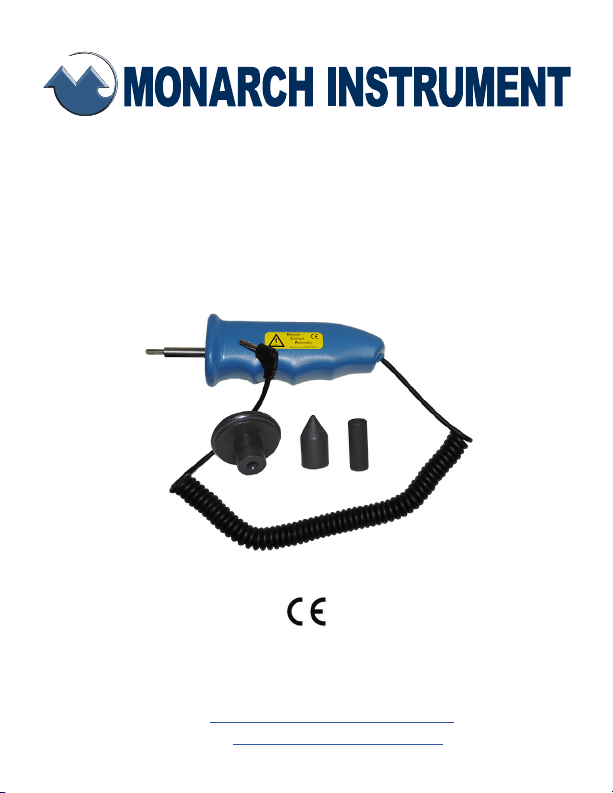

MONARCH INSTRUMENT RCA Manuale utente
Instruction Manual
Remote Contact Assembly
15 Columbia Drive
Amherst, NH 03031 USA
Phone: (603) 883-3390 • Fax: (603) 886-3300
E-mail: [email protected]
Website: www.monarchinstrument.com
This product may contain material
which could be hazardous to human health and the environment. DO NOT
DISPOSE of this product as unsorted municipal waste. This product needs to be
RECYCLED in accordance with local regulaons; contact your local authories for
more informaon. This product may be returnable to your distributor for recycling;
contact the distributor for details.
SAFEGUARDS AND PRECAUTIONS
Read and follow all instrucons in this manual carefully, and retain this
manual for future reference.
Do not use this instrument in any manner inconsistent with these operang
instrucons or under any condions that exceed the environmental
specicaons stated.
Making measurements in direct contact with rotang
equipment can be dangerous. Keep all loose clothing and hair away from
exposed moving machinery. Keep the hand holding the RCA well behind
the front ange of the Remote Contact Assembly. Properly replace all the
machinery guards aer compleng measurement. Do not use for rotaon
greater than 20,000 RPM. Not designed for connuous operaon.
TABLE OF CONTENTS
Monarch Instrument’s Limited Warranty applies.
See www.monarchinstrument.com for details.
Warranty Registraon and Extended Warranty Coverage informaon is available
online at www.monarchinstrument.com.
1
The RCA is an accessory for measuring contact RPM, linear
speeds or totalizing lengths. It needs to be plugged into a
tachometer to be funconal. It is supplied with two rubber
contact ps (one concave and one convex) and a 10 cm
linear wheel. An oponal 12-inch linear wheel is available.
When used with the , the
unit outputs 12 pulses per revoluon (PPR). The maximum
operang range of the RCA is 20,000 RPM when used with a
contact p and 12,000 RPM when used with a linear wheel.
The RCA plugs into the 3.5 mm stereo
input jack of the tachometer. Refer to
the tachometer’s operang instrucons
on how to set up the tachometer for
contact measurement of speed, rate, or
totalizaon.

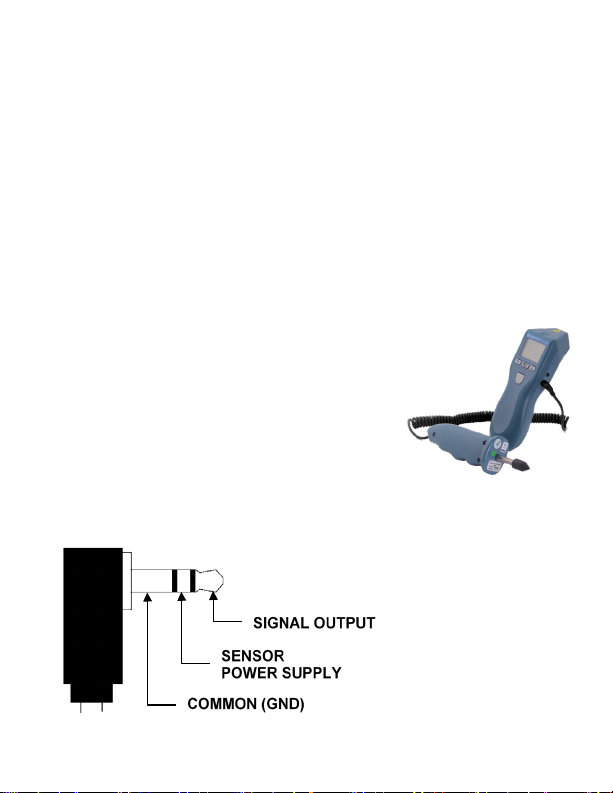

Connector pinouts are shown in Figure 1.
Figure 1 RCA Output Connector - Connecon Detail
2
To measure rotaonal speed

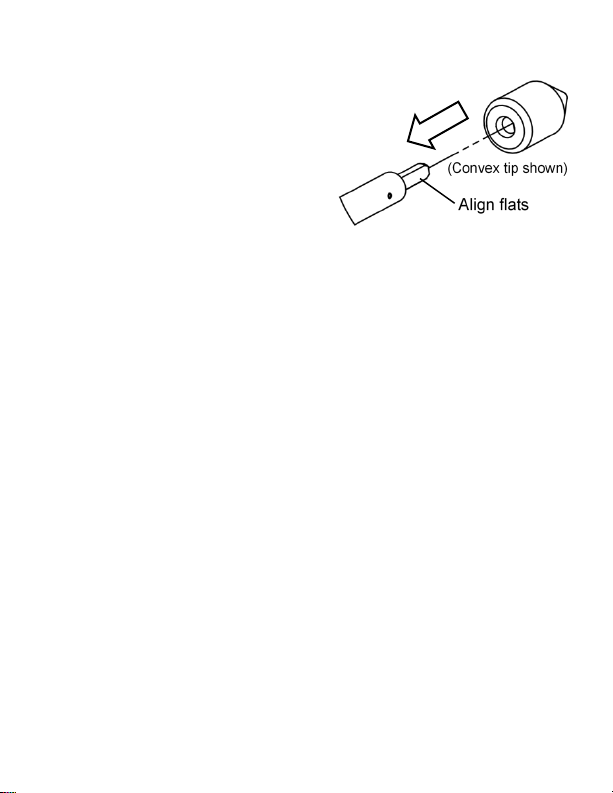

(RPM), select either a convex
or concave rubber contact p
appropriate for the measurement
to be made and install it rmly on
the sha of the RCA. Note that
the sha has a at surface that
must align with the at in the
rubber contact ps. The pointed convex (conical) p is used
for moderate to large diameter shas that are equipped with
a turned center, while the concave (inverted conical) p is
used on smaller diameter shas. The circumference of the
concave p is 1.0 inch [2.54 cm].
To make a measurement, start the rotang equipment and
carefully move the contact p against the center on the end
of the rotang sha. Keep the hand holding the RCA well
behind the back edge of the front ange of the RCA. Use only
a moderate amount of pressure to keep the rubber p in
contact with the rotang sha.
3
Surface speed linear rate measurements are made with
the Linear Speed Wheels which can read both direcons of
movement.

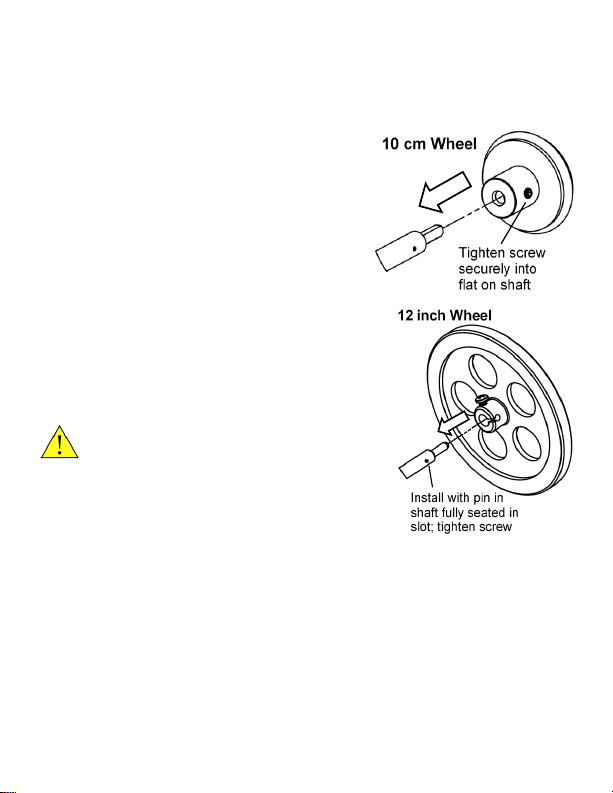

The 10 cm Linear Speed Wheel must
be pushed back onto the sha,
aligning the ats. Secure it in posion
by rmly ghtening the small machine
screw on the wheel.
The oponal 12-inch wheel also has
a slot that must engage with the pin
in the RCA sha and a locking screw
which must be ghtened.
To measure a linear surface speed and/
or total length such as a moving belt,
roll or web, rst select the Rate (Linear Contact) or Total
mode on the tachometer and set the wheel size [10 cm or
12 in.]. Hold the RCA at a right angle (90 degrees) to the
direcon of movement and gently contact the rubber edge of
the wheel against the belt or top surface of the object to be
measured. For accurate results, be sure that the wheel edge
-
4

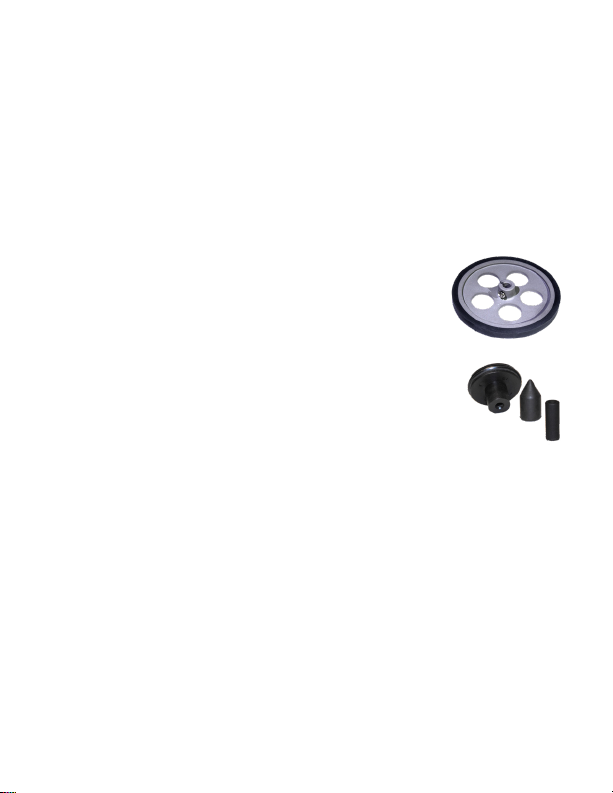

The RCA includes two rubber contact ps (concave and
convex) and a 10 cm linear contact wheel.
Linear Contact Wheel [12 inches]
PN: 6580-011
Replacement Rubber Tips
Replacement rubber concave, convex ps
and 10 cm wheel
PN: 6580-010
is held perpendicular (at 90°) to both the measurement plane
and the direcon of travel. Only a very moderate amount of
pressure is required. Excess pressure can load the RCA sha
causing an erroneous reading and eventual wear in the
bearings of the RCA.
15 Columbia Drive, Amherst NH 03031 USA
Tel.: (603) 883-3390 // Fax: (603) 886-3300
Email: support@monarchinstrument.com
Website: www.monarchinstrument.com
Monarch Instrument is commied to excellence and quality in
manufacturing, sales, and service.
THE PROFESSIONAL’S CHOICE
Track-It™Data Loggers Panel Tachometers
DataChart™ Paperless
Recorders
Speed Sensors
Portable
Tachometers
Portable Strobes Frequency
Converters
Fixed Mounted
Strobes
0721
© Copyright 2004-2021 Monarch Instrument All rights reserved.
