Monitor Audio ASB-2 Manuale utente

ASB-2

SOUNDBAR

ASB-2

SOUNDBAR

Contents Page

Contents Page 1

ASB2 Connections 2

ASB2 Rear Panel 4

ASB2 Buttons 5

ASB2 Remote 6

Button Functions 7

LED Deﬁnitions 8

Features/ speciﬁcations 9

ASB2 Connections

1. HDMI Inputs

used to connect upto 3 High Deﬁnition sources to the ASB2

2. HDMI output

used to connect the ASB2 to the TV

3. USB Input

Used to connect a USB device to the ASB2 for audio playback.

4. Digital Coaxial Input

Used to connect digital coaxial audio source to the ASB2

5. Digital Optical Input

Used to connect digital optical audio source to the ASB2

6. Auxiallary 1

Used to connect an analogue stereo audio source to the ASB2 using RCA

phono connections.

7. Auxiallary 2

Used to connect an analogue stereo audio source to the ASB2 using a

3.5mm stereo mini jack connector.

8. Sub Out

Used to connect the ASB2 to an additional sub woofer

9. Power Switch

Mains Power switch. Used to turn the ASB2 on and off.

10. Mains Input

Used to connect the ASB2 to the mains.

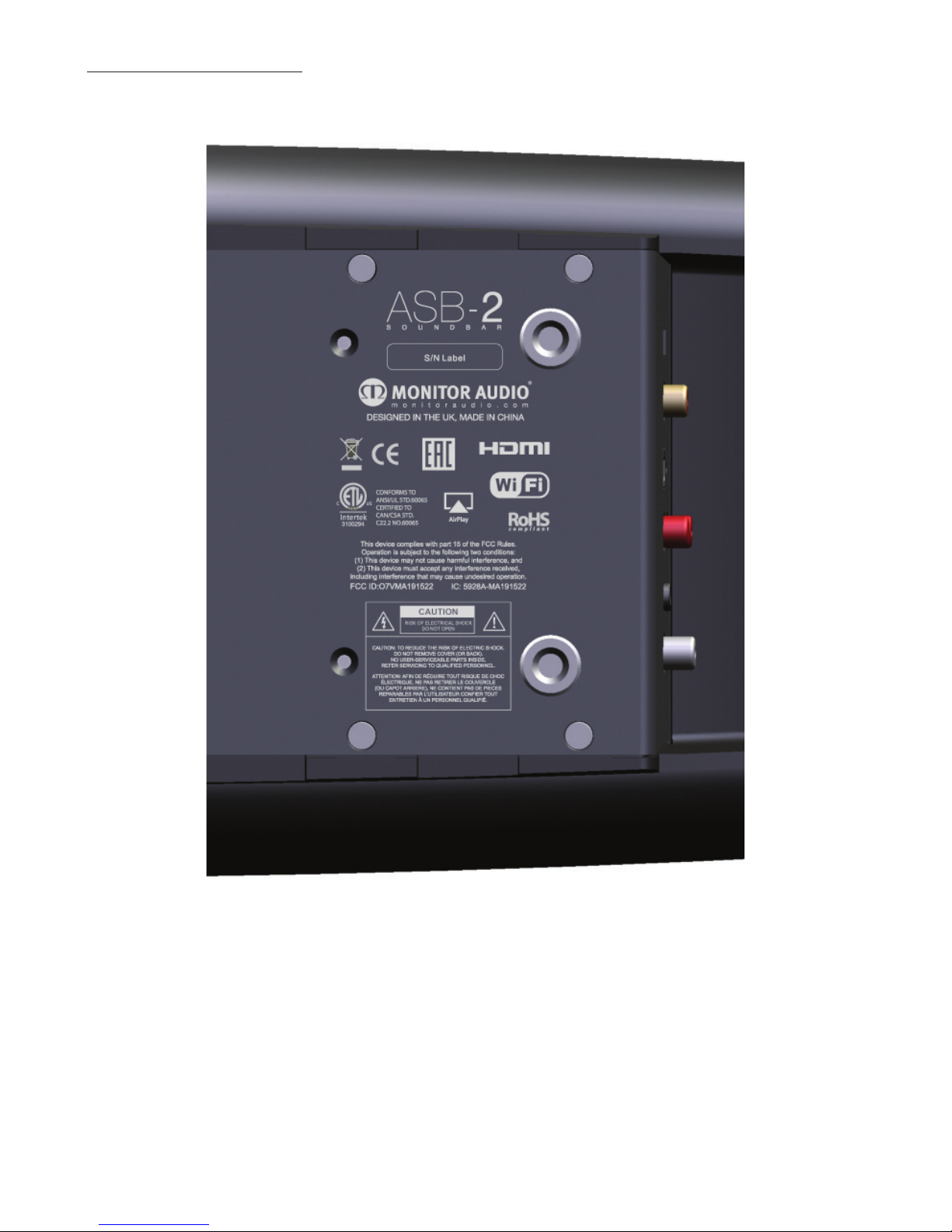

ASB2 Rear Panel

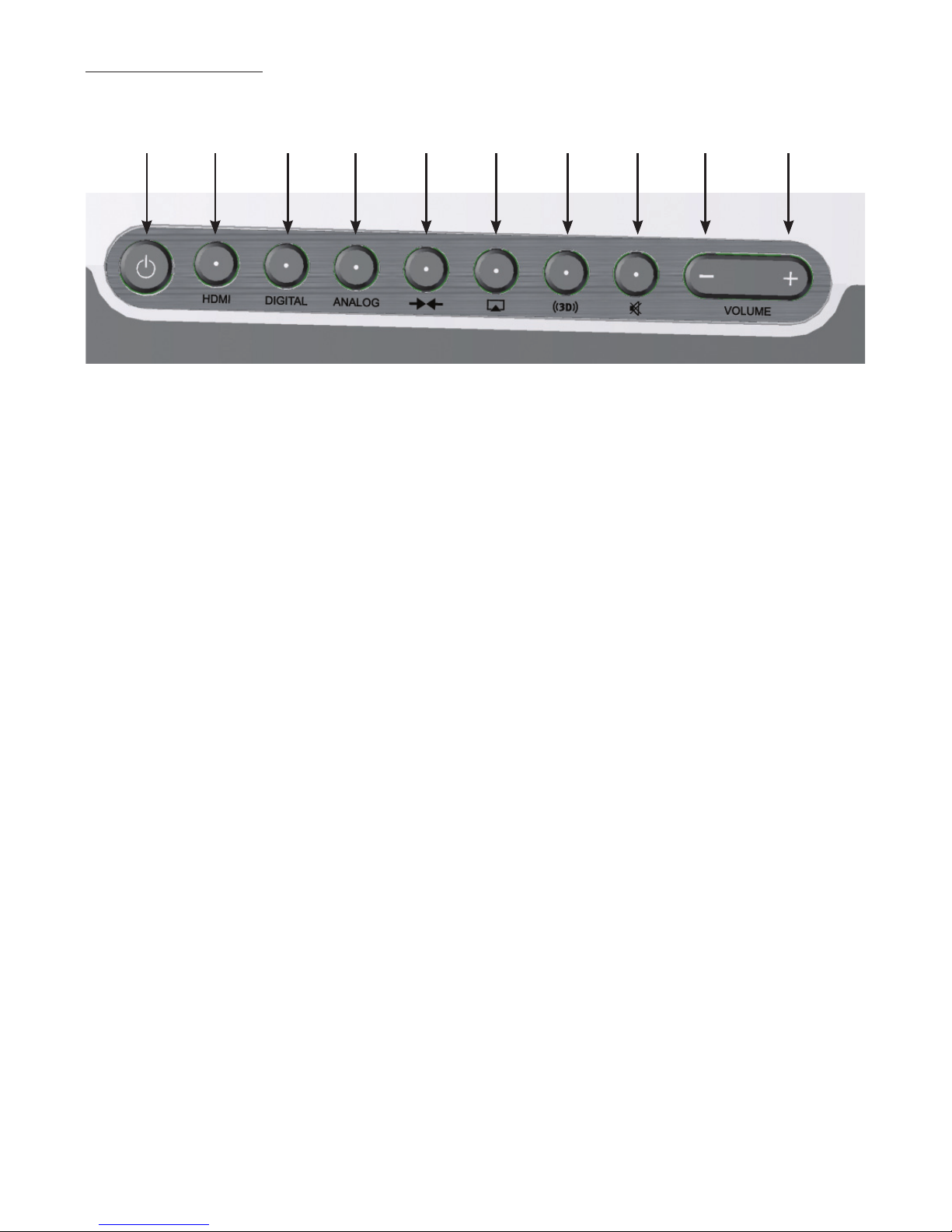

ASB2 Buttons

1 2 3 4 5 6 7 8 9 10

1. Standby

Used to put the ASB2 in and out of stand by mode.

2. HDMI Toggle

Used to toggle through the HDMI inputs.

3. Digital Toggle

Used to toggle through the digital auxialary inputs (USB, Coaxial, Optical)

4. Analogue Toggle

Used to toggle through the analogue auxiallary inputs (phono and mini jack).

5. Airstream connect/ AirPlay Direct.

This button serves three purposes: A single press with an iOS device

connected shares wiﬁ settings. Holding down for 12 seconds activates WPS

mode. Thirdly, it will enter Airstream Connect mode if the WPS mode times

out.

6. AirPlay

Used to put the ASB2 into AirPlay mode.

7. 3D

Used to change the sound of the ASB2 to create a 3 dimensional effect.

8. Mute

Used to mute the sound from the ASB2. Pressing it again returns the volume

to the previous level.

9. Volume Down

Used to reduce the volume of the ASB2.

10. Volume Up

Used to increase the volume of the ASB2

ASB2 Remote

1. Standby

Used to put the ASB2 in and out of

stand by mode.

2. Volume Up

Used to increase the volume of the

ASB2.

3. Previous Track

Used to select the previous track of

the audio source.

4. Volume Down

Used to reduce the volume of the

ASB2.

5. Mute

Used to mute the sound from the

ASB2. Pressing it again returns the

volume to the previous level.

6. Menu

Used to display the on screen menu

of the ASB2.

7. OK & Play/ Pause

Used to conﬁrm a selection when in the menu and also used to play/ pause

the audio.

8. Next Track

Used to select the next track of the audio source.

9. Input Toggle

Used to toggle through the various analogue and digital inputs.

1 6

Button LEDFunction ControlIndication on Backlit Power Button Indication on Front LED bar (RGB)

Power Button

Backlit

(White /

Red)

POWER ON Single Press when in 'On' mode to put unit into

'Standby' modeWHITE; Dim WHITE after 3sChange to *colour* when input cycled

(*colour* = based on input state; refer below)

Standby Single Press when in 'Standby' mode to put unit into

'ON' mode.SolidRED

Not Applicable

FaultNot Applicable Alternating Flashes of WHITE and RED @ 500ms cycle

POWER OFF Flip Power Switch when in 'Off' mode to put unit into

'Standby' modeAll LED's OFF

REBOOTIN Not Applicable Flashing RED @ 000ms ON 500ms OFF(long flash with short interal)

Inut elect

(front mounted

backlit buttons)

No LED

Selected

Single Press of Front ounted Input Select Buttons

Solid WHITE when selectedChange to releant solid *colour* when input select button pressed

(colo  baed o ipt tate ee belo)

Not Selected OFF when not selected

D DP

(top mounted

backlit button)

WHITE

Backlight

Selected

Single press button to actiate

Solid WHITE when selected

Not Applicable

Not Selected OFF when not selected

ute

(top mounted

backlit button)

WHITE

Backlight

Selected

Single press button to mute

Solid WHITE when selected

Not Applicable

Not Selected OFF when not selected

P Connect

(top mounted

backlit button)

WHITE

Backlight

Connected

Single press button to attempt connection

Solid WHITE

Not Applicable

Connecting WHITE Flash @ suare wae 50ms cycle

Not Connected OFF

IR Receier No LED Receie command

from remoteNot Applicable Not Applicable

Blinking *colour* when command receied

(colo  cet colo tate o ot ba  Ree to table belo)

olue

(top mounted) No LED

olume upPress  button for olume up

Not Applicable

olume downPress  button for olume down

te Reet

(rear mounted) No LED System ResetStandby and ute held together (3s) Not Applicable Not Applicable

Button Functions

RBG LEDInputFunction CommentsIndication on Front LED bar

Front LED bar

GreenAUX (Analogue Input) LINE IN-Solid GREEN"Blinking" as Volume

pressed/IR received

WhiteHDMI/Toslink/SPDIF

(Digital Input)DIGITAL -Solid WHITE "Blinking" as Volume

pressed/IR received

Blue

Wireless

(Airplay / JBConnect)

WIFI NOT CONNECTED ("Waiting")

Connection to available Wi-Fi network

Flashing BLUE @ 500ms ON, 2500ms

OFF (short flash with long interval) -

WIFI CONNECTING ("Connecting")BLUE Flash @ suare wave 250ms ccle

WIFI CONNECTED ("treaing/Airlay reay")Solid BLUE "Blinking" as Volume

pressed/IR received

BCONNECT Access Point SetupFlashing BLUE @ 000ms ON, 500ms

OFF (long flash with short interval)

WPS/Router Setup WPS BUTTON When rear WPS / Connect button is pressed or 2 secondsBLUE Flash @ suare wave 250ms ccle

urple

Firmware Update

AvailableFW UPDATE AVAILABLE

When is irmware update carried outWhen is inormation displaed b

LEDDoes user activate update, or is the process automaticCan we make

the process automatic

TBC

Firmware Update In

Progress UPDATING FIRMWARE TBC

Firware Update

Comepleted without

Error

FW UPDATE OTBC

Dependant

on nature

o Error

Error Conditions

Network Error

ll Error states are intended to hae the conditions

Alternating Flashes o WHITE and RED @ 500ms ccle on POWER BUTTON

RGB LED colour relating to the nature o the ault, ie Blue or WIFI error,

Purple or FW Update Error, etc

Solid BLUE

FW UPDATE ERROR Solid PURPLE

Overheat/Thermal Shutdown Flashing RED

BridgeCo Module ErrorSolid BLUE

LED Deﬁnitions
