Monoprice MP Voxel Pro Manuale di istruzioni
1
MP Voxel Pro Fully Enclosed 3D Printer
P/N 44091
Quick User Guide
2
ONLINE SUPPORT
Monoprice™ is pleased to provide free online support. For order related issues, contact the
Customer Service department through the Live Chat link on our website
For technical issues, contact the Technical Support department through the online chat
button on our website www.monoprice.com or by sending an email to
Check the website for support times and links.
GETTING STARTED
1. Install the FlashPrint software package. The FlashPrint installation package can be
found on the USB Flash Drive included with the printer. You can also download it
from the product page on the website. To locate the download file, navigate to
https://www.monoprice.com, then type 44091 into the search bar, and hit ENTER.
Scroll to the bottom of the page to find the Support Files section, which has the full
manual, the FlashPrint software package, and any other related files.
2. Ensure that the Power Switch on the printer is in the OFF (O) position.
3. Plug one end of the included AC Power Cord into the Power Connector on the
printer, then plug the other end into a nearby AC power outlet.
4. Flip the Power Switch on the printer to the ON (I) position.
3
5. Although the printer was fully calibrated at the factory, it may have gone out of
calibration during the shipping process, so it is a good idea to do at least a single-
point calibration. On the Touchscreen Interface, touch Maintain > Calibration >
Normal Mode. Follow the on-screen instructions for the first point. You can then
either exit or finish the full Nine Point Auto Calibration. For more information, refer
to the
USER INTERFACE > Calibration
section in the User's Manual.
4

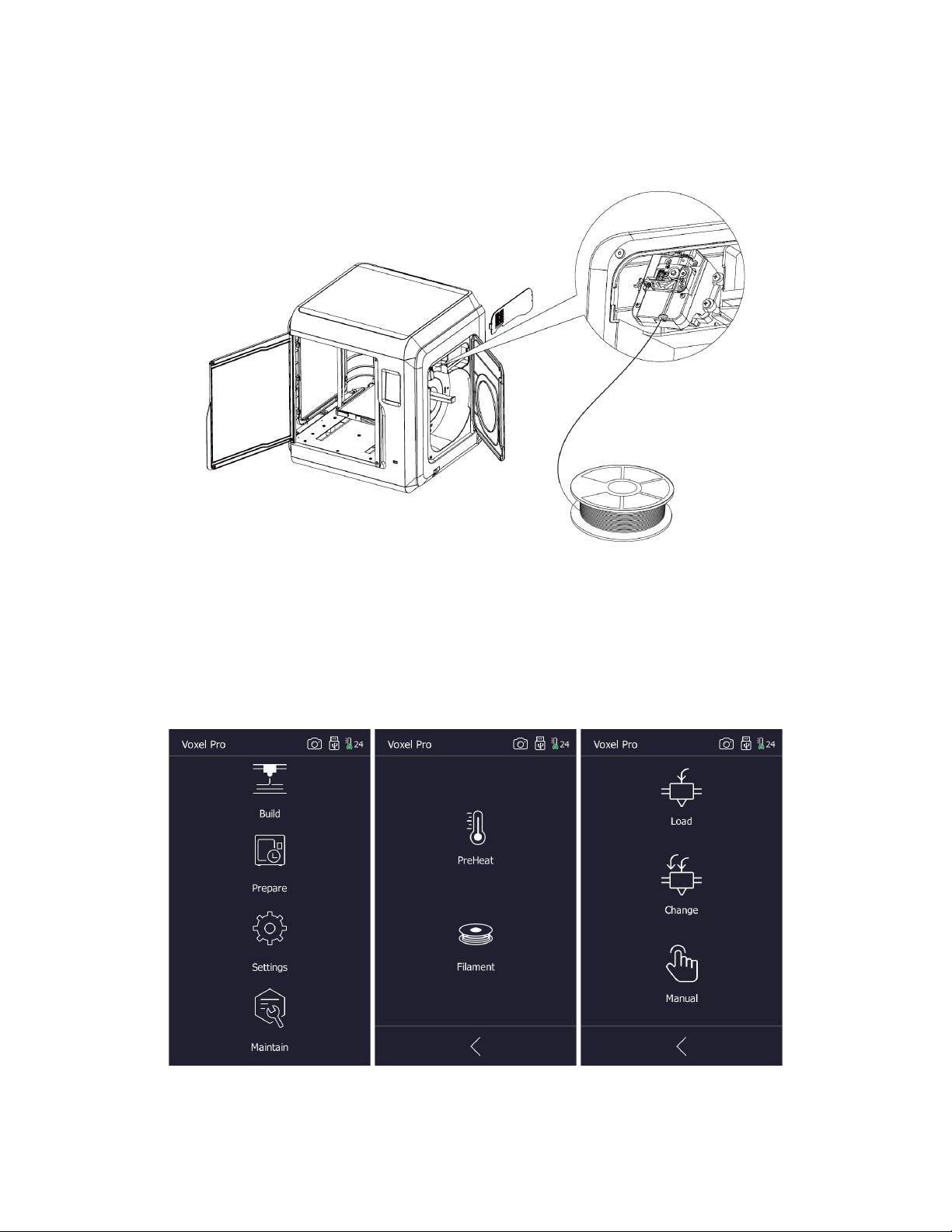

6. Open the Filament Door on the printer, then place a spool of filament on the
Filament Spool Holder.
7. Remove the Filament Intake Cover, then insert the end of the filament into the
filament intake. Push the filament into the feeding wheel until some resistance is
felt.
8. On the Touchscreen Interface, touch Prepare > Filament > Load, then follow the on-
screen instructions to load the filament.
5

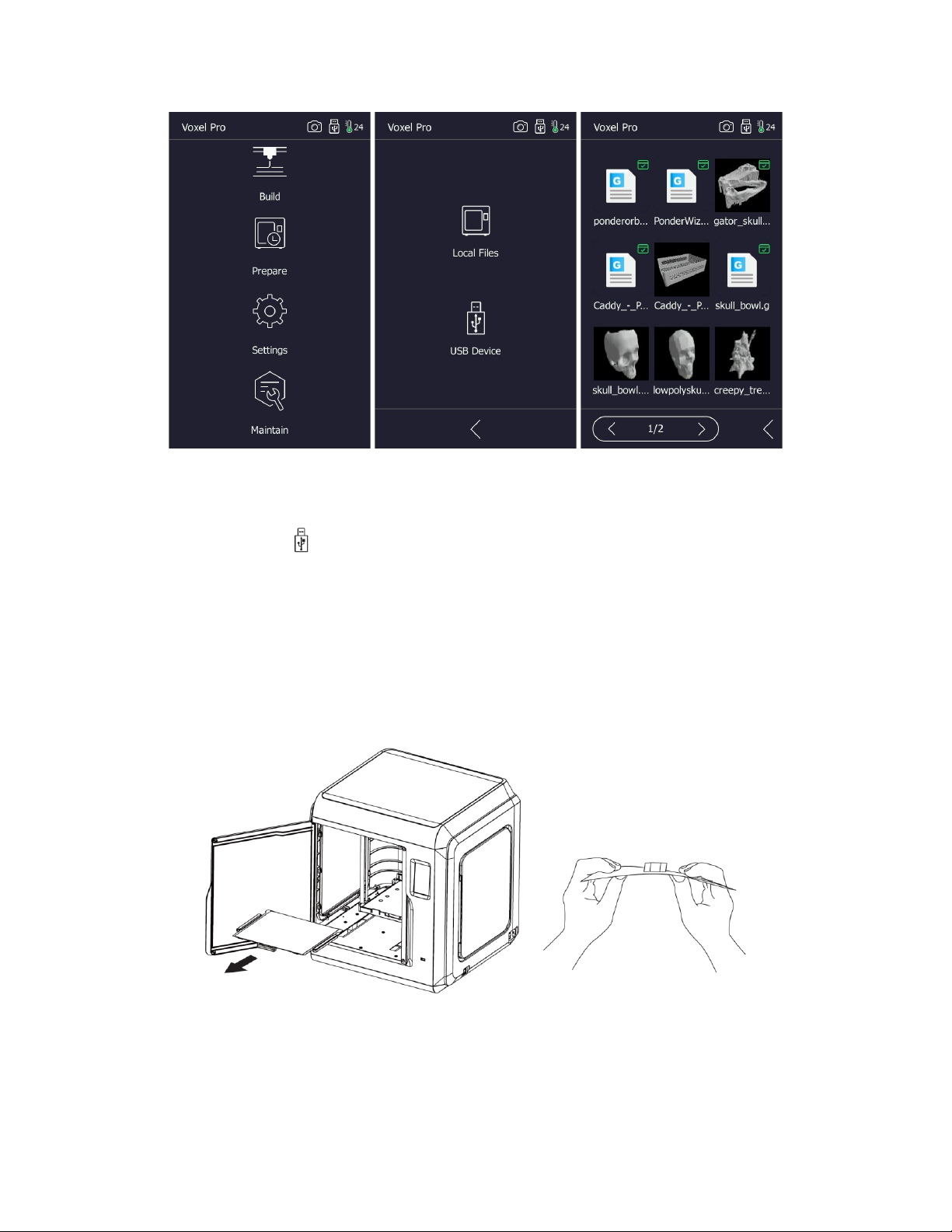

9. The USB Flash Drive included with the printer has sample models preloaded. Insert
the USB Flash Drive into the USB Port on the printer. On the Touchscreen Interface,
touch Build > USB Device. The system will display the files on the flash drive.
Touch a model image to display the file details, then touch the Build button to start
printing the file.
10. When the print is finished, wait for the printer and model to fully cool down to
room temperature. Once they are fully cooled, remove the Removable Build Plate,
then slightly bend the plate to detach the model.
6
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice's authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
7
RF Exposure Statement for FCC
Caution
This FCC Part 15 radio device operates on a non-interference basis with other devices
operating at this frequency. Any changes or modification to said product not expressly
approved by Monoprice, including the use of non-approved antennas, could void the user's
authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
EU/UK Compliance
Hereby, Monoprice Inc. declares that the radio equipment type 3D Printer is in compliance
with Directive 2014/53/EU and Radio Equipment Regulations 2017. The full text of the
declaration of Conformity is available at the following internet address:
https://www.monoprice.eu/
The information required by EU radio equipment directive / UK radio equipment
regulations related to the frequency band(s) and the maximum radio-frequency power
transmitted:
Frequency: 2400 - 2497 MHz; Max Power: 7±1dBm
8
Disposal and Recycling Information
The symbol indicates that this product should be disposed of separately from regular
household waste streams. It is your responsibility to dispose of this and other electrical and
electronics products via designated collection facilities appointed by the government or
local authorities. Correct disposal and recycling will help prevent potential negative
consequences to the environment and human health. For more detailed information about
the disposal of your unwanted product, please contacts your local authorities, waste
disposal service, or the shop where you purchased the product.
Monoprice™, Voxel™, the Voxel logo, and all Monoprice logos are trademarks of
Monoprice Inc.
Wi-Fi® and Wi-Fi Alliance® are registered trademarks of Wi-Fi Alliance.
Polar Cloud™ is a trademark of Polar3D.
