Harmony Capsule IPX7 TWS Bluetooth® Speaker
P/N 34576
User's Manual
2
SAFETY WARNINGS
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
This device contains a Lithium-polymer battery. Dispose of this device only in
accordance with local, state, or federal regulations for electronic waste.
Charge the battery before first use and at least once every three months.
PACKAGE CONTENTS
1x Bluetooth® speaker
1x Micro USB charging cable
1x 3.5mm audio cable
1x User's manual

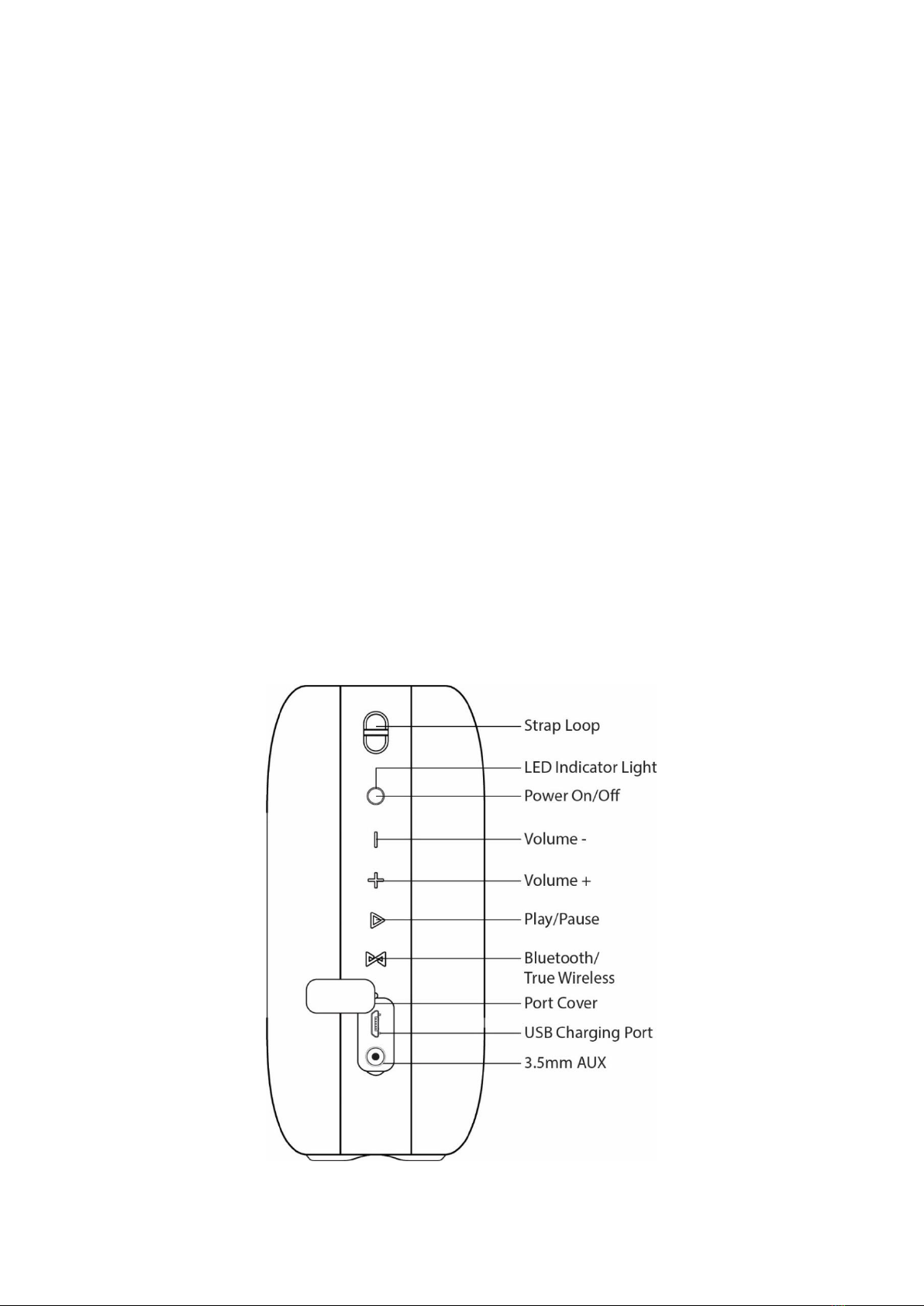

PRODUCT OVERVIEW
3
CHARGING
Perform the following steps to charge the internal battery.
1. Lift and rotate the rubber cover protecting the micro USB charging port.
2. Plug one end of the included micro USB charging cable into the USB charging
port, then plug the other end into a USB power source. The LED indicator
illuminates red while charging is in progress.
3. A full charge from for a depleted battery will take about 4~5 hours, depending
on the charging power of the USB power source. Once it is fully charged, the LED
indicator will extinguish.
4. Unplug the micro USB charging cable, from the speaker, then secure the rubber
cover back in place to ensure waterproof integrity.
The battery should be charged before first use and at least once every three months to
keep it fresh and capable of holding a full charge.
OPERATION
Power
Press and hold Ofor several seconds to turn the speaker ON or OFF.
Bluetooth® Pairing
1. With the speaker powered off, press and hold Ofor several seconds to turn it
on. The speaker will emit several tones and the LED indicator will flash blue.
2. Enable Bluetooth® on your phone, then scan for nearby devices. Locate and
select MP34576. If prompted for a passcode, enter 0000 (four zeros). Once
connected, the LED indicator will turn solid blue.
4
Media Playback
Press to play or pause audio playback.
Press to increase the volume.
Press and hold to skip forward to the next track (Bluetooth® only).
Press to decrease the volume.
Press and hold to skip back to the previous track (Bluetooth® only).
Phone Calls
When an incoming call is detected, the speaker will automatically pause playback. Press
to answer the call, then press it again at the end of the call to hang up. If you don't
want to answer the call, press and hold for several seconds to reject the call.
AUX
If you can't or don't want to use Bluetooth, you can physically connect using the
included 3.5mm audio cable. Perform the following steps to use an Aux In connection.
1. Lift and rotate the rubber cover protecting the USB charging port and AUX jack.
2. Plug one end of the included 3.5mm audio cable into the Aux In jack, then plug
the other end into the headphone output on your phone.
Note that when using AUX, the track skipping feature is not supported.
5
TRUE WIRELESS STEREO
True Wireless Stereo (TWS) mode is a special function in which two Monoprice Capsule
speakers are connected wirelessly to create a left/right stereo pair for true wireless
stereo sound. Perform the following steps to use the TWS feature.
1. Ensure that your phone's Bluetooth® radio is turned OFF.
2. Power both speakers ON.
3. Press and hold for about 2 seconds on one of the two speakers (not both).
A beeping sound will indicate that the two speakers are performing TWS pairing.
4. After about 8-10 seconds, the two speakers will finish pairing and the LED
indicator will illuminate white.
5. Turn the Bluetooth radio on your phone ON.
6. Scan for nearby devices, then locate and select the MP34576 entry. Your phone
will pair with the speakers in TWS mode.
6
SPECIFICATIONS
Model
34576
Signal-to-Noise Ratio
≥ 60dB
Driver Size
1.75"
Amplifier Power
2x 10 watts (20 watts total)
Audio Inputs
Bluetooth®, 3.5mm TRS
Bluetooth Chipset
Actions 4.2
Bluetooth Range
up to 32 feet (10 meters)
Charging Power
5 VDC, 2A
Battery Capacity
2000mAh
Playback/Call Time
up to 10 hours
Charging Time
about 3-4 hours
Dimensions
ø3.4" x 7.5" (ø87 x 190 mm)
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice's authorization may result in the
equipment no longer complying with FCC requirements for Class B digital devices. In
that event, your right to use the equipment may be limited by FCC regulations, and you
may be required to correct any interference to radio or television communications at
your own expense.
7
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Radio Notice for FCC
This FCC Part 15 radio device operates on a non-interference basis with other devices
operating at this frequency. Any changes or modification to said product not expressly
approved by Monoprice, including the use of non-approved antennas, could void the
user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
