Montpellier DDCH60 Manuale utente

Downdraft Cooker Hood

DDCH60/DDCH90 - 60cm/90cm

Please read these instructions carefully before attempting to install or use this appliance.

We recommend that you keep these instructions in a safe place for future reference.

Installation and Operating Instructions

THE PERFECT BALANCE OF FUNCTION AND STYLE

LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier Downdraft Cooker Hood.

Our Hoods has been designed to provide you with the best combination of style, reliability and performance to

give you years of trouble-free use.

You may be familiar with a similar product, but please take time to read these instructions carefully before installing

or using your Cooker Hood to ensure you get the most from your purchase.

We recommend that you keep this manual in a safe place for future reference.

Your Cooker Hood is covered by a comprehensive two year Parts & Labour

Guarantee. In the unlikely event that you experience a problem with your Hood,

you can rest assured that you are fully protected against the cost of repairs for the

first 24 months . Please note that any claim must be accompanied by the model

reference number, serial number and proof of purchase.

To activate your guarantee, you will need your product serial number. This can be

found on the rear of the machine.

There are two ways to register your Guarantee:

•Online: Visit the Support page on our website and complete the online Product

Registration form. www.montpellier-appliances.com

•By Post: Simply detach and ll in the form provided, attach a stamp and send

it in the post. Don’t forget to include your e-mail address so that we can send

conrmation through to you.

Welcome

Note: We are unable to take registrations over the phone.

ACROSS ALL OUR MODELS

YEAR

GUARANTEE

PA R T S & L A B O U R

www.montpellier-appliances.com

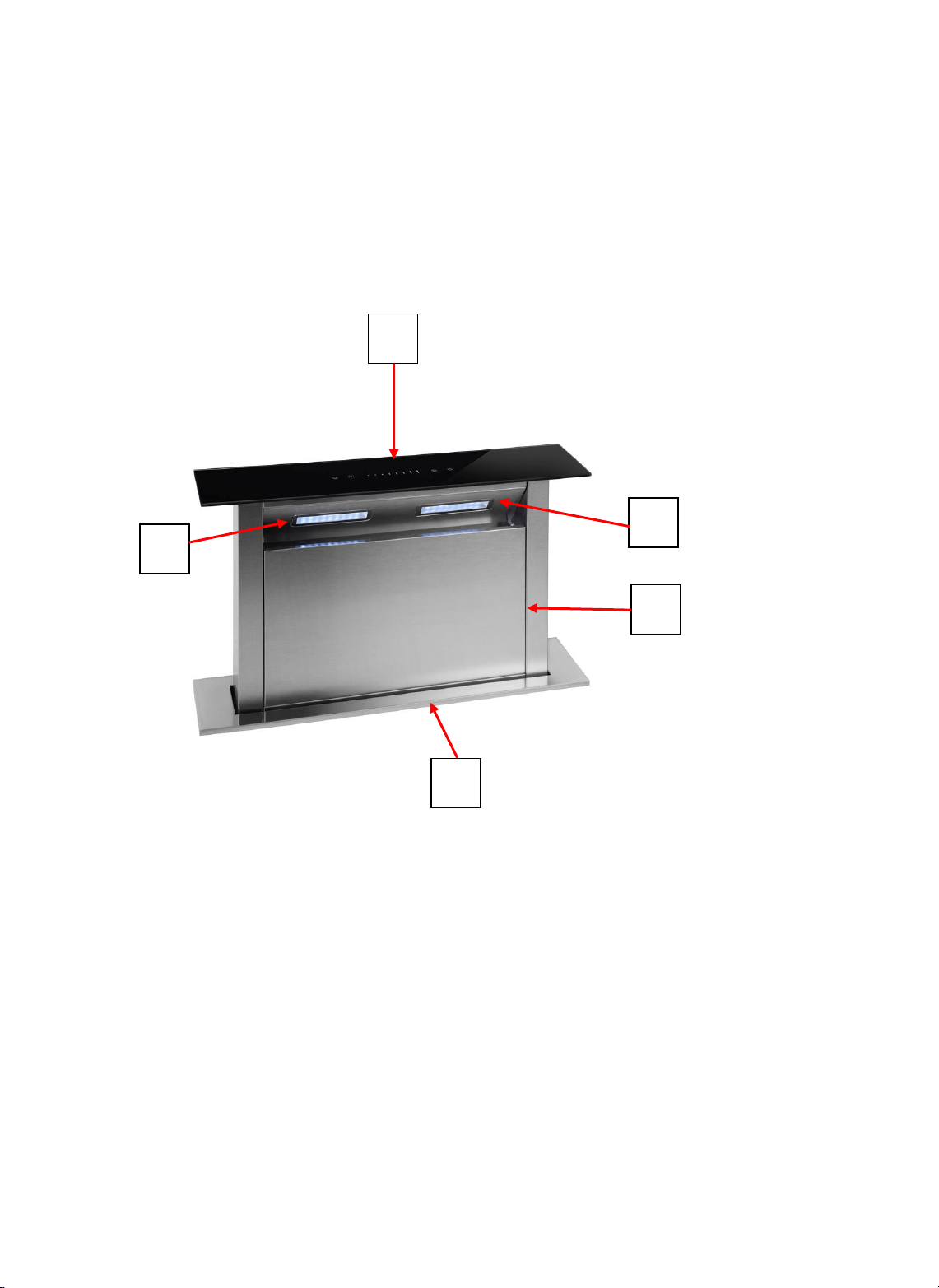

Description of the Appliance

1. Lights

2. Function Control Panel

3. Main Body Section

4. Base

CONTENTS:

Section 1. Installation

Section 2. Safety Advice

Section 3. Operating the Appliance

Section 4. Maintenance

Section 5. Circuit Diagram

Section 1. Installation

•

A qualified installer MUST carry out the installation.

•

N.B. To ensure that your cooker hood operates efficiently the hose length

must not exceed 2m with a maximum of one bend.

•

This appliance can be used fully ‘vented’ via a ducting hose and external wall

vent, or in ‘re-circulation’ mode by using the charcoal filter provided.

•

The cooker hood should ideally be installed between 65-75cm above the

work surface/cooker hob. DO NOT INSTALL BELOW 65cm.

•Mark & cut out the aperture in the work surface as per Pic.2 above (See

Section 5. Circuit Diagram & Product Dimensions for the Technical Drawing of

MON-DDCH60 and MON-DDCH90 showing actual dimensions).

•You must ensure a minimum gap of 15mm between the rear of the appliance

and the rear wall. See Pic.1 above.

•Use adhesive/seal (as shown in Pic.3 above) and lower the hood into the work

surface cut-out.

1. 2. 3.

4. 5. 6.

•

Secure the base of the hood into the cabinet using the screws provided as

shown in Pic. 4 above.

•

Connect the outlet to the main casing as shown in Pic. 5 above.

•

Connect the casing to the body of the hood with the screws provided as

shown in Pic. 6 above.

•

Connect the vent hose to the appliance and the wall outlet.

N.B. Your installer will supply a wall outlet and may have to supply a suitable

alternative flexible duct to suit the wall outlet.

This appliance must not share the same air outlet as another appliance,

i.e. gas heating outlet.

•

The mains lead should be connected to a suitably positioned fused electrical

spur, protected by a 3amp fuse.

•

Ensure that dust and debris is cleaned up from the immediate area of the

appliance prior to it being switched on and tested for the first time.

•

If you intend to use the unit in re-circulation mode, i.e. without external

ventilation, you must fit & use the charcoal filter as follows:

•

Remove the aluminium filter

•

Position the charcoal filter to the back of the aluminium filter using the metal

strips provided (3 on MON-DDCH60 & 4 on MON-DDCH90).

•Refit the aluminium filter.

Please note that the installation of the charcoal filter may reduce the suction power

of the appliance.

Section 2. Safety Advice

•

A qualified installer must carry out the installation.

•

This appliance is manufactured and intended for

DOMESTIC use only. Any guarantee offered with the

appliance is not valid for any installation in a commercial

environment.

•

This appliance incorporates stainless steel. Handle with

care as some of the edges may be sharp.

•

The main filter must be cleaned on a regular basis in order

to help maintain the appliance in good working order.

•

Always turn off the electricity supply before cleaning the

filter or the appliance exterior.

•

When replacing the bulbs or charcoal filter, ensure that you

fit a ‘like for like’ replacement.

•

This appliance shall not be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or

instruction on how to use of the appliance in a safe way and

understand the hazards involved. Children shall not play

with the appliance. Cleaning and user maintenance shall

not be made by children without supervision.

•

If the power supply cord is damaged, it must be replaced

by the manufacturer, it’s service agent or similarly qualified

persons in order to avoid a hazard.

Section 3. Operating the Appliance

Timer Light Slide Control Fan Power

•Press & hold the Power button for 2 seconds to raise the

main body section of the hood – the fan will operate at low

speed.

•Touch the Fan button to turn the fan on and/or off.

•Touch the fan button to turn the fan on and then use the

Slide Control to select fan speeds 1, 2, 3 or 4. N.B. that

each 2 bars of the slide equate to 1 speed, i.e. 2 bars =

speed 1, 4 bars = speed 2 etc

•Touch the Light button to turn the light on or off.

•You can also increase/decrease the intensity of the light by

using the slide control. When the Light button indicator

flashes use the slide to vary the intensity of the light, i.e. 2

bars = low light, 8 bars = high light.

•You can use the Timer button and slide control to set the

time delay after which the hood will close down

automatically. To operate, press the Timer button then use

the Slide Control to set the delay time, i.e. each bar = 5 mins

providing you with a time range between 5 minutes (min) to

40 minutes (max). Once the set time has elapsed, the hood

will automatically switch off the main body section will close.

For best results, we recommend that the Cooker Hood is

switched on at least 10 minutes prior to cooking and left to run

for a period of 10 minutes after cooking is finished.

To operate the Cooker Hood, proceed as follows:

Section 4. Maintenance

4.1. Cleaning the Main Filter

Periodically remove the aluminium filter (as shown below) and wash with warm

soapy water. Ensure the filter is dry before re-fitting.

The main body of the cooker hood should be cleaned with warm soapy water –

never use abrasive detergents on either the filter or main body.

4.2. Replacing the Lamps

To replace a LED Lamp, isolate the power, press and remove the lamp holder

as shown below. Replace it with the same type/wattage (1w) and refit.

4.3. Replacing the Charcoal Filter

To replace the charcoal filter(s), proceed as shown in Section 1. Installation.

4.4. What to do if something goes wrong

The light(s) does not work:

- The LED lamp has probably blown. Replace the lamp as referred to in

Section 4.2. Please note that light bulbs/lamps are not covered by any

guarantee offered with this appliance.

Motor operates but level of extraction appears to be poor:

- Check and clean the filter as detailed in Section 4.1. Dirty filters will

cause a noticeable drop in performance. If you are using the appliance

on ‘re-circulation’ mode the charcoal filter may require changing as

detailed in Section 4.3.

There is no power to the appliance:

-Check there is not a power cut

-Check there is power to the electric socket/appliance

-Check the fuse in the plug and/or spur (3amp)
