montpellier MIN60S Manuale utente
Cod:0103086956-00.02
MIN60S
2

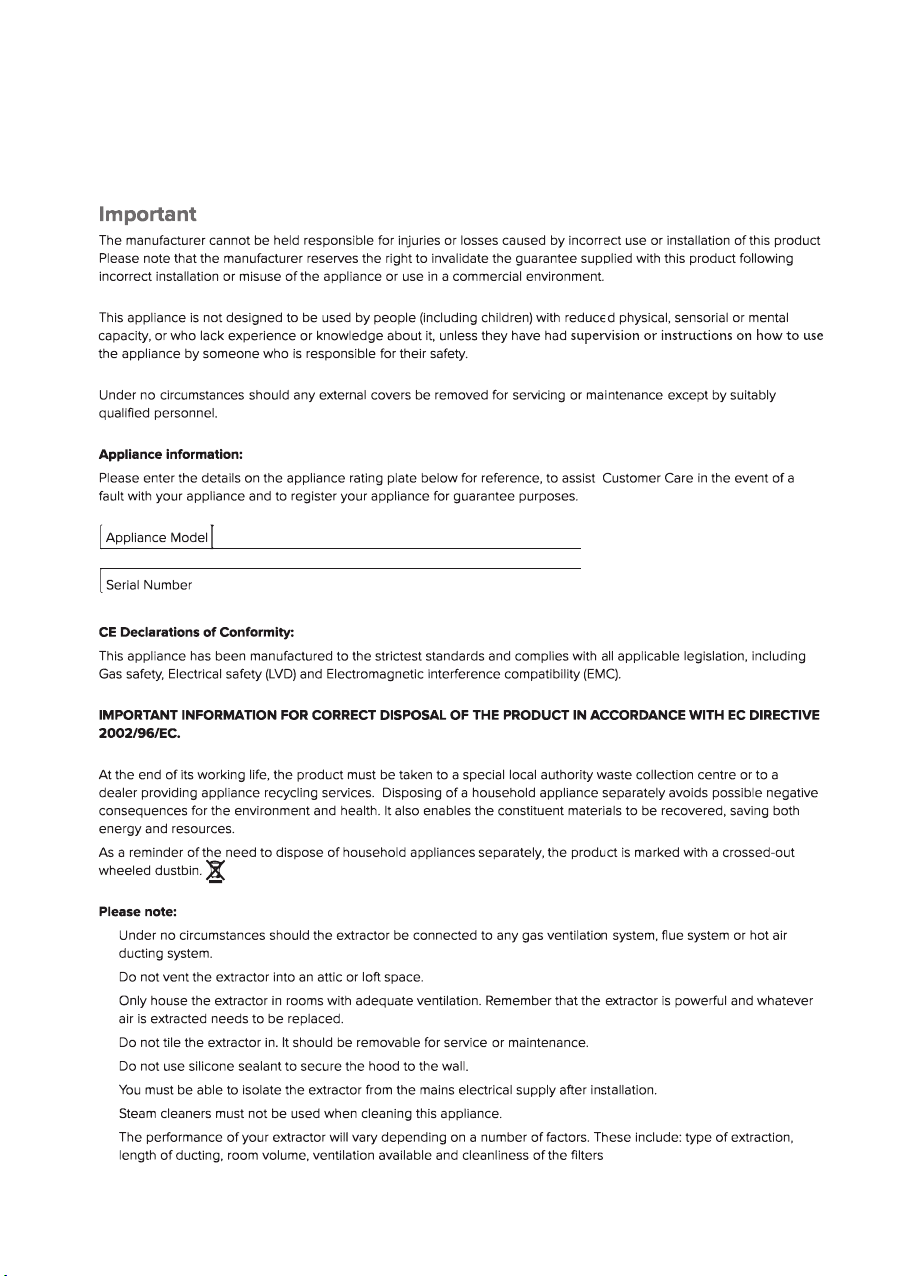

3
Using your extractor
For best performance, you should switch on the extractor 15 minutes
before starting to cook and leave it to run for approximately 15
minutes after the end of cooking.

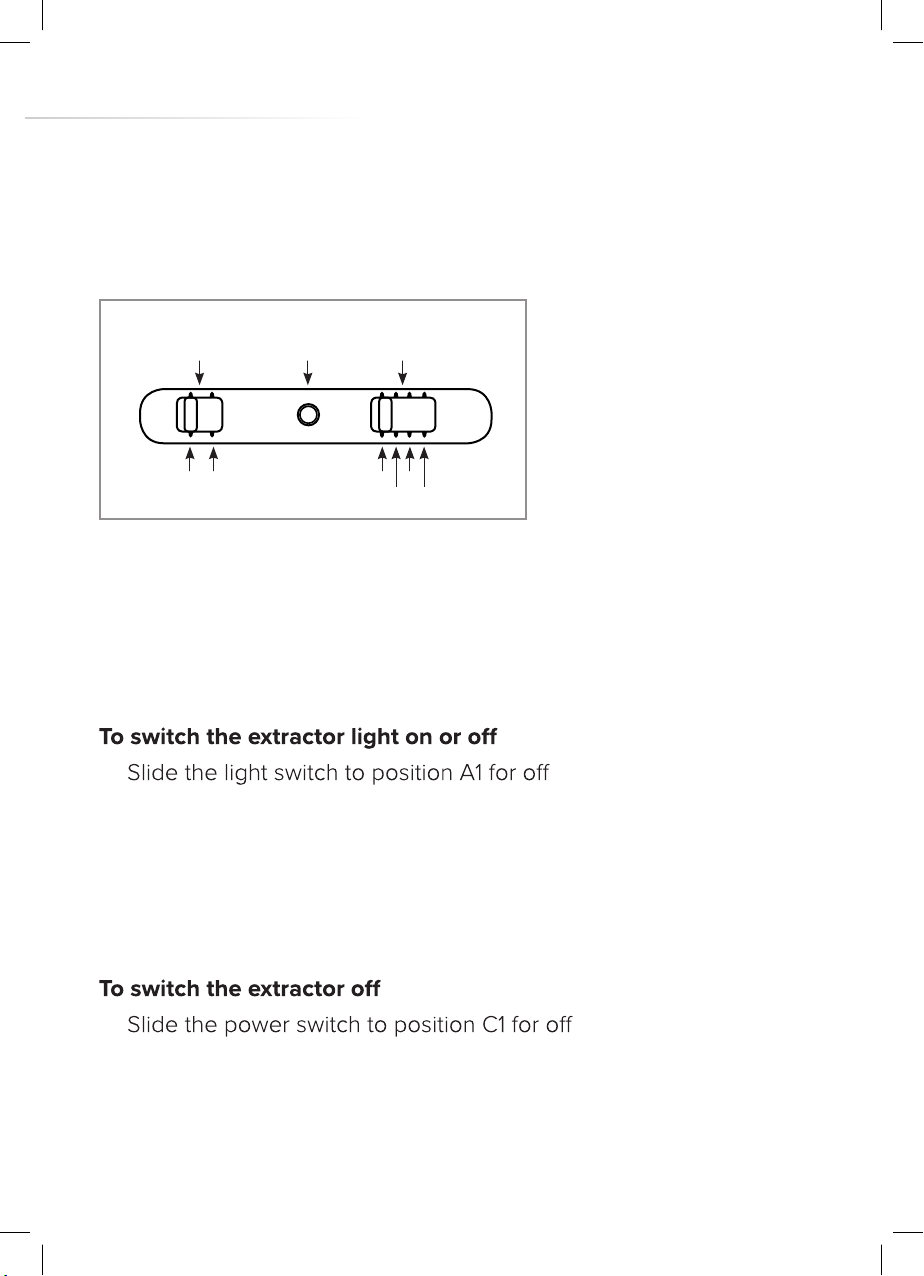

Control Panel
A – Light switch
B – Power indicator light
C – Power switch
t, or A2 for on.
To switch on the extractor, or change the motor speed
tSlide the power switch to the position required dependent on the
speed you require.
t.
Fig. 1 C2 C4
ABC
A1 C1A2 C3
4

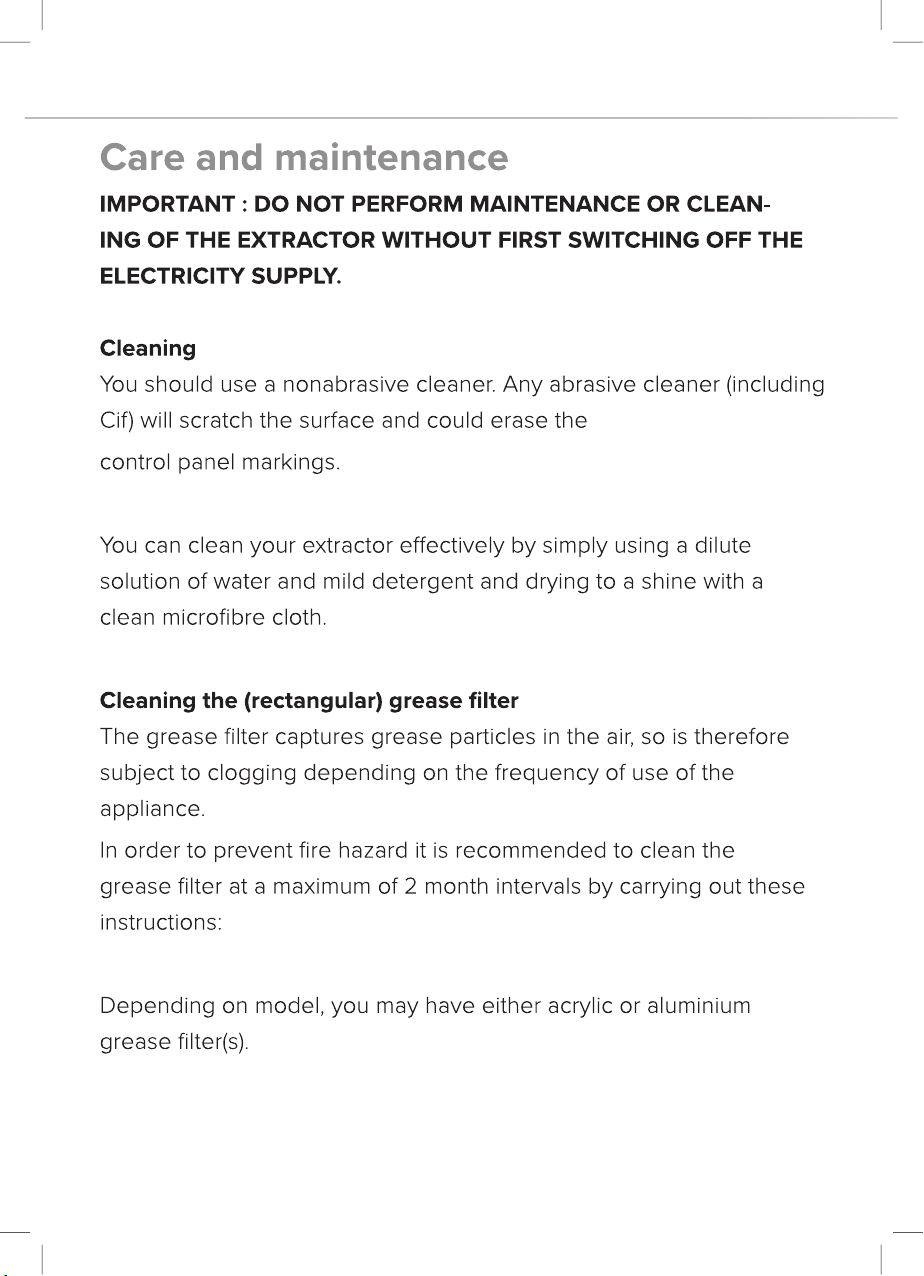

5
$FU\OLFJUHDVHƪOWHU
1. Remove the cover panel by pushing the fixing clips up and then
lifting the panel forwards.
2. Remove the filter retaining wires from the cover panel.
3. Remove the grease filter and wash by hand in a lukewarm
solution of water and mild detergent. Once clean squeeze the
grease filter but DO NOT wring it out. Clean the filter holder using
a dilute solution of water and mild detergent or with a damp cloth.
Allow the grease filter to dry completely before reassembling the
extractor.
4. Replace the grease filter in the cover panel and reattach the filter
retaining wires.
5. Replace the cover panel by inserting the lugs on the upper side
in the extractor, and then refasten the fixing clips on the lower
side.
$OXPLQLXPJUHDVHƪOWHUV
1. Remove the filters from the cooker hood and wash in a solution of
warm water and neutral liquid detergent, leaving to soak.
2. Rinse thoroughly with warm water and leave to dry.
3. The filters may alternatively be washed in the dishwasher. The
aluminium panels may alter in colour after several washes in a
dishwasher. This is not a fault and is not cause for replacing the
panels.
6
&KDQJLQJWKHFLUFXODUFKDUFRDOƪOWHUUHFLUFXODWLQJRQO\
To ensure best performance of your extractor, you should replace the
charcoal filters every four to six months,
depending on use.
3OHDVHQRWHWKHFKDUFRDOƪOWHUFDQQRWEHZDVKHG
To attach a new charcoal filter, follow the steps below:
1. Remove the cover panel (acrylic filter model) or grease filter
(aluminium filter model) as described above.
2. Place the charcoal filter on the centre of the motor support, and
once firmly located turn the charcoal filter clockwise 90º until the
charcoal filter locks into position.
3. Replace the cover panel or grease filter that has been removed.
Changing the light
ENSURE THAT THE POWER TO THE EXTRACTOR IS SWITCHED
OFF A77+(0$,16'21O7&+$1*(7+(/,*+7%8/%,00(
DIATELY AFTER USE AS THE BULB WILL BE HOT$/LOW IT TO
COOL BEFORE REMOVING IT
Remove the cover panel as described on page 7. Unscrew the light
bulb and replace the light with the required light bulb (4W max LED,
SES). Finally, replace the cover panel.
7
tDo not touch bulbs or adjacent areas during or straight after pro-
longed use of the lights.
tThe light is designed for use during cooking and not for general
room illumination. Extended use of the light can reduce the life
span of the bulb.
tBulb replacement is not covered by the guarantee.
tOnly use bulbs recommended for your extractor. Do not fit bulbs of
a higher power rating. Bulbs of a lower power rating may be ad-
equate for use, generally last longer and use less energy.
tSpare bulbs are available from MONTPELLIER Customer Care or
from your local DIY shop.
8
9

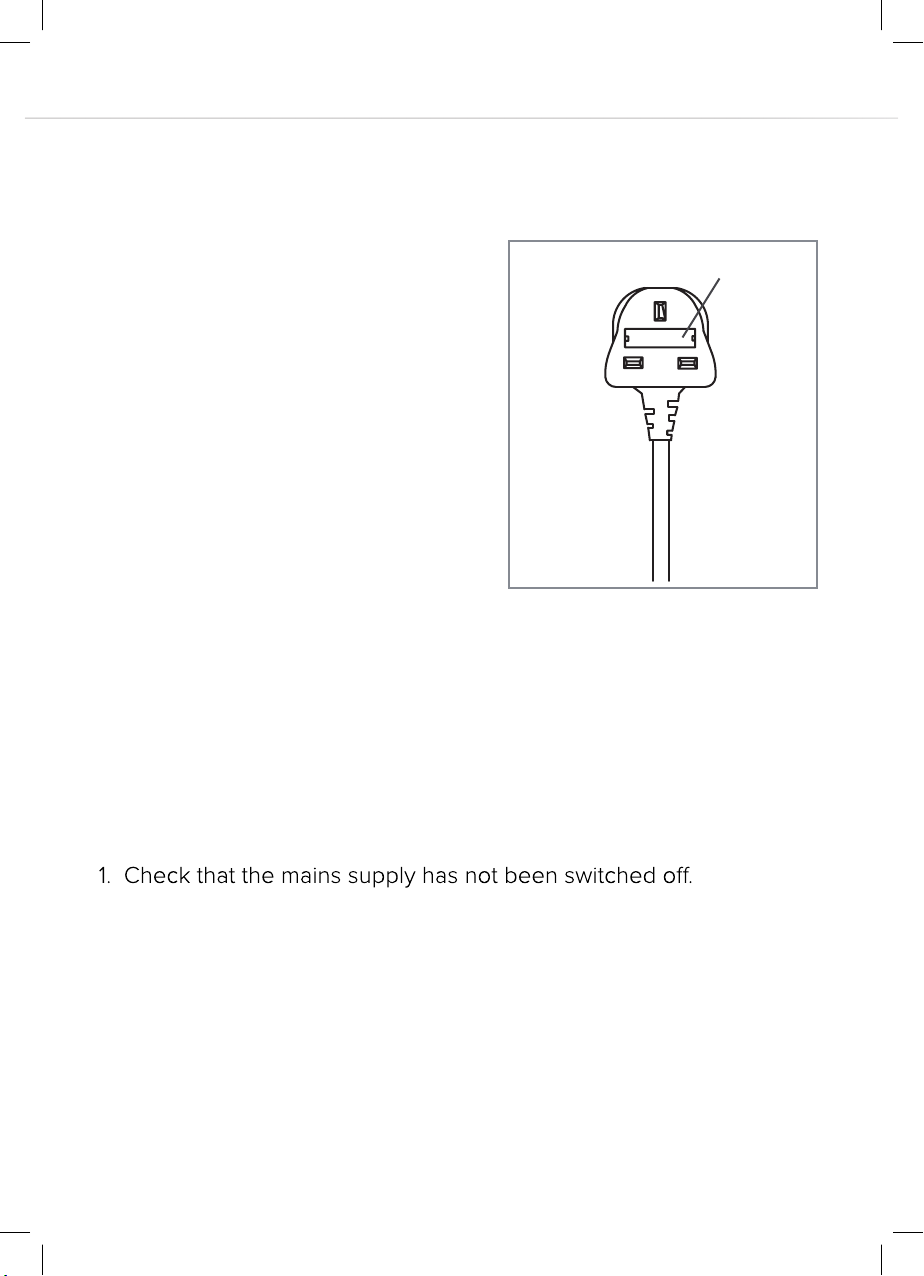

FUSE 5A
PROTECTION LINE
5A Fuse is installed inside the plug to protection line.
Electrical information
Mains electrical voltage: 230 – 240Vac.
Total rated power consumption: 49W
Troubleshooting
If your extractor is not working:
2. Check that the fuse in the spur has not blown.
Installation - preparation
When the extractor is to be installed above an electric hob, the minimum
distance between the hob and extractor must exceed 600mm (650mm
is recommended).
When the extractor is to be installed above a gas hob, the minimum
distance between the hob and extractor must exceed 700mm (750mm
is recommended).
If the instructions provided with your gas hob state that the required
distance between the hob and extractor must be greater than 700mm,
then that is the distance that should be observed; this is a legal
requirement and may lead to your hob being disconnected from the gas
supply and the installation being reported to RIDDOR (The height should
be measured from the top of the burners).
IN THE ABSENCE OF ANY INSTRUCTIONS SUPPLIED WITH THE
GAS HOB, THE MINIMUM
DISTANCE BETWEEN THE HOB
AND EXTRACTOR MUST BE AT
LEAST 760mm.
The width of any hob must not
be greater than the width of the
extractor installed above it. Fig. 2
Gas: 750mm recommended
Electric: 650mm recommended
