Montpellier MON-TCH160 Manuale utente

Installation and Operating Instructions

MON-TCH160 & MON-TCH190

60cm & 90cm Slim Telescopic Cooker Hood

(60cm model shown for indicative purposes only)

Please read these instructions carefully before attempting to install or use this appliance.

It is advisable to keep these instructions in a safe place for future reference.

N.B. Should your appliance require attention, our service agents will not be able to book

a service call without your unique serial number which can be found on the last page of

this manual.

Introduction

Thank you for choosing this Montpellier appliance. It has been

designed to give years of trouble-free use provided it is installed and

maintained correctly.

Please read these instructions carefully before installing or using your

appliance. It is advisable to keep your purchase and installation receipts

with these instructions in a safe place for future reference. Included is

some important safety information in addition to guidelines and

recommendations that will enable you to take full advantage of all the

functions available.

This quality appliance has been tested and certified to meet all applicable

UK electrical and safety standards.

This appliance must be installed and connected in accordance with

current regulations by a qualified electrician.

After unpacking the appliance ensure that there is no visible damage. If the

appliance has been damaged during transit, do not use it, contact your

retailer immediately.

Your 2 year Manufacturer's guarantee

THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.

Your new Montpellier appliance carries a free guarantee which protects you against the cost of

repairs during the first 24 months from date of purchase provided that:

Any claim is accompanied by evidence of the model reference, model serial number and proof

of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24

months prior to the date of claim.

What is not covered under the Guarantee:

Any appliance not correctly installed and operated in accordance with the manufacturer's

instructions.

Any appliance that is used for anything other than domestic purposes.

Any defect caused by accident, misuse, unauthorized modification or inexpert repair.

Cost of Call-out where a fault cannot be found with the appliance.

Cost of Call-out for work covering routine maintenance, such as, but not exclusively,

cleaning of filters or defrosting.

Cost of Call-out for work required to correct the alignment of doors following door

reversal procedures carried out by you.

Use of the appliance by anyone other than the Householder.

Use in any commercial environment.

Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable

items which require routine replacement.

Repair costs incurred that have not been authorised by Repairtech and/or carried out by

a non-approved Repairtech engineer.

YOUR GUARANTEE IS VALID ONLY IN THE UK.

To Register your Appliance simply complete the card in your appliance pack and return it with a stamp

affixed or Alternatively you can Register online at www.repairtechuk.com

SERVICE HELP-LINE

Should your appliance develop a fault, please call the

Repairtech Service Helpline on:

01527-888133

Please remember to have all your product details available, including the model number, serial number,

date of purchase and your retailer’s details before registering a fault.

Your service call cannot progress without this information.

Description of the Appliance

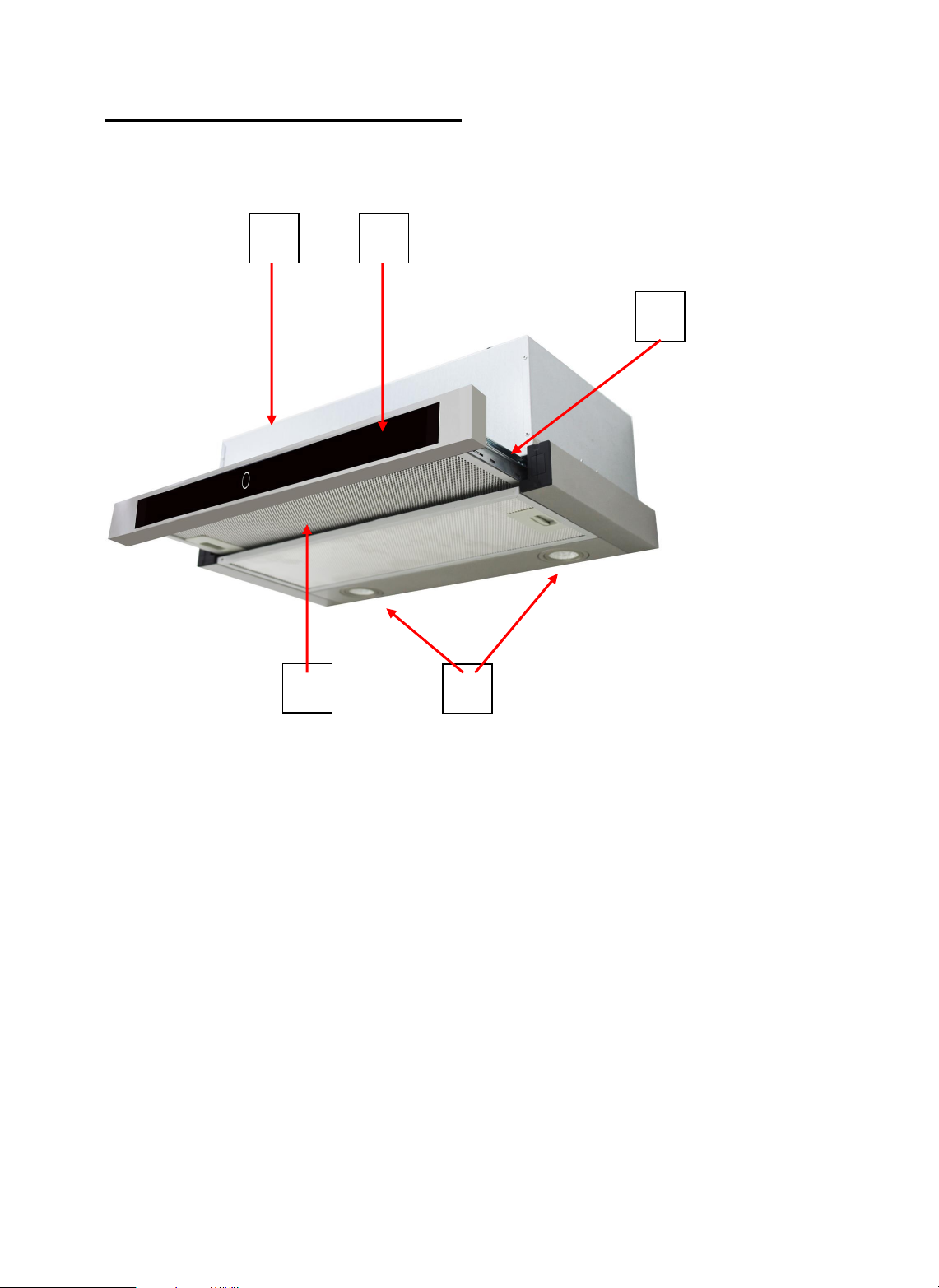

1. Main Body Section

2. Telescopic Section

3. Lights

4. Function Control Panel

5. Aluminium Filter

5. 3.

CONTENTS:

Section 1. Installation

Section 2. Safety Advice

Section 3. Operating the Appliance

Section 4. Maintenance

Section 5. Electrical Diagram & Installation Dimensions

Section 1. Installation

N.B. Full Dimensions are shown in Section 5. (Page 12)



A qualified installer must carry out the installation.



This appliance can be used fully ‘vented’ via a ducting hose (not supplied)

and external wall vent, or in ‘re-circulation’ mode by using the charcoal filter

provided.

You must use a charcoal filter in re-circulation mode. Do not

fit a charcoal filter when venting to the outside.



Position the hood against the wall where it will be sited and mark out the

position of the two (2) fixing holes.



Drill two (2) 8mm holes and fix the body of the hood to the wall using the

fixings supplied.



Position the one way valve into the cooker hood



Drill four (4) 6mm holes into the base of the overhanging cupboard/panel and

fix the hood to the cupboard/panel.



If externally venting, you will need to cut a hole for the vent hose in the

cupboard/panel.



The cooker hood should ideally be installed between 65-75cm above the

work surface/cooker hob. DO NOT INSTALL BELOW 65cm.



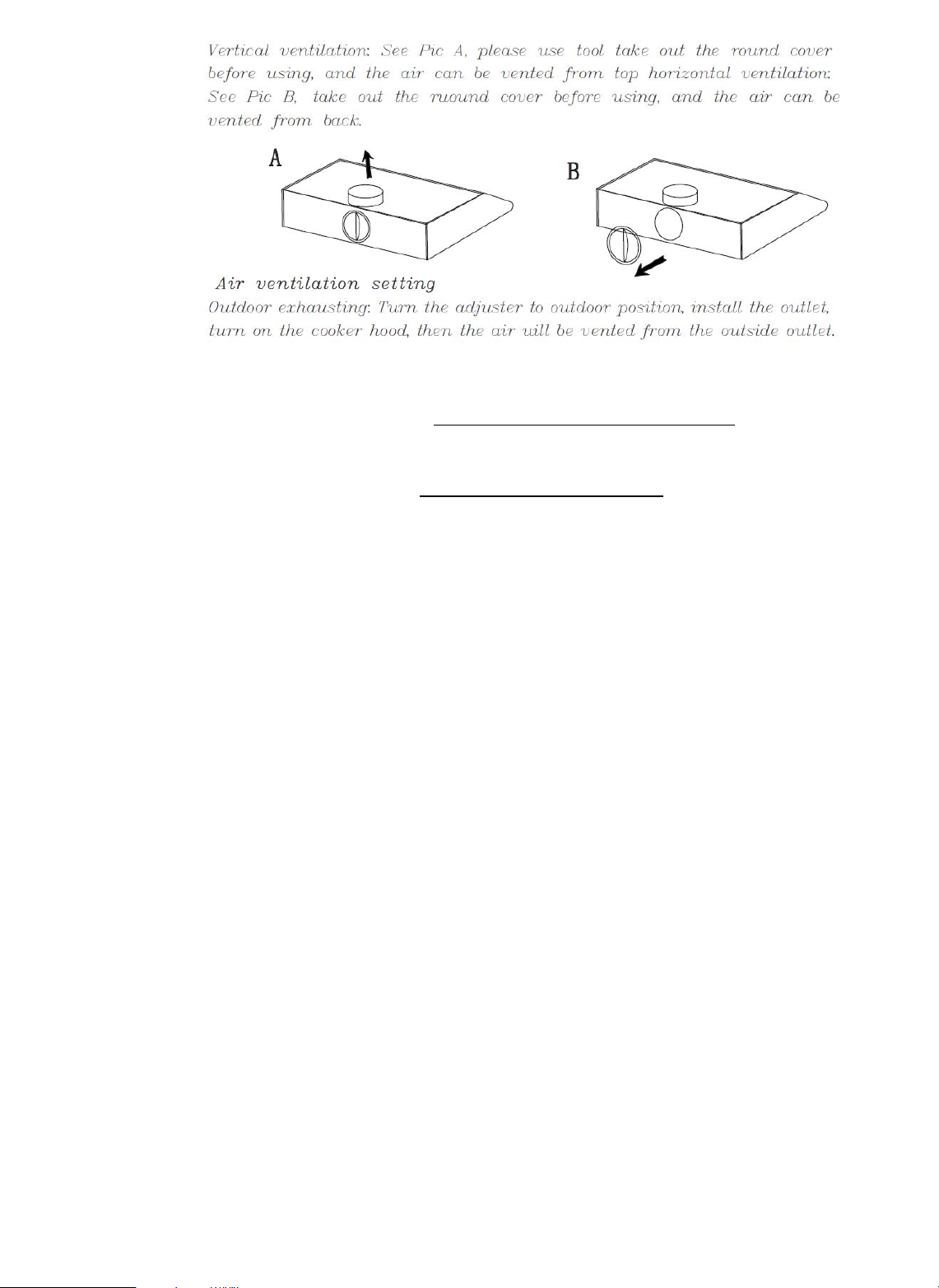

If you want to use this appliance fully ‘vented’, connect a flexible ducting

hose to the one-way valve on the motor and connect the other end to the

wall outlet (not supplied). Do not fit the charcoal filter!

N.B. To ensure that

your cooker hood operates efficiently the hose length must not exceed

2m with a maximum of one bend.

N.B. Your installer will supply a suitable flexible hose and wall outlet.

This appliance must not share the same air outlet as another appliance, i.e.

gas heating outlet.

The mains lead should be connected to a suitably positioned fused electrical

spur, protected by a 13amp fuse.

Ensure that dust and debris is cleaned up from the immediate area of the

appliance prior to it being switched on and tested for the first time.

Section 2. Safety Advice

This appliance is manufactured and intended for DOMESTIC use only. Any

guarantee offered with the appliance is not valid for any installation in a

commercial environment.

This appliance incorporates stainless steel. Handle with care as some of the

edges may be sharp.

The main filter must be cleaned on a regular basis in order to help maintain

the appliance in good working order.

Always turn off the electricity supply before cleaning the filter or the appliance

exterior.

When replacing the bulbs or charcoal filter, ensure that you fit a ‘like for like’

replacement.

We recommend that this appliance is installed by a professional installer.

This appliance shall not be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction on how to use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children without supervision.



If the power supply cord is damaged, it must be replaced by the

manufacturer, it’s service agent or similarly qualified persons in order to avoid

a hazard.

Section 3. Operating the Appliance

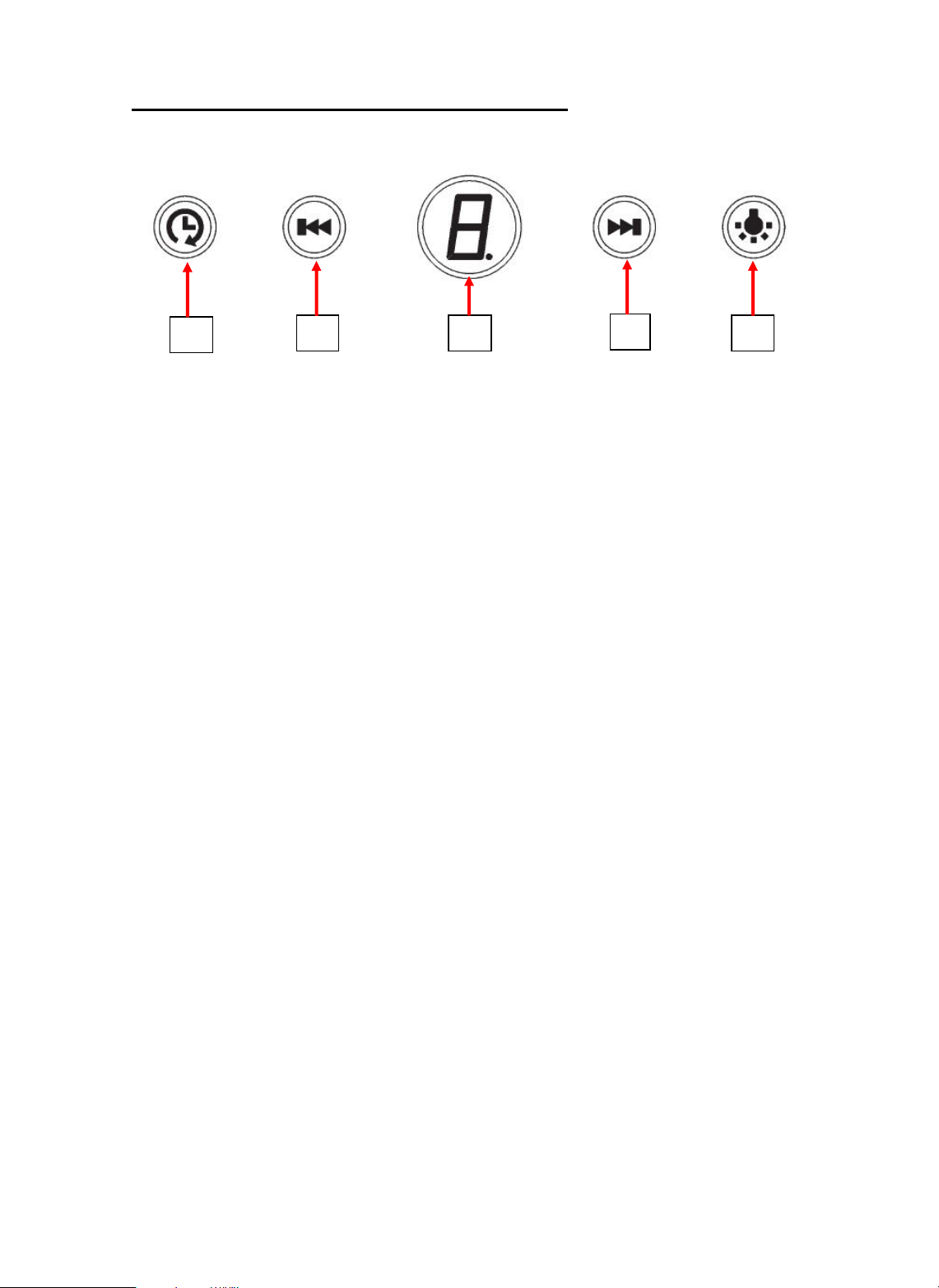

1. Digital On/Off & Display Key

2. Power Down Key

3. Power Up Key

4. Delay Key

5. Lights

For best results, we recommend that the Cooker Hood is switched on at

least 10 minutes prior to cooking and left to run for a period of 10 minutes

after cooking is finished.

To Operate:

Pull/slide the Telescopic unit out towards you.

Press the Digital On/Off & Display key to switch the unit on

Control the fan speed by pressing the Power Up and Power Down

keys

Turn the lights on and off by using the Lights key

Press the Delay key repeatedly to operate the delay function between

1 and 10 minutes. When activated, the display will flash and at the end

of the set time, the unit will switch off automatically.

If you have not used the Delay function, ensure that you turn the unit

(and lights) off and push/slide the telescopic section away after use.

N.B. If you switch the unit on but do not touch any of the other keys

within 2 minutes, the unit will automatically switch itself off.

Section 4. Maintenance

4.1. Cleaning the Main Filter

Periodically remove the aluminium filter cover and wash with warm soapy

water. Ensure the filter is dry before re-fitting.

The main body of the cooker hood should be cleaned with warm soapy water –

never use abrasive detergents on either the filter or main body.

4.2. Replacing the LED Bulbs

To replace an LED bulb, isolate the power, remove the light cover(s) and

remove the bulb. Replace it with the same type/wattage (1.5W LED) and

replace the light cover.

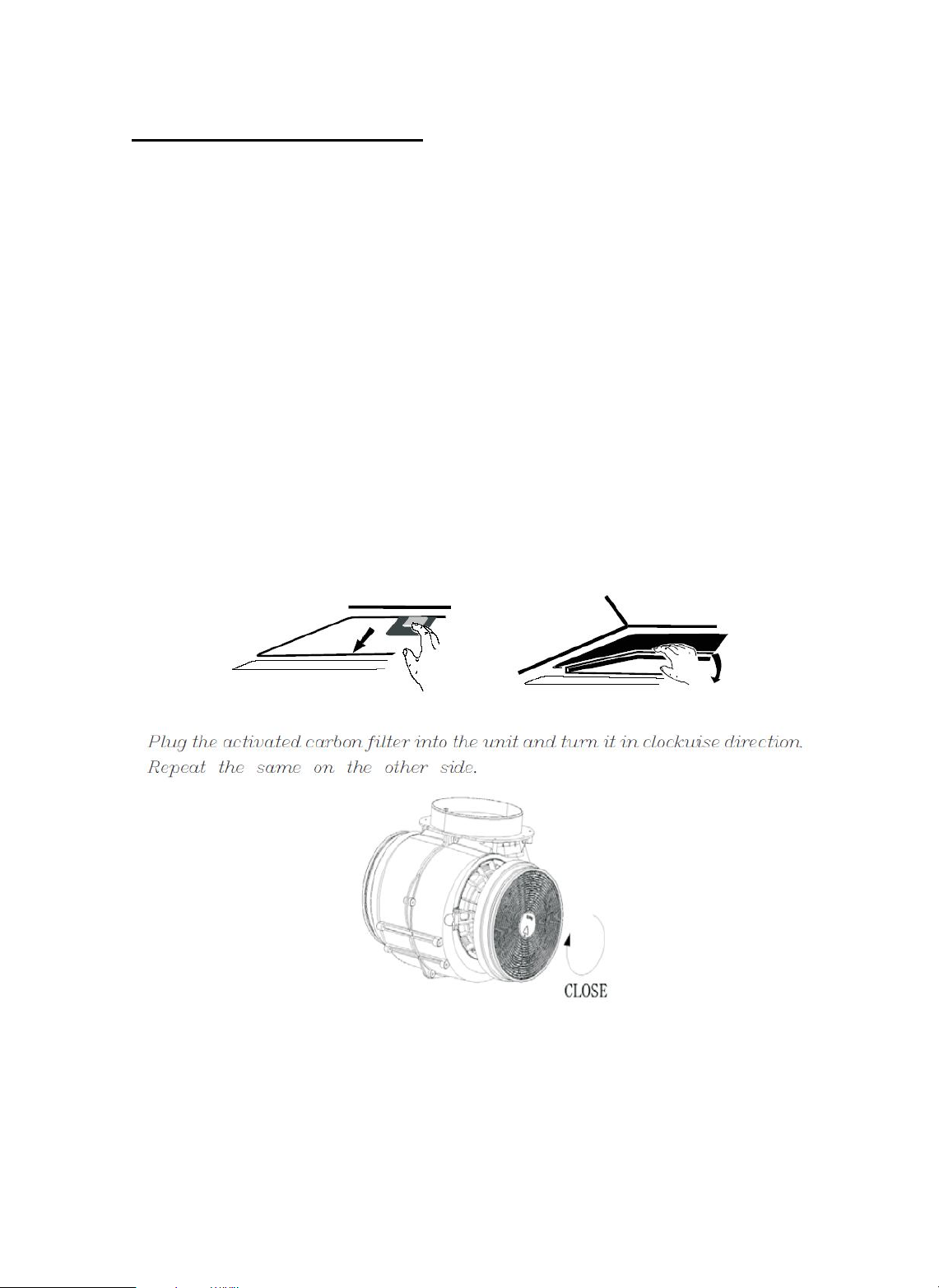

4.3. Replacing the Charcoal Filter

Make sure the filter is ‘locked’ into position and note that suction power is

lowered when using carbon filters.
