montpellier MHT600X Manuale utente
Cod:0103086297-00.03
T-Shaped Cooker Hood
MHT600X(60cm) MHT700X (70cm) &
MHT900X(90cm) - Stainless Steel
&0+@=18@#13@ '116(0%@7&(6@1072",,("4@&2"!@11+"4@11!@
83@11!6@&:"@""0@!"6(%0"!@71@231:(!"@=19@;)7'@7&"@"67@ 1.)07(10@1#@67=-"@3"-))-(7=@0!@2"4#13.0 "@71@
%):"@=18@="36@1#@7418-"#3""@96"@
19@.=@"@$.(,(4@;(7&@@6(.(,3@231!9 7@87@2,"6"@7+"@7(/"@71@4"!@7'"6"@(06738 7(106@ 3"#9,,=@"$14"@)067--)0%@
13@86)0%@=183@11+"4@11!@71@"0694"@=18@%"7@7&"@/167@$31/@=194@294 &6"@
"@5" 1//"0!@7&7@=19@+""2@7')6@/08,@(0@@6#"@2, "@#14@#9785"@5"$"5"0 "@
183@11+"4@11!@)6@ 1:"3"!@=@@ 1.23"&"06):"@7;1@="3@376@@184@
8307""@0@7'"@80,*+",=@":"07@7&7@=18@"<2"3*"0 "@@241-".@;(7&@=183@11!@
=19@ 0@3"67@6683"!@7&7@=18@3"@$9,,=@2317" 7"!@%)067@7'"@ 167@1$@3"2(46@#14@
7&"@$(367@@/107&6@@-"6"@017"@7&7@0=@ ,([email protected]@"@ 1.20("!@=@7&"@
.1!"-@4"$"3"0 "@08/"4@6"3(-@08."3@0!@2311#@1#@284 &6"@
@ 7):7"@=194@%9307""@=18@;(,,@0""!@=194@241!8 7@6"3(,@09/"4@')6@ 0@
"@$190!@10@7&"@3"4@1#@7'"@. &)0"@
&"3"@3"@7;1@;=6@71@3"%)67"4@=194@8307""@
?@)6)7@7&"@822147@2%"@10@183@;"6(7"@0!@ 1.2-"7"@7&"@10-)0"@31!9 7@
"%(6757(10@#14.@
?@>@).2-=@!"7 &@0!@#*,,@*0@7&"@#13/@251:*!"!@77 &@@67/2@0!@6"0!@
)7@*0@7&"@2167@107@#15%"7@71@*0 -8!"@=194@".*,@!!4"66@61@7&7@;"@ 0@6"0!@
"@5"@90-"@71@7+"@3"%(6737)106@1:"4@7&"@2'10"@
Press the key to turn on/o the extractor. If the extractor is turned on, the delay timer can be activated by pressing the
again. The display will show the symbol flashing for 4 seconds. By pressing the keys or , the delay timer can be
adjusted (max. 9 minutes). In order to deactivate the timer delay, press the key again.
3
Using Your Extractor
For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for
approximately 15 minutes after the end of cooking.
Fig. 1
ON/OFF Key/Delay Timer:
Clock Setting
To set the clock on your extractor, press and hold the key for 2 seconds.The clock display will flash. Use or keys
to set the hour, press key to set after which you can adjust the minutes. Once set, press key to confirm. Please note,
the clock will return to its previous setting if no key is pressed for 5 seconds whilst setting the time.
Adjusting the Fan Speed
Once the extractor is turned on, press the key to set the fan motor to high speed. When pressed again, it will reduce the
fan speed from high to medium,
Light Key
show the symbol .
Once the extractor is turned on, press the key to set the fan motor to high speed. When pressed again, it will reduce the
fan speed from high to medium,
4
Care and Maintenance
IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING
OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE
ELECTRICITY SUPPLY.
Cleaning
Use a non-abrasive cleaner. Any abrasive cleaner (including Cif) will
scratch the surface and could erase the control panel markings.
solution of water and mild detergent and drying to a shine with a clean
cloth.
The grease filter should be kept clean to minimise the risk of fire.
You should remove and clean the grease filter with hot soapy water at
least once a month.You can also wash the grease filter in a
dishwasher, ensuring that you place it in an upright position to prevent
damage from other items in the dishwasher. After rinsing and drying,
replace the filter.
To remove the grease filter, push in the button on the handle and then
pull down on the filter at the front. When you have released it at the
front, pull out the filter. To replace the grease filter, repeat the above
steps in reverse.
Please note:
Cleaning the grease filter in the dishwasher may lead to discolouration.
This is normal and does not constitute a fault with the appliance.
Fig. 2
6
Fig. 4-I
Fig. 4-II
Fig. 4-III
220V 2X1W LED MAX
Changing the Light
NOTE: Replacement of the LED lights MUST be
FDUULHGRXWE\DTXDOLƪHGHOHFWULFLDQ
IMPORTANT: DO NOT PERFORM MAINTENANCE
OR CLEANING OF THE EXTRACTOR WITHOUT FIRST
SWITCHING OFF THE ELECTRICITY SUPPLY.
Remove the lamp using a flat-head screwdriver (Fig. 4-I).
Remove the lamp. Unplug the lamp wire connector. Replace the lamp
(Fig.4-II).
Plug the wire connector into the new lamp. Place the new lamp into
the lamp holder. Push the LED lamp into position until it clicks into
place (Fig. 4-III).
The lights are designed for use during cooking and not for general
room illumination. Extended use of the lights can reduce their life
span. Please contact your local retailer in order to purchase suitable
replacement LED lights.
Please note that the LED lights are NOT covered by the guarantee.
7
FUSE 5A
PROTECTION LINE
5A Fuse is installed inside the plug to protection line.
122W
6
A
B
C*
D
E
F
34.5
189
280
75
60
34.5
189
230
75
60
34.5
189
380
75
60
Height dependent
MHT600X MHT700X MHT900X
For best performance and lowest noise output, we recommend
the use of a 125mm ducting.
greater than 700mm, then that is the distance that should be
observed. This is a legal
RIDDOR (the height
The width of any hob must not be greater than the width of the
extractor installed above it.
9
Fig. 5
A
B
C
F
E
Centre
D
Gas hob:750mm recommended
Electric hob:650mm recommended
INSTALLATION
IMPORTANT SAFETY WARNING: ONLY USE THE SCREWS PROVIDED WITH THE EXTRACTOR TO MOUNT
THE DUCTING ADAPTOR. THE USE OF LONGER SCREWS MAY CAUSE DAMAGE TO THE INTERNAL WIRING
WHICH WILL NOT BE COVERED BY THE WARRANTY.
10
10mm
Fig. 7 Fig. 8
Fig. 9 Fig. 10
Tools required Mark wall as required (see Fig.5)
Drill 4 holes for mounting the body Fit wall fixings and top screws - Ensure that any fixings you use
are appropriate for the wall type.
8
Fig. 11
Secure hood (tighten all screws)
Fig. 12
Fit ducting adaptor
The metal casing of this appliance has been coated with a preservative to protect it during transport and storage.
This should be removed during installation by using a non-abrasive stainless steel cleaner. Always follow the
instructions given with the cleaner being used.
11
Fig. 14
Fig. 15 Fig. 16

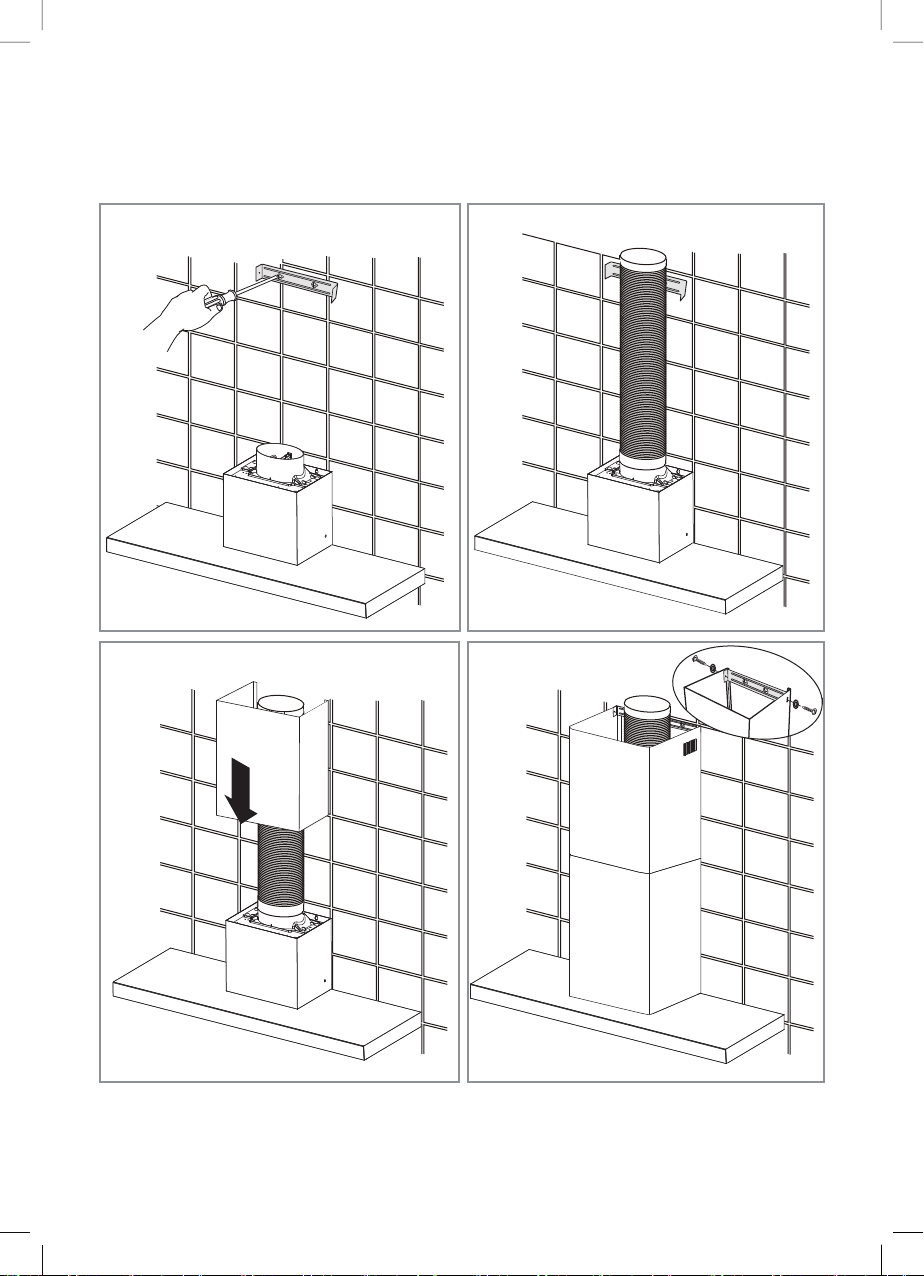

Fix ducting (seal joint)
Mount the lower chimney Adjust and secure the upper chimney
Fig. 13
Drill 2holes and mount the chimney bracket
