Montpellier CHG903MSS Manuale utente

montpellier

Installation and Operating Instructions

CHG903MSS

90cm Stainless Steel & Glass

CHIMNEY HOOD

(Picture shown for indicative purposes only)

Please read these instructions carefully before attempting to install or use this appliance.

It is advisable to keep these instructions in a safe place for future reference.

N.B. Should your appliance require attention, our service agents will not be able to book

a service call without your unique serial number which can be found on the last page of

this manual.

Introduction

Thank you for choosing this montpellier appliance. It has been

designed to give years of trouble-free use provided it is installed and

maintained correctly.

Please read these instructions carefully before installing or using your

appliance. It is advisable to keep your purchase and installation receipts

with these instructions in a safe place for future reference. Included is

some important safety information in addition to guidelines and

recommendations that will enable you to take full advantage of all the

functions available.

This quality appliance has been tested and certified to meet all applicable

UK electrical and safety standards.

This appliance must be installed and connected in accordance with

current regulations by a qualified electrician.

After unpacking the appliance ensure that there is no visible damage. If the

appliance has been damaged during transit, do not use it, contact your

retailer immediately.

Your 2 year Manufacturer's guarantee

THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.

Your new montpellier appliance carries a free guarantee which protects you against the cost of

repairs during the first 24 months from date of purchase provided that:

Any claim is accompanied by evidence of the model reference, model serial number and proof

of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24

months prior to the date of claim.

What is not covered under the Guarantee:

Any appliance not correctly installed and operated in accordance with the manufacturer's

instructions.

Any appliance that is used for anything other than domestic purposes.

Any defect caused by accident, misuse, unauthorized modification or inexpert repair.

Cost of Call-out where a fault cannot be found with the appliance.

Cost of Call-out for work covering routine maintenance, such as, but not exclusively,

cleaning of filters or defrosting.

Cost of Call-out for work required to correct the alignment of doors following door

reversal procedures carried out by you.

Use of the appliance by anyone other than the Householder.

Use in any commercial environment.

Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable

items which require routine replacement.

Repair costs incurred that have not been authorised by Repairtech and/or carried out by

a non-approved Repairtech engineer.

YOUR GUARANTEE IS VALID ONLY IN THE UK.

To Register your Appliance simply complete the card in your appliance pack and return it with a stamp

affixed or Alternatively you can Register online at www.repairtechuk.com

SERVICE HELP-LINE

Should your appliance develop a fault, please call the

Repairtech Service Helpline on:

01527-888133

Please remember to have all your product details available, including the model number, serial number,

date of purchase and your retailer’s details before registering a fault.

Your service call cannot progress without this information.

Description of the Appliance

1. Lights

2. Function Control Panel

3. Filter(s)

CONTENTS:

Section 1. Installation

Section 2. Safety Advice

Section 3. Operating the Appliance

Section 4. Maintenance

Section 5. Circuit Diagram

Section 1. Installation



A qualified installer must carry out the installation.



This appliance can be used fully ‘vented’ via a ducting hose and external wall

vent, or in ‘re-circulation’ mode by using the charcoal filter provided.



You must ensure that the appliance is horizontal (See Fig. 1 below).



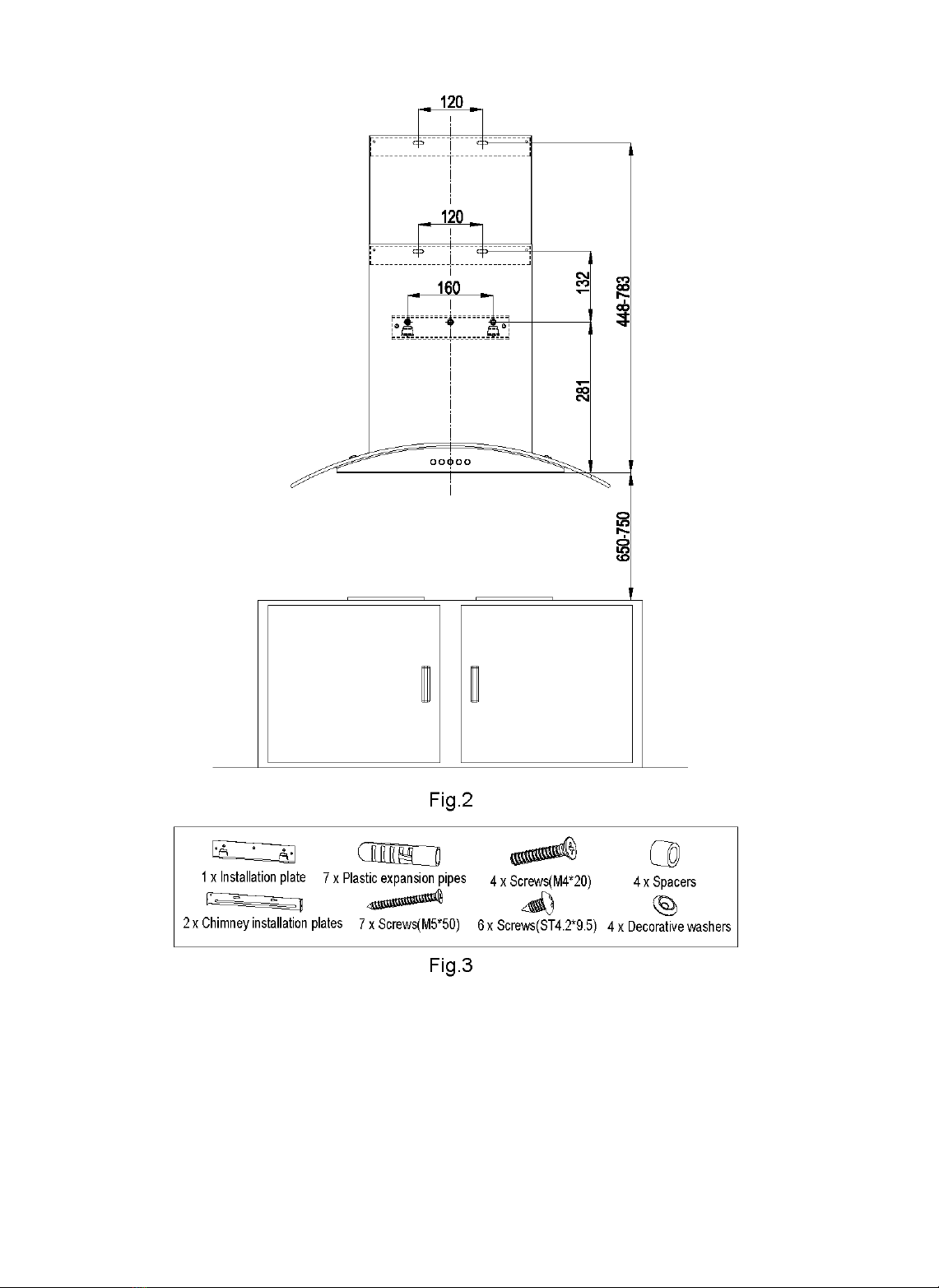

The cooker hood should ideally be installed between 65-75cm above the

work surface/cooker hob. DO NOT INSTALL BELOW 65cm (See Fig. 2

below).



List of installation accessories (See Fig. 3 below).



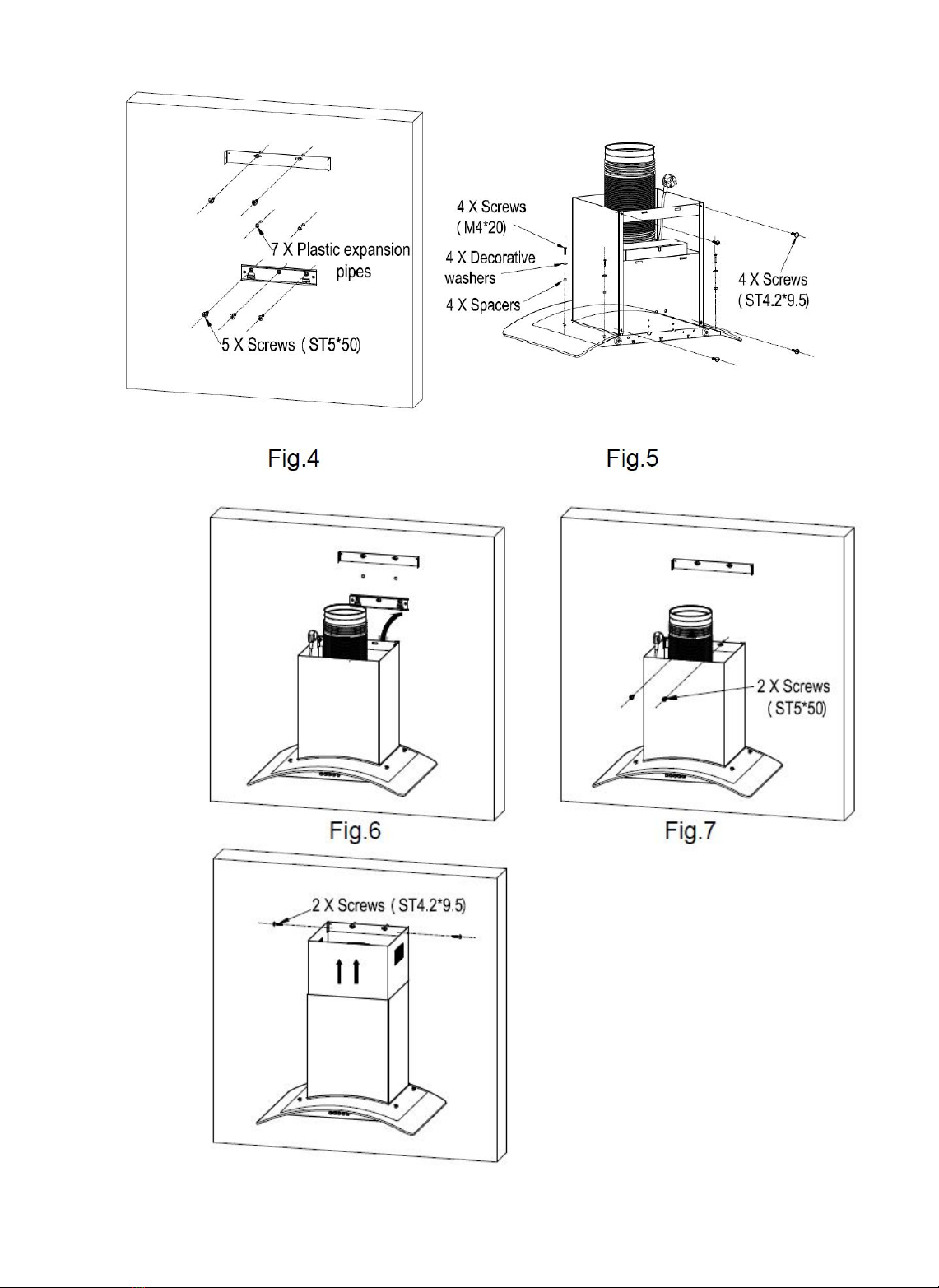

Fit the installation plate and chimney installation plate to the wall (See Fig. 4

below).



Fit the exhaust pipe, chimney and glass to the main body (See Fig.5 below).



Hang the hood onto the installation plate (See Fig. 6 below).



Connect the exhaust hose and then secure to the chimney installation plate

(See Fig.7 below).



Connect the chimney extension to the hood (See Fig. 8 below).



Ensure that the appliance has been attached to the wall securely!

The mains lead/plug should be connected to a suitably positioned fused

electrical spur, protected by a 13amp fuse.

Fig. 8

Section 2. Safety Advice

This appliance is manufactured and intended for DOMESTIC use only. Any

guarantee offered with the appliance is not valid for any installation in a

commercial environment.

This appliance incorporates stainless steel. Handle with care as some of the

edges may be sharp.

The main filter must be cleaned on a regular basis in order to help maintain

the appliance in good working order.

Always turn off the electricity supply before cleaning the filter or the appliance

exterior.

When replacing the bulbs or charcoal filter, ensure that you fit a ‘like for like’

replacement.

We recommend that this appliance is installed by a professional installer.

This appliance shall not be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction on how to use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children without supervision.



If the power supply cord is damaged, it must be replaced by the

manufacturer, it’s service agent or similarly qualified persons in order to avoid

a hazard.

Section 3. Operating the Appliance

Press button 1. To switch off the motor

Press button 2. for low speed

Press button 3. for medium speed

Press button 4. for high speed

Press button 5. to switch the light on and off

For best results, we recommend that the Cooker Hood is switched on at

least 10 minutes prior to cooking and left to run for a period of 10 minutes

after cooking is finished.

To operate the Cooker Hood, proceed as follows:

1. 2. 3. 4. 5.
