Motorola IDEN NTN9298 Manuale utente

NTN9298

Surveillance Kit

User’s Guide

For iDEN models i1000, i2000, and all plus family products.

SAFETY AND GENERAL INFORMATION

Refer to your phone’s user guide for all safety information relating to

phone operation.

To assure optimal performance when you are using the surveillance kit and

to make sure that human exposure to radio frequency electromagnetic

energy is within national and international guidelines, follow the

instructions for proper phone usage in your phone’s user guide, including

positioning of the phone.

To maintain optimum signal strength and to ensure compliance with FCC

regulations, keep surveillance headset cables at least one inch (1”) from the

phone’s antenna at all times.

Persons with pacemakers should ALWAYS keep the phone more than six

(6”) from the pacemaker when the phone is turned ON.

WARRANTY INFORMATION

Refer to your phone’s user guide for warranty information relating to your

phone.

Motorola, Aftermarket Accessories Division (“Motorola”) warrants the

Surveillance Headset Adapter Accessories against defects in material and

workmanship under normal use and service for a period of one (1) year

from shipment. Items will be replaced or repaired free of charge for the full

warranty period. Freight charges to and from the place where warranty

replacement is provided shall be the Customer’s responsibility.

The warranty does NOT cover defects or damages to the Surveillance

Headset and Adapter Accessories resulting from (a) use in a manner other

than normal operation as specifies in the Instruction Manual, (b) misuse,

accident, or neglect, (c) improper assembly, testing, operations,

maintenance, installation, adjustment, alteration, repair or any modification

by the customer or any other person without the prior written consent of

Motorola.

If replacement under warranty is necessary:

a. Place a confirming warranty order through the Centralized Cus-

tomer Service at (800) 422-4210.

b. Send defective material, within 45 days of confirming warranty

order to: Motorola

Aftermarket Accessories Division

1313 E. Algonquin Road

Schaumburg, IL 80196

c. The Customer will not be invoiced for the replacement item if orig-

inal, identical items are shipped to the Warranty Department

within 45 days.

DESCRIPTION

The NTN9298 Surveillance Kit consists of a two-wire surveillance

headset, with an earpiece and a microphone with a push-to-talk switch, and

an adapter to attach the headset to your iDEN portable. This accessory

permits concealed and private operation of the iDEN portable.

SURVEILLANCE ADAPTER

The Surveillance Adapter connects the surveillance headset to your phone

for privacy and hands-free operation. The Surveillance Adapter fits onto

the bottom of the phone and provides standard 2.5mm jack connection for

the surveillance headset.

Only the 5085665C01 Surveillance headset is compatible with the

Surveillance Adapter. Use of any non-Motorola approved headset with the

Surveillance Adapter may damage the phone, or cause it to malfunction.

Damage caused by using non-Motorola approved accessories may void

your warranty. See your phone’s user guide for more information.

ATTACHING/DETACHING THE SUR-

VEILLANCE HEADSET

1. Insert the 2.5 mm plug of the Surveillance

headset cord into the jack of the surveil-

lance Adapter.

2. Pull on the plug, not on the cord, to

remove the Surveillance headset.

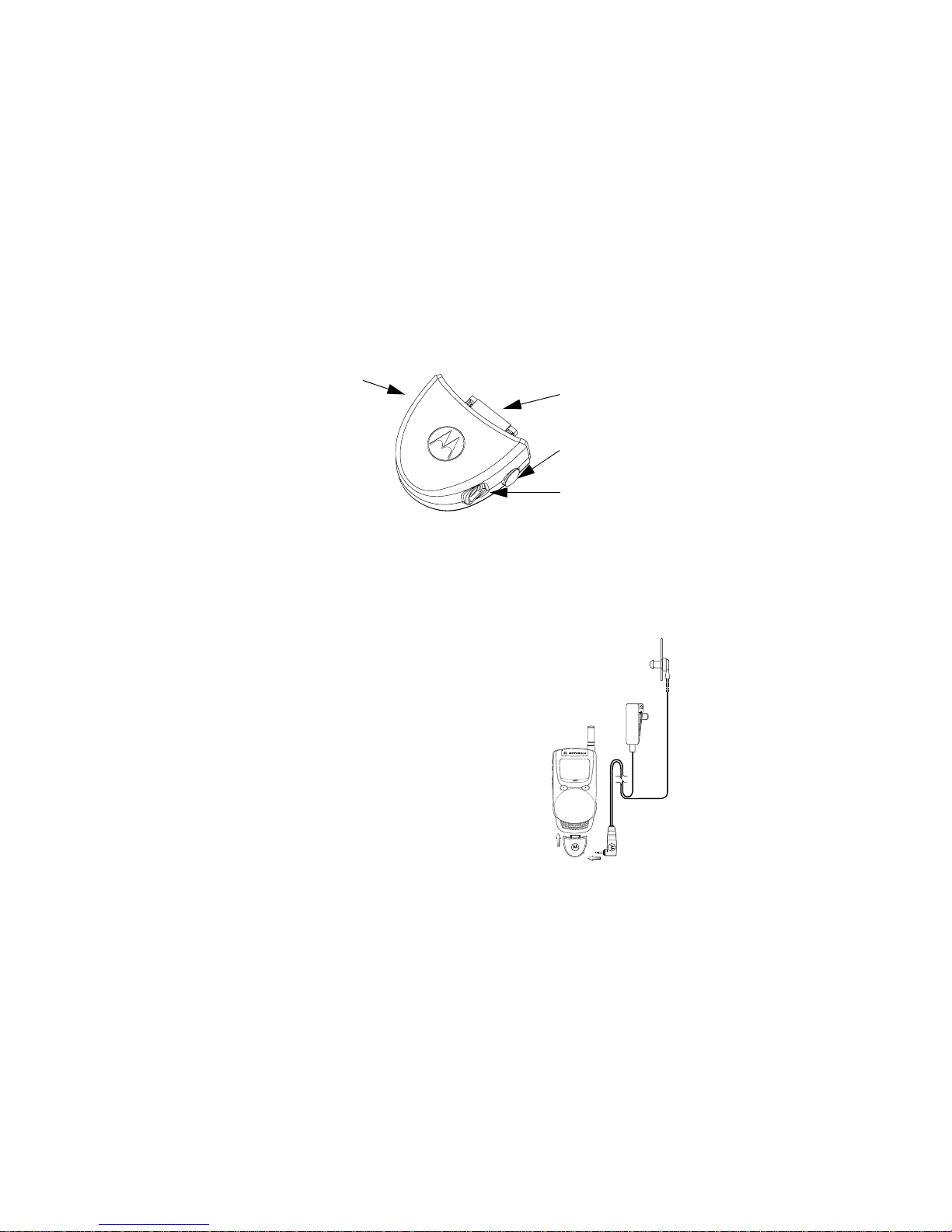

Surveillance Adapter

Release Button

2.5mm Jack

Release Button

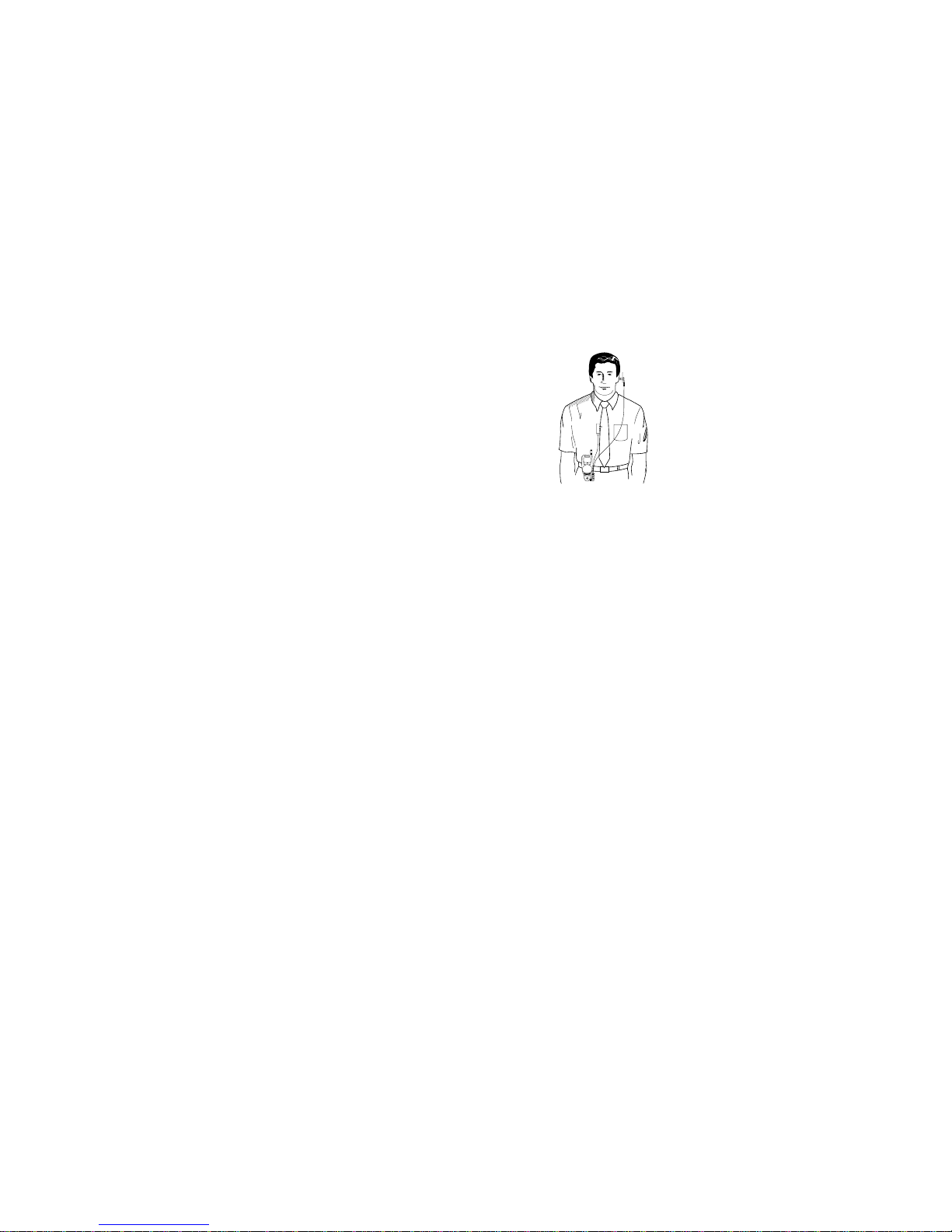

USING THE SURVEILLANCE

ADAPTER AND SURVEILLANCE

HEADSET

1. Hold the phone and the Surveillance

Adapter facing you so that you can see the

Motorola logo on the adapter.

2. Insert the Surveillance Adapter’s connec-

tor into the Bottom Accessory Connector.

You will hear the connector snap into

place.

3. Attach the Surveillance Headset.

4. Once installation is complete, adjust the volume to a comfortable level.

Use the remote push to talk button for private or group calls, or use the

push to talk button on the phone.

5. Speak into the headset microphone.

Note: When the Surveillance Adapter is connected, all audio,including

tones, will be routed to the audio accessory’s earpiece except ringing

from incoming calls and private or group call chirps.

REMOVING THE SURVEILLANCE ADAPTER

1. Simultaneously press the release buttons located on either side of the

Surveillance Adapter.

2. Pull the Surveillance Adapter from the phone.

EARPIECE ASSEMBLY PROCEDURE

to change the earloop from a right ear to a left ear application, detach the

standard eartip from the earphone. Remove the urethane earloop from the

earphone. Flip the earloop from a right ear position to a left ear position.

Place the earloop against the earphone. Replace the standard eartip.

Model # Description

50-80370E90 Black standard earpiece

assembly (earphone, ear-

loop, eartip).

50-80370E92 Plastic urethane earloop

50-80370E94 Standard rubber eartip

09-85664C01 Surveillance Adapter

50-85665C01 Surveillance Headset

, Motorola and iDEN are trademarks of

Motorola, Inc.

®Reg. U.S. Pat. & Tm. Off.

@6881092C04@

68P81092C04-O


