AIG-300 Series Hardware User’s Manual

Version 1.0, September 2021

www.moxa.com/product

AIG-300 Series Hardware User’s Manual

The software described in this manual is furnished under a license agreement and may be used only in accordance

with the terms of that agreement.

Trademarks

The MOXA logo is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the part of

Moxa.

Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not

limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to

the products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility

for its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the

information herein to correct such errors, and these changes are incorporated into new editions of the publication.

Technical Support Contact Information

www.moxa.com/support

Moxa Americas

Toll

-free: 1-888-669-2872

Tel:

+1-714-528-6777

Fax:

+1-714-528-6778

Moxa China (Shanghai office)

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa

Asia-Pacific

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045

Table of Contents

1. Introduction...................................................................................................................................... 1-1

Model Descriptions..............................................................................................................................1-2

Package Checklist ...............................................................................................................................1-2

Product Features ................................................................................................................................1-3

Product Specifications .........................................................................................................................1-3

2. Hardware Introduction...................................................................................................................... 2-1

Appearance........................................................................................................................................2-2

AIG-301-AZU-LX .........................................................................................................................2-2

AIG-301 US, EU, AP, and CN Models ..............................................................................................2-3

Dimensions ........................................................................................................................................2-4

AIG-301-AZU-LX .........................................................................................................................2-4

AIG-301 US, EU, AP, and CN Models ..............................................................................................2-4

LED Indicators.................................................................................................................................... 2-5

Reboot ..............................................................................................................................................2-5

Reset to Default ................................................................................................................................. 2-5

Real-time Clock ..................................................................................................................................2-5

Installation Options.............................................................................................................................2-6

DIN-rail Mounting........................................................................................................................2-6

Wall Mounting (optional) ..............................................................................................................2-6

3. Hardware Connection Description ..................................................................................................... 3-1

Wiring Requirements...........................................................................................................................3-2

Connecting the Power ..................................................................................................................3-2

Grounding the Unit ......................................................................................................................3-3

Connecting to the Network...................................................................................................................3-3

Connecting to a USB Device ................................................................................................................. 3-3

Connecting to Serial Ports....................................................................................................................3-3

Inserting the microSD Card..................................................................................................................3-4

Connecting to the Console Port.............................................................................................................3-4

Connecting the CAN Port .....................................................................................................................3-4

Connecting the Digital Inputs and Digital Outputs ...................................................................................3-5

Inserting the SIM Card ........................................................................................................................ 3-5

Installing the Wi-Fi Module (US, EU, AP, and CN models only) ..................................................................3-5

Connecting the Antennas ..................................................................................................................... 3-9

A. Regulatory Approval Statements....................................................................................................... A-1

1. Introduction

The AIG-300 Series advanced IIoT gateways are designed for Industrial IoT applications, especially for

distributed and unmanned sites in harsh operating environments. ThingsPro Edge and Azure IoT Edge

software are preloaded and seamlessly integrated with the AIG-300 Series to enable easy, reliable, yet

secure sensor-to-cloud connectivity for data acquisition and device management using the Azure Cloud

solution. With the use of the ThingsPro Proxy utility, the device provisioning process is easier than ever.

Thanks to the robust OTA function, you never have to worry about system failure during software upgrades.

With the secure boot function enabled, you can enable the booting process of AIG-300 Series to prevent

malicious software injection.

The following topics are covered in this chapter:



Model Descriptions



Package Checklist



Product Features



Product Specifications

AIG-300 Series HW UM Introduction

1-2

Model Descriptions

The AIG-300 Series includes the following models:

•AIG-301-T-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1 CAN

port, 4 DIs, 4 DOs, ThingsPro Edge and Azure IoT Edge software, -40 to 85°C operating temperature

•AIG-301-T-US-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1

CAN port, 4 DIs, 4 DOs, USA LTE band support, ThingsPro Edge and Azure IoT Edge software, -40 to

70°C operating temperature

•AIG-301-T-EU-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1

CAN port, 4 DIs, 4 DOs, Europe LTE band, ThingsPro Edge and Azure IoT Edge software, -40 to 70°C

operating temperature

•AIG-301-T-AP-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1

CAN port, 4 DIs, 4 DOs, Asia Pacific LTE band, ThingsPro Edge and Azure IoT Edge software, -40 to 70°C

operating temperature

•AIG-301-T-CN-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1

CAN port, 4 DIs, 4 DOs, ThingsPro Edge and Azure IoT Edge software, -40 to 70°C operating

temperature

•AIG-301-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1 CAN

port, 4 DIs, 4 DOs, ThingsPro Edge and Azure IoT Edge software, -20 to 85°C operating temperature

•AIG-301-US-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1

CAN port, 4 DIs, 4 DOs, USA LTE band support, ThingsPro Edge and Azure IoT Edge software, -20 to

70°C operating temperature

•AIG-301-EU-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1

CAN port, 4 DIs, 4 DOs, Europe LTE band, ThingsPro Edge and Azure IoT Edge software, -20 to 70°C

operating temperature

•AIG-301-AP-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1

CAN port, 4 DIs, 4 DOs, Asia Pacific LTE band, ThingsPro Edge and Azure IoT Edge software, -20 to 70°C

operating temperature

•AIG-301-CN-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1

CAN port, 4 DIs, 4 DOs, ThingsPro Edge and Azure IoT Edge software, -20 to 70°C operating

temperature

NOTE

The CN model does not come with the LTE module preinstalled. We

have tested the model with the Quectel

EC20 R2.1 LTE module and

recommend operating the LTE module in the -20 to 65°C temperature range.

Contact Moxa’s distributor in China for more information.

Package Checklist

The package contains the following items:

•AIG-300 Series advanced IIoT gateway

•Power jack

•DIN-rail mounting kit

•Quick installation guide (printed)

•Warranty card

NOTE

Notify your sales representative if any of the above items are missing or damaged.

NOTE

The console cable is not included in the package; you need to purchase it

separately.

AIG-300 Series HW UM Introduction

1-3

Product Features

•Simplifies data acquisition and device management via the ThingsPro Edge software.

•Seamless integration with ThingsPro Edge and Azure IoT Edge enables easy, reliable, yet secure cloud

connectivity.

•Supports easy device-provisioning with the ThingsPro Proxy utility.

•Provides robust OTA function to prevent system failure during software upgrades.

•Equipped with secure boot to prevent malicious software-injection attacks.

Product Specifications

NOTE

The

latest specifications for Moxa's products can be found at https://www.moxa.com.

2. Hardware Introduction

The AIG-300 Series devices are compact and rugged, making them suitable for industrial applications. The

LED indicators allow you to monitor device performance and quickly identify issues, and the multiple ports

can be used to connect a variety of devices. The AIG-300 Series comes with a reliable and stable hardware

platform that lets you devote the bulk of your time to application development. In this chapter, we provide

basic information about the device’s hardware and its various components.

The following topics are covered in this chapter:



Appearance

AIG-301-AZU-LX

AIG-301 US, EU, AP, and CN Models



Dimensions

AIG-301-AZU-LX

AIG-301 US, EU, AP, and CN Models



LED Indicators



Reboot



Reset to Default



Real-time Clock



Installation Options

DIN-rail Mounting

Wall Mounting (optional)

AIG-300 Series HW UM Hardware Introduction

2-2

Appearance

AIG-301-AZU-LX

Top Panel View

Front Panel View

Bottom Panel View

AIG-300 Series HW UM Hardware Introduction

2-3

AIG-301 US, EU, AP, and CN Models

NOTE

The CN model does not come with the LTE module preinstalled. Contact Moxa’s distributor in China for more

information.

Top Panel View

Front Panel View

Bottom Panel View

AIG-300 Series HW UM Hardware Introduction

2-4

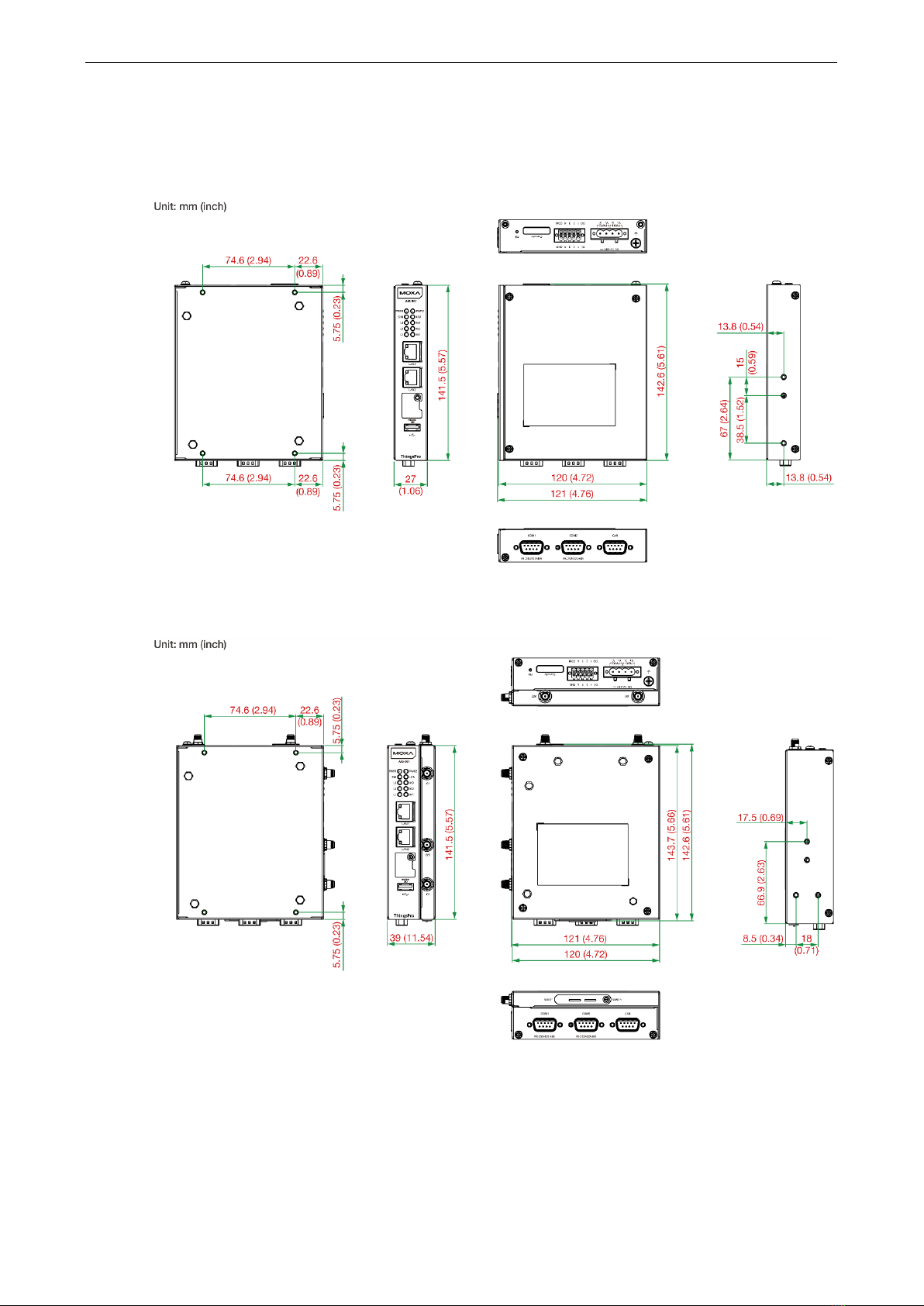

Dimensions

AIG-301-AZU-LX

AIG-301 US, EU, AP, and CN Models
