NPort 5600 Series

Quick Installation Guide

Edition 5.0, November 2015

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

Welcome to the Moxa NPort 5600 Series. The NPort 5610-8/16 have 8 or

16 RS-232 ports, the NPort 5630-8/16 have 8 or 16 RS-422/485 ports,

and the NPort 5650-8/16 have 8 or 16 RS-232/422/485 ports.

NPort 5600 Series Models

The NPort 5600 Series includes the following models: NPort 5610-8,

NPort 5610-16, NPort 5610-8-48V, NPort 5610-16-48V, NPort 5630-8,

NPort 5630-16, NPort 5650-8, NPort 5650-8-T, NPort 5650-8-HV-T,

NPort 5650-16-HV-T, NPort 5650-16, NPort 5650-16-T, NPort

5650-8-M-SC, NPort 5650-16-M-SC, NPort 5650-8-S-SC, and NPort

5650-16-S-SC.

Package Checklist

The NPort 5600 package should contain the following items:

•1 NPort 5600 series serial device server

•Power cord (AC models only)

•NPort Documentation & Software CD

•NPort 5600 Quick Installation Guide

Optional Accessories:

•CBL-RJ45M9-150: 8-pin RJ45 to DB9 male cable, 150 cm

•CBL-RJ45F9-150: 8-pin RJ45 to DB9 female cable, 150 cm

•CBL-RJ45M25-150: 8-pin RJ45 to DB25 male cable, 150 cm

•CBL-RJ45F25-150: 8-pin RJ45 to DB25 female cable, 150 cm

Note: Please notify your sales representative if any of the above items is

missing or damaged.

Hardware Introduction

NOTE

The wide temperature model does not come with LCM display

panels or push buttons. All of the LCM descriptions below apply

only to standard temperature models.

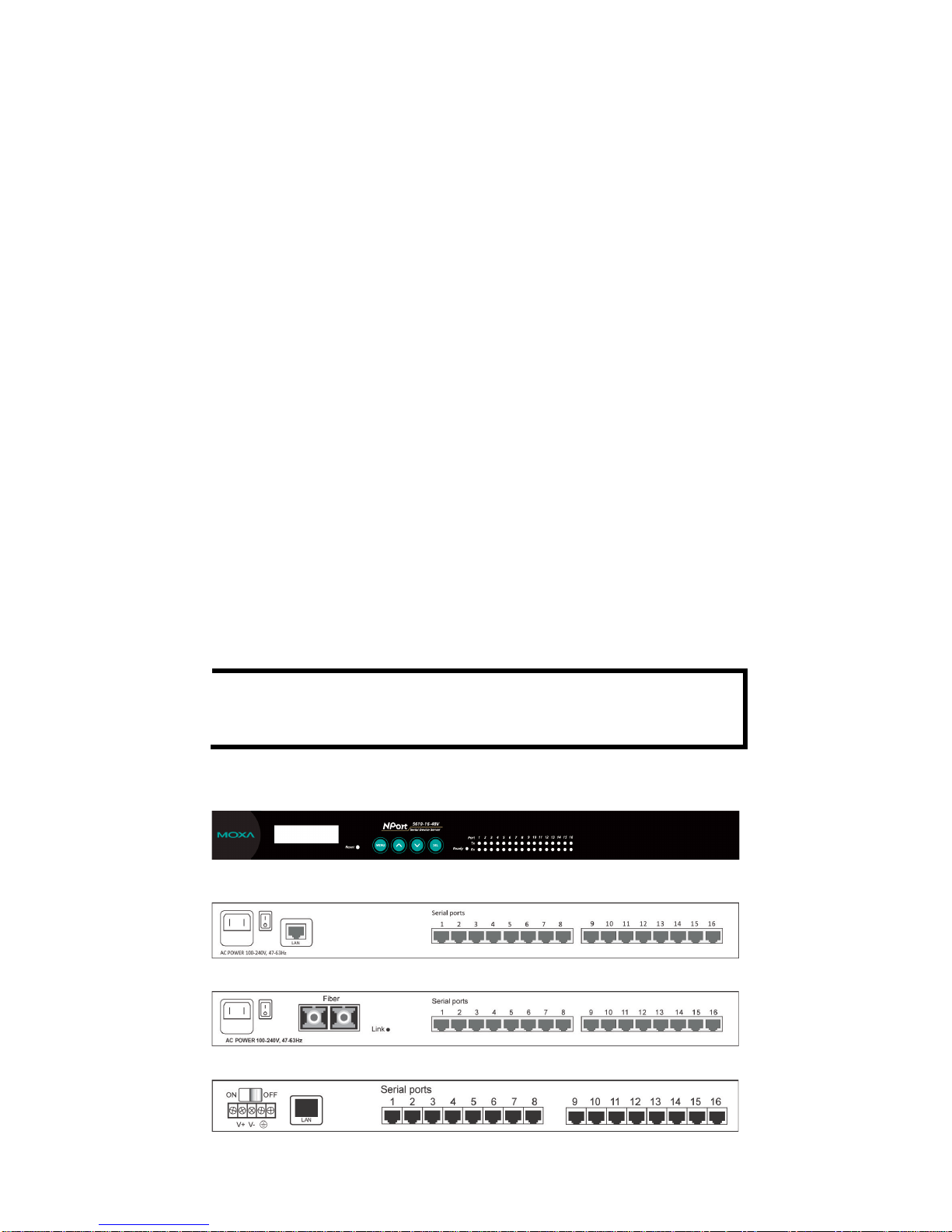

The front and rear panels are shown below:

Front panel of the NPort 5600 Series

Rear panel of the NPort 5610/5630/5650 (AC Power)

Rear panel of the NPort 5650 (Fiber Model)

Rear panel of the NPort 5610 (DC Power)

- 3 -

Front panel of the NPort 5650-T Series

Reset Button—press the Reset button continuously for 5 sec to load

factory defaults: Use a pointed object to press the reset button. Release

the button after the Ready LED stops blinking.

LED Indicators on the Front Panel—the front panels of the NPort 5600

have several LED indicators, as described in the following table.

Name

Color

Function

Ready

Off

Power is off, or power error condition exists.

Red

Steady on: Power is on and the NPort is booting up.

Blinking: Indicates an IP conflict, or DHCP or

BOOTP server did not respond properly.

Green

Steady on: Power is on and the NPort is

functioning

normally.

Blinking: The NPort has been located by NPort

Administrator’s Location function.

1 to 16

Orange

Serial port is receiving data.

Green

Serial port is transmitting data.

Off

No data is being transmitted or received through

the serial port.

LCM Display Panel—If the NPort is working properly, the LCM panel will

display a green color. The red Ready LED will also light up, indicating that

the NPort is receiving power. After the red Ready LED turns green, you

will see a display similar to:

This is where:

•NP5610-16 is the NPort’s name

•38 is the NPort’s local sequence number

•192.168.127.254 is the NPort’s IP address

LCM Panel Operation—There are four buttons on the NPort 5600’s front

panel. These buttons are used to operate the server’s LCM panel. Going

from left to right, the buttons are:

Button

Action

Activates the main menu, or returns to a lower level.

︿

Scrolls up through a list of items shown on the LCM panel’s

second line.

﹀Scrolls down through a list of items shown on the LCM

panel’s second line.

SEL

Selects the option listed on the LCM panel’s second line.

Detailed LCM Panel Operating instructions can be found in the NPort 5600

Series User’s Manual on the CD-ROM.

- 4 -

Link Indicator on the rear panel of the NPort 5650 fiber

model—the rear panels of the NPort 5650 have a link indicator, as

described in the following table.

LED Name

LED Color

LED Function

Link

Off

Fiber disconnected.

Green

Fiber connected, data not transmitting.

Blinking

Fiber connected, data is transmitting.

Hardware Installation

STEP 1: After removing the NPort 5600 from the box, the first thing you

should do is attach the power adapter.

STEP 2: Connecting the Power.

AC: Connect the NPort 5600’s 100-240 VAC power cord to the AC

connector. The “Ready” LED will show a solid red color until the system is

ready, at which time it will change to a green color.

DC: Connect the NPort 5600 VDC’s power cord to the DC connector, and

then follow the steps given below:

Take NPort 5610-8-48V as an example. Loosen the

screws on the V+ and V

- terminals of the NPort

5610

-8-48V’s terminal block. Connect the power

cord’s 48 VDC or -48 VDC wire to the terminal block’s

V+ terminal, and the power cord’s DC Power Ground wire to the terminal

block’s V

- terminal, and then tighten the terminal block screws. (Note:

The NPort

5610-8-48V can still operate even if the 48V/-48V and DC

Power Ground are reversed.)

The “Ready” LED will show a solid red color until the system is ready, at

which time it will change to a green color.

Grounding the NPort 5600 VDC:

Grounding and wire routing help limit the effects of

noise due to electromagnetic interference (EMI). Run

the ground connection from the ground screw to the

grounding surface prior to connecting devices. The

Shielded Ground (sometimes called Protected Ground)

contact is the second contact from the right of the

5-pin power terminal block connector located on the rear panel of the

NPort 5610-8-48V. Connect the SG wire to the Earth ground.

STEP 3: Connect the NPort 5600 to a network. Use a standard

straight-through Ethernet cable to connect to a hub or switch. When

setting up or testing the NPort 5600, you might find it convenient to

connect directly to your computer’s Ethernet port. In this case, use a

cross-over Ethernet cable.

STEP 4: Connect the NPort 5600’s serial port to a serial device.

Placement Options: You can place the NPort 5600 on a desktop or other

horizontal surface.

- 5 -

Software Installation Information

To install NPort Administration Suite, insert the NPort Document &

Software CD into your computer’s CD-ROM drive. Once the NPort

Installation CD window opens, click on the INSTALL UTILITY button,

and then follow the instructions on the screen.

To view detailed information about NPort Administration Suite, click

on the DOCUMENTS button, and then select “NPort 5600 Series User’s

Manual” to open the PDF version of this user’s guide.

Pin Assignments and Cable Wiring

Serial Port Pinouts

for the NPort 5610

Serial Port Pinouts

for theNPort 5630

RS-232

DSR (in)

RTS(out)

GND

TxD(out)

RxD(in)

DCD(in)

CTS(in)

DTR(out)

RS-422/

RS-485-4W

RS-485-2W

–

TxD+

–

TxD-

–

RxD-

Data-

RxD+

Data+

GND

–

Serial Port Pinouts for the NPort 5650

RS-232

RS-422/RS-485-4W

RS-485-2W

DTR

–

RTS

TxD+

–

GND

TxD

TxD-

–

RxD

RxD+

Data+

DCD

RxD-

Data-

CTS

–

DTR

–

Serial Cables for the NPort 5630 (2-wire RS-485)

- 6 -

Serial Cables for the NPort 5630 (RS-422/4-wire RS-485)

Serial Cables for the NPort 5610/5650 (RS-232)

Serial Cables for the NPort 5650 (RS-422/4-wire RS-485)

Serial Cables for the NPort 5650(2-wire RS-485)
