Moxa Technologies NPort IA5000A-I/O series Manuale utente

P/N: 1802051504012

*1802051504012*

NPort IA5000A-I/O Series

NPort IAW5000A-I/O Series

Quick Installation Guide

Edition 2.0, November 2017

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The NPort IA5000A-I/O and IAW5000A-I/O Series consist of serial device

servers with Digital Input/Output (DIO), providing maximum flexibility to

integrate serial equipment in the field into Ethernet networks for a variety

of industrial data acquisition applications. The DIO on a device can be

controlled over TCP/IP, using the Modbus TCP protocol, and it can be

configured and secured from a web browser.

Package Checklist

Before installing the NPort IA5000A-I/O or NPort IAW5000A-I/O Series

device server, verify that the package contains the following items:

•NPort IA5000A-I/O or NPort IAW5000A-I/O device server with digital

I/O

•Antenna (for the NPort IAW5000A-I/O Series)

•Quick installation guide (printed)

•Warranty card

Optional Accessories

•Mini DB9F-to-TB Adapter: DB9-female-to-terminal-block adapter

for RS-422/485 applications

•WK-51-01: Wall-mounting kit

•DR-4524: 45W/2A DIN-rail 24 VDC power supply with universal 85

to 264 VAC input

•DR-75-24: 75W/3.2A DIN-rail 24 VDC power supply with universal

85 to 264 VAC input

•DR-120-24: 120W/5A DIN-rail 24 VDC power supply with 88 to 132

VAC or 176 to 264 VAC input, selected by a DIP switch

Notify your sales representative if any of the above items are missing or

damaged.

Hardware Introduction

As shown in the following figures, the NPort IA5000A-I/O Series has two

Ethernet RJ45 LAN ports, and the NPort IAW5000A-I/O Series has one

Ethernet RJ45 LAN port and one antenna for WiFi (IEEE 802.11 standards)

signal communication, supporting 2.4GHz and 5 GHz frequencies. Both

series are equipped with four DIs and two DOs for data acquisition

applications. The NPort IA5000A-I/O and IAW5000A-I/O device server

series come with built-in 4 kV serial port surge protection.

- 3 -

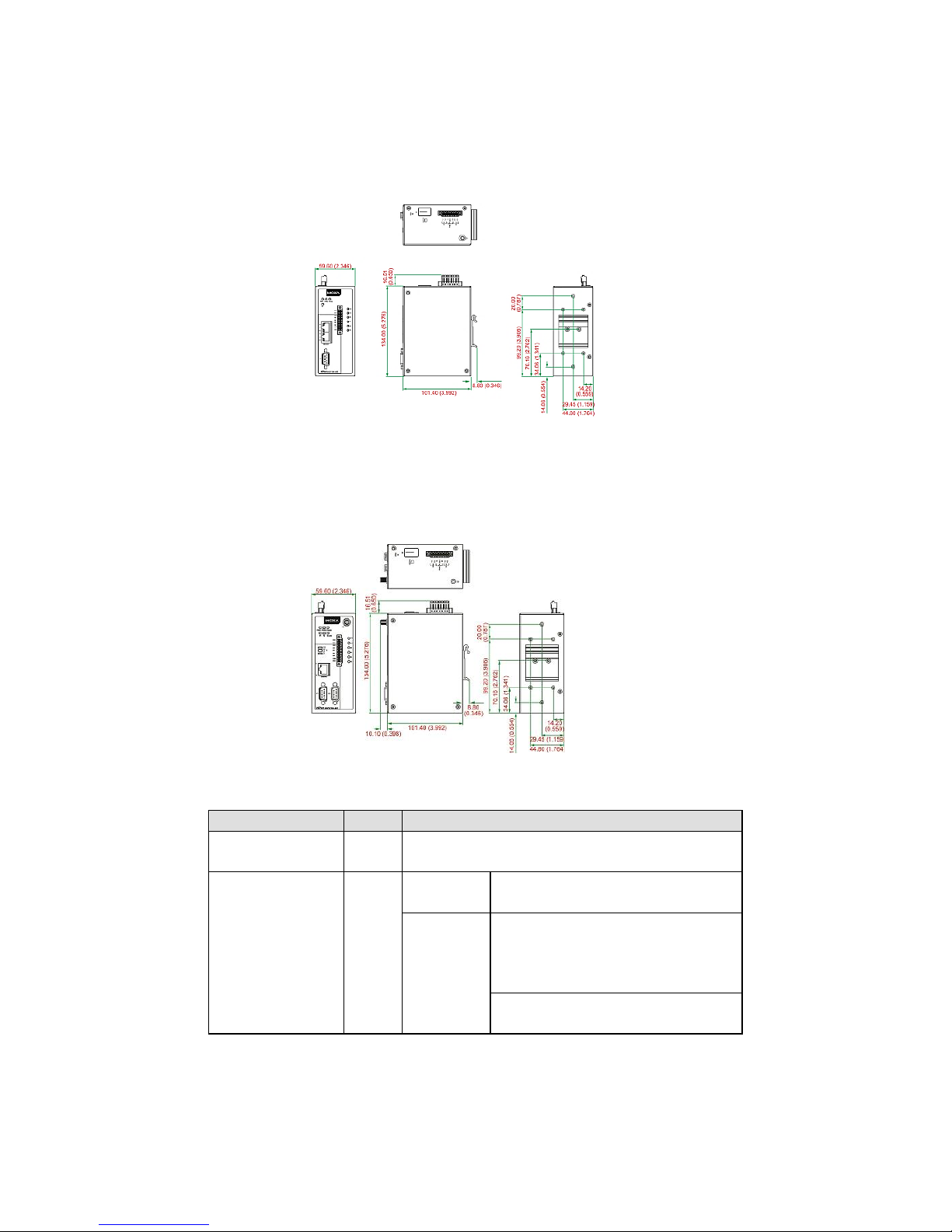

NPort IA5000A-I/O Series

The mechanical design of the NPort IA5000A-I/O Series is mostly

identical; only the number of serial ports and number of DI/DO channels

differ.

NPort IAW5000A-I/O Series

The mechanical design of the NPort IAW5150A and the NPort IAW5250A

is mostly identical; only the number of serial ports and number of DI/DO

channels differ.

LED Indicators

Name

Color

Function

PWR 1,

PWR 2

Green

Power is being supplied to power input PWR1,

PWR2.

Ready

Red

Steady on

Power is on, and the NPort is

booting up.

Blinking

Indicates an IP conflict, or the

DHCP or BOOTP server did not

respond properly, or a relay

output occurred.

When the above two conditions

occur at the same time.

- 4 -

Check the relay output first. If the

Ready LED is still blinking after

resolving the relay output, then

there is an IP conflict, or the DHCP

or BOOTP server did not respond

properly.

Flashing

quickly

microSD card failed

Green

Steady on

Power is on, and the NPort is

functioning normally.

Blinking The device server has been

located by Administrator’s

Location function

Off

Power is off, or a power error condition exists.

WLAN (Only for

the NPort

IAW5000A-I/O)

Green

Steady on

Wireless is enabled

Blinking

NPort can’t establish WLAN

connection with AP

(Infrastructure) or station

(Ad-Hoc)

Off

Wireless is not enabled.

Signal Strength

(3 LEDs only for

the NPort

IAW5000A-I/O)

Green

1 Bottom

The signal strength (RSSI) is less

than -74 dBm

2 Middle

The signal strength (RSSI) is

between -65 to -74 dBm

3 Top

The signal strength (RSSI) is

greater than -65 dBm

Ethernet

Amber

10 Mbps Ethernet connection

Green

100 Mbps Ethernet connection

Off

The Ethernet cable is disconnected or has a

short.

P1, P2 (Serial)

Amber

Serial port is receiving data.

Green

Serial port is transmitting data

Off

No data is being transmitted or received

through the serial port.

Green

DI status on

Off

DI status off

Green

DO status on

Off

DO status off

Hardware Installation Procedure

STEP 1:

After unpacking the unit, connect the power supply to the unit.

STEP 2:

Use an Ethernet cable to connect the unit to the network.

STEP 3:

Connect your device to the desired port on the unit.

STEP 4:

Place or mount the unit. The unit may be placed on a

horizontal surface such as a desktop, or mounted on the wall.

Mounting Options

The NPort IA5000A-I/O and IAW5000A-I/O are designed to be attached

to a DIN rail or mounted on a wall.

- 5 -

STEP 1:

Insert

the top of the

DIN rail into the

slot.

STEP 2:

The

DIN rail

attachment unit

will snap into

place as shown

at right.

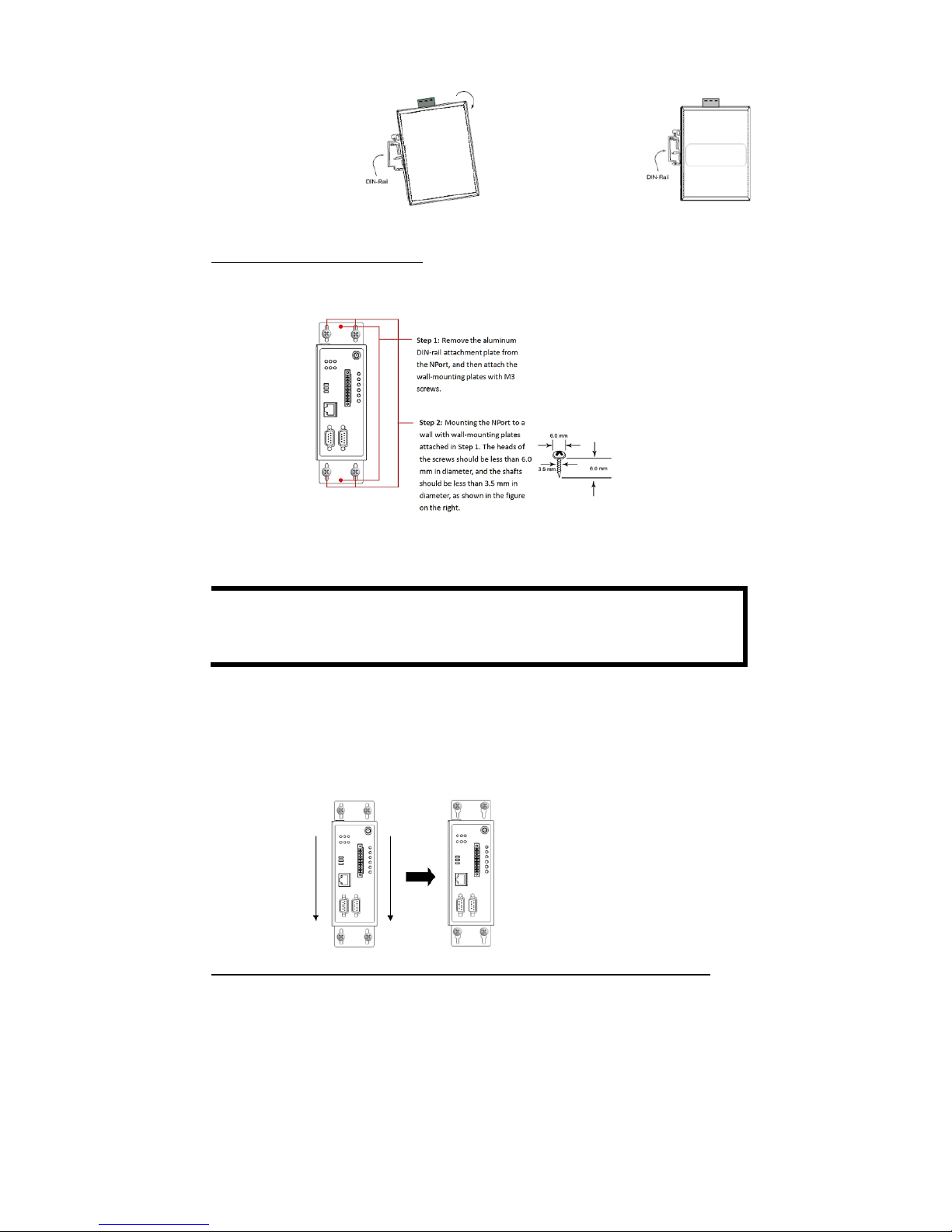

Wall Mounting (optional)

For some applications, it may be more convenient to mount the NPort

IA5000A-I/O or IAW5000A-I/O to a wall, as illustrated below.

Do not drive the screws in all the way—leave a space of about 2 mm to

allow room for sliding the wall-mounting panel between the wall and the

screws.

NOTE

Test the screw head and shank size by inserting the screws into

one of the keyhole

-shaped apertures of the wall-

mounting plates

before they are fixed to the wall.

STEP 3:

Once the screws are fixed into the wall, insert the four screw heads

through the large opening of the keyhole-shaped apertures, and then

slide the NPort downwards, as indicated to the right. Tighten the screws

for added stability.

Termination Resistor and Adjustable Pull-Up/Down Resistors

In some critical environments, you may need to add termination resistors

to prevent the reflection of serial signals. When using termination

resistors, it is important to set the pull-up/down resistors correctly so that

the electrical signal is not corrupted. The NPort IA5000A-I/O and

IAW5000A-I/O Series use DIP switches to set the pull-up/down resistor

values for each serial port. The DIP switches are located at the side of

wireless device server for easy setting.

- 6 -

To add a 120 Ω termination resistor, set switch 3 on the port’s

assigned DIP switch to ON; set switch 3 to OFF (the default setting) to

disable the termination resistor.

To set the pull-up/down resistors to 150 KΩ, set switches 1 and 2 on

the port’s assigned DIP switch to OFF. This is the default setting.

To set the pull-up/down resistors to 1 KΩ, set switches 1 and 2 on

the port’s assigned DIP switch to ON.

Pull-Up/Down Resistors for the RS-485 Port

SW1 (Serial 1)

SW2 (Serial 2)

DIP 1

Pull-up resistor

DIP 2

Pull-down

resistor

DIP 3

Terminal resistor

1 KΩ

120 Ω

OFF (Default)

150 KΩ

N/A

NOTE

Do not use the 1 KΩ setting while in RS-232 mode. Doing so will

degrade the RS

-232 signals and reduce the effective

communication distance.

Software Installation Information

For software installation, download the relative utilities from Moxa’s

website:

https://www.moxa.com/support/support_home.aspx?isSearchShow=1

•Download the NPort Windows Driver Manager and install it as

the driver to run with Real COM mode of the NPort Series.

•Execute NPort Windows Driver Manager; then map the virtual

COM ports on your Windows platform.

•You may refer to the DB9 Male pin assignment section to loop

back pin 2 and pin 3 for the RS-232 interface to carry out a

self-test on the device.

•Use HyperTerminal or a similar program (you may download

Moxa’s program, called PComm Lite) to test whether the device

is good or not.

Setting the IP Address

The factory default IP settings are assigned as follows:

NPort IA5000A-I/O Series

LAN

Netmask

Static

192.168.127.254

255.255.255.0

NPort IAW5000A-I/O Series

LAN

Netmask

Static

192.168.126.254

255.255.255.0

- 7 -

WLAN

Netmask

Static

192.168.127.254

255.255.255.0

If the NPort is configured for DHCP but the DHCP server cannot be found,

the NPort will use factory default IP settings.

NOTE

If you have forgotten the NPort’s IP address, use the Device

Search Utility from your PC to locate the NPort. After searching

the LAN for NPort units, the

Device

Search Utility will display the

IP address of each unit.

NOTE

(

For the NPort IAW5000A-I/O Series)

Ethernet Bridge Disabled (default):

Only one network

interface can be active at a time. If the Ethernet link is active, the

WLAN will be inactive. If the WLAN is active, the Ethernet link will

be inactive.

Ethernet Bridge Enabled:

The LAN and WAN will both be

active. Go to the web console,

find the network settings page,

and set Ethernet Bridge to Enabled.

Open the web console to make the configuration changes as follows:

STEP 1: Open your web browser.

STEP 2: In the address bar, enter the default IP address (for the NPort

IA5000A-I/O Series, it is 192.168.127.254; for the NPort IAW5000A-I/O

Series, it is 192.168.126.254)

STEP 3: The web server will ask for the username and password before

you log in. To configure the device server, you may use the default

user/default password admin/moxato log in the web console.

STEP 4: For first-time use, click the Wizard in the left navigation panel.

The wizard will prompt you to configure the IP address and basic settings.

For other settings, use the factory defaults or modify the settings for your

application.

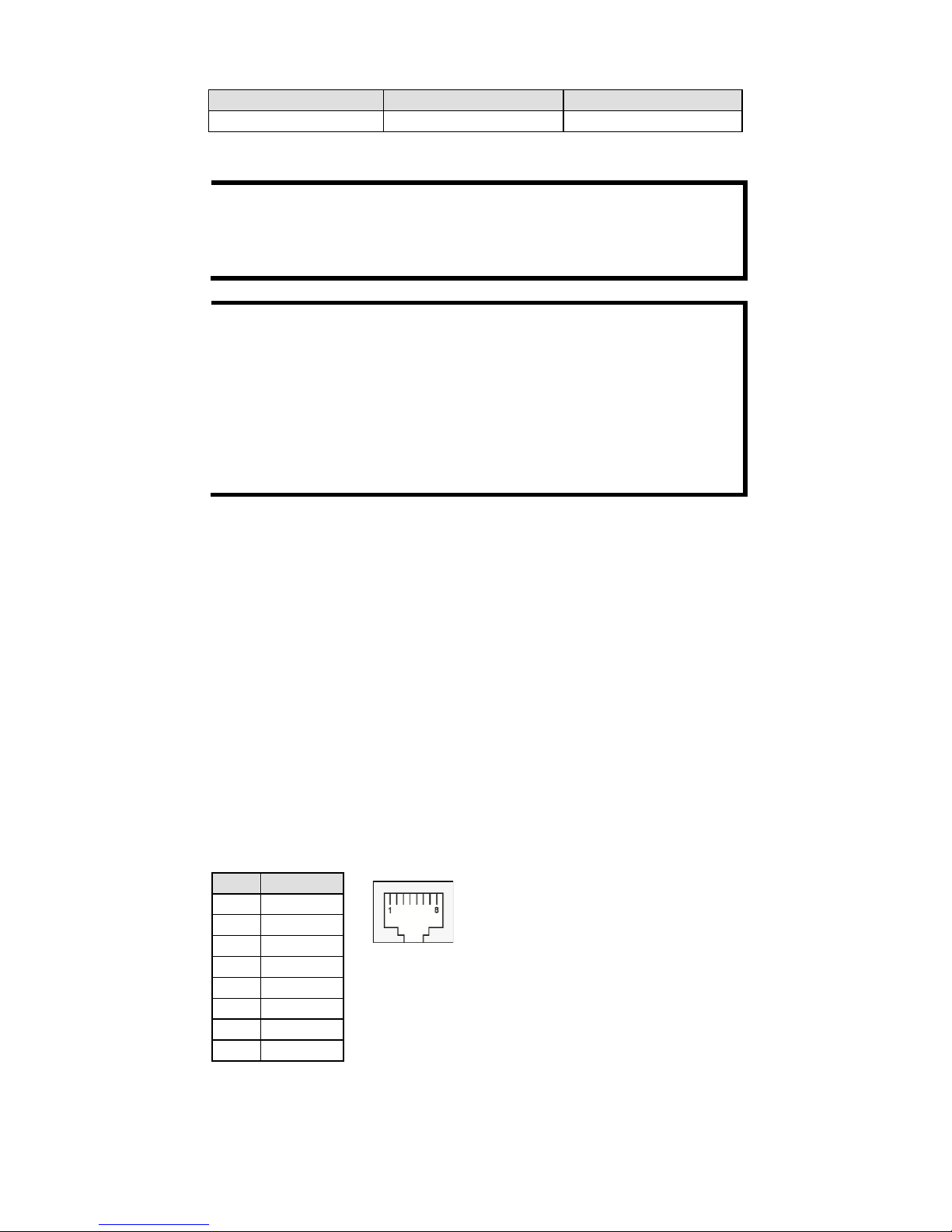

Pin Assignments

RJ45 (LAN)

LAN

Tx+

Tx-

Rx+

–

Rx-

–

- 8 -

DB9 Male (RS-232/422/485)

Pin RS-232

RS-422/

RS-485-4W

RS-485-2W

DCD

TxD-(A)

–

RxD

TxD+(B)

–

TxD

RxD+(B)

Data+(B)

DTR

RxD-(A)

Data-(A)

GND

DSR

–

RTS

–

CTS

–

Power Input and Relay Output Pinouts

V2+ V2-

V1+ V1-

DC Power

Input 2

DC Power

Input 2

N.O. Common N.C.

DC Power

Input 1

DC Power

Input 1

DI/DO Pinouts

DO0

DO1

GND

DI0

DI1

DI2

DI3

COM

GND

Digital

Output

Digital

Output

Ground

Digital

Input

Digital

Input

Digital

Input

Digital

Input

Common

Ground

Specifications

Power Input

12 to 48 VDC

Power Consumption

NPort IA5000A-I/O: 300mA @12V

NPort IAW5000A-I/O: 300mA @12V

Operating Temperature Standard models:

0 to 60°C (32 to 140°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Operating Humidity

5 to 95% RH

Dimensions (W x D x H)

NPort IA5000A-I/O:

59.6 x 101.4 x 134 mm (2.35 x 4.0 x 5.28 in)

IAW5000A-I/O:

59.6 x 101.4 x 134 mm (2.35 x 4.0 x 5.28 in)

Magnetic Isolation

1.5 kV for Ethernet

Regulatory Approvals

EMC

CE: EN 61000-6-2/6-4

FCC: FCC Part 17 Subpart B, Class A

- 9 -

FCC Part 15 Subpart B, Class A

Safety

UL: UL 60950-1

LVD: EN 60950-1

DSPR: ARIB-STD 33, ARIB-STD 66

Fault Relay Circuit

3-pin circuit with current-carrying capacity of

2 A @ 30 VDC

ATTENTION

This product is intended to be supplied by an UL

listed DC

source

suitable for use at T

MA of 60 degree C, which

output meets SELV

circuit and LPS

, which is separated from the primary circuit by

double insulation or reinforced insulation, and is rated 12

48Vdc,

0.38-0.1A or min. 0.38A; or 24Vdc, min. 0.17A.

ATTENTION

The risk of an

explosion is very high if the

battery is replaced by

an incorrect type. Dispose of used batteries according to the

instructions.

ATTENTION

This equipment is intended to be used in Restricted Access

Location.

WARNING:

HOT SURFACE. DO NOT TOUCH! Before touching the surface, pay

special attention and take the necessary protection measures.

Altri manuali per NPort IA5000A-I/O series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Server

Moxa Technologies

Moxa Technologies ioLogik R2140 Manuale utente

Moxa Technologies

Moxa Technologies NPort 6450 Series Manuale utente

Moxa Technologies

Moxa Technologies CN2600 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort 5610 series Manuale utente

Moxa Technologies

Moxa Technologies NPort IA5250I/5250I-T Series Manuale utente

Moxa Technologies

Moxa Technologies NPort IA5150A Manuale utente

Moxa Technologies

Moxa Technologies NPort 6450 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort 6600 Series Manuale utente

Moxa Technologies

Moxa Technologies NPORT 6600 series Manuale utente

Moxa Technologies

Moxa Technologies NPort W2150 Plus Manuale utente

Moxa Technologies

Moxa Technologies CN2510 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort 5610-8 Manuale utente

Moxa Technologies

Moxa Technologies NPort W2250 Plus Series Manuale utente

Moxa Technologies

Moxa Technologies NPort IA5000 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort IA5000A-I/O series Manuale utente

Moxa Technologies

Moxa Technologies NPort IA5450A Manuale utente

Moxa Technologies

Moxa Technologies NPort 6650 Manuale utente

Moxa Technologies

Moxa Technologies NPort 5600 Series Manuale utente

Moxa Technologies

Moxa Technologies VPort 2110 Manuale utente

Moxa Technologies

Moxa Technologies NPort 6000 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort 6150 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort W2150 Plus Manuale utente

Moxa Technologies

Moxa Technologies NPort 5600-8-DT Manuale utente

Moxa Technologies

Moxa Technologies NPort 5200 Serie Manuale utente

Manuali Server popolari di altre marche

HP AlphaServer ES47 Manuale utente

Dell

Dell PowerEdge R410 Manuale utente

PowerNAS

PowerNAS CMA Manuale utente

Supero

Supero FatTwin F617R3-FT Manuale utente

MSI

MSI P1-109N-L70 Manuale utente

Dell

Dell PowerEdge XE9640 Manuale

Dell

Dell PS4100 Istruzioni di montaggio

EtroVISION

EtroVISION EV3151 Manuale utente

NEC

NEC Express5800/T110j Manuale utente

HP ProLiant Gen9 Manuale utente

Compaq

Compaq ProLiant 3000 Manuale

Dell

Dell PowerEdge 3YPMN Manuale utente

iRobo

iRobo IPC2U Manuale utente

Nortel

Nortel 1000 Con?guration guide Manuale utente

Asus

Asus AP7500 Manuale operativo e di manutenzione

Avid Technology

Avid Technology AirSpeed 5000 Manuale utente

HP Integrity rx2600 Guida all'installazione

Milestone

Milestone Husky IVO 350T Manuale utente
