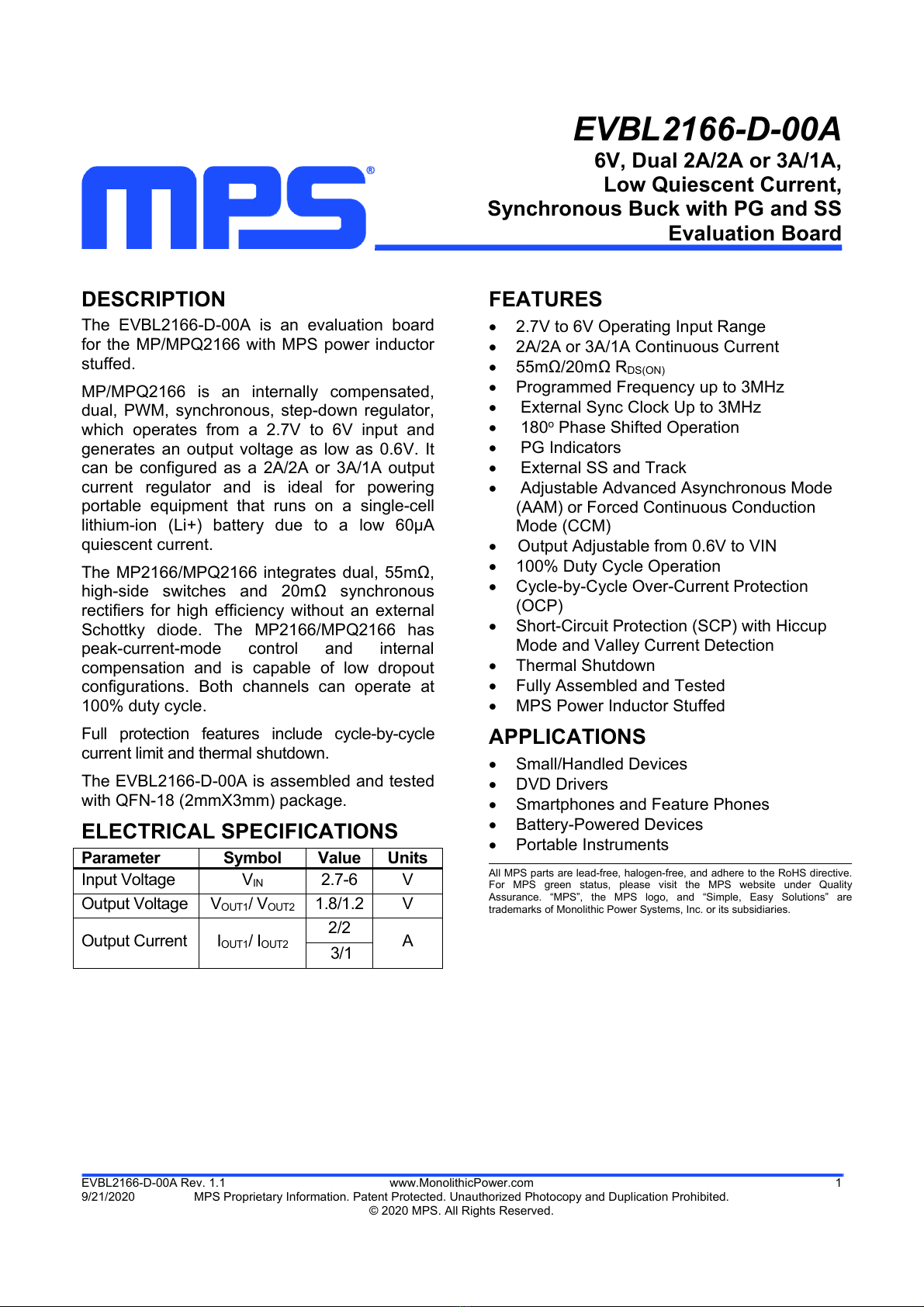

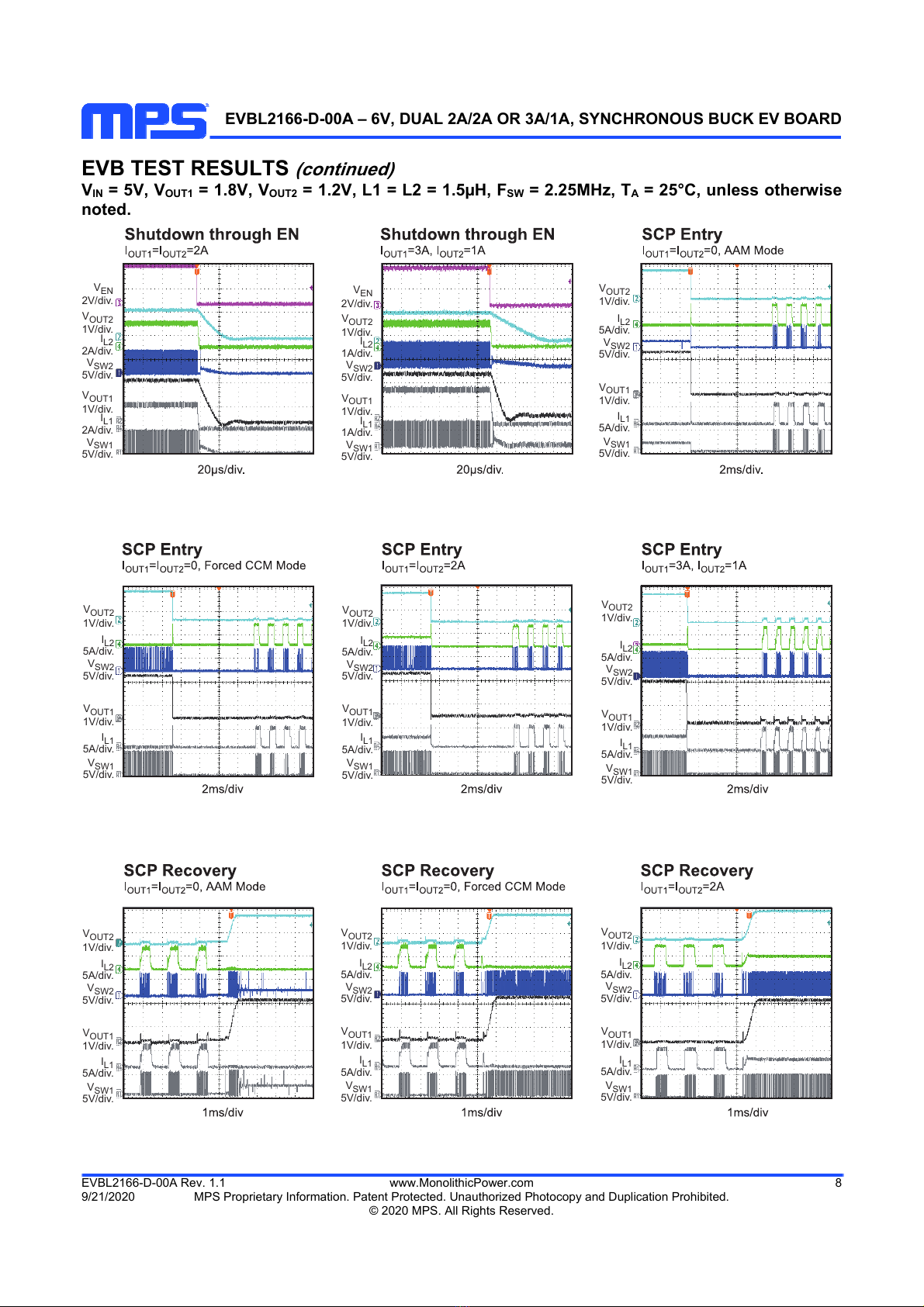

EVBL2166-D-00A
6V, Dual 2A/2A or 3A/1A,
Low Quiescent Current,
Synchronous Buck with PG and SS
Evaluation Board
EVBL2166-D-00A Rev. 1.1 www.MonolithicPower.com 1
9/21/2020 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2020 MPS. All Rights Reserved.
DESCRIPTION
The EVBL2166-D-00A is an evaluation board
for the MP/MPQ2166 with MPS power inductor
stuffed.
MP/MPQ2166 is an internally compensated,
dual, PWM, synchronous, step-down regulator,
which operates from a 2.7V to 6V input and
generates an output voltage as low as 0.6V. It
can be configured as a 2A/2A or 3A/1A output
current regulator and is ideal for powering
portable equipment that runs on a single-cell
lithium-ion (Li+) battery due to a low 60µA
quiescent current.
The MP2166/MPQ2166 integrates dual, 55m,
high-side switches and 20msynchronous
rectifiers for high efficiency without an external
Schottky diode. The MP2166/MPQ2166 has
peak-current-mode control and internal
compensation and is capable of low dropout
configurations. Both channels can operate at
100% duty cycle.
Full protection features include cycle-by-cycle
current limit and thermal shutdown.
The EVBL2166-D-00A is assembled and tested
with QFN-18 (2mmX3mm) package.
ELECTRICAL SPECIFICATIONS
Parameter Symbol Value Units
Input Voltage VIN 2.7-6 V
Output Voltage VOUT1/ VOUT2 1.8/1.2 V
Output Current IOUT1/ IOUT2 2/2 A
3/1
FEATURES
2.7V to 6V Operating Input Range
2A/2A or 3A/1A Continuous Current
55m/20mRDS(ON)
Programmed Frequency up to 3MHz
External Sync Clock Up to 3MHz
180oPhase Shifted Operation
PG Indicators
External SS and Track
Adjustable Advanced Asynchronous Mode
(AAM) or Forced Continuous Conduction
Mode (CCM)
Output Adjustable from 0.6V to VIN
100% Duty Cycle Operation
Cycle-by-Cycle Over-Current Protection
(OCP)
Short-Circuit Protection (SCP) with Hiccup
Mode and Valley Current Detection
Thermal Shutdown
Fully Assembled and Tested
MPS Power Inductor Stuffed
APPLICATIONS
Small/Handled Devices
DVD Drivers
Smartphones and Feature Phones
Battery-Powered Devices
Portable Instruments
