MSI 845PE Max Manuale utente
i
Version 2.1
G52-M6580X4

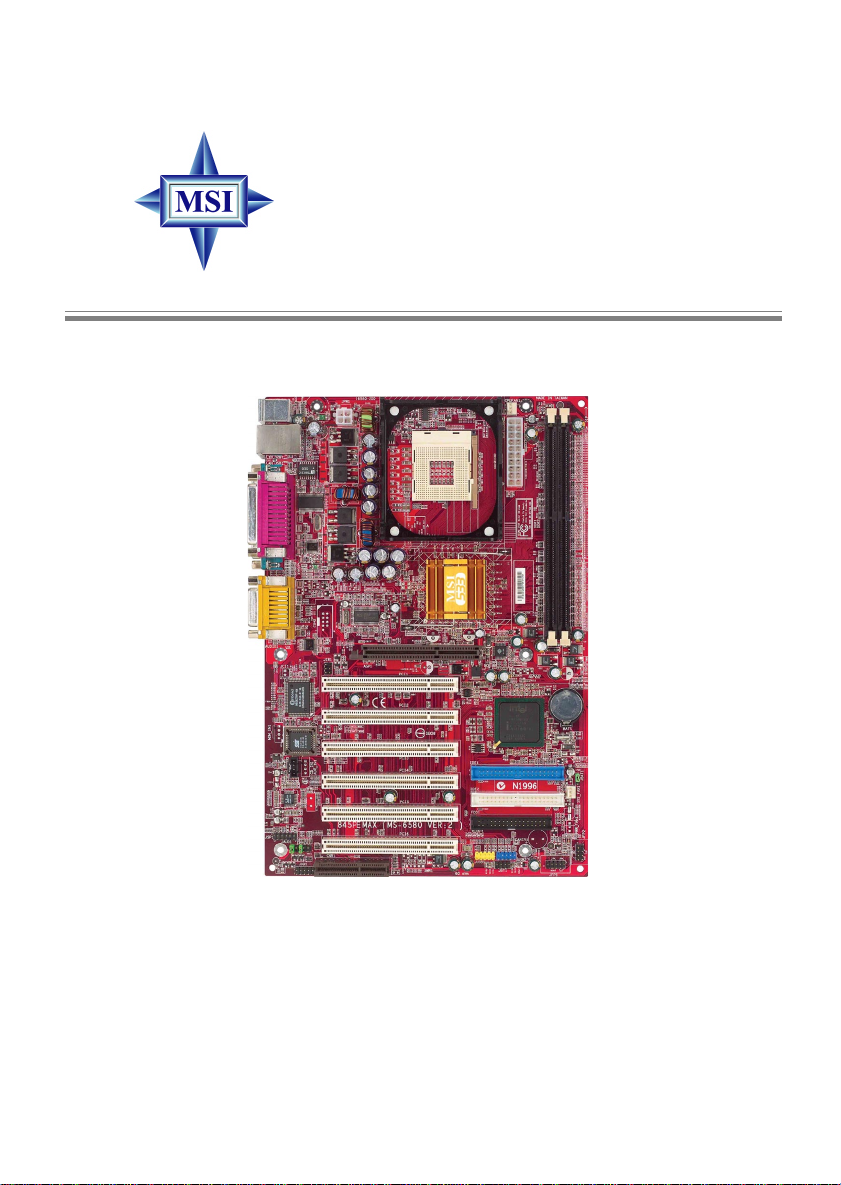

MS-6580 (v2.X) ATX Mainboard
845PE Max
ii
Manual Rev: 2.1
Release Date: Aug. 2002
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.
Micro-StarInternational MS-6580
Testedtocomply
withFCCStandard
ForHomeor OfficeUse
iii
CopyrightNotice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,
but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.
Trademarks
All trademarks are the properties of their respective owners.
AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered
trademarks of AMD Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows®98/2000/NT/XP are registered trademarks of Microsoft Corporation.
Netware®is a registered trademark of Novell, Inc.
Award®is a registered trademark of Phoenix Technologies Ltd.
AMI®is a registered trademark of American Megatrends Inc.
Revision History
Revision Revision History Date
V2.1 Change NB to 845PE chipset Aug.2002
Replace COM B with VGA port
TechnicalSupport
If a problem arises with your system and no solution can be obtained from the
user’s manual, please contact your place of purchase or local distributor.
Alternatively, please try the following help resources for further guidance.
Visit the MSI website for FAQ, technical guide, BIOS updates, driver
updates, and other information: http://www.msi.com.tw/
iv
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipmentfromoverheating. DO NOTCOVER THEOPENINGS.
6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always UnplugthePower Cord beforeinsertingany add-on cardormodule.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electri-
cal shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
zThe power cord or plug is damaged.
zLiquid has penetrated into the equipment.
zThe equipment has been exposed to moisture.
zThe equipment has not work well or you can not get it work according
to User’s Manual.
zThe equipment has dropped and damaged.
zThe equipment has obvious sign of breakage.
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED,STORAGETEMPERATUREABOVE600C(1400F),IT
MAYDAMAGETHEEQUIPMENT.
Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
v
CONTENTS
FCC-B Radio Frequency Interference Statement ...........................................ii
Copyright Notice ..........................................................................................iii
Revision History ...........................................................................................iii
Technical Support ......................................................................................... iii
Safety Instructions .......................................................................................iv
Chapter1.GettingStarted ........................................................................ 1-1
Mainboard Specifications ....................................................................1-2
Mainboard Layout ...............................................................................1-4
MSI Special Features ...........................................................................1-5
PC Alert 4 ...................................................................................... 1-5
FuzzyLogic4................................................................................. 1-6
Live Monitor .................................................................................1-7
D-Bracket 2 (optional) ...................................................................1-8
LiveBIOS/LiveDriver ................................................................. 1-10
S-Bracket (optional) ..................................................................... 1-11
MSI DVD 5.1 Channel (optional) ................................................. 1-12
Chapter2.HardwareSetup ....................................................................... 2-1
Quick Components Guide ....................................................................2-2
Central Processing Unit: CPU ..............................................................2-3
CPU Core Speed Derivation Procedure .........................................2-3
CPU Installation Procedures for Socket 478 ..................................2-4
Installing the CPU Fan ..................................................................2-5
Memory................................................................................................2-7
Introduction to DDR SDRAM.......................................................2-7
DIMM Module Combination......................................................... 2-8
Installing DDR Modules ............................................................... 2-8
Power Supply .......................................................................................2-9
ATX 20-Pin Power Connector: PWR1 ........................................... 2-9
ATX 12V Power Connector: JPW1 ................................................2-9
vi
BackPanel .......................................................................................... 2-10
Keyboard Connector: KBMS1 .................................................... 2-10
Mouse Connector: KBMS1 ......................................................... 2-11
USB Connectors.......................................................................... 2-11
RJ-45 LAN Jack (optional) ........................................................... 2-12
Serial Port Connectors: COM A & COM B.................................. 2-12
Parallel Port Connector ................................................................ 2-13
Joystick/Midi Connector ............................................................. 2-14
Audio Port Connectors ............................................................... 2-14
Connectors......................................................................................... 2-15
Floppy Disk Drive Connector: FDD1........................................... 2-15
Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-16
Fan Power Connectors: CPUFAN1/SYS_FAN1........................... 2-17
Front Panel Audio Connector: JAUD1 ........................................ 2-18
Front Panel Connectors: JFP1 & JFP2 ......................................... 2-19
S-Bracket Connector: JSP1 .......................................................... 2-20
Front USB Connectors: JUSB1 & JUSB2..................................... 2-21
D-Bracket 2 Connector: JDB1 ...................................................... 2-23
Bluetooth Connectors: JBT1 ....................................................... 2-24
IrDA Infrared Module Header: JIR1 ............................................ 2-25
CD-InConnector:CD_IN1 .......................................................... 2-25
Jumpers .............................................................................................. 2-26
Clear CMOS Jumper:JBAT1 ........................................................ 2-26
Slots ................................................................................................... 2-27
AGP (Accelerated Graphics Port) Slot......................................... 2-27
PCI (Peripheral Component Interconnect) Slots.......................... 2-28
CNR(CommunicationNetwork Riser) Slot .................................. 2-28
PCI Interrupt Request Routing .................................................... 2-29
Chapter3.BIOS Setup.............................................................................. 3-1
Entering Setup......................................................................................3-2
vii
Selecting the First Boot Device .....................................................3-2
Control Keys .................................................................................3-3
Getting Help ..................................................................................3-3
The Main Menu ................................................................................... 3-4
Standard CMOS Features .................................................................... 3-6
Advanced BIOS Features .................................................................... 3-8
Advanced Chipset Features............................................................... 3-13
Power Management Features............................................................. 3-16
PNP/PCI Configurations..................................................................... 3-20
Integrated Peripherals ........................................................................ 3-23
PC Health Status ................................................................................ 3-27
Frequency/Voltage Control ................................................................ 3-28
Set Supervisor/User Password........................................................... 3-30
Load High Performance/BIOS Setup Defaults.................................... 3-31
Appendix:Using4-or6-ChannelAudioFunction ....................................A-1
Installing the Audio Driver .................................................................A-2
Using 4- or 6-Channel Audio Function ...............................................A-4
Testing the Connected Speakers.......................................................A-14
PlayingKaraOK ................................................................................A-15
Troubleshooting ........................................................................................ T-1
Glossary ....................................................................................................G-1
1-1
Getting Started
Chapter 1. Getting
Started
Thank you for purchasing the 845PE Max (MS-6580 v2.X)
ATX mainboard. The 845PE Max mainboard is based on Intel®
845PE & ICH4 chipsets for optimal system efficiency. Designed
to fit the advanced Intel®Pentium 4/Celeron processor in the
478-pin package, the 845PE Max mainboard delivers a high per-
formance and professional desktop platform solution.
Getting Started
1-2
MS-6580 ATX Mainboard
Mainboard Specifications
CPU
hSupports Socket 478 for Intel®Pentium 4/Celeron processors
hCore Frequency from 1.4 GHz to 2.8 GHz and up* (*not tested yet)
Chipsets
hIntel®845PE chipsets
- AGP 4x slot (1.5v only)
- Support 100/133/166 MHz FSB
- Support 400/533 MHz Intel NetBurst micro-architecture bus
hIntel®ICH4 chipset
- AC’97 2.2 interface
- 6 USB 2.0/1.1 ports
- 2 channel Ultra ATA/100 Bus Master IDE controller
- SMBus 2.0 support
- Integrated LAN controller
MainMemory
hSupports two 184-pin DDR200/DDR266/DDR333 DIMMs
hSupports Max. memory size of 2GB
Slots
hOne AGP (Accelerated Graphics Port) 4x slot (support 1.5v only)
hSix PCI 2.2 32-bit Master bus slots (support 3.3v/5v)
hOne CNR (Communication Network Riser) slot
On-BoardIDE
hAn IDE controller integrated in ICH4
hSupport PIO, Bus Master and Ultra ATA66/100 operation modes
hCan connect up to four IDE devices
On-Board Peripherals
hOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes
- 2 serial port connectors COM A & COM B
- 1 parallel port
1-3
Getting Started
- 1 RJ-45 LAN jack (optional)
- 1 audio/game port
- 6 USB ports (Rear * 2/ Front * 4)
Audio
h6 channels audio codec Realtek ALC650
Network
hICH4 integrated LAN controller
hIntel 82562ET (optional)
BIOS
hThe mainboard BIOS provides “Plug & Play” BIOS which detects the pe-
ripheral devices and expansion cards of the board automatically.
hThe mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
Dimension
hATX Form Factor: 30.5 cm (L) x 20.5 cm (W)
Mounting
h6 mounting holes
Others
hACPI support, including STR/STD (S3/S4)
hSupport WOR/WOL
hPC2001 compliant
hSupport D-Bracket 2/S-Bracket/PC2PC Bluetooth (optional)
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali MSI Scheda madre
MSI
MSI MS-6119 ATX BX2 Istruzioni per l'installazione
MSI
MSI MPG B550 GAMING CARBON WIFI Manuale utente
MSI
MSI X48 Platinum Series Manuale utente
MSI
MSI 845GVM2-V Series Manuale utente
MSI
MSI MS-7260 Manuale utente
MSI
MSI Z170A TOMAHAWK Manuale utente
MSI
MSI 970A-G46 Series Manuale utente
MSI
MSI K9N2GM-FD - Motherboard - Micro ATX Manuale utente
MSI
MSI MAG B660M MORTAR WIFI DDR4 Manuale utente
MSI
MSI Z77IA-S01 Series Manuale utente
MSI
MSI A320M PRO-M2 V2 Manuale utente
MSI
MSI Z97S SLI PLUS Manuale utente
MSI
MSI MEG Z490 ACE Manuale utente
MSI
MSI 880G-E45 Series Manuale utente
MSI
MSI 645 Ultra MS-6547 Manuale utente
MSI
MSI B760 GAMING PLUS WIFI Manuale utente
MSI
MSI P31 NEO-F - Motherboard - ATX Manuale utente
MSI
MSI A520M PRO Manuale utente
MSI
MSI H67MA-E35 B3 series Manuale utente
MSI
MSI MS-9802 Manuale utente
Manuali Scheda madre popolari di altre marche
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuale utente
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Texas Instruments
Texas Instruments ADS8372EVM Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
