MSI MS-7028 Manuale utente

Micro-Star International Co., Ltd.

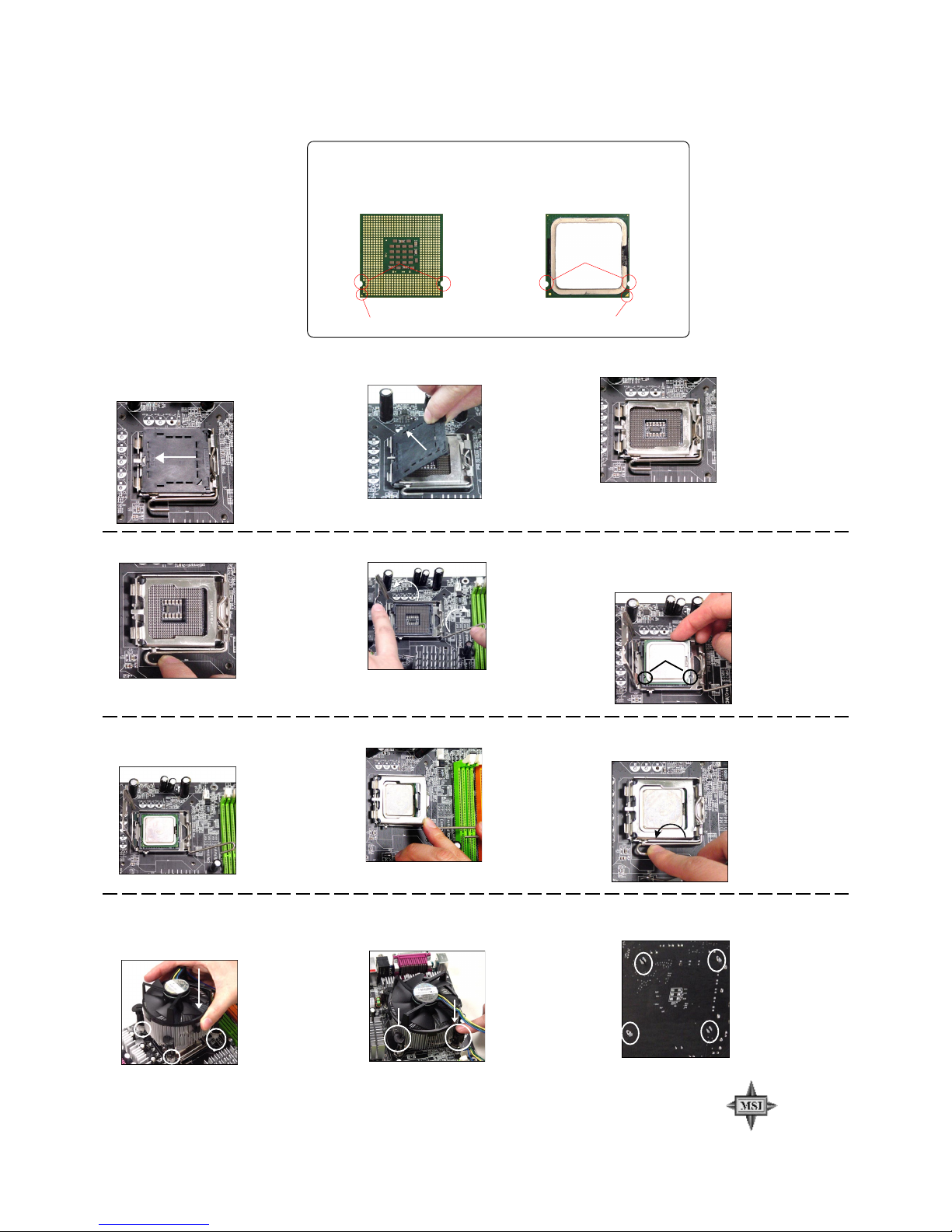

The Installation of LGA 775 CPU & CPU Cooler

MICRO-STAR

INTERNATIONAL

PN. G52-M7028X4

PRN. 2004/05

2. Remove the cap from lever hinge side (as the

arrow shows).

1. The CPU has a plastic cap on it to protect the

contact from damage. Before you have installed

the CPU, always cover it to protect the socket

pin.

4. Open the load lever.

3. The pins of socket reveal.

5. Lift the load lever up and open the load plate. 6. After confirming the CPU direction for correct mating,

put down the CPU in the socket housing frame. Be

sure to grasp on the edge of the CPU base. Note that

the alignment keys are matched.

7. Visually inspect if the CPU is seated well into

the socket. If not, take out the CPU with pure

vertical motion and reinstall.

alignment

key

8. Cover the load plate onto the package. 9. Press down the load lever lightly onto the load plate,

and then secure the lever with the hook under reten-

tion tab.

10. Align the holes on the mainboard with the

heatsink first. Push down the fan/heatsink un-

til its four clips get wedged into the holes of

the mainboard.

12. Turn over the mainboard to confirm that the clip-

ends are correctly inserted.

11. Press the four hooks down to fasten the fan.

Then rotate the locking switch (refer to the cor-

rect direction marked on it) to lock the hooks.

locking

switch

MSI Reminds You...

1.Confirm if your CPU cooler is firmly installed before turning on your system.

2.Do not touch the CPU socket pins to avoid damaging.

3. Whenever CPU is not installed, always protect your CPU socket pin with the plastic cap covered (shown in

Figure 1) to avoid damaging.

4. Please note that the mating/unmating durability of the CPU is 20 cycles. Therefore we suggest you do not

plug/unplug the CPU too often.

The surface of LGA 775 CPU.

Remember to apply some silicone

heat transfer compound on it for

better heat dispersion.

The pin-pad side of LGA 775 CPU.

Yellow triangle is the Pin 1 indicator

Alignment Key

Yellow triangle is the Pin 1 indicator

Alignment Key
