MSI K7N2GM-V Manuale utente

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of

the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in

which case the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.

VOIR LANOTICE D’NSTALLATIONAVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-7119

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation

G52-M7119X1

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in

the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are

under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

AMD, Athlon™ Athlon™XP, Thoroughbred™ and Duron™ are registered trademarks of AMD Corporation.

Intel® and Pentium® are registered trademarks of Intel Corporation.

PS/2 and OS® 2 are registered trademarks of International Business Machines Corporation.

Microsoft® is a registered trademark of Microsoft Corporation. Windows® 98/2000/NT/XP are registered trademarks

of Microsoft Corporation.

NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trademarks of NVIDIA Corporation in the

United States and/or other countries.

Netware® is a registered trademark of Novell, Inc.

Award® is a registered trademark of Phoenix Technologies Ltd.

AMI® is a registered trademark of American Megatrends Inc.

Kensington and MicroSaver are registered trademarks of the Kensington Technology Group.

PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association.

Revision History

Revision Revision History Date

V1.0 First release for PCB v1.0 with nForce2 IGP-64 & nForce MCP2SL November 2004

iii

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not

cover the openings.

6. Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the

power inlet.

7. Place the power cord such a way that people can not step on it. Do not place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electrical shock.

11. If any of the following situations arises, get the equipment checked by a service personnel:

- The power cord or plug is damaged.

- Liquid has penetrated into the equipment.

- The equipment has been exposed to moisture.

- The equipment does not work well or you can not get it work according to User Manual.

- The equipment has dropped and damaged.

- The equipment has obvious sign of breakage.

12. Do not leave this equipment in an environment unconditioned, storage temperature above 60° C (140°F), it may

damage the equipment.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer.

Table of Content

English.....................................................................1

Français...................................................................15

Deutsch....................................................................28

简体中文...................................................................41

繁體中文...................................................................53

日本語.......................................................................65

Introduction

Thank you for choosing the K7N2GM-V (MS-7119 v1.0) M-ATX mainboard. The K7N2GM-V

Series is based on nVIDIAnForce2 IGP-64 & nVIDIA MCP2SL chipsets for optimal system

efficiency. Designed to fit the advanced AMD ® AthlonTM / AthlonTM XP / DuronTM/ Sempron

processors in 462 pin package, the K7N2GM-V Series delivers a high performance and

professional desktop platform solution.

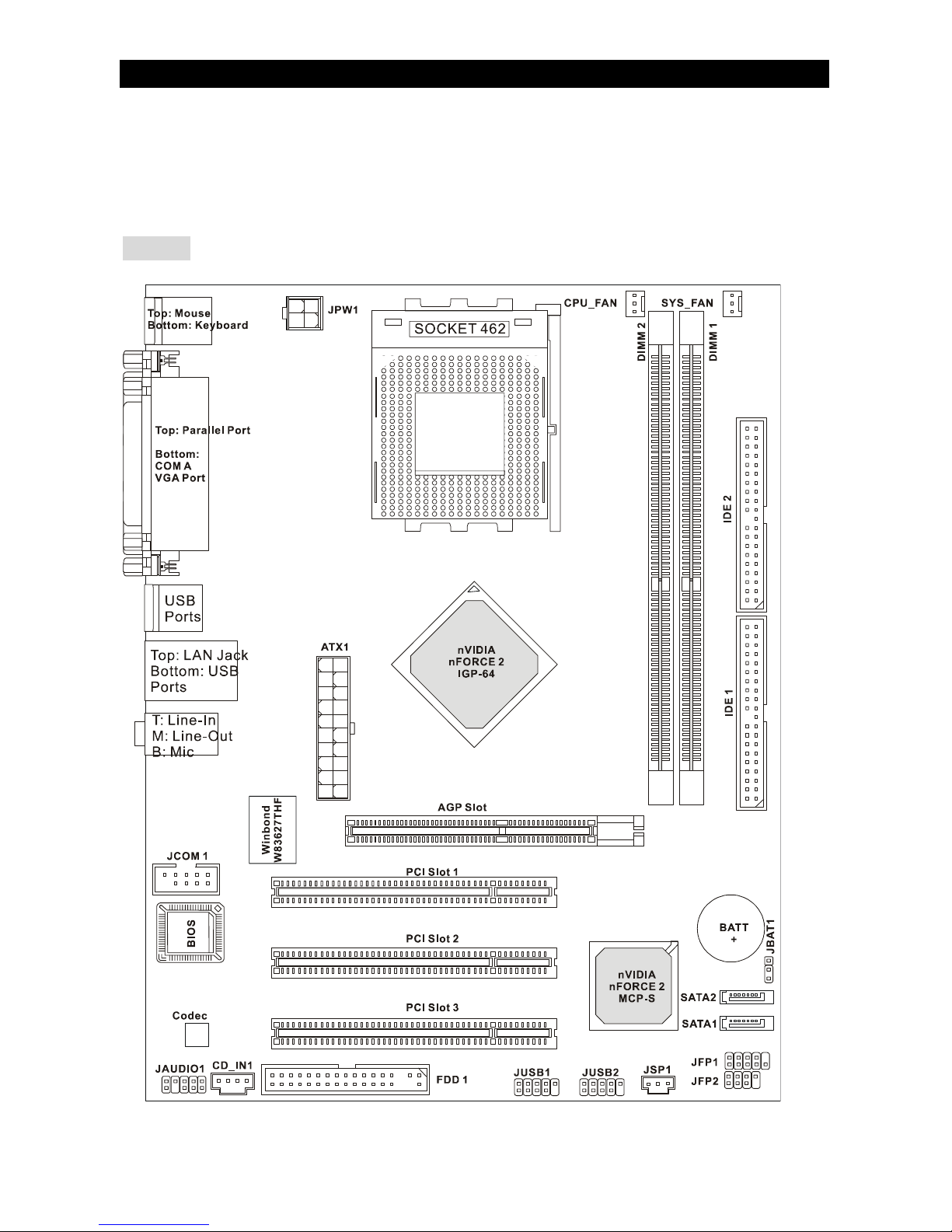

Layout

Specifications

CPU

zSupports Socket A (Socket-462) for AMD®Athlon™/ Athlon XP™/Duron™/ Sempron™

processor

zSupports up to 3200+ MHz or higher speed, does not support CPU under 1100 MHz

zSupports FSB 333 MHz/400 MHz.

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )

Chipset

znForce2 IGP-64 chipset

- FSB @400MHz.

- Supports DDR 266/333/400 memory.

- AGP 4X/8X.

znForce MCP2SL chipset

- Integrated Hardware Sound Blaster/Direct Sound AC97 audio.

- Ultra DMA 66/100/133 master mode PCI EIDE controller.

- ACPI & PC2001 compliant enhanced power management.

- Supports USB2.0 up to 8 ports.

- Integrated Faster Ethernet MAC.

Main Memory

zSupports four memory banks using two 184-pin DDR DIMMS.

zSupports maximum memory size up to 2GB for single channel mode.

zSupports 2.6v DDR SDRAM DIMM.

zSupports DDR400/333 SDRAM.

(For the updated supporting memory modules, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )

Slots

zOne AGP (Accelerated Graphics Port) 8X/4X slot

zThree PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).

On-Board IDE

zAn IDE controller on the nForce MCP2SL chipset provides IDE HDD/CD-ROM with PIO, Bus

Master and Ultra DMA 66/100/133 operation modes.

zCan connect up to 4 IDE devices

On-Board Peripherals

On-Board Peripherals includes:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.

- 1 serial port, 1 VGA port, 1 optional serial port connector JCOM1.

- 1 parallel port supports SPP/EPP/ECP mode.

- 8 USB 2.0 ports (Rear * 4/ Front * 4).

- 3 audio (Line-In/Line-Out/Mic) ports.

- 1 RJ-45 LAN Jack.

Audio

zAC’97 link controller integrated in nForce MCP2SL

z5.1 channel audio supported by Realtek ALC655 codec

- Compliance with AC’97 v2.2 spec.

- Meet PC2001 audio performance requirement

LAN

znForce MCP2SL integrated MAC + Realtek 8201CL PHY.

- Supports 10/100Mbps auto-negotiation operation.

- Supports ACPI power management.

BIOS

zThe mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and

expansion cards of the board automatically.

zThe mainboard provides a Desktop Management Interface (DMI) function that records your

mainboard specifications.

Dimension

zMicro-ATX Form Factor: 24.5 cm x 19.0 cm.

Mounting

z6 mounting holes.

Others

zSupports PS2 Keyboard/Mouse.

zHardware monitor is to monitor CPU’s temperature/voltage.

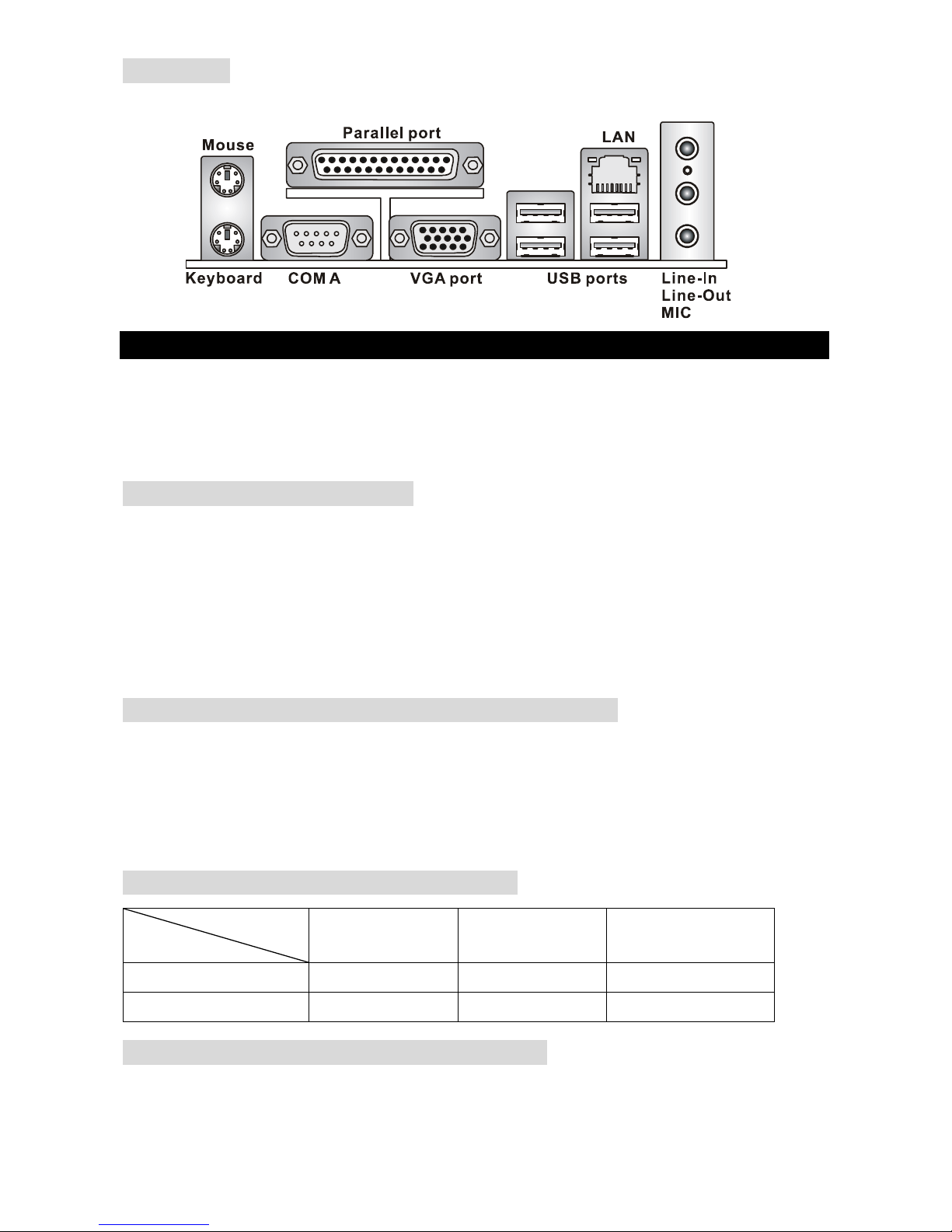

Rear Panel

The rear panel provides the following connectors:

Hardware Setup

This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as

how to setup the jumpers on the mainboard. It also provides the instructions on connecting the

peripheral devices, such as the mouse, keyboard, etc. While doing the installation, be careful in

holding the components and follow the installation procedures.

Central Processing Unit: CPU

The mainboard supports AMD ® AthlonTM/ AthlonTM XP/ DuronTM/ SempronTM processor in the

462 pin package. The mainboard uses a CPU socket called Socket A for easy CPU installation.

When you are installing the CPU, make sure the CPU has a heat sink and a cooling fan

attached on the top to prevent overheating. If you do not find the heat sink and cooling fan,

contact your dealer to purchase and install them before turning on the computer. (For the latest

information about CPU, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )

Example of CPU Core Speed Derivation Procedure

If CPU Clock = 100MHz

Core/Bus ratio = 14

then CPU core speed = Host Clock x Core/Bus ratio

= 100MHz x 14

=1.4GHz

Memory Speed/CPU FSB Support Matrix

Memory

FSB DDR 266 DDR 333 DDR 400

333 MHz OK OK OK

400 MHz OK OK OK

CPU Installation Procedures for Socket 462

1. Please turn off the power and unplug the power cord before installing the CPU.

2. Pull the lever sideways away from the socket. Make sure to raise the lever up to a

90-degree angle.

3. Look for the gold arrow. The gold arrow should point towards the lever pivot. The CPU can

only fit in the correct orientation.

4. If the CPU is correctly installed, the pins should be completely embedded into the socket

and can not be seen. Please note that any violation of the correct installation procedures

may cause permanent damages to your mainboard.

5. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to

move while the lever is being closed, always close the lever with your fingers pressing

tightly on top of the CPU to make sure the CPU is properly and completely embedded into

the socket.

Installing the CPU Fan

The following instructions will guide you through the heat sink installation procedures. Please

consult your agent for the proper CPU cooler set.

1. Position your CPU cooler set onto the CPU.

2. Use one end of the clip to hook the latch of the CPU sliding plate.

3. Hook the other latch to fix the cooling fan set. You may need a screw drive to press down

the other side of the clip.

4. Connect the fan to the power supply connector provided on your mainboard.

MSI Reminds You...

Overheating…

Overheating will seriously damage the CPU and system; always make sure the cooling fan can

work properly to protect the CPU from overheating.

Replacing the CPU…

While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s

power cord from grounded outlet first to ensure the safety of CPU.

Memory

The mainboard provides two 184-pin unbuffered DDR333 / DDR400 DDR SDRAM, and supports

the memory size up to 2GB. To operate properly, at least one DIMM module must be installed.

(For the updated supporting memory modules, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )

Install at least one DIMM module on the slots. Memory modules can be installed on the slots in

any order. You can install either single- or double-sided modules to meet your own needs.

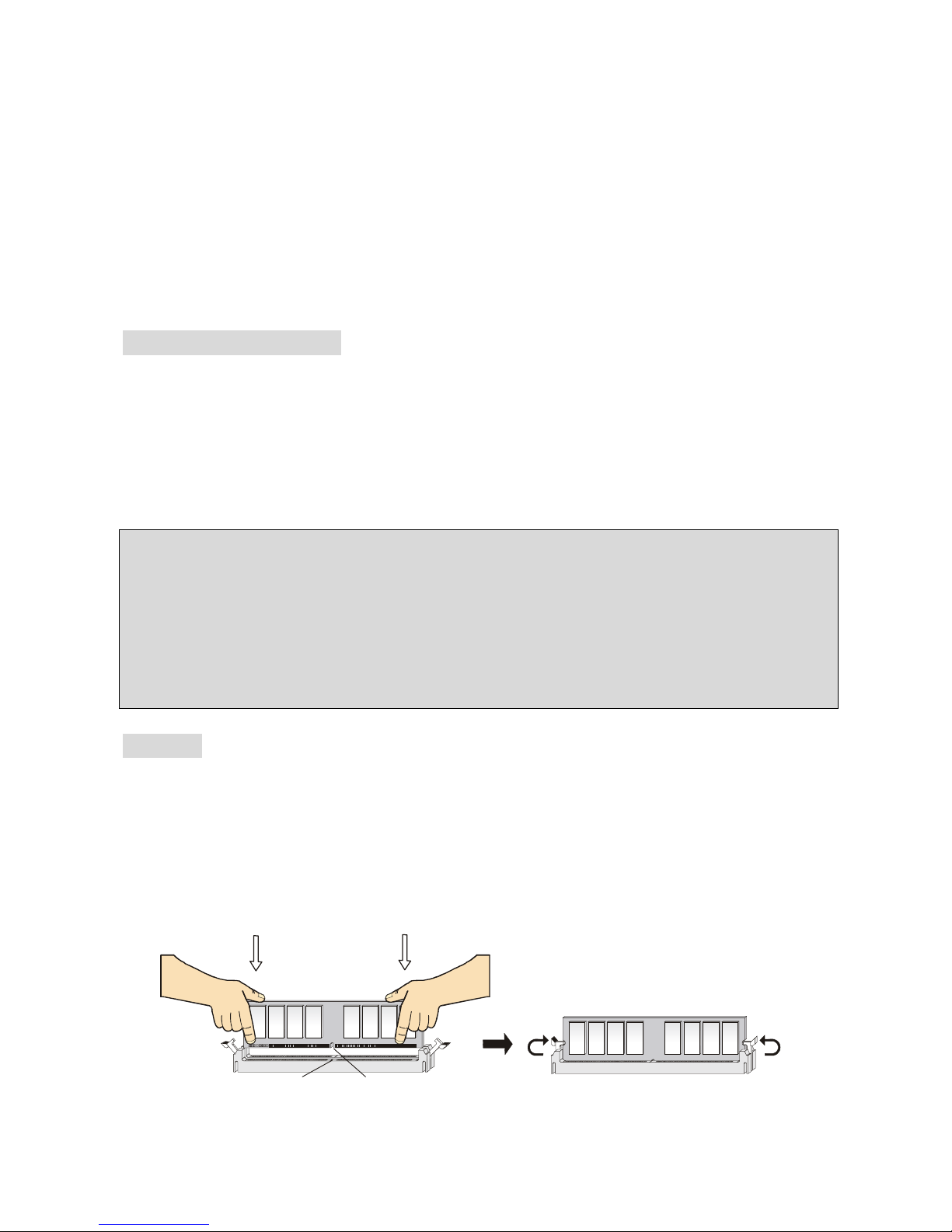

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module will only fit in the

right orientation.

otc

2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the

golden finger on the memory module is deeply inserted in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

Power Supply

The mainboard supports ATX power supply for the power system.

Before inserting the power supply connector, always make sure

that all components are installed properly to ensure that no damage

will be caused. A 300W or above power supply is suggested.

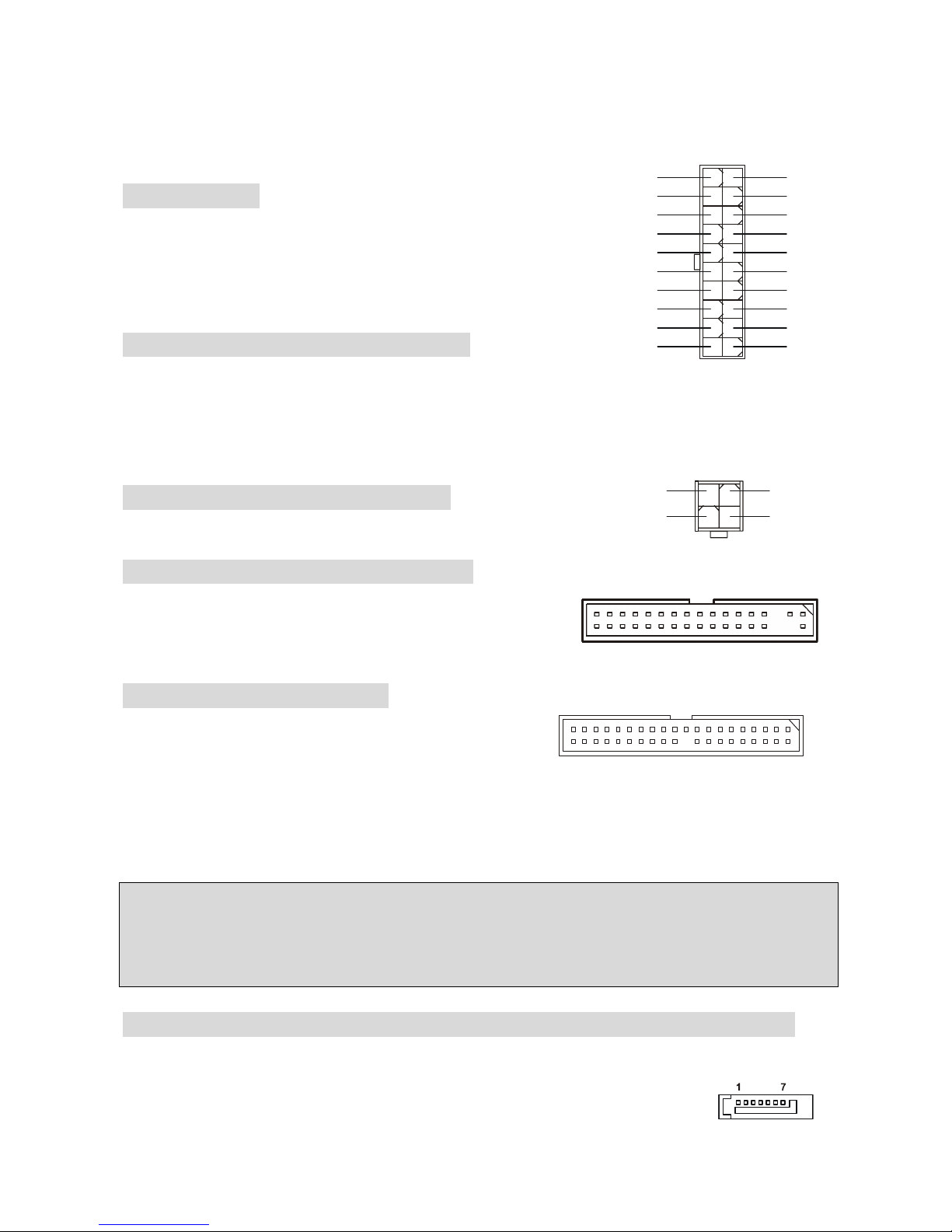

ATX 20-Pin Power Connector: ATX1

This connector allows you to connect to an ATX power supply. To

connect to theATX power supply, make sure the plug of the power supply is inserted in the

proper orientation and the pins are aligned. Then push down the power supply firmly into the

connector.

ATX 12V Power Connector: JPW1

This 12V power connector is used to provide power to the CPU.

Floppy Disk Drive Connector: FDD1

The mainboard provides a standard floppy disk drive

connector that supports 360K, 720K, 1.2M, 1.44M and

2.88M floppy disk types.

IDE Connectors: IDE1/IDE2

The mainboard has a 32-bit Enhanced PCI IDE and Ultra

DMA 66/100/133 controller that provides PIO mode 0~4,

Bus Master, and Ultra DMA 33/66/100/133 function. You can connect up to four hard disk drives,

CD-ROM, 120MB Floppy and other devices.

The first hard drive should always be connected to IDE1. IDE1 can connect a Master and a Slave

drive. You must configure second hard drive to Slave mode by setting the jumper accordingly.

IDE2 can also connect a Master and a Slave drive.

MSI Reminds You...

If you install two hard disks on cable, you must configure the second drive to Slave mode by

setting its jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper

setting instructions.

Serial ATA Connectors controlled by nVIDIA MCP2SL: SATA1, SATA2

The Southbridge of this mainboard is nVIDIA MCP2SL, which supports two serial connectors

SATA1 & SATA2.

SATA1 & SATA2 are dual high-speed Serial ATA interface ports. Each supports

1st generation serial ATA data rates of 150 MB/s. Both connectors are fully

3.3V3.3V

-12V

GND

PW_O

5V_SB

12V

PS_ON

GND

-5V

3.3V

GND

12V

GND

12V

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali MSI Scheda madre

MSI

MSI G52-72221X3 Manuale utente

MSI

MSI MS-7551 Manuale utente

MSI

MSI Z270 gaming M3 Manuale dell'operatore

MSI

MSI K8N Neo4-FX Manuale utente

MSI

MSI 785G-E65 Series Manuale utente

MSI

MSI G41M-P25 Manuale utente

MSI

MSI X99A GODLIKE GAMING CARBON Manuale utente

MSI

MSI MS-98J0 Manuale utente

MSI

MSI G31M3-L V2 - Motherboard - Micro ATX Manuale utente

MSI

MSI MAG B560M BAZOOKA Manuale utente

MSI

MSI P6NGM series Manuale utente

MSI

MSI MS-98H9 Manuale utente

MSI

MSI MPG Z690 CARBON WIFI Manuale utente

MSI

MSI B85M-E43 DASH Manuale utente

MSI

MSI MEG X670E ACE Manuale utente

MSI

MSI 880GM-E43 Series Manuale utente

MSI

MSI H55M-E32 Manuale utente

MSI

MSI MPG X570S Carbon EK X Manuale utente

MSI

MSI MS-6378 Manuale utente

MSI

MSI B760 GAMING PLUS WIFI Manuale utente

MSI

MSI 7B28-002R Manuale utente

MSI

MSI ms-7377 Manuale utente

MSI

MSI MPG Z590M Manuale utente

MSI

MSI B150M NIGHT ELF Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
