MSI

MICRO-STAR INTERNATIONAL

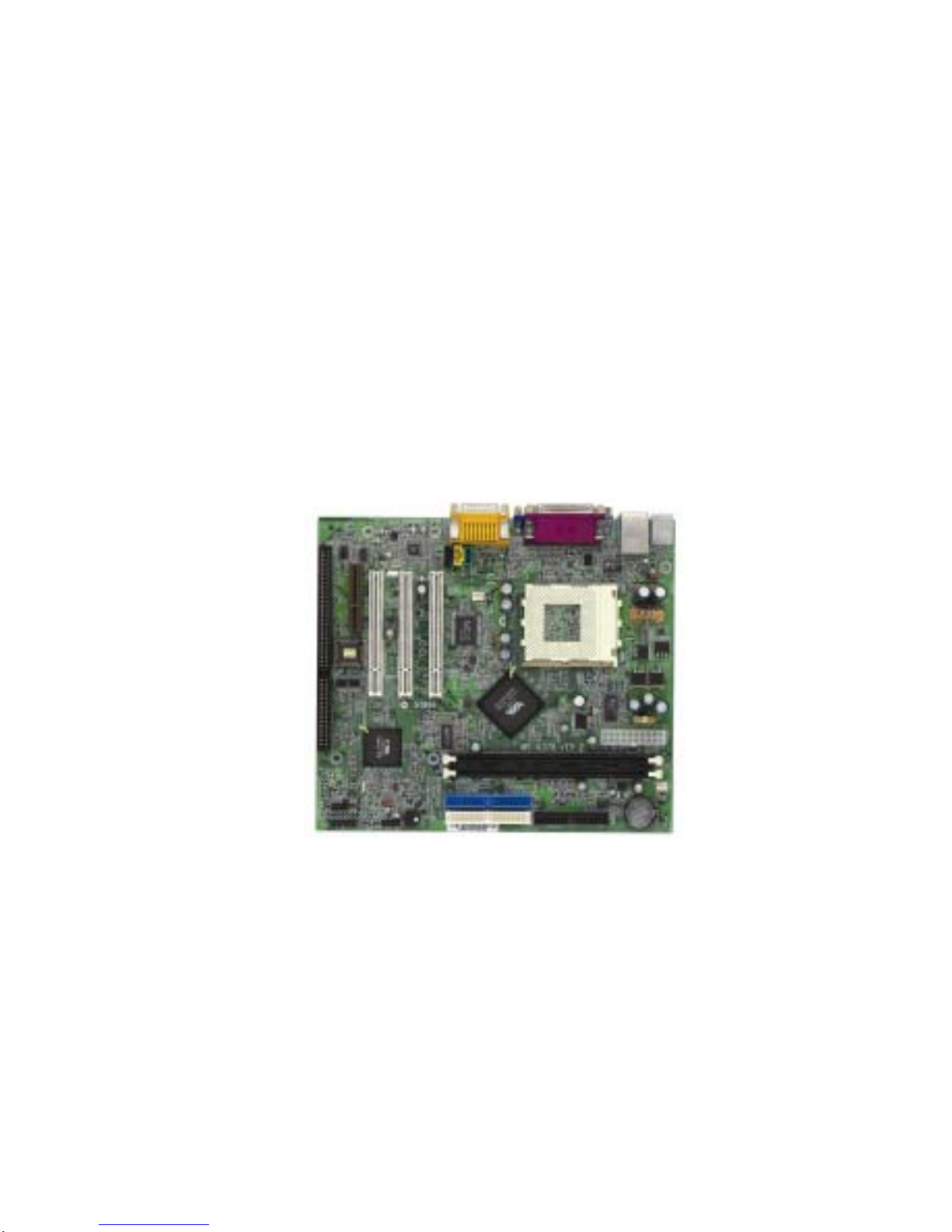

MS-6378 ATX Mainboard

Version 2.0

G52-MA00432

Manual Rev: 2.0

Release Date: July 2001

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference, in which case

the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the

equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in

order to comply with the emission limits.

VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER

AU RESEAU.

Micro-Star International MS-6378

For Home or Office Use

Tested to comply

with FCC Standard

Edition

July 2001

The material in this document is the intellectual property of MICRO-

STAR INTERNATIONAL. We take every care in the preparation of

this document, but no guarantee is given as to the correctness of its

contents. Our products are under continual improvement and we reserve

the right to make changes without notice.

Trademarks

All trademarks used in this manual are the property of their respective

owners.

AMD, Athlon and Duron are registered trademark of AMD Corporation.

PS/2 and OS/2 are registered trademarks of IBM Corporation.

Windows 95 and Windows NT are registered trademarks of Microsoft.

Netware is a registered trademark of Novell.

Award is a registered trademark of Award Software Inc.

Revision History

Revision Revision History Date

2.0 First Release for PCB2.X July 2001

Modify BIOS & VGA driver

iii

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the

equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly

110/220V before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not

place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or

module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause

electrical shock.

11. If any of the following situations arises, get the equipment checked by

a service personnel:

• The power cord or plug is damaged

• Liquid has penetrated into the equipment

• The equipment has been exposed to moisture

• The equipment has not work well or you can not get it work

according to User’s Manual.

• The equipment has dropped and damaged

• If the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT

UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C

(1400F), IT MAY DAMAGE THE EQUIPMENT.

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

Contents

Chapter 1. Introduction ...............................................................1-1

MainboardSpecification ............................................................1-2

MainboardLayout .....................................................................1-4

Quick Components Guide .........................................................1-5

Key Features ............................................................................1-6

MSI Special Features................................................................1-7

PC Alert™ III .......................................................................1-7

Chapter 2. Hardware Setup ........................................................2-1

Central Processing Unit: CPU ...................................................2-2

CPU Installation Procedures ...............................................2-2

CPUCoreSpeedDerivationProcedure................................2-4

CPU Clock Frequency Selection: JFSB1 ............................2-4

Memory ....................................................................................2-5

Introduction to SDRAM .......................................................2-5

DIMM Modules Combination ...............................................2-6

Installing DIMM Modules .....................................................2-6

Power Supply............................................................................2-7

ATX 20-Pin Power Supply....................................................2-7

Back Panel ...............................................................................2-8

MouseConnector................................................................2-8

KeyboardConnector ...........................................................2-9

USB Connectors .................................................................2-9

Parallel Port Connector .....................................................2-10

Serial Port Connector: COM 1........................................... 2-11

VGA DB 15 Pin Connector................................................ 2-11

Joystick/Midi Connectors ..................................................2-12

Audio Port Connectors ......................................................2-12

LAN Jack (RJ-45) ..............................................................2-12

Connectors .............................................................................2-13

Floppy Disk Drive Connector: FDD1 ..................................2-13

USB Front Panel Connector: USB1...................................2-13

Hard Disk Connectors: IDE1 & IDE2 .................................2-14

Case Connector: JFP1 ......................................................2-15

Wake On Ring Connector: JMDM1 ...................................2-17

Wake On LAN Connector: JWOL1 ....................................2-17

Fan Power Connectors: C_FAN1/S_FAN...........................2-18

CD-In/Aux Line-In/Modem-In Connector: CD_IN/AUX_IN/

MODEM_IN.......................................................................2-19

Chassis Intrusion Switch Connector: JCASE ....................2-20

IrDAInfrared ModuleConnector: JIR1 ................................2-20

Front Panel Audio Connector: JAUD1 ...............................2-21

Jumpers ..................................................................................2-22

Clear CMOS Jumper: JBAT1 .............................................2-22

Onboard Audio Codec Jumper: JP1...................................2-23

USB Keyboard Wake-up Jumpers: JBV1 & JBV2 .............2-24

Slots .......................................................................................2-25

PCI Slots ..........................................................................2-25

CNR (Communication Network Riser) Slot ........................2-25

ISA Slot (Optional) ............................................................2-25

PCI Interrupt Request Routing ...........................................2-26

Chapter 3. AWARD® BIOS Setup................................................3-1

Entering Setup ..........................................................................3-2

Control Keys .............................................................................3-2

Getting Help..............................................................................3-3

The Main Menu .........................................................................3-4

Standard CMOS Features .........................................................3-6

AdvancedBIOS Features ..........................................................3-9

Advanced Chipset Features ....................................................3-13

IntegratedPeripherals .............................................................3-17

vii

Power Management Setup ......................................................3-22

PnP/PCIConfigurations...........................................................3-28

PC Health Status ....................................................................3-31

Frequency/Voltage Control ......................................................3-32

Load Fail-Safe/Optimized Defaults ..........................................3-33

Set Supervisor/User Password ................................................3-35

Save & Exit Setup...................................................................3-37

Exit Without Saving.................................................................3-38

Chapter 4. Installing Drivers .......................................................4-1

System Requirements...............................................................4-2

VIA® Chipset ............................................................................4-3

Features .............................................................................4-3

VIA Chipset Driver Installation .............................................4-3

VIA KLE133 VGA Driver Installation ....................................4-5

VIA AC97 PCI Sound Driver Installation...............................4-5

Realtek® 8100 Fast Ethernet Controller ....................................4-8

Features .............................................................................4-8

DriverInstallation.................................................................4-8

Glossary............................................................................................ I

Introduction

1-1

Chapter 1.

Introduction

The MS-6378 Micro-ATX mainboard is a high-performance computer

mainboard based on VIA Apollo KLE133 chipset and designed for the

AMD®Athlon™or Duron™ processor for inexpensive business/personal

desktop markets.

The Apollo KLE133 chipset consists of the VT8361 North Bridge

controller and the VT82C686B South Bridge controller. The VT8361 inte-

grates rich AGP4X graphics capabilities for 2D/3D software and internet

multimedia applications. It supports CPU running at a 200/266MHz FSB

frequency; and provides bandwidth and performance for internet and 3D

graphics needs by supporting advanced memory technologies PC133

SDRAM and VC133 RAM (Virtual Channel RAM) up to 1.0GB.

The VIA®VT82C686B Super I/O PCI integrated Peripheral Controller

(PSIPC) includes PCI-to-ISA bridge controller, 10/100 BaseT Ethernet

controller, AC’97 audio and MC’97 modem (for CNR slot). In addition, it

supports dual bus-master IDE with Ultra DMA 33/66/100, four USB ports,

system hardware monitoring and enhanced power management capabilities.

The KLE133 chipset allows the MS-6378 mainboard to meet specific

needs of internet multimedia and 3D graphics applications.

This chapter includes the following topics:

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Key Features 1-6

MSI Special Features 1-7

Chapter 1

1-2

CPU

zSupports Socket 462 for AMD®Athlon™ /Duron™ processor

zSupportsCPUfrequenciesat600/650/700/750/800/850/900/950MHz,1GHz

and up to 1.3GHz

Chipset

zVIA®VT8361chipset(552BGA)

-FSB@200/266MHz

- Integrated Trident Blade 2D/3D video accelerator

- PCI advanced high performance memory controller

- Supports PC100/133 SDRAM, VCM & ESDRAM technology

zVIA®VT686Bchipset(352BGA)

- Enhanced Power Management Features

- Integrated Super I/O (FDC, LPT, COM 1/2 and IR)

- Dual bus Master IDE Ultra DMA 33/66/100

- Integrated Hardware Soundblaster

- Direct Sound AC97 Audio

-ACPI

ClockGenerator

zSupports 100/133MHz clocks

Main Memory

zSupports four memory banks using 168-pin unbuffered DIMM

zSupports a maximum memory size of 1GB (256 MB DRAM technology)

zSupports 3.3V SDRAM DIMM

Slots

zOne CNR (Communication Network Riser) slot

zThree 32-bit Master PCI Bus slots

zSupports 3.3V/5V PCI bus Interface

zOne ISA slot (optional)

On-Board IDE

zAn IDE controller on the VIA®VT82C686B chipset provides IDE HDD/

CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation

Mainboard Specification

Introduction

1-3

modes

zCan connect up to four IDE devices

Audio

zAudio controller integrated in 686B chipset

zSoftware audio codec ALC100P

- Onboard Front Audio Pin Header

Network(Optional)

zRealtek8100

On-Board Peripherals

zOn-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes

- 1 serial port (COM1)

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (Rear*2 /Front*2)

- 1 IrDA connector for SIR/CIR/FIR/ASKIR/HPSIR

- 1 VGA port

- 1 Audio/Game port

BIOS

zThe mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

zThe mainboard provides a Desktop Management Interface (DMI) func-

tion which records your mainboard specifications.

Dimension

zMicro-ATXFormFactor: 24.3cm (L) x 21.5cm(W)

Mounting

z6 mounting holes

Altri manuali per MS-6378

Indice

Altri manuali MSI Scheda madre

MSI

MSI MS-6390 Manuale utente

MSI

MSI MAG B550 TOMAHAWK Manuale utente

MSI

MSI H81I-S01 Manuale utente

MSI

MSI G45TM-E53 Series Manuale utente

MSI

MSI P4M900M Manuale utente

MSI

MSI H55-G33 Series Manuale utente

MSI

MSI Z270M MORTAR Manuale utente

MSI

MSI MEG Z690I UNIFY Manuale utente

MSI

MSI 970A-G45 series Manuale utente

MSI

MSI H370 Manuale utente

MSI

MSI 845GVM2-V Series Manuale utente

MSI

MSI MAG B760M MORTAR MAX WIFI Manuale utente

MSI

MSI 925XE Neo Platinum Manuale utente

MSI

MSI Z370 GAMING PRO CARBON Manuale utente

MSI

MSI Z270 gaming M3 Manuale utente

MSI

MSI PRO A620M-B Manuale utente

MSI

MSI G31M2 V2 Manuale utente

MSI

MSI P45 Neo3 V2 Series Manuale utente

MSI

MSI B150A GAMING PRO Manuale utente

MSI

MSI MAG B760 TOMAHAWK WIFI Manuale utente

MSI

MSI A88X-G43 Series Manuale utente

MSI

MSI X299M GAMING PRO CARBON AC Manuale utente

MSI

MSI MS-7031 Manuale utente

MSI

MSI Z390-A PRO Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
