CHAPTER 1 INTRODUCTION
1-1
The MS-6178 Micro ATX WH5 mainboard is a high-performance computer
mainboardbasedonIntel®810(810/810DC100/810e)chipset. TheMS-6178
is designed for the Intel®Pentium II/III or CeleronTM processor for inexpen-
sive business/personal desktop markets.
The Intel®810 chipset is the first generation Integrated Graphics chipset for
the Intel®CeleronTM processor. The graphics accelerator architecture
consists of dedicated multi-media engines executing in parallel to deliver
high performance 3D, 2D, and motion compensation video capabilities. An
integrated centralized memory arbiter allocates memory bandwidth to
multiple system agents to optimize system memory utilization. A new
chipset component interconnect, the hub interface, is designed into the Intel
810 chipset to provide an efficient communication channel between the
memory controller hub and I/O hub controller.
The series of Intel®810 chipset contains three core components: the
GraphicsandMemoryController Hub (GMCH), the I/O Controller Hub (ICH)
andthe Firmware Hub (FWH). The GMCH integrates a 66/100MHz for 810
and810DC100and66/100/133MHzfor810e,P6familysystembuscontrol-
ler, 2D/3D graphics accelerator, 100MHz SDRAM controller and high-speed
hub interface for communication with the ICH. The ICH integrates an Ultra
ATA 33(ICHO)/66(ICH) controller, USBhostcontroller,LPCinterface
controller,FWHinterfaceconroller, PCI interface controller,AC’97digital
controller and a hub interface for communication.
The Intel®82802 Firmware Hub (FWH) component is part of the seried of
Intel®810 chipset. The FWH is key to enabling future security and manage-
ability infrastructure for the PC platform.
Chapter 1
INTRODUCTION
CHAPTER 2 HARDWARE INSTALLATION
2-1
CPU
CPU
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
The mainboard operates with Intel®CeleronTM processor. The mainboard
uses a CPU socket called Socket 370 for easy CPU installation. The CPU
should always have a Heat Sink and a cooling fan attached to prevent
overheating.
3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
OpenLever
Pin1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
Pin1

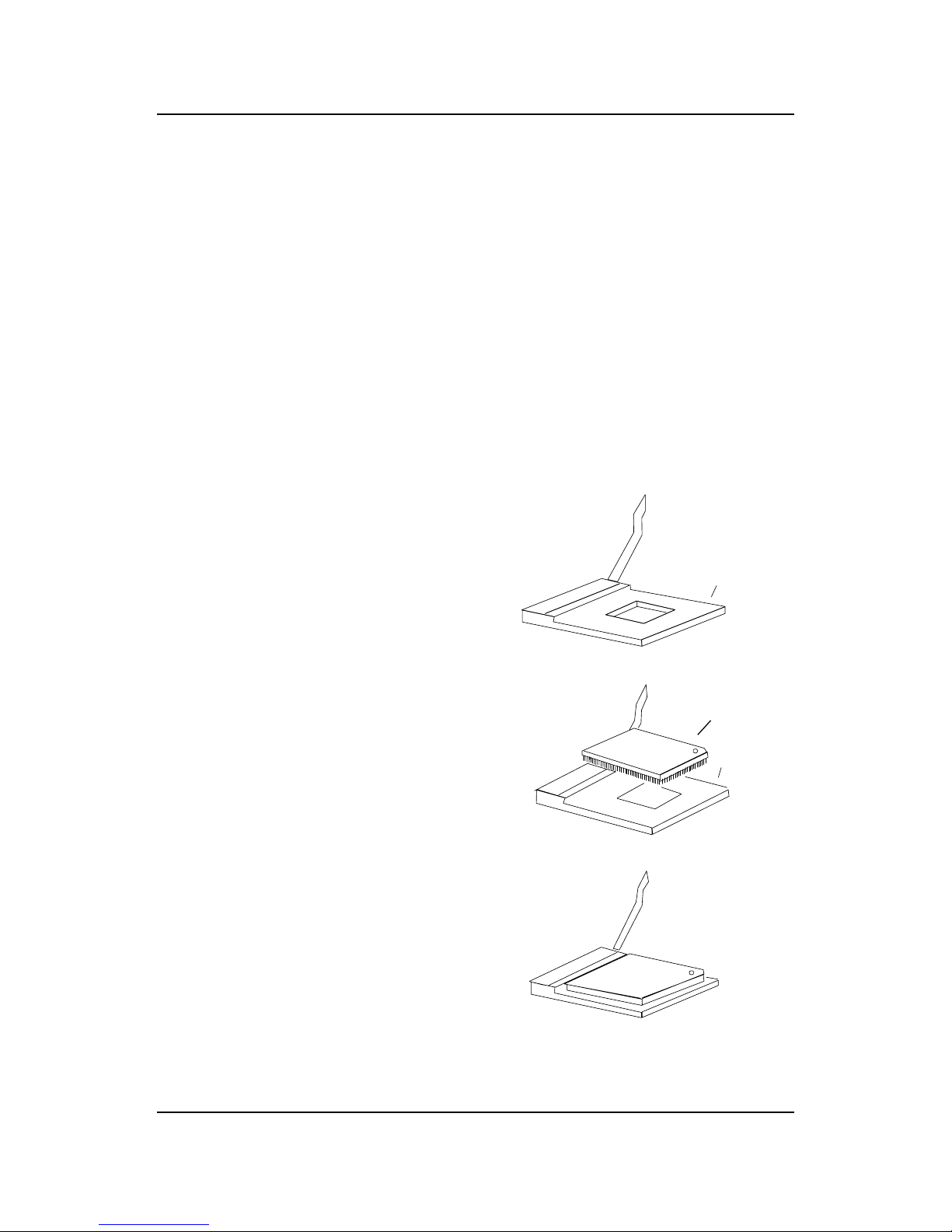

2.1-1 CPU Installation Procedures
CHAPTER 3 AWARD®BIOS SETUP
3-1
Chapter 3
AWARD®BIOS SETUP
Award®BIOS ROM has a built-in Setup program that allows users to modify
the basic system configuration. This type of information is stored in
battery-backed RAM (CMOS RAM), so that it retains the Setup information
when the power is turned off.
CHAPTER 4 AMI
®
BIOS USERS GUIDE
4-1
Chapter 4
AMI®BIOS USER’S GUIDE
The system configuration information and chipset register information is
stored in the CMOS RAM. This information is retained by a battery when
the power is off. Enter the BIOS setup (if needed) to modify this information.
The following pages will describe how to enter BIOS setup, and all about
options.
CHAPTER 4 AMI
®
BIOS USERS GUIDE
4-2
2. When the “Hit <DEL>” message appears, press <DEL> key to
enter the BIOS setup screen.
3. After pressing <DEL> key, the BIOS setup screen will appear.
AMIBIOS (C) 1999 American Megatrends Inc.
AGIOMS VXXX XXXXXX
Hit <DEL> if you want to run setup
(C) American Megatrends Inc.
61-XXXX-001169-00111111-071592-i82440FX-H
4.1 Enter BIOS Setup
EntertheAMI®setupProgram’sMainMenuasfollows:
1. Turn on or reboot the system. The following screen appears with
a series of diagnostic check.
Note: If you don’t want to modify CMOS original setting, then don’t press any
key during the system boot.
CHAPTER 4 AMI
®
BIOS USERS GUIDE
4-3
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI/Plug and Play Setup
Peripheral Setup
Hardware Monitor Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Change Language Setting
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit without Saving
4. Use the <Up> and <Down> key to move the highlight scroll up or
down.
5. Use the <ENTER> key to select the option.
6. To exit, press <ESC>. To save and exit, press <F10>.
7. Section 3.2 to 3.7 will explain the option in more details.
AMIBIOS HIFLEX SETUP UTILITIES - VERSION 1.22
(C) 1999 American Megatrends, Inc. All Rights
Reserved
Standard CMOS setup for changing time, hard disk type, etc.
CHAPTER 4 AMI
®
BIOS USERS GUIDE
4-4
2. Use <Up> and <Down> to choose the item and <PgUp> and
<PgDn> keys to modify the highlighted item.
3. After you have finished with the Standard CMOS Setup, press
<ESC> to go back to the main menu.
4.2 Standard CMOS Setup
1. Press <ENTER> on “Standard CMOS Setup” of the main menu
screen .
AMIBIOS SETUP - STANDARD CMOS SETUP
(C)1999 American Megatrends,Inc.All Rights Reserved
Date (mm/dd/yyyy): Fri March 20, 1999
Time (hh/mm/ss): 17:09:25
Floppy Drive A: 1.44 MB 3 1/2
Floppy Drive B: Not Installed
LBA Blk PIO 32Bit
Type Size Cyln Head WPcom Sec Mode Mode Mode Mode
Pri Master :Auto ON ON AUTO ON
Pri Slave :Auto ON ON AUTO ON
Sec Master :Auto ON ON AUTO ON
Sec Slave :Auto ON ON AUTO ON
Boot Sector Virus Protection Disabled
ESC:Exit :Sel
PgUp/PgDn:Modify
F2/F3:Color
Month : Jan-Dec
Day : 01-31
Year : 1901-2099
CHAPTER 4 AMI
®
BIOS USERS GUIDE
4-5
2. Use <Up> and <Down> to choose the item and <PgUp> and
<PgDn> keys to modify the highlighted item.
3. After you have finished with the Advanced CMOS Setup, press
<ESC> to go back to the main menu.
Quick Boot Enabled
Ist Boot Device Floppy
2nd Boot Device IDE 0
3rd Boot Device CD-ROM
Try Other Boot Devices Yes
Initial Display Mode BIOS
Display Mode at Add-On ROM Init Force-BIOS
Floppy Access Control Read-Write
S.M.A.R.T. For Hard Disk Disabled
BootUp Num-Lock On
Floppy Drive Swap Disabled
Floppy Drive Seek Disabled
PS/2 Mouse Support Enabled
Primary Display VGA/EGA
Password Check Setup
Boot to OS/2 > 64M No
CPU Serial Number Disabled
Cache Bus ECC Enabled
System BIOS Cacheable Disabled
C000, 64k Shadow Enabled
ESC:Exit :Sel
PgUp/PgDn:Modify
F2/F3:Color
4.3 Advanced CMOS Setup
1. Press <ENTER> on “Advanced CMOS Setup” of the main menu
AMIBIOS SETUP - ADVANCED CMOS SETUP
(C) 1999 American Megatrends, Inc. All Rights Reserved
Available Options:
Disabled
Enabled
CHAPTER 4 AMI
®
BIOS USERS GUIDE
4-6
Descriptionoftheitemonscreenfollows:
Quick Boot
Set this option to Enabled to permit AMI®BIOS to boot within 5
seconds. This option replaces the old ABOVE 1 MB Memory Test option.
The Optimal default setting is Enabled. The Fail-Safe default setting is
Disabled.
1st Boot Device/2nd Boot Device/3rd Boot Device
This option sets the sequence of boot drives.
The settings are:
IDE0 The system will boot from the first HDD.
IDE1 The system will boot from the Second HDD.
IDE2 The system will boot from the Third HDD.
IDE3 The system will boot from the Fourth HDD.
F(optical) Thesystemwill boot from LS-120(120M Floppy).
SCSI The system will boot from the SCSI.
Network The system will boot from the Network drive.
CD-ROM Thesystem will boot from the CD-ROM.
Disable Disable this sequence.
Try other Boot Devices
This option sets the device boot, if all the Four Boot Devices failed.
Initial Display Mode
This option sets the device boot, if all the Four Boot Devices failed.
Display Mode at Add-On ROM Init
This option sets the device boot, if all the Four Boot Devices failed.
Floppy Access Control
This option sets the Floppy to Read-only or Read-Write.
S.M.A.R.T. for Hard Disks
This option sets the SMART Function for the hard disk. The hard
disk need to have SMART function for this feature to work.
CHAPTER 4 AMI
®
BIOS USERS GUIDE
4-7
Boot up Num Lock
When this option is set to Off, AMI®BIOS turns off the Num Lock
key when the system is powered on. The end user can then use the arrow
keys on both the numeric keypad and the keyboard. The settings are On or
Off. The optimal default and Fail-Safe default settings are On.
Floppy Drive Swap
Set this option to Enabled to specify that floppy drives A: and B: are
swapped. The setting are Enabled and Disabled. The Optimal and Fail-Safe
default settings are Disabled.
Floppy Drive Seek
When this option is set to Enabled, AMI®BIOS performs a Seek
command on floppy drive A: before booting the system. The settings are
Enabled and Disabled. The Optimal and Fail-Safe default settings are
Disabled.
PS/2®Mouse Support
When this option is set to Enabled, AMI®BIOS supports a PS/2®
mouse. The settings are Enabled and Disabled. The Optimal and Fail-Safe
default settings are Enabled.
PrimaryDisplay
This option configures the primary display subsytem in the computer.
ThesettingsareMono(monochrome),40CGA,80CGAorVGA/EGA. The
optimaland Fail-Safe default settings are VGA/EGA.
Password Check
This option specifies the type of AMI®BIOS password protection
that is implemented. The Optimal and Fail-Safe default settings are Setup.
Boot To OS/2® > 64MB
Set this option to Enabled to permit the BIOS to run properly, if OS/
2®is to be used with > 64MB of DRAM. The settings are Enabled or
Disabled. The Optimal and Fail-safe default settings are Disabled.
