The MS-6198 Micro ATX VA3 mainboard is a high-performance

computer mainboard based on VIA® VT8 C694X chipset. The MS-6198 is

designed for the Intel® CeleronTM or Coppermine (FC-PGA) processor for

inexpensive business/personal desktop markets.

The Apollo Pro133A (VT8 C694X) is a Socket-370 system logic north

bridge with the addition of 133 MHz capability for both the CPU and

SDRAM interfaces. Apollo Pro133A may be used to implement both desktop

and notebook personal computer systems from 66MHz to 133MHz based on

Socket-370 (Intel Celeron processors). The primary features of the Apollo

Pro133A-North Bridge are: Slot-1 or Socket-370 CPU (Front Side Bus)

Interface (66 / 100 / 133MHz), SDRAM Memory Interface (66 / 100 /133MHz),

AGP Bus Interface (66MHz), PCI Bus Interface (33MHz), Mobile Power

Management.

The VT8 C686A PSIPC (PCI Super-I/O Integrated Peripheral

Controller) is a high integration, high performance, power-efficient, and high

compatibility device that supports Intel and non-Intel based processor to

PCI bus bridge functionality to make a complete Microsoft PC99-compliant



Chapter 1 contains the following topics:

Mainboard Specifications 1-

Mainboard Layout 1-4

Special Features 1-5

All manuals and user guides at all-guides.com

all-guides.com

CHAPTER 1CHAPTER 1

CHAPTER 1

1-2

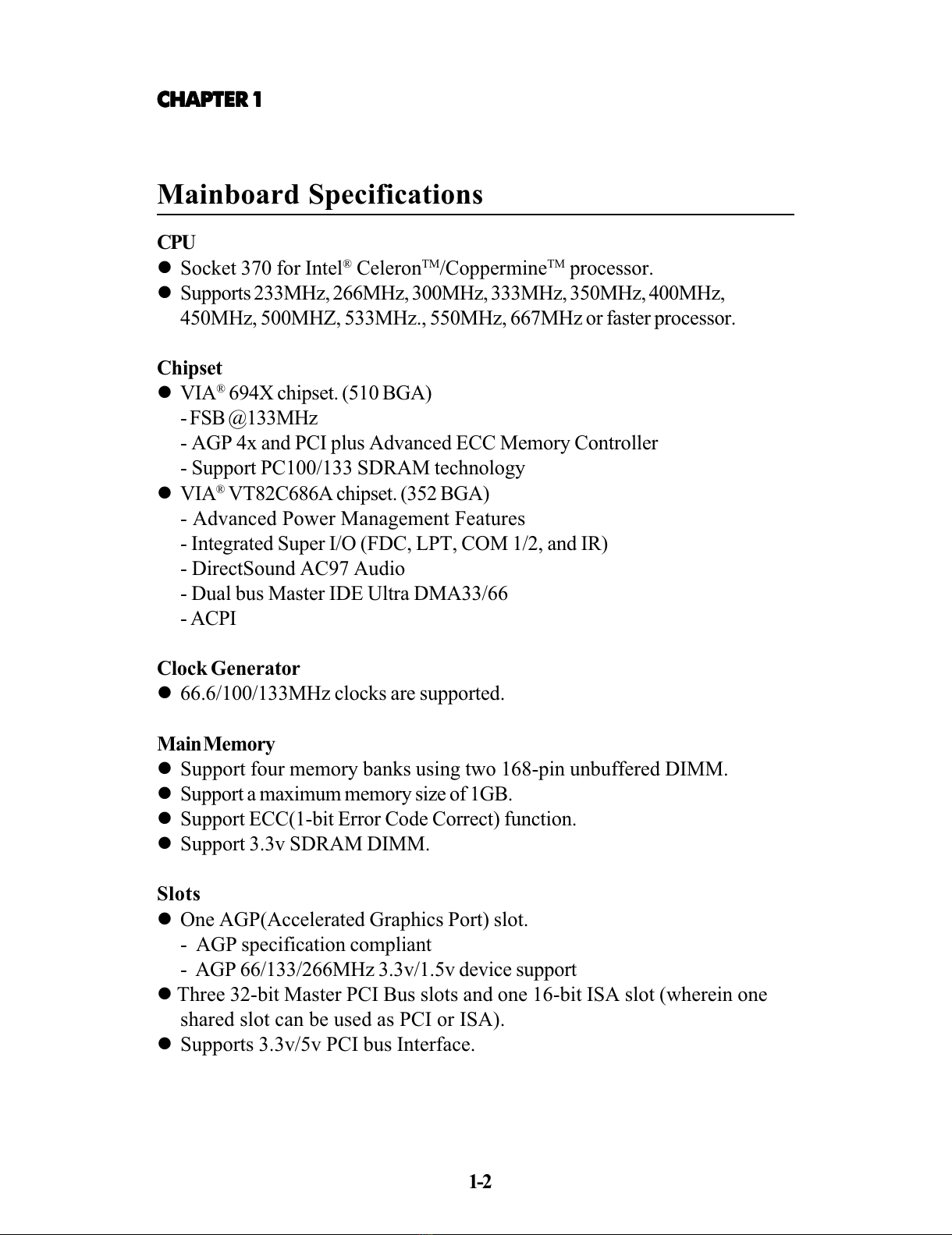

Mainboard Specifications

CPU

!Socket 370 for Intel® CeleronTM/CoppermineTM processor.

!Supports 33MHz, 66MHz, 300MHz, 333MHz, 350MHz, 400MHz,

450MHz, 500MHZ, 533MHz., 550MHz, 667MHz or faster processor.

Chipset

!VIA® 694X chipset. (510 BGA)

- FSB @133MHz

- AGP 4x and PCI plus Advanced ECC Memory Controller

- Support PC100/133 SDRAM technology

!VIA® VT8 C686A chipset. (35 BGA)

- Advanced Power Management Features

- Integrated Super I/O (FDC, LPT, COM 1/ , and IR)

- DirectSound AC97 Audio

- Dual bus Master IDE Ultra DMA33/66

- ACPI

Clock Generator

!66.6/100/133MHz clocks are supported.

Main Memory

!Support four memory banks using two 168-pin unbuffered DIMM.

!Support a maximum memory size of 1GB.

!Support ECC(1-bit Error Code Correct) function.

!Support 3.3v SDRAM DIMM.

Slots

!One AGP(Accelerated Graphics Port) slot.

- AGP specification compliant

- AGP 66/133/ 66MHz 3.3v/1.5v device support

! Three 3 -bit Master PCI Bus slots and one 16-bit ISA slot (wherein one

shared slot can be used as PCI or ISA).

!Supports 3.3v/5v PCI bus Interface.

All manuals and user guides at all-guides.com

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-3

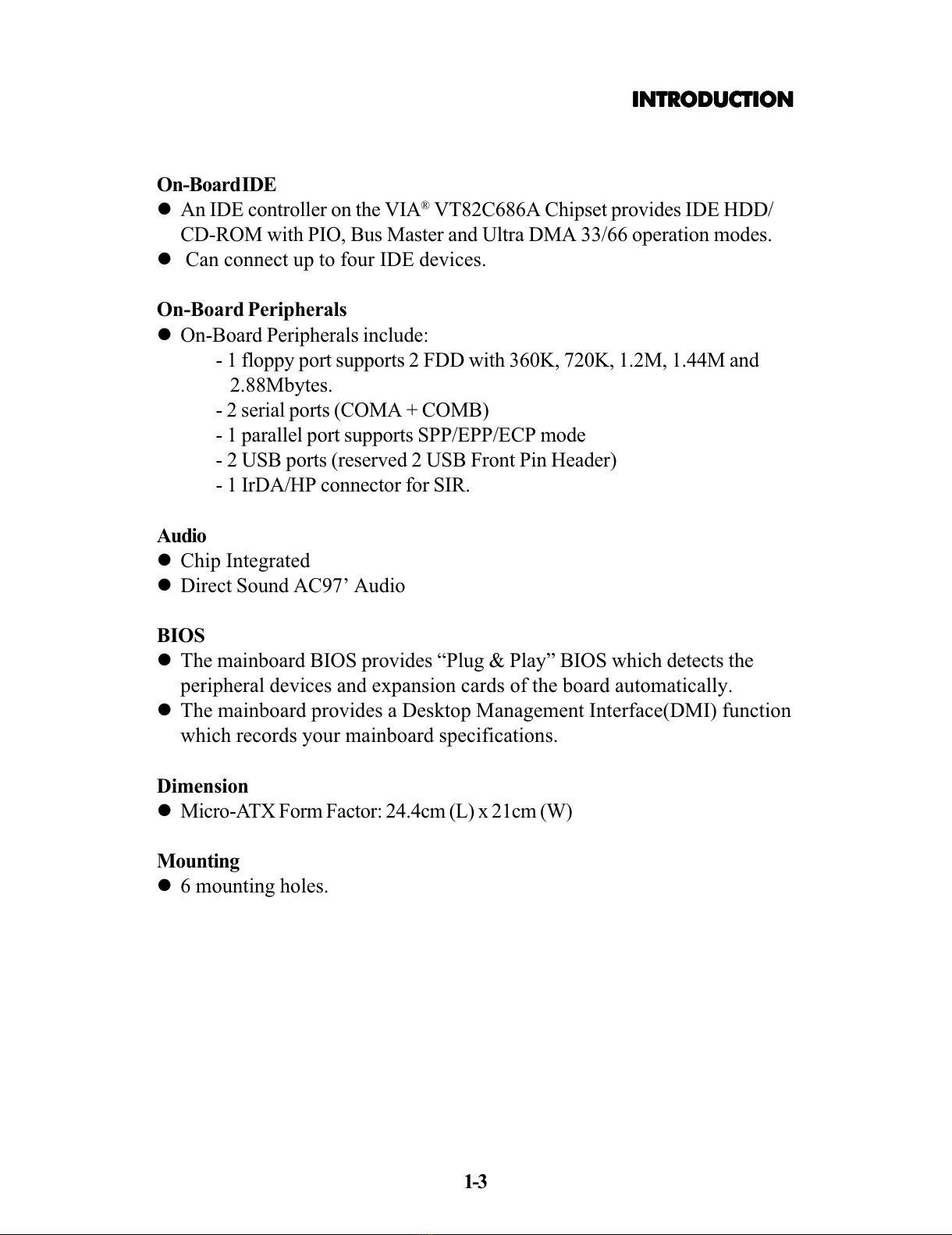

On-Board I E

!An IDE controller on the VIA® VT8 C686A Chipset provides IDE HDD/

CD-ROM with PIO, Bus Master and Ultra DMA 33/66 operation modes.

! Can connect up to four IDE devices.

On-Board Peripherals

!On-Board Peripherals include:

- 1 floppy port supports FDD with 360K, 7 0K, 1. M, 1.44M and

.88Mbytes.

- serial ports (COMA + COMB)

- 1 parallel port supports SPP/EPP/ECP mode

- USB ports (reserved USB Front Pin Header)

- 1 IrDA/HP connector for SIR.

Audio

!Chip Integrated

!Direct Sound AC97 Audio

BIOS

!The mainboard BIOS provides Plug & Play BIOS which detects the

peripheral devices and expansion cards of the board automatically.

!The mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

imension

!Micro-ATX Form Factor: 4.4cm (L) x 1cm (W)

Mounting

!6 mounting holes.

All manuals and user guides at all-guides.com

CHAPTER 1CHAPTER 1

CHAPTER 1

1-4

Mainboard Layout

PCI SLOT 3

PCI SLOT 2

PCI SLOT 1

AT X

Power Supply

VIA

694X

chipset

DIMM 2

Top: mouse

Bottom:

keyboard

Top: Port 1

USB

IDE2

Bottom:

Port

IDE1

.,,

VT8 C686B

JMDM1

JBAT1

JWOL1

JCD1

JAUX1

CPUFAN

SYSFAN

Top: LPT

Bottom:

COM A/

COM B

Top: Midi/

Game Port

Bottom:

Audio Port

JPHONE

BIOS

AGP Slot

BATT

USB1

DIMM 1

ISA SLOT

JFP1

JGS1

JP1

SW1

Socket 370

MS-6198 Micro ATX Mainboard

All manuals and user guides at all-guides.com

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-5

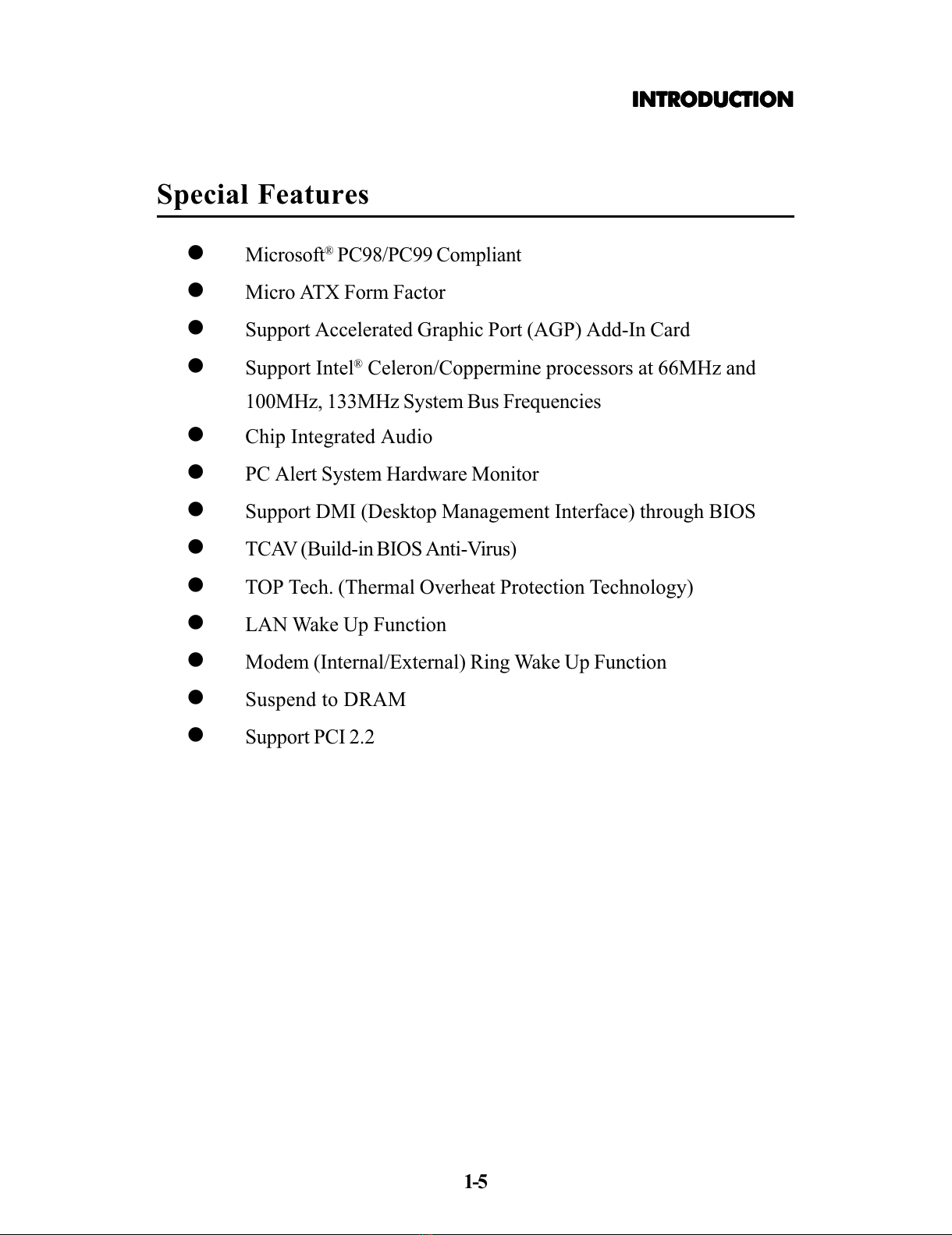

Special Features

!Microsoft® PC98/PC99 Compliant

!Micro ATX Form Factor

!Support Accelerated Graphic Port (AGP) Add-In Card

!Support Intel® Celeron/Coppermine processors at 66MHz and

100MHz, 133MHz System Bus Frequencies

!Chip Integrated Audio

!PC Alert System Hardware Monitor

!Support DMI (Desktop Management Interface) through BIOS

!TCAV (Build-in BIOS Anti-Virus)

!TOP Tech. (Thermal Overheat Protection Technology)

!LAN Wake Up Function

!Modem (Internal/External) Ring Wake Up Function

!Suspend to DRAM

!Support PCI .

All manuals and user guides at all-guides.com

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-1

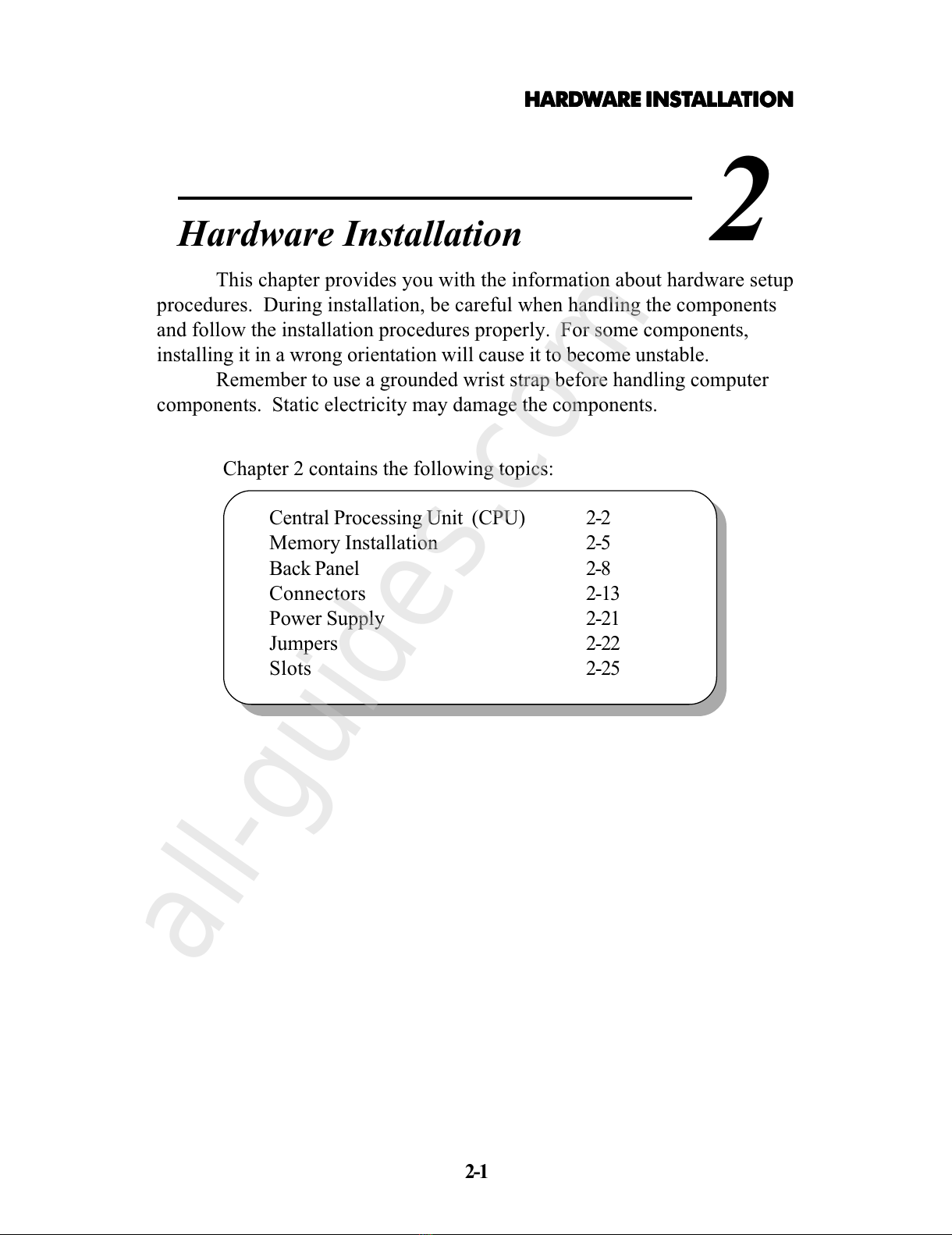

Hardware Installation

This chapter provides you with the information about hardware setup

procedures. During installation, be careful when handling the components

and follow the installation procedures properly. For some components,

installing it in a wrong orientation will cause it to become unstable.

Remember to use a grounded wrist strap before handling computer

components. Static electricity may damage the components.

Central Processing nit (CP ) 2-2

Memory Installation 2-5

Back Panel 2-8

Connectors 2-13

Power Supply 2-21

Jumpers 2-22

Slots 2-25

Chapter 2 contains the following topics:

All manuals and user guides at all-guides.com

all-guides.com

CHAPTER 2CHAPTER 2

CHAPTER 2

2-2

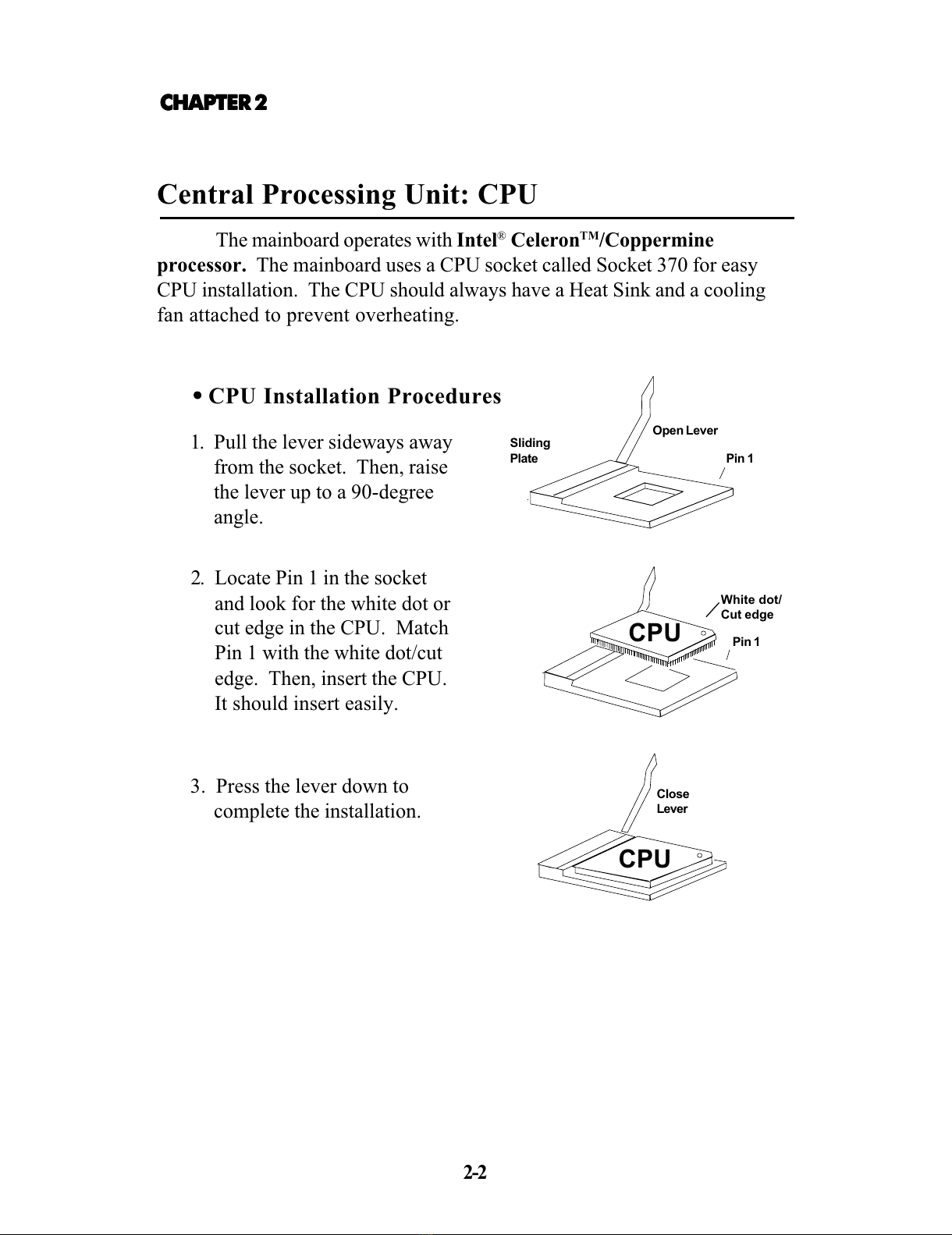

3. Press the lever down to

complete the installation.

2. Locate Pin 1 in the socket

and look for the white dot or

cut edge in the CP . Match

Pin 1 with the white dot/cut

edge. Then, insert the CP .

It should insert easily.

1. Pull the lever sideways away

from the socket. Then, raise

the lever up to a 90-degree

angle.

••

• CPU Installation Procedures

+27

Open Lever

Pin 1

Sliding

Plate

White dot/

Cut edge

Lever

Pin 1

Central Processing Unit: CPU

The mainboard operates with Intel® CeleronTM/Coppermine

processor. The mainboard uses a CP socket called Socket 370 for easy

CP installation. The CP should always have a Heat Sink and a cooling

fan attached to prevent overheating.

All manuals and user guides at all-guides.com

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-3

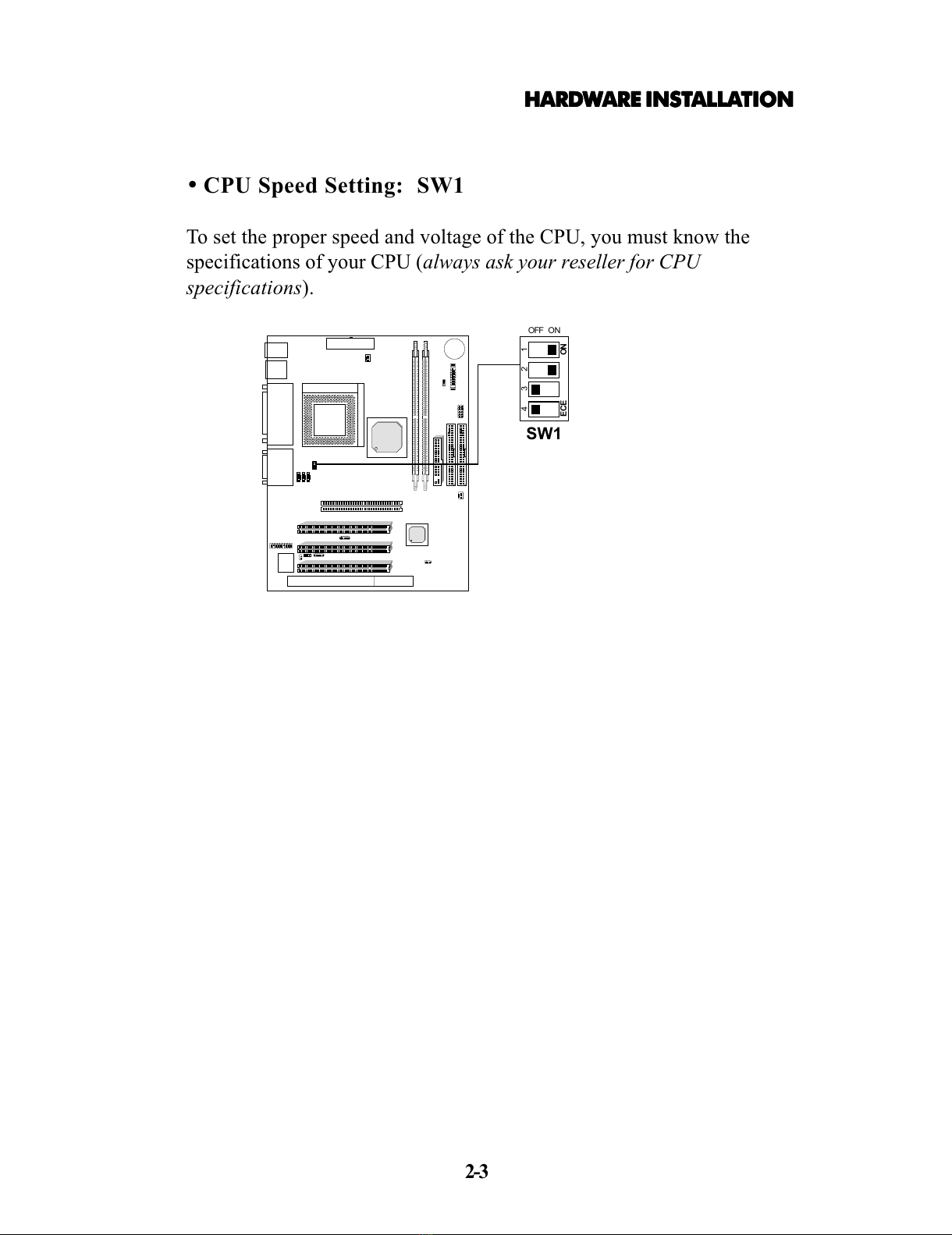

• CPU Speed Setting: SW1

To set the proper speed and voltage of the CP , you must know the

specifications of your CP (always ask your reseller for CPU

specifications).

SW1

ONOFF

14 32

EC E ON

All manuals and user guides at all-guides.com

CHAPTER 2CHAPTER 2

CHAPTER 2

2-4

• CPU Core Speed Derivation Procedure

If the CP Core/Bus ratio is already fixed, adjusting the SW1 will not

change the CP Core/Bus ratio. If the Core/Bus ratio is not fixed by

the CP , then you can adjust the SWI to change the Core/Bus ratio.

If CP Clock = 66MHz

Core/Bus ratio = 3.5

then CP core speed = Host Clock x Core/Bus ratio

= 66MHz x 3.5

= 233MHz

4 3 2 1 Core/Bus Ratio

ON ON OFF ON 3

ON OFF OFF ON 3.5

ON ON ON OFF 4

ON OFF ON OFF 4.5

ON ON OFF OFF 5

ON OFF OFF OFF 5.5

OFF ON ON ON 6

OFF OFF ON ON 6.5

OFF ON OFF ON 7

OFF OFF OFF ON 7.5

OFF ON ON OFF 8

SW1 CPU

All manuals and user guides at all-guides.com

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-5

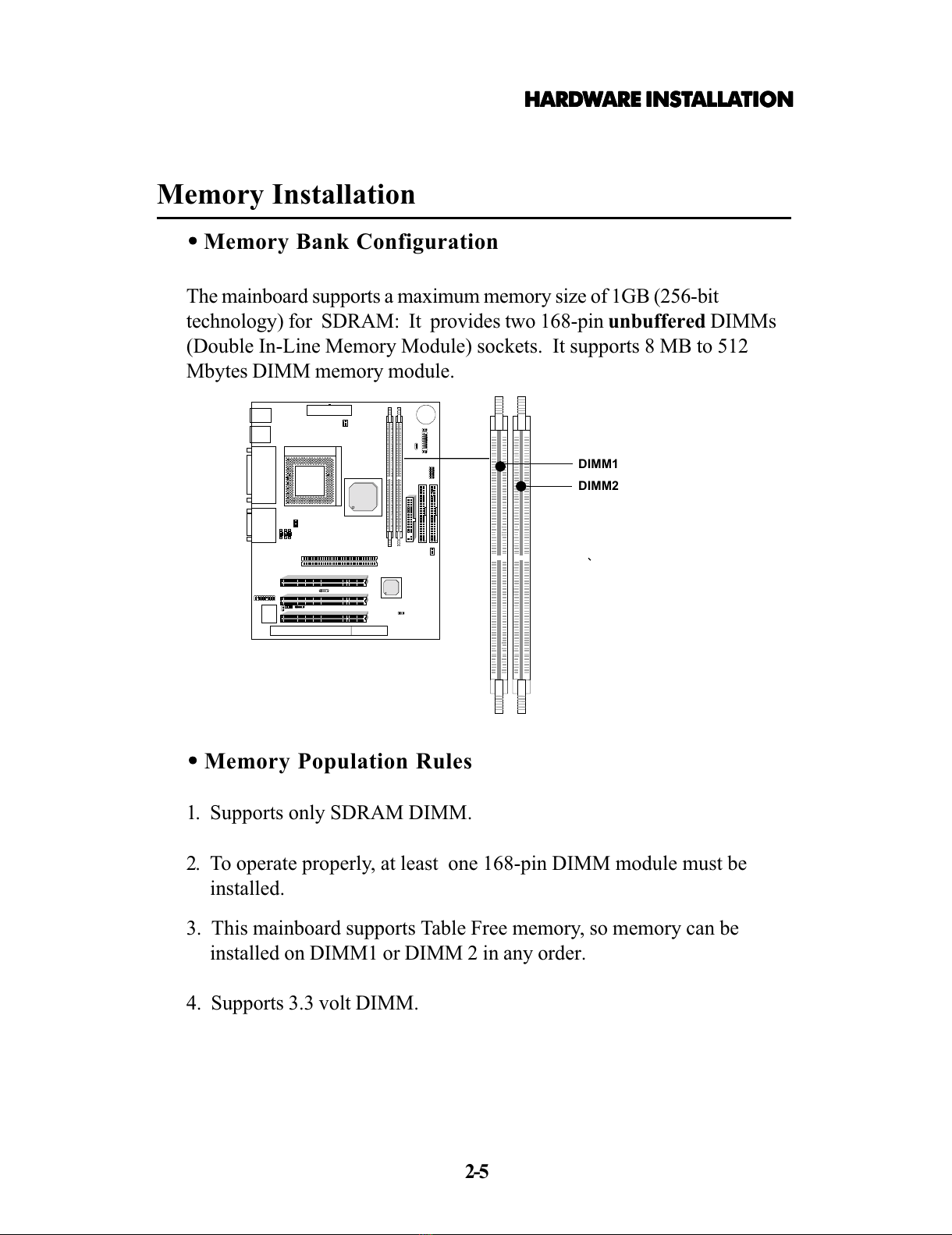

Memory Installation

••

• Memory Bank Configuration

The mainboard supports a maximum memory size of 1GB (256-bit

technology) for SDRAM: It provides two 168-pin unbuffered DIMMs

(Double In-Line Memory Module) sockets. It supports 8 MB to 512

Mbytes DIMM memory module.

DIMM1

DIMM2

••

• Memory Population ules

1. Supports only SDRAM DIMM.

2. To operate properly, at least one 168-pin DIMM module must be

installed.

3. This mainboard supports Table Free memory, so memory can be

installed on DIMM1 or DIMM 2 in any order.

4. Supports 3.3 volt DIMM.

All manuals and user guides at all-guides.com
