CHAPTER 1 INTRODUCTION
1-1
Chapter 1
INTRODUCTION
The 694 Master (MS-6309 ver 3.0) ATX mainboard is a high-performance
computer mainboard based on VIA®VT82C694X chipset. The 694 Master
(MS-6309 ver 3.0) is designed for the Intel®CeleronTM or Coppermine (FC-
PGA) processor for inexpensive business/personal desktop markets.
TheApolloPro133A(VT82C694X)isaSocket-370systemlogicnorthbridge
with the addition of 133 MHz capability for both the CPU and SDRAM
interfaces. Apollo Pro133A may be used to implement both desktop and
notebook personal computer systems from 66MHz to 133MHz based on
Socket-370. The primary features of the Apollo Pro133A-North Bridge are:
Slot-1orSocket-370CPU(FrontSideBus)Interface(66 / 100 / 133MHz),
DRAMMemory Interface (66 / 100/133MHz), AGP Bus Interface(66MHz),
PCIBusInterface(33MHz), Mobile Power Management.
TheVT82C686B PSIPC (PCI Super-I/OIntegratedPeripheral Controller) is a
high integration, high performance, power-efficient, and high compatibility
device that supports Intel and non-Intel based processor to PCI bus bridge
functionality to make a complete Microsoft PC99-compliant PCI/ISA system.
CHAPTER 1 INTRODUCTION
1-2
Mainboard Features
CPU
lSocket 370 for Intel®CeleronTM/ Coppermine processor.
lSupports233MHz,266MHz, 300MHz,333MHz,350MHz, 400MHz,
450MHz,500MHZ,533MHzto1GHz.
Chipset
lVIA®694Xchipset (510BGA)
-AGP 4x and PCI plus Advanced ECC Memory Controller
-SupportPC100/133 SDRAM, VCM technology
lVIA®VT82C686Bchipset(352BGA)
- Advanced Power Management Features
-IntegratedSuperI/O(FDC,LPT,COM 1/2, and IR)
- DirectSound AC97 Audio
-DualbusMasterIDEUltraDMA33/66/100
-ACPI
ClockGenerator
l66.6MHz,100MHz and133MHzclocks are supported.
MainMemory
lSupport eight memory banks using four 168-pin unbuffered DIMM.
lSupporta maximummemory sizeof 2GB (32Mx8).
lSupportECC(1-bitErrorCodeCorrect)function.
lSupport 3.3v SDRAM DIMM.
Slots
lOne AGP (Accelerated Graphics Port) slot.
- AGP specification compliant
- AGP66MHz 3.3v/1.5v for 2x/4x device support
lOne CNR (Communication Network Riser) slot which support Modem
only.
lSix 32-bit Master PCI Bus slots.
lSupports 3.3v/5v PCI bus Interface.
CHAPTER 1 INTRODUCTION
1-3
On-BoardIDE
lAnIDEcontrolleron the VIA®VT82C686BChipsetprovidesIDE HDD/
CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation
modes.
lCan connect up to four IDE devices.
On-BoardPeripherals
lOn-BoardPeripherals include:
-1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
-2 serial ports (COMA + COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports
- 1 IrDA/HP connector for SIR
-1394 (optional)
Audio
lChip Integrated (Software Audio)
-AC’97Compliant
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface (DMI)
function which records your mainboard specifications.
Dimension
lATXFormFactor : 30.5cm (L)x21cm (W) x4 layers PCB
Mounting
l6 mounting holes.
CHAPTER 1 INTRODUCTION
1-4
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
ATX
Power Supply
VIA
694X
chipset
Socket 370
DIMM 2
Top: mouse
Bottom:
keyboard
Top:Port 1
USB
DIMM 3
IDE1
Bottom:
Port2
IDE2 FDD
VT82C686B
JMDM1
JFP1
JGS1
JGL1
JBAT1
JWOL1
JPH
JAUX
CPUFAN
BATT
+
Top: LPT
Bottom:
COMA
COMB
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic
694 Master (MS-6309 ver 3.0) Mainboard
JCD
USB2
JRMS1
CNR1
AGP Slot
SYSFAN
JVTT
DIMM 1
PCI SLOT 4
PCI SLOT 5
J4
BIOS

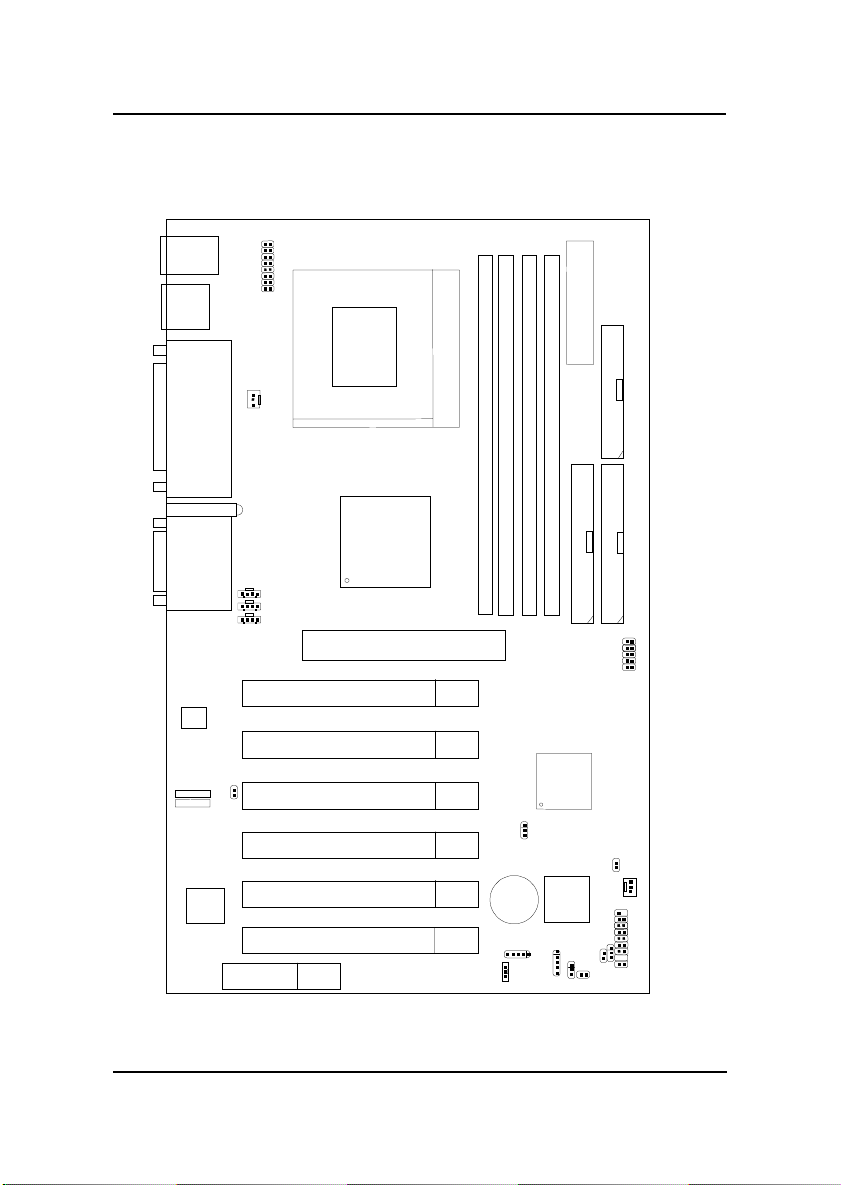

Mainboard Layout
J3
VT1611A
DIMM 4
PCI SLOT 6
JFSH1
J2
DiagnosticLED
JSPK1
J601
CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-1
+27
+27
Chapter 2
HARDWARE INSTALLATION
Central Processing Unit: CPU
The mainboard operates with Intel® CeleronTM/Pentium® III (FC-PGA)
processor. The mainboard uses a CPU socket called Socket 370 for easy
CPU installation. The CPU should always have a eat Sink and a cooling
fan attached to prevent overheating.

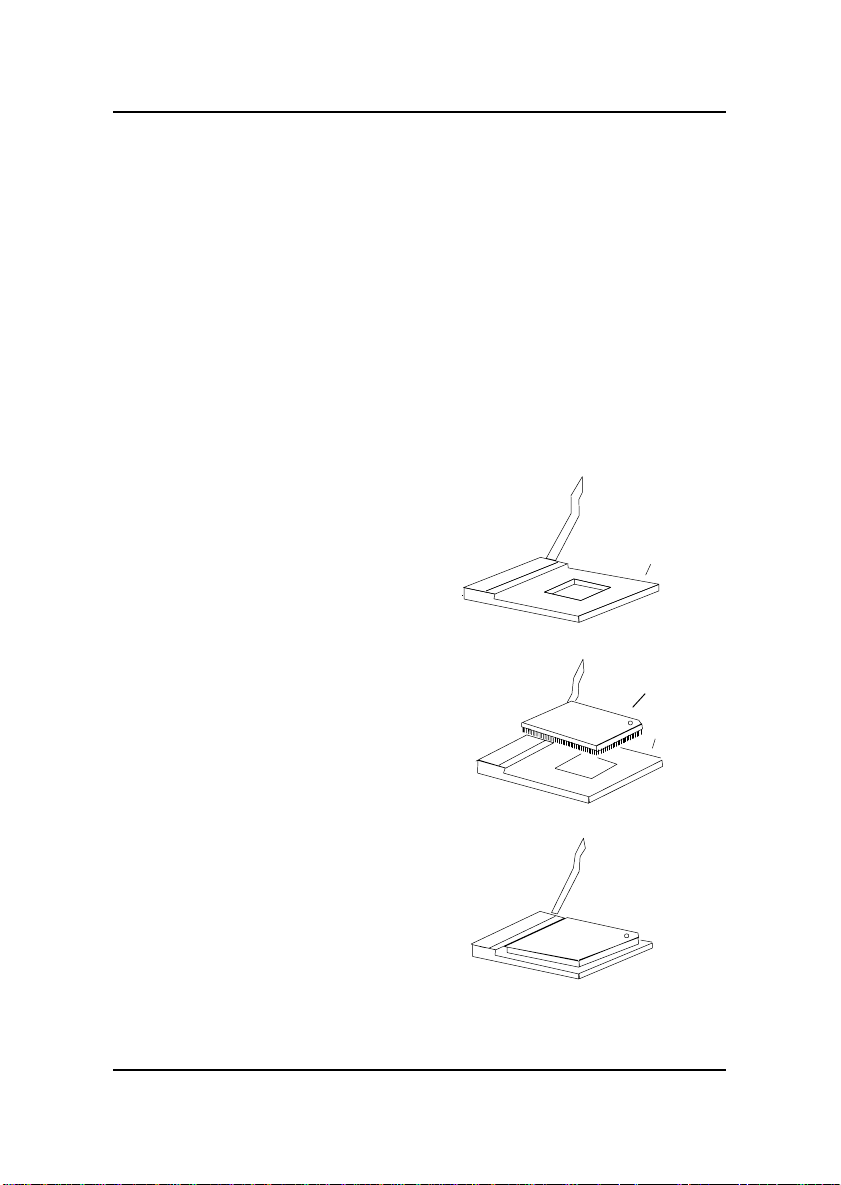

3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
Open Lever
Pin 1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
Pin 1
••
••
• CPU Installation Procedures
CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-2
The BIOS can be used to set the CPU ost Bus Frequency Clock.
If CPU Clock = 66M z
Core/Bus ratio = 3.5
then CPU core speed = ost Clock x Core/Bus ratio
= 66M z x 3.5
= 233M z
• CPU Core Speed Derivation Procedure
CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-3
• Fan Power Connectors: CPUFAN & SYSFAN
These connectors support system cooling fan with + 12V. It sup-
ports three pin head connector. When connecting the wire to the
connector, always take note that the red wire is the positive and
should be connected to the +12V, the black wire is Ground and
should be connected to GND. If your mainboard has System ard-
ware Monitor chipset on-board, you must use a specially designed
fan with speed sensor to take advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System ardware Monitor will count and report the fan rotation
speed.
Note: Always consult your reseller for proper CPU cooling fan.
CPUFAN
CPUFAN: Processor Fan
SYSFAN: System Fan
+12V
GND
SENSOR
SYSFAN
+12V
GND
SENSOR
CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-
Clear CMOS Jumper: JBAClear CMOS Jumper: JBA
Clear CMOS Jumper: JBAClear CMOS Jumper: JBA
Clear CMOS Jumper: JBAT1T1
T1T1
T1
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT1 to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
1
3
JBAT1
CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-5
Memory InstallationMemory Installation
Memory InstallationMemory Installation
Memory Installation
••
••
• Memory ank Configuration
The mainboard supports a maximum memory size of 2GB (256-bit
technology) SDRAM: It provides four 168-pin unbuffered DIMMs (Double
In-Line Memory Module) sockets. It supports 8 MB to 512 Mbytes DIMM
memory module.
DIMM1(Bank0+ Bank1)
DIMM2(Bank2+ Bank3)
DIMM3(Bank4+ Bank5)
DIMM4(Bank6+ Bank7)
There are three kinds of DIMM specification supported
by this mainboard: PC133, PC100 and PC66 If you
use 66MHz CPU Bus Frequency, these four DIMM
Specs is supported If you use 100 MHz CPU Bus
Frequency, only PC100 DIMM Specs is supported If
you use 133 MHz CPU Bus Frequency, only PC133
DIMM Specs is supported
WARNING!
CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-6

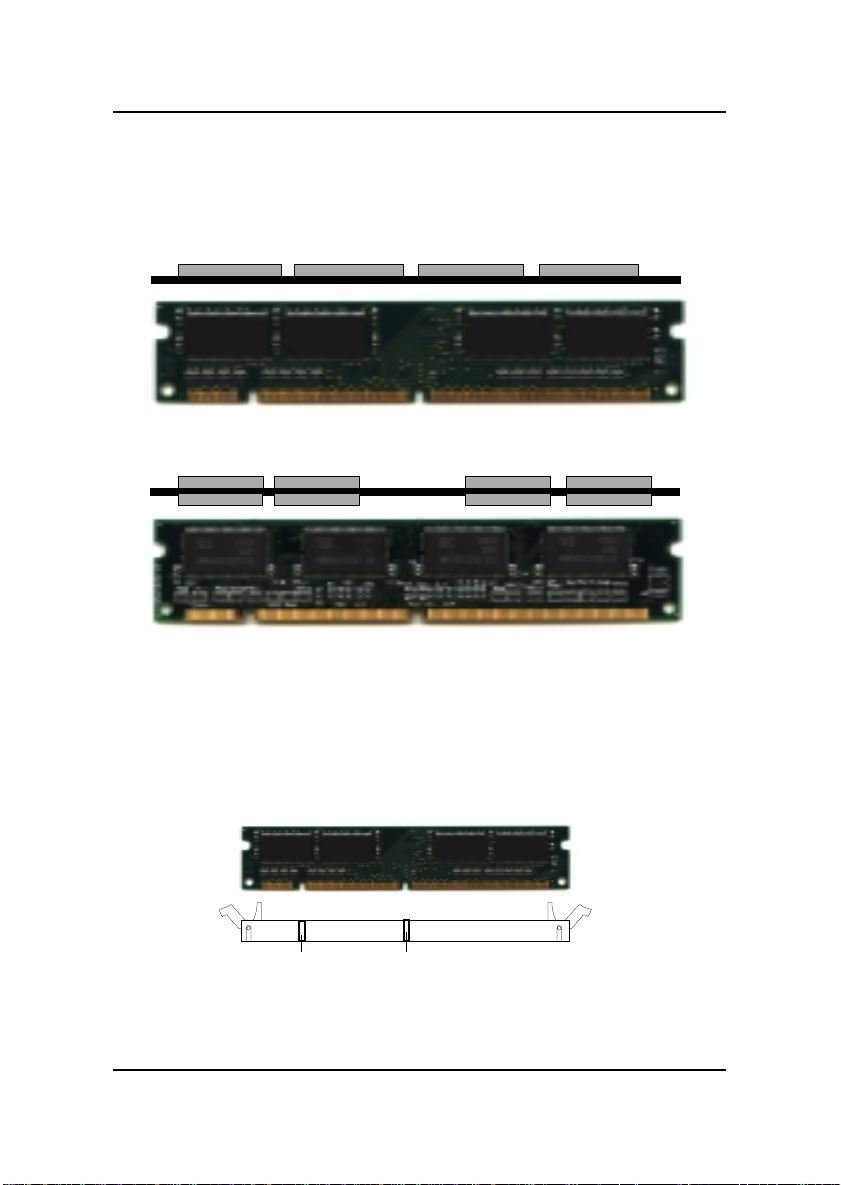

A. How to install a DIMM Module
1. The DIMM slot has 2 Notch Keys VOLT and DRAM, so the
DIMM memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM slot.
Then push it in.
3. The plastic clip at the side of the DIMM slot will automatically
close.
Single Sided DIMM
Double Sided DIMM
VOLTDRA
••
••
• Memory Installation Procedures
