MSI MS-7095 Manuale utente

FCC-BRadio FrequencyInterferenceStatement

Thisequipmenthasbeen tested and found tocomplywiththelimitsforaclassBdigitaldevice,pursuanttopart

15 of theFCC rules.Theselimitsaredesigned toprovide reasonableprotection against harmfulinterference

when the equipment is operated inacommercialenvironment.This equipment generates, usesand can

radiateradiofrequencyenergyand,if not installed and used inaccordancewiththe instruction manual, may

causeharmfulinterferencetoradiocommunications. Operation of this equipment inaresidentialarea is likely

tocauseharmfulinterference, inwhichcasethe userwillbe required tocorrectthe interferenceat his own

expense.

Notice1

The changesormodificationsnot expresslyapprovedbythe partyresponsibleforcompliancecouldvoidthe

user sauthoritytooperatethe equipment.

Notice2

Shielded interfacecablesand A.C.powercord,ifany,mustbeused inordertocomplywiththe emission limits.

VOIRLANOTICEDNSTALLATIONAVANTDERACCORDERAU RESEAU.

Micro-StarInternational

MS-7095

This devicecomplieswithPart 15 of the FCC Rules. Operation is subject tothe following twoconditions:

(1)this devicemaynot causeharmfulinterference, and

(2)this devicemustacceptanyinterferencereceived,including interferencethatmaycauseundesired

operation

G52-M7095X2

CopyrightNotice

The materialinthisdocument is the intellectualpropertyofMICRO-STARINTERNATIONAL. Wetakeevery

careinthe preparation of this document, butno guarantee is given astothe correctness of itscontents. Our

productsareundercontinualimprovement andwereservethe right tomakechangeswithout notice.

Trademarks

All trademarksarethe propertiesof theirrespectiveowners.

AMD, Athlon™Athlon™XP,Thoroughbred™andDuron™areregistered trademarksofAMD Corporation.

Intel®and Pentium®areregistered trademarksofIntelCorporation.

PS/2and OS®2areregistered trademarksofInternationalBusiness MachinesCorporation.

Microsoft®is aregistered trademarkofMicrosoft Corporation.Windows®98/2000/NT/XPareregistered

trademarksofMicrosoft Corporation.

NVIDIA,the NVIDIAlogo, DualNet, and nForceareregistered trademarksortrademarksof NVIDIA

Corporation inthe United Statesand/orothercountries.

Netware®is aregistered trademarkof Novell,Inc.

Award®is aregistered trademarkof PhoenixTechnologiesLtd.

AMI®is aregistered trademarkofAmerican MegatrendsInc.

Kensington andMicroSaverareregistered trademarksof the KensingtonTechnologyGroup.

PCMCIAandCardBusareregistered trademarksof the PersonalComputerMemoryCardInternational

Association.

Revision History

Revision Revision HistoryDate

V1.0First released of Multi-language version forPCB1.xOctober2004

withchipsetsVIA®P4M266A&VT8237®

V1.1ForChina region May2005

iii

SafetyInstructions

1.Alwaysread thesafetyinstructionscarefully.

2.Keep this UserManualforfuturereference.

3.Keep this equipment awayfromhumidity.

4.Laythis equipment on areliableflat surfacebeforesetting it up.

5.The openingsontheenclosureareforairconvection henceprotectsthe equipmentfromoverheating.Do

not covertheopenings.

6.Makesurethe voltage of the powersourceand adjust properly110/220Vbeforeconnecting the equipment

tothe powerinlet.

7.Placethe powercordsuchawaythat peoplecan not step on it. Donot placeanything overthepower

cord.

8.AlwaysUnplug thePowerCordbeforeinserting anyadd-on cardormodule.

9.All cautionsand warningson the equipment shouldbe noted.

10.Neverpouranyliquidintothe opening that coulddamage orcauseelectricalshock.

11.Ifanyof the following situationsarises, get the equipment checkedbyaservicepersonnel:

-The powercordorplug is damaged.

-Liquidhaspenetrated intothe equipment.

-The equipment hasbeen exposed tomoisture.

-The equipment doesnot workwell oryou can not get it workaccording toUserManual.

-The equipment hasdropped and damaged.

-The equipment hasobvioussign of breakage.

12. Donot leavethis equipment inan environment unconditioned, storage temperatureabove60°C (140°F), it

maydamage the equipment.

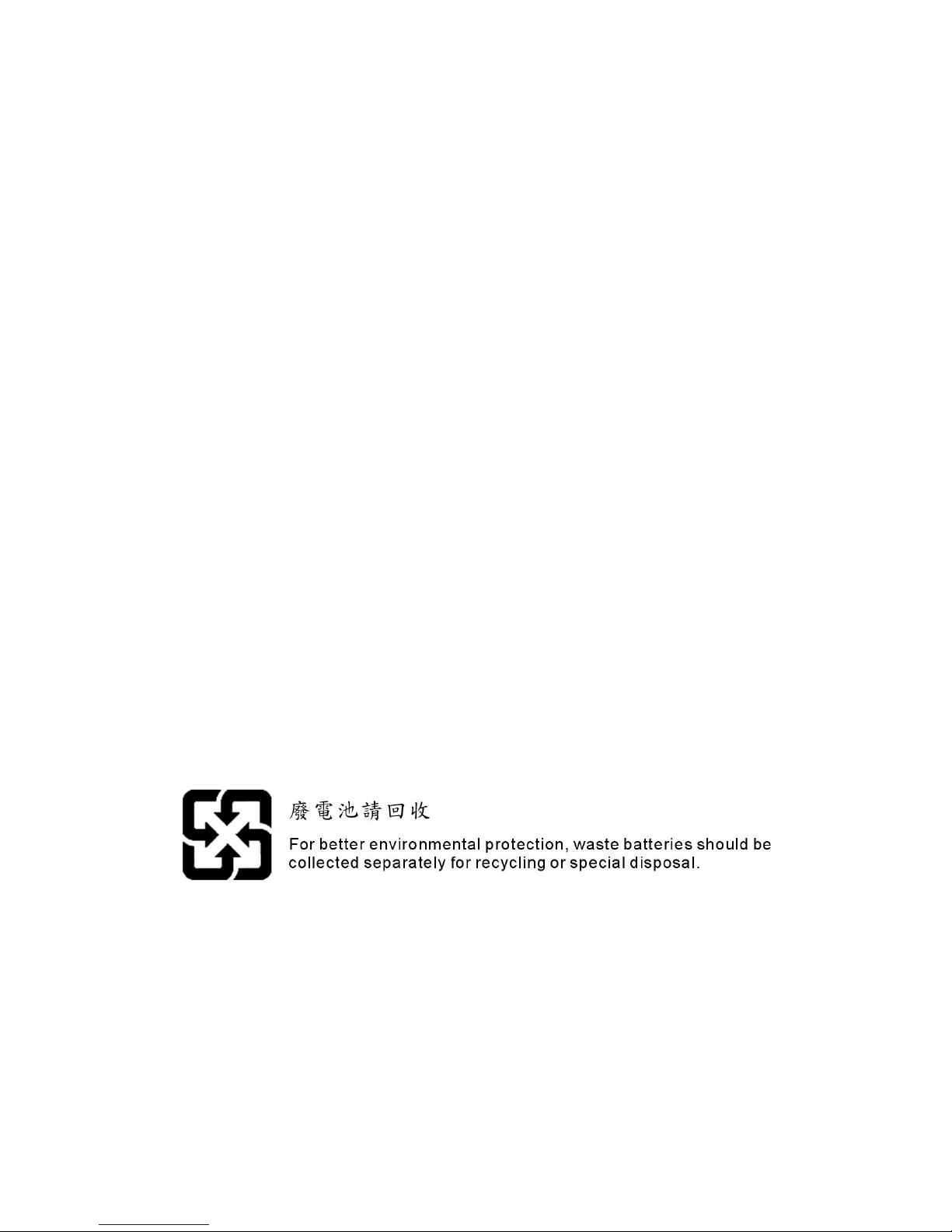

CAUTION:Dangerofexplosionifbatteryisincorrectlyreplaced. Replace only

withthesameorequivalenttyperecommendedbythemanufacturer.

TableofContent

English.....................................................................1

体中文 ...................................................................15

體中文 ...................................................................29

Introduction

ThankyouforchoosingtheP4MAM2-V2Series(MS-7095v1.X) microATXmainboard.The

P4MAM2-V2Seriesisbased onVIA P4M266A&VT8237(R)chipsetsforoptimal system

efficiency. Designed tofittheadvanced Intel Pentium 4/Celeron(D)processorsin478pin

package, theP4MAM2-V2Seriesdeliversahighperformanceand professional desktop platform

solution.

Layout

BATT

VIA

VT8237(R)

CD_IN1

JCASE1

JBAT1

JUSB1 JUSB2

JAUDIO1

ATX1

SFAN1

CFAN1

PCI Slot1

PCI Slot2

PCI Slot3

IDE1IDE2

Top: ParallelPort

Bottom:

COM

VGAPort

Port

Top: Mouse

Bottom: Keyboard

Top: LAN Jack

Middle/Bottom:

USBPorts

USB

Ports

Codec

JPW1

T: Line-In

B: Mic

Line-Out

FDD 1

Winbond

W83697HF

VIA

P4M266A

BIOS

AGPSlot

CNR1

JP1

JCOM2

Specifications

CPU

lSupportsIntel Pentium4/Celeron(D)(Socket478)processorupto3.06GHz.

(Forthelatest information aboutCPU,pleasevisit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )

Chipset

lVIA P4M266Achipset (664BGA)

-64bit P4processorsFSB I/F (533MHz).

-64bit DDR SDRAMmemoryI/F(200/266MHz).

-32bitAGPI/F (66MHz)for4x/2xmode.

-8bitV-LinkI/F (66MHz)withpeakbandwidthof 266MB/s.

lVIA VT8237(R)chipset(487BGA)

-IntegratedHardwareSoundBlaster/DirectSoundAC97audio.

-UltraDMA66/100/133mastermodePCI EIDEcontroller.

-ACPI&PC2001compliant enhanced powermanagement.

-SupportsUSB2.0upto8ports.

Main Memory

lSupportsfourmemorybanksusingtwo184-pinDDRDIMM.

lSupportsupto2GBPC2100/PC1600DDR SDRAMs.

lSupports2.5vDDR SDRAM.

(Fortheupdatedsupportingmemorymodules,pleasevisit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )

Slots

lOneAGP(AcceleratedGraphics Port)4xslot(supports1.5vonly).

lThreePCI2.232-bitPCIbusslots(support3.3v/5vPCIbusinterface).

lOneCNR(CommunicationNetworkRiser) slot.

On-Board IDE

lAnIDEcontrollerontheVIA VT8237(R)ChipsetprovidesIDEHDD/CD-ROMwithPIO,

BusMasterandUltraDMA33/66/100/133operation modes. Can connectuptofourIDE

devices.

On-BoardPeripherals

lOn-BoardPeripheralsinclude:

-1floppyportsupports2FDDswith360K,720K,1.2M,1.44Mand2.88Mbytes.

-1serialport (COM1).

-1parallel portsupportsSPP/EPP/ECPmode.

-8USB2.0ports(Rear*4/ Front *4).

-1audio(Line-In/Line-Out/Mic)port.

-1RJ45LANjack.

-1VGAport.

-1JCOM2pinheader.

-2IDEportssupport 4IDEdevices.

Audio

lAC97linkcontrollerintegratedinVT8237(R).

lVIA VT1617A6-channel softwareaudiocodec.

-CompliancewithAC97v2.3spec.

LAN

lVIA VT6103L10/100 Mb/sphy.

-Supports10Mb/sand100Mb/sauto-negotiation operation.

-CompliancewithPCI v2.2andPC99 standard.

-SupportsACPIpowermanagement.

BIOS

lThe mainboardBIOSprovides “Plug&Play”BIOSwhichdetectstheperipheral devicesand

expansioncardsoftheboardautomatically.

lThe mainboardprovidesaDesktop Management Interface(DMI)functionwhichrecords

yourmainboardspecifications.

Dimension

lMicro-ATXFormFactor:243mmx189mm.

Mounting

l6mountingholes.

Rear Panel

The backpanelprovidesthefollowing connectors:

Keyboard

USBPorts

Mouse

COMport

VGAport

ParallelPort

LineIn

LineOut

MicIn

LAN

USBPorts

HardwareSetup

ThischaptertellsyouhowtoinstalltheCPU,memorymodules,andexpansioncards,aswellas

howtosetupthejumperson themainboard.It alsoprovidestheinstructionson connectingthe

peripheral devices, suchasthemouse,keyboard,etc.Whiledoingtheinstallation,becarefulin

holdingthecomponentsandfollowtheinstallation procedures.

Central ProcessingUnit: CPU

The mainboardsupportsIntel Pentium4/Celeron(D)processorinthe478pinpackage.The

mainboardusesaCPUsocket calledPGA478foreasyCPUinstallation. Whenyou areinstalling

theCPU,makesuretheCPUhasaheat sinkandacoolingfan attached on thetop toprevent

overheating.If you donot findtheheatsinkand cooling fan, contactyourdealertopurchaseand

installthembeforeturningonthecomputer. (ForthelatestinformationaboutCPU,pleasevisit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )

ExampleofCPUCore Speed Derivation Procedure

IfCPUClock=133MHz

Core/Busratio =23

thenCPUcorespeed=Host ClockxCore/Busratio

=133MHzx23

=3.06 GHz

Memory Speed/CPUFSBSupportMatrix

Memory

FSB DDR 200 DDR 266

400MHz OK OK

533MHz OK OK

CPUInstallation Procedures forSocket478

1.Pleaseturnoffthepowerandunplug thepowercordbeforeinstallingtheCPU.

2.Pulltheleversidewaysawayfromthesocket.Makesuretoraisetheleveruptoa

90-degree angle.

3.Lookforthegoldarrow.Thegoldarrowshouldpointtowardstheleverpivot.TheCPUcan

onlyfitinthecorrectorientation.

4.IftheCPUiscorrectlyinstalled, thepinsshouldbecompletelyembedded intothesocket

andcan notbeseen.Pleasenotethat anyviolation of thecorrect installation procedures

maycausepermanentdamagestoyourmainboard.

5.Press theCPUdownfirmlyintothesocket and closethelever.Asthe CPUislikelyto

movewhiletheleverisbeingclosed,alwaysclosetheleverwithyourfingerspressing

tightlyon top oftheCPUtomakesuretheCPUisproperlyand completelyembedded into

thesocket.

InstallingtheCPUFan

Asprocessortechnologypushestofasterspeedsandhigherperformance,thermalmanagement

becomesincreasinglyimportant.Todissipateheat,youneedtoattachtheCPUcoolingfanand

heatsinkon top oftheCPU.FollowtheinstructionsbelowtoinstalltheHeatsink/Fan:

1.LocatetheCPUand itsretention mechanismon themotherboard.

2.Positiontheheatsinkontotheretention mechanism.

3.Mount thefan on top oftheheatsink. Press downthefanuntilitsfourclipsgetwedged in

theholesoftheretention mechanism.

4.Press thetwoleversdowntofastenthefan.EachlevercanbepresseddowninonlyONE

direction.

5.Connectthefanpowercablefromthemounted fantothe3-pinfan powerconnectoron

theboard.

MSIRemindsYou...

Overheating

Overheatingwill seriouslydamagethe CPUandsystem,always makesurethe coolingfancan

workproperlytoprotecttheCPUfromoverheating.

Replacing theCPU

WhilereplacingtheCPU,always turnoff the ATXpowersupplyorunplugthepowersupply’s

powercordfromgroundedoutlet first toensurethesafetyof CPU.

Memory

The mainboardprovidestwo184-pinunbuffered DDR200/DDR266 DDR SDRAM,andsupports

thememorysizeupto2GB.Tooperateproperly,at least oneDIMMmodulemustbeinstalled.

(Fortheupdatedsupportingmemorymodules,pleasevisit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )

Installat least oneDIMMmoduleon theslots.Memorymodulescan beinstalled ontheslotsin

anyorder.You can install eithersingle-ordouble-sided modulestomeet yourownneeds.

Installing DDRModules

1.The DDRDIMMhasonlyonenotchon thecenterofmodule.Themodulewillonlyfit inthe

rightorientation.

2.InserttheDIMMmemorymoduleverticallyintotheDIMMslot.Then pushitinuntilthe

golden fingeron thememorymoduleisdeeplyinsertedinthesocket.

3.The plasticclipat eachsideoftheDIMMslot willautomaticallyclose.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali MSI Scheda madre

MSI

MSI K8MM2 Manuale utente

MSI

MSI K9N2 SLI PLATINUM - Motherboard - ATX Manuale utente

MSI

MSI MEG Z390 ACE Manuale utente

MSI

MSI MPG Z490 GAMING PLUS Manuale utente

MSI

MSI MPG B650 EDGE WIFI Manuale utente

MSI

MSI MS-7320 Manuale utente

MSI

MSI H61MA-E35 (B3) Manuale utente

MSI

MSI Z270 XPOWER GAMING TITANIUM Manuale utente

MSI

MSI 848P NEO-V - Motherboard - ATX Manuale utente

MSI

MSI MPG Z490 GAMING EDGE WIFI Manuale utente

MSI

MSI MAG B660 TOMAHAWK WIFI DDR4 Manuale utente

MSI

MSI MS-6532 Manuale utente

MSI

MSI H6M-P30 (B3) Manuale utente

MSI

MSI PRO H610M-E DDR4 Manuale utente

MSI

MSI Z170A XPOWER GAMING TITANIUM EDITION Manuale utente

MSI

MSI MS-7042 Manuale utente

MSI

MSI MS-98H9 Manuale utente

MSI

MSI K9A PLATINUM - Motherboard - ATX Manuale utente

MSI

MSI Z87-G43 GAMING Manuale utente

MSI

MSI H61I-E35 V2/W8 Series Manuale utente

MSI

MSI MS-6787 Manuale utente

MSI

MSI MS-6323 Manuale utente

MSI

MSI H55M-ED55 Series Manuale utente

MSI

MSI H61M-E23 (G3) Series Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
