CHAPTER 1 INTRODUCTION

1-1

Chapter 1

INTRODUCTION

TheK7TPro2(MS-6330)ATXVAmainboardisahigh-performance

computer mainboard based on VIA®KT133 chipset. The K7T Pro 2 is

designed for the AMD®Socket processor for inexpensive business/

personal desktop markets.

The KT133 chipset consists of the VT8363 system controller (552

pinBGA)andtheVT82C686APCItoISAbridge(352pinBGA). Thesystem

controller provides superior performance between the CPU, DRAM, AGP

bus, and PCI bus with pipelined burst, and concurrent operation.

The VT8363 supports six banks of DRAM’s up to 1.5 GB and full

AGPv2.0capabilityformaximumbus utilization including1x,2x and 4xmode

transfers, SBA (SideBand Addressing), Flush/Fence commands, and

pipelined burst. The chip also supports enhanced PCI bus commands such

asMemory-Read-Line,Memory-Read-Multipleand Memory-Write-Invalid

commands to minimize snoop overhead.

The VT82C686A integrates all system control functions such as

ACPI (Advanced Configuration and Power Interface). The ACPI provides

more Energy Saving Features for the OSPM (OS Direct Power Management)

function. The VT82C686A chipset also improves the IDE transfer rate by

supporting Ultra DMA-33/66 IDE that transfers data at the rate 33/66MB/

sec.

This mainboard which supports KT133 chipset coupled with

VT8363andVT82C686Ais idealforhighperformance,highquality,high

energy efficiency and high integration desktop AGP/PCI/ISA computer

systems.

CHAPTER 1 INTRODUCTION

1-2

Mainboard Features

CPU

lSocket A for AMD®PGA Duron/Athlon processor.

lSupport500MHz,550MHz, 600MHz, 650MHzorhigher processor.

Chipset

lVIA®KT133

-FSB@200MHz

- AGP 4x and PCI Advanced high performance memory controller

-Support PC100/133SDRAM,

lVIA®VT686Achipset (352BGA)

- Enhanced Power Management Features

-IntegratedSuperI/O(FDC,LPT,COM1/2,andIR)

- Dual bus Master IDE Ultra DMA33/66

- Integrated Hardware Soundblaster

- Direct Sound AC97 Audio

-ACPI

ClockGenerator

l100Mhz clocks are supported (200MHz Internal System Bus)

MainMemory

lSupport six memory banks using three 168-pin unbuffered DIMM.

lSupportamaximummemorysize of1.5GB(32Mx8).

lSupport 3.3v SDRAM DIMM.

CHAPTER 1 INTRODUCTION

1-3

Slots

lOne AGP (Accelerated Graphics Port) slot.

-AGP specification compliant

-SupportAGP 2.01x/2x/4x

lOneCNR(Communication Network Riser) slot.

lPCI/ISA Slots may be configured in 2 ways:

- Six 32-bit Master PCI bus slots

- Five 32-bit Master PCI bus slots and 1 ISA slot (wherein one PCI/ISA

slot is shared.

lSupports 3.3v/5v PCI bus Interface.

On-BoardIDE

lAnIDE controller on the VIA®VT686A Chipset provides IDE HDD/CD-

ROM with PIO, Bus Master and Ultra DMA 33/66 operation modes.

lCan connect up to four IDE devices.

On-BoardPeripherals

lOn-BoardPeripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, .44M and

2.88Mbytes.

- 2 serial ports (COMA + COM B) or 1 serial port with 1 VGA port

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (2 Rear Connectors/USB Front Pin Header)

-1 IrDA connectorforSIR/CIR/ASKIR/HPSIR.

- 1 Audio/Game port

Audio

lChip Integrated

- Direct Sound AC97 Audio

CHAPTER 1 INTRODUCTION

1-4

BIOS

lThe mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

lThe mainboard provides a Desktop Management Interface (DMI) func-

tion which records your mainboard specifications.

Dimension

lATXFormFactor:30.4cmx20.3cm

Mounting

l6 mounting holes.

CHAPTER 1 INTRODUCTION

1-5

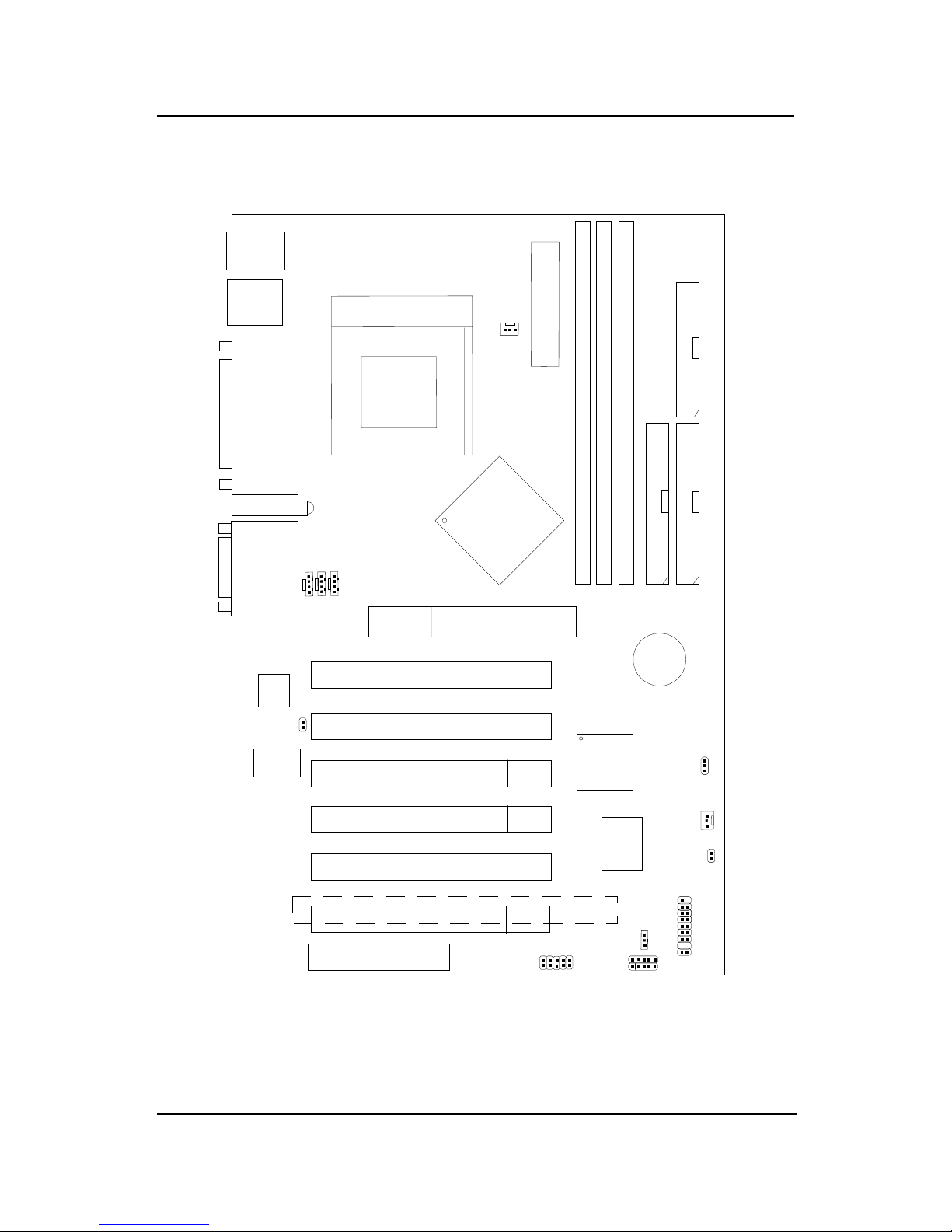

Mainboard Layout

PCI SLOT 2

PCI SLOT 1

ATX

Power Supply

VIA

KT133

Socket 462

DIMM 2

Top: mouse

Bottom:

keyboard

Top:Port 1

USB

IDE1

Bottom:

Port2

IDE2 FDD

VT82C686A

JMDM1

JBAT1

JWOL1

JCD1

JAUX1

C_FAN1

JGS1

Top:LPT

Bottom:

COMA

COMB

Top: Midi/

GamePort

Bottom:

Line-Out

Line-In

Mic

K7T Pro 2 (MS-6330) ATX VA Mainboard

J_PHN1

USB2

BIOS

AGP Slot

BATT

DiagnosticLED

DIMM 1

CNR

VIA

VT1611A

S_FAN1

DIMM 3

PCI SLOT 3

PCI SLOT 4

PCI SLOT 5

ISA SLOT/

PCI SLOT 6

JFP1

J11

Smart

D-LED
