MSI MS-6337 Manuale utente
i
MSI
MICRO-STAR INTERNATIONAL
MS-6337 LE5 ATX Mainboard
Version 5.0
G52-MA00370
ii
Manual Rev: 5.0
Release Date: May 2001
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order
to comply with the emission limits.
VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER AU
RESEAU.
Micro-Star International MS-6337 LE5
For Home or Office Use
Tested to comply
with FCC Standard
iii
Edition
May 2001
Copyright Notice
The material in this document is the intellectual property of
MICRO-STAR INTERNATIONAL. We take every care in the
preparation of this document, but no guarantee is given as to the
correctness of its contents. Our products are under continual
improvement and we reserve the right to make changes without
notice.
Trademarks
All trademarks used in this manual are the property of their
respective owners.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 95 and Windows NT are registered trademarks of Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.
Revision History
Revision Revision History Date
5.0 First release for 5.X PCB May 2001
iv
Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly
110/220V before connecting the equipment to the power inlet.
7. Place the power cord such a way that people cannot step on it. Do not
place anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or
module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause
electrical shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
•The power cord or plug is damaged
•Liquid has penetrated into the equipment
•The equipment has been exposed to moisture
•The equipment has not work well or you cannot get it work
according to User’s Manual.
•The equipment has dropped and damaged
•If the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C (1400F),
IT MAY DAMAGE THE EQUIPMENT.
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
v
L
CONTENTS
Chapter 1. Introduction ............................................................... 1-1
Mainboard Specifications .......................................................... 1-2
Mainboard Layout ..................................................................... 1-4
Jumpers & Connectors .............................................................. 1-5
Back anel ............................................................................... 1-6
Chapter 2. AWARD® BIOS Setup ................................................. 2-1
Entering Setup .......................................................................... 2-2
Getting Help .............................................................................. 2-2
The Main Menu ......................................................................... 2-3
Standard CMOS Features ......................................................... 2-4
Advanced BIOS Features .......................................................... 2-5
Advanced Chipset Features ...................................................... 2-6
Integrated eripherals ............................................................... 2-7
ower Management Setup ........................................................2-8
N / CI Configurations ............................................................ 2-9
C Health Status .................................................................... 2-10
Frequency/Voltage Control ...................................................... 2-11
Load Fail-Safe/Optimized Defaults .......................................... 2-12
Set Supervisor/User assword ................................................ 2-13
Introduction
1-1
Chapter 1.
Introduction
The MS-6337 LE5 ATX mainboard is a high-performance computer
mainboard based on Inte ® 815EP chipset. The MS-6337 UMB (Universa
Motherboard) is optimized to support the who e series of new generation Inte ®
Pentium® III (FC-PGA/FC-PGA2) processors for high-end business/persona
desktop markets.
The Inte 815EP chipset contains two components: the 82815EP Memory
Contro er Hub (MCH) and the 82801BA I/O Contro er Hub 2 (ICH2). The
MCH integrates a 66/100/133-MHz, P6 fami y system bus contro er , AGP (2X/
4X) discrete graphics card, 100/133-MHz SDRAM contro er, and a high speed
acce erated hub architecture interface for communication with the ICH2. The
ICH2 integrates an U traATA/100 contro er, 2 USB host contro ers with a tota
of 4 ports, LPC interface contro er, FWH interface contro er, PCI interface
contro er, AC97 digita ink, integrated LAN contro er, and a hub interface for
communication with the MCH.
This chapter contains the fo owing topics:
Mainboard Specifications 1-2
Mainboard Layout 1-4
Jumpers & Connectors 1-5
Back Pane 1-6
Chapter 1
1-2
Mainboard Specifications
CPU
!Support Socket370 for the who e series of new generation Inte ® Pentium®
III(FC-PGA/FC-PGA2) processors.
!Support 500MHz, 550MHz, 600MHz, 633MHz, 667MHz, 700MHz, 733MHz,
800MHz, 866MHz, 933MHz, 1GHz, 1.1GHz, 1.13GHz and up to 1.2GHz.
Chipset
!Inte ® 815EP chipset
- 544 BGA
- AGP 4x/2x universa s ot
- Support 66/100/133MHz FSB
!Inte ® ICH2 chipset.
- AC97 Audio support
- 2 fu IDE channe s, up to ATA100
- Low pin count interface for SIO
- USB contro er 1.1
Main Memory
!Support three 168-pin DIMM sockets.
!Support a maximum memory size of 512MB SDRAM.
Slots
! One CNR (Communication Network Riser).
!One AGP (Acce erated Graphics Port) 2x/4x s ot
!Six PCI 2.2 32-bit Master PCI Bus s ots. A PCI s ots can be used as master.
!Support 3.3v/5v PCI bus Interface.
On-Board IDE
!An IDE contro er on the ICH2 chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and U tra DMA 66/100 operation modes.
!Can connect up to two IDE devices.
On-Board Peripherals
!On-Board Periphera s inc ude:
- 1 f oppy port supports 2 FDD with 360K, 720K, 1.2M,
1.44M and 2.88Mbytes.
- 2 seria ports (COMA/COMB)
Introduction
1-3
- 1 para e port supports SPP/EPP/ECP mode
- 2 USB ports
Audio
! ICH2 chip integrated
! Support 2 channe audio
BIOS
!The mainboard BIOS provides P ug & P ay BIOS which detects the
periphera devices and expansion cards of the board automatica y.
!The mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
Dimension
!ATX Form Factor
Mounting
!6 mounting ho es.
Chapter 1
1-4

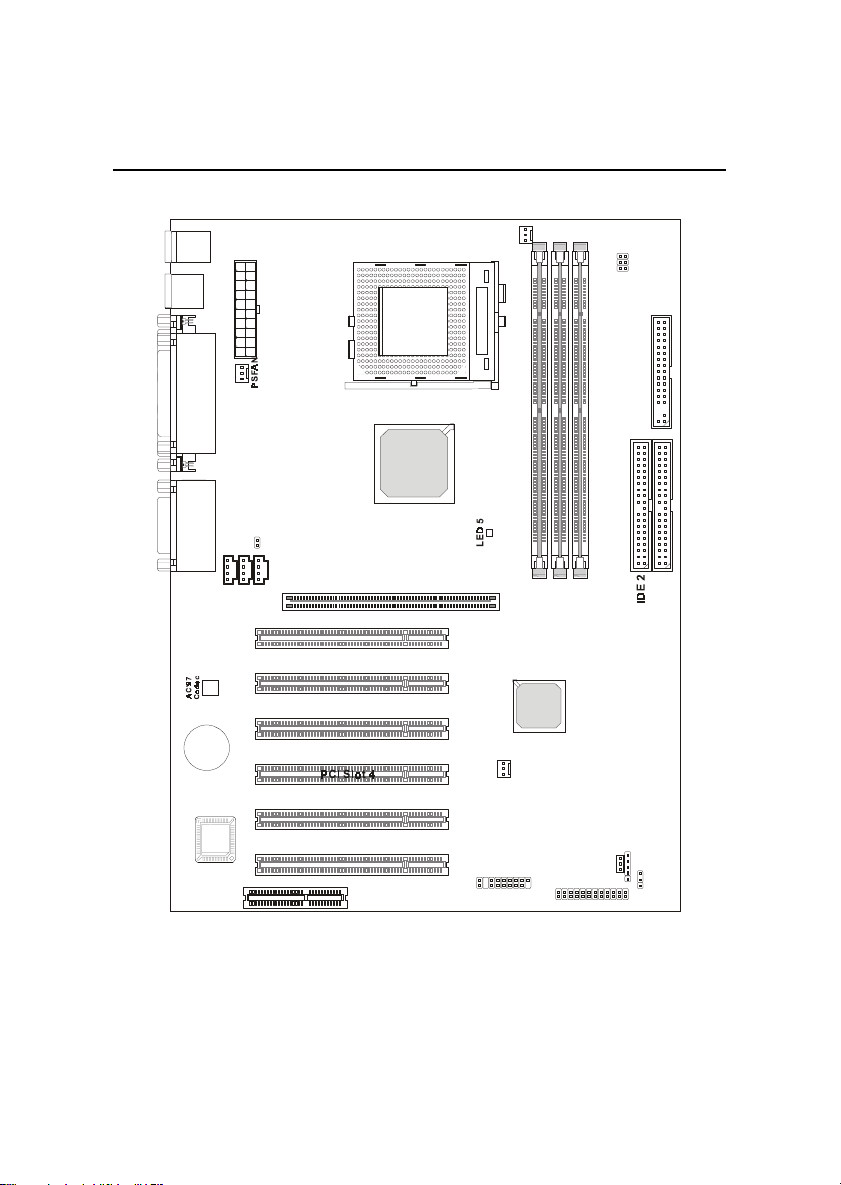

Mainboard Layout
MS-6337LE5ATXMainboard
BATT
+
ICH 2
Intel 815EP
chipset
J2
ATX
Power Supply
JFP1
CPUFAN
JBAT2
JMDM1
JWOL1
J7
FWH
PCI Slot 6
PCI Slot 5
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE 1
SYSFAN
DIMM 3
DIMM 1
DIMM 2
CNR
SW1
USB
Top : port 1
Bottom:
port 2
Top :
Parallel Port
Bottom:
COM A
COM B
Top : mouse
Bottom: keyboard
CD_IN
MODEM_IN
AUX_IN
Top :
Game
port
Bottom:
Line-Out
Line-In
Mic
SOCKET 370
FDD
AGP Slot
