Getting Started
Chapter 1. Getting
Started
Thank you for purchasing the MS-7010 v1.X Micro ATX
mainboard. The MS-7010 is based on VIA®K8T800 North
Bridge & VT8237 South Bridge and provides eight USB 2.0
ports for high-speed data transmission, C-Media 9761 audio
codec for 6-channel audio output, and a SPDIF interface for
digital audio transmission. Designed to fit the advanced AMD®
Athlon64processors, the MS-7010 delivers a high performance
and professional desktop platform solution.
Getting Started
1-2
MS-7010 M-ATX Mainboard
Mainboard Specifications
CPU
hSupports 64-bit AMD®Athlon64 processor (Socket 754)
hSupports up to 3200+, 3400+, or higher CPU
Chipset
hVIA®K8T800 chipset
- HyperTransportTM connection to AMD Athlon64 processor
- 8 or 16 bit control/address/data transfer both directions
- 800/600/400/200 MHz “Double Data Rate” operation both direction
- AGP v3.0 compliant with 8x transfer mode
hVIA®VT8237chipset
- Integrated Faster Ethernet LPC
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 66/100/133 master mode PCI EIDE controller
-ACPI
- Supports 2 Serial ATA ports
- Supports 8 USB2.0 ports
MainMemory
hSupports DDR266/333/400 DDR SDRAM for two 184-pin DDR DIMMs
hSupportsamaximummemorysizeof2GB
Slots
hOne (Accelerated Graphics Port) AGP slot
- AGP 3.0 specification compliant(1.5Vfor2X/4X/8X)
hThree 32-bit Master 3.3v/5v PCI Bus slots
hOne mini PCI slot
On-Board IDE
hAn IDE controller on the VIA®VT8237 chipset provides IDE HDD/CD-
ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes
hCan connect up to 4 IDE devices
hSerial ATA/150 controller integrated by VT8237
- Up ot 150MB/s transfer rate
- Can connect up to 2 serial ATA devices
1-3
Getting Started
IEEE1394 (Optional)
hSupports up to 2 * 1394 ports (up to 400Mbps transfer rate)
hControlled by VIA VT6307 chipset
On-BoardPeripherals
hOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes
- 1 serial port (COMA)
- 1 parallel port supports SPP/EPP/ECP mode
- 8 USB ports (Rear * 4/Front * 4)
- 2 IEEE 1394 ports (Rear * 1/Front * 1)
- 1 audio port
-1 RJ-45LAN jack
Audio
hC-Media 9761 6-channel software audio codec
- Compliance with AC97 v2.3 Spec
- Meet PC2001 audio performance requirement
LAN
hVIA®VT6103EthernetController
- Integrated Fast Ethernet MAC and PHY in one chip
- Supports 10Mbps & 100Mbps
BIOS
hThe mainboard BIOS provides “Plug & Play” BIOS which detects the pe-
ripheral devices and expansion cards of the board automatically.
hThe mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
Dimension
hMicro ATX Form Factor: 24.5 cm (L) x 24.5 cm (W)
Mounting
h6 mounting holes
1-4
MS-7010 M-ATX Mainboard

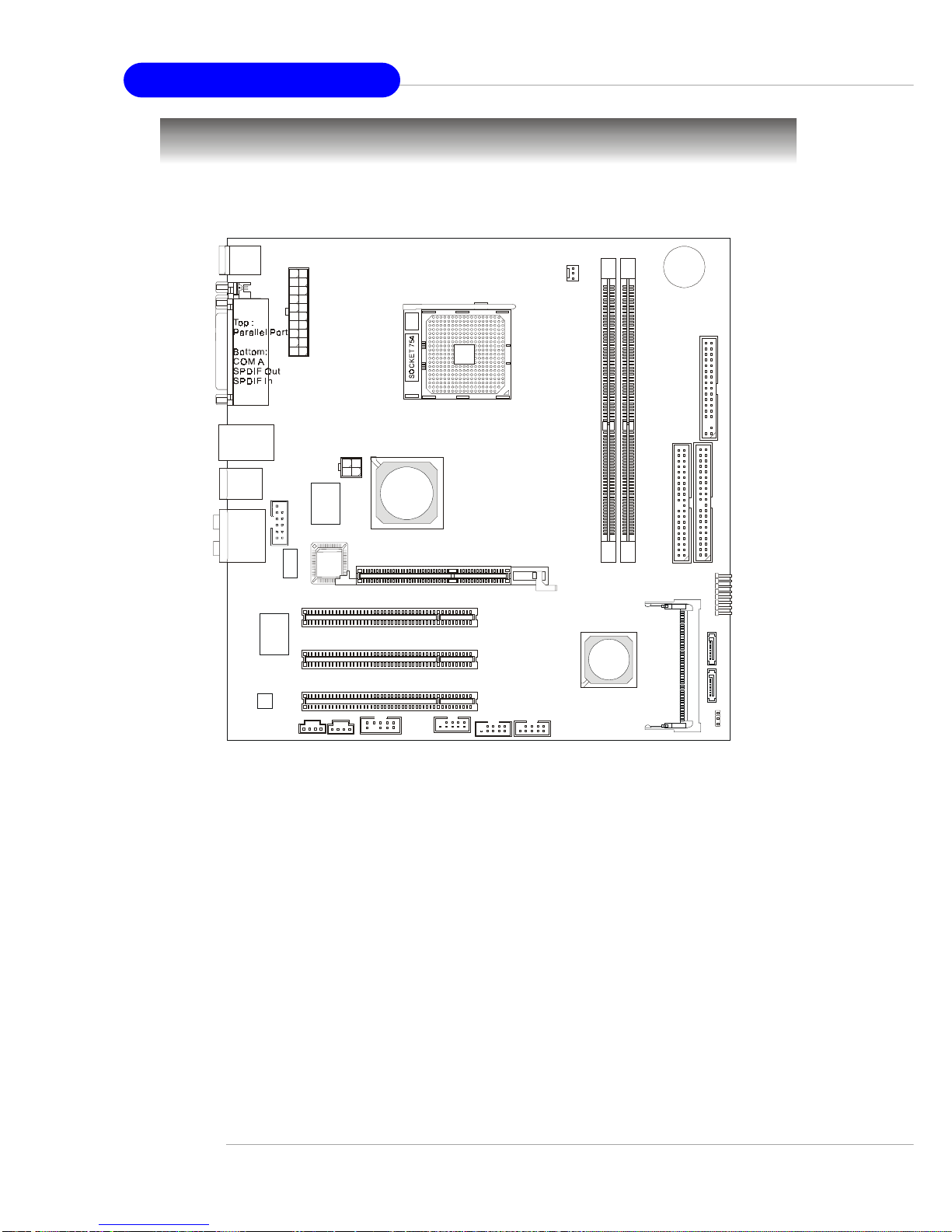

Mainboard Layout
MS-7010 v1.X Micro ATX Mainboard
BATT
+
DDR1
DDR2
JAUDIO1
JAUDIO2
JWR1
JBAT1
MINIPCI1
BIOS
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE1
FDD1
IDE2
CFAN1
AGPSlot
J3
JPW1
Codec
JVIDEO1 JF_W1
VIA
VT6307
VIA
VT6103
Winbond
83697THF
JUSB1 JUSB2
JF_P1
VIA
K8T800
Top: LAN Jack
Bottom: USB Ports
Top: 1394 Port
Bottom: USB Ports
Top: Mouse
Bottom: Keyboard
T:
M:
B: Line-Out
Line-Out
Line-Out
T: Mic
B: Line-In
VIA
VT8237
VIA
K8T800
SATA1
SATA2
2-1
Hardware Setup
Chapter 2. Hardware
Setup
This chapter tells you how to install the CPU, memory
modules, and expansion cards, as well as how to setup the jump-
ers on the mainboard. Also, it provides the instructions on con-
necting the peripheral devices, such as the mouse, keyboard,
etc.
While doing the installation, be careful in holding the com-
ponents and follow the installation procedures.
Hardware Setup
2-2
MS-7010 M-ATX Mainboard

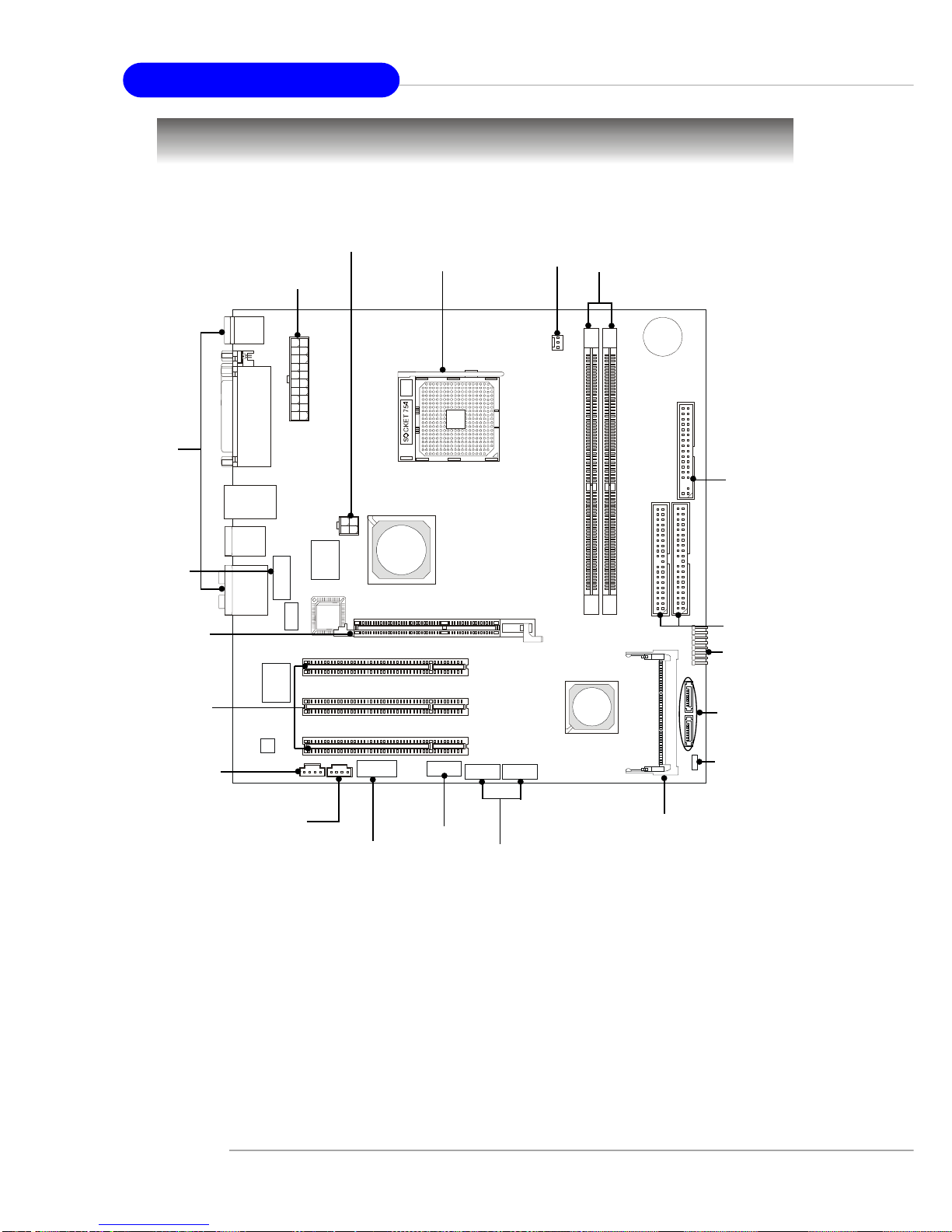

Quick Components Guide
BATT
+
BIOS
VIA
VT8237
JF_W1,p.2-16
J3, p.2-15
DDR DIMMs, p.2-9
CPU, p.2-3
Back Panel
I/O, p.2-12
CFAN1, p.2-15
FDD1, p.2-13
JUSB1/2, p.2-16
JPW1, p.2-11
AGP Slot, p.2-19
JVIDEO1, p.2-14
PCI Slots,p.2-19
IDE1/2, p.2-13
Mini PCI, p.2-19
SATA1/2,p.2-17
JF_P1, p.2-15
JBAT1, p.2-19
JWR1, p.2-11
JAUDIO2, p.2-14
JAUDIO1, p.2-14
2-3
Hardware Setup
Central Processing Unit: CPU
The mainboard supports AMD®Athlon64 processor. The mainboard
uses a CPU socket called Socket-754 for easy CPU installation. When you are
installing the CPU, make sure the CPU has a heat sink and a cooling fan
attached on the top to prevent overheating. If you do not have the heat sink
and cooling fan, contact your dealer to purchase and install them before turn-
ing on the computer.
MSI Reminds You...
Overheating
Overheating will seriously damage the CPU and system, always
make sure the cooling fan can work properly to protect the CPU
from overheating.
Replacing the CPU
While replacing the CPU, always turn off the ATX power supply
or unplug the power supply’s power cord from grounded outlet
first to ensure the safety of CPU.
2-4
MS-7010 M-ATX Mainboard

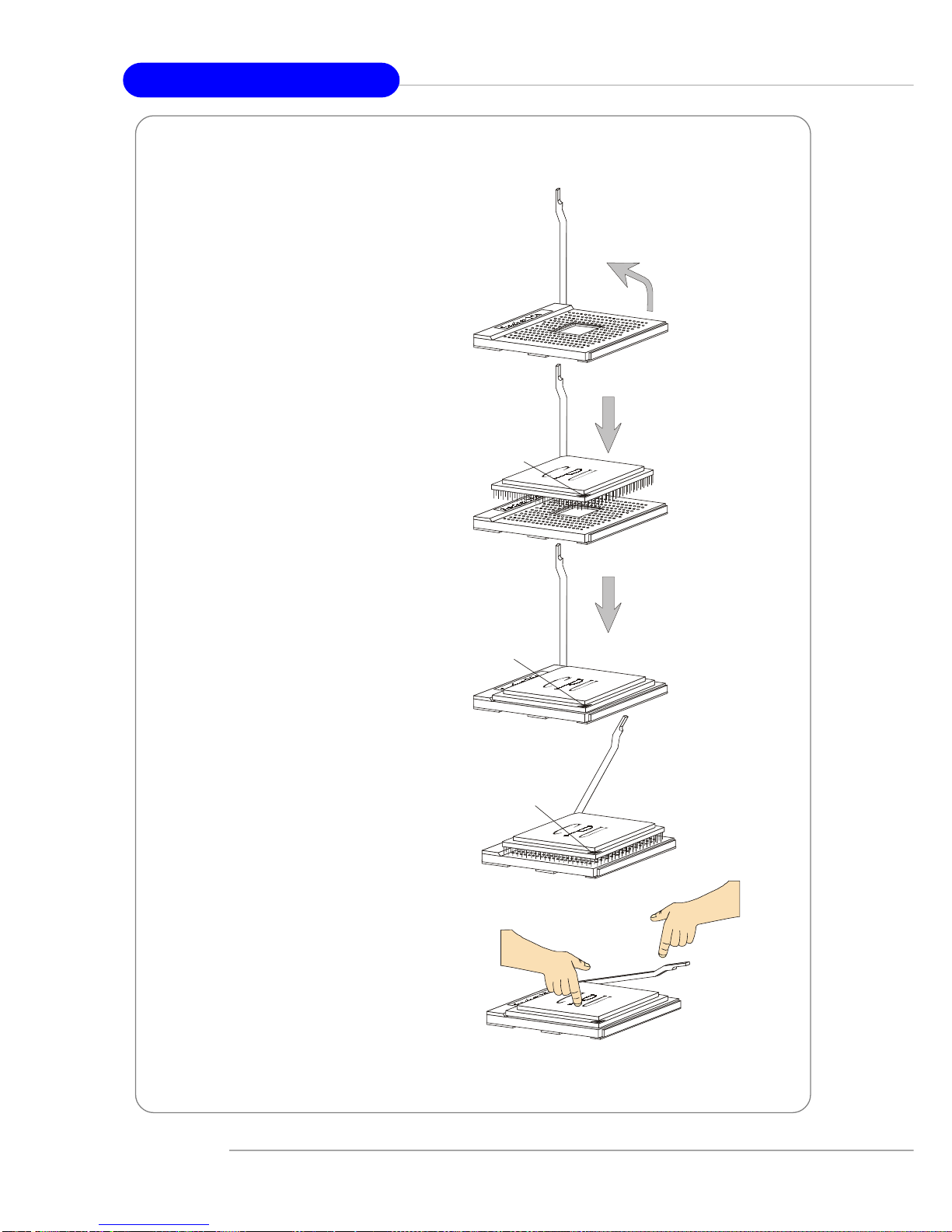

CPU Installation Procedures for Socket 754
1. Please turn off the power and
unplug the power cord before
installing the CPU.
2. Pull the lever sideways away
from the socket. Make sure
to raise the lever up to a 90-
degree angle.
3. Look for the gold arrow. The
gold arrow should point to-
wards the lever pivot. The
CPU can only fit in the cor-
rect orientation.
4. If the CPU is correctly
installed, the pins should be
completely embedded into the
socket and can not be seen.
Please note that any violation
of the correct installation pro-
cedures may cause permanent
damages to your mainboard.
5. Press the CPU down firmly
into the socket and close the
lever. As the CPU is likely to
move while the lever is being
closed, always close the lever
with your fingers pressing
tightly on top of the CPU to
make sure the CPU is prop-
erly and completely embed-
ded into the socket.
OpenLever
90 degree
Sliding
Plate
Gold
arrow
Gold
arrow
Gold
arrow
C orrect
CPU
placem ent
Incorrect
CPU
placem ent
X
O
Close
Lever
Press
dow n
th e C P U
2-5
Hardware Setup
Installing AMD Athlon64 CPU Cooler Set
When you are installing the CPU, make sure the CPU has a heat sink
and a cooling fan attached on the top to prevent overheating. If you do not
have the heat sink and cooling fan, contact your dealer to purchase and install
them before turning on the computer.

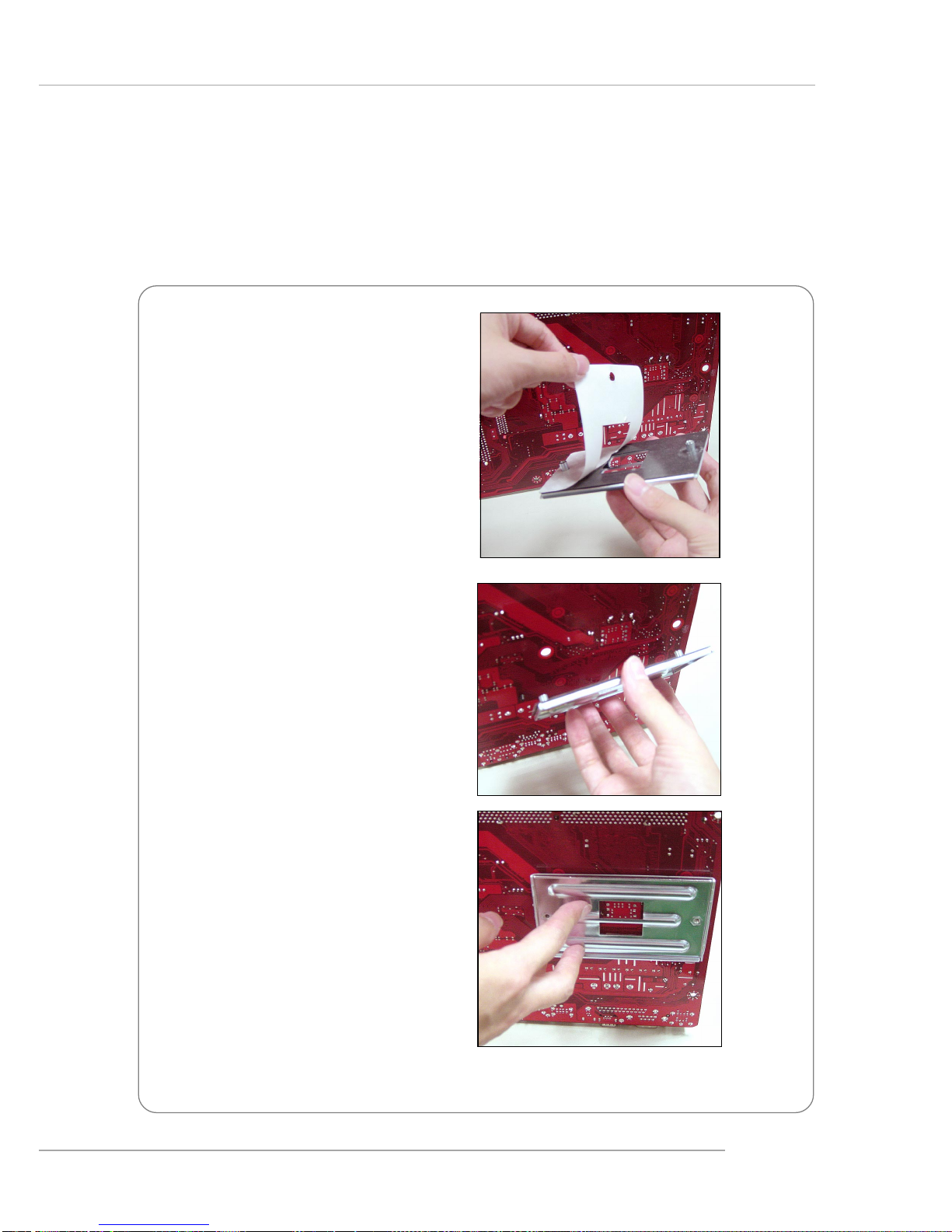

1. Detach the shield of the
backplate’s paster.
2. Turn over the mainboard, and
install the backplate to the
proper position.
2-6
MS-7010 M-ATX Mainboard
3. Turn over the mainboard
again, and place the
mainboard on the flat surface.
Locate the two screw holes of
the mainboard.
4. Align the retention mechanism
and the backplate.
Fix the retention mechanism
and the backplate with two
screws.

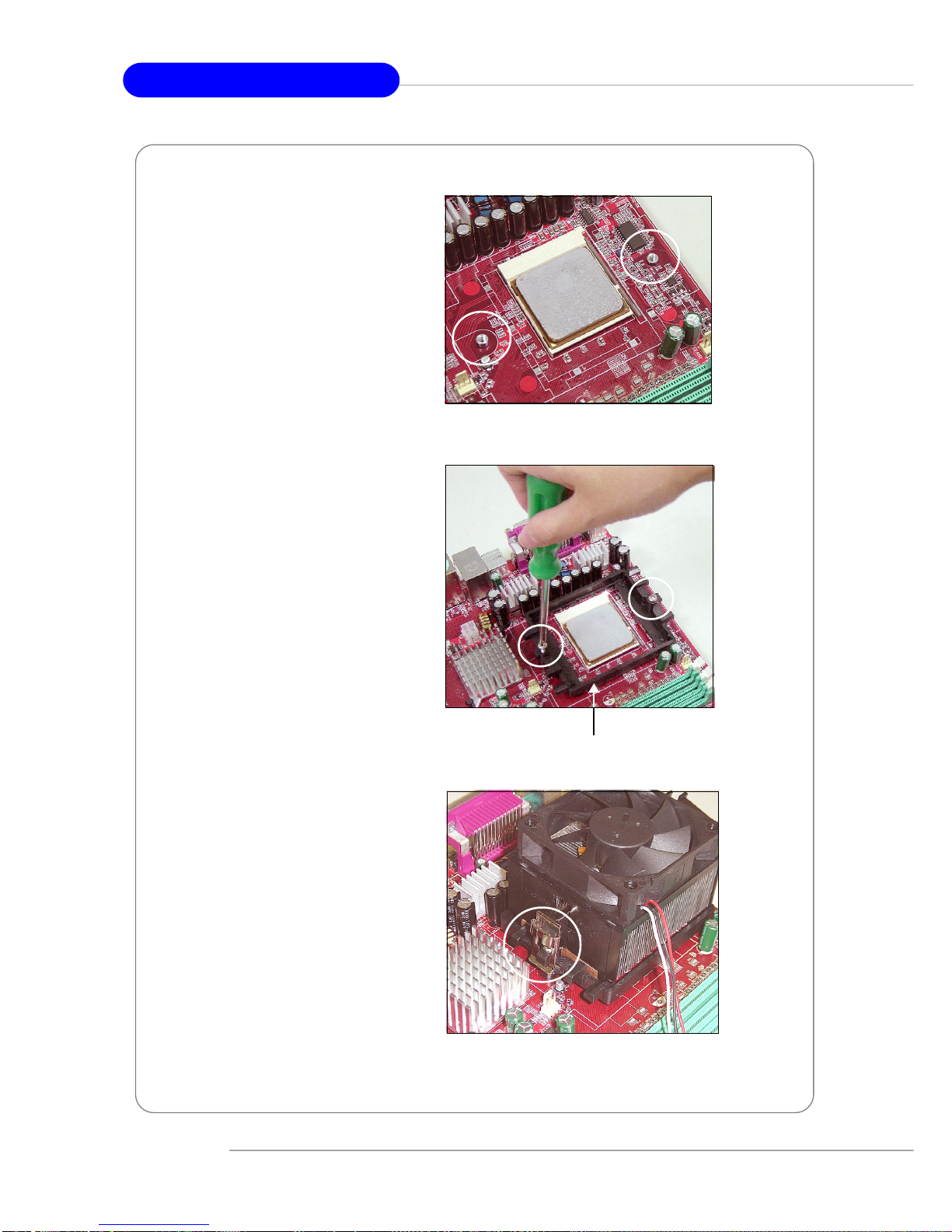

5. Position the cooling set onto
the retention mechanism.
Hook one end of the clip to
hook first.
retention mechanism
