MULTISPAN MVC-72N Manuale utente

www.multispanindia.com

Page - 1MVC-72N

Vibration Control output (1 to 99%) 5A

Power ON, Run, STOP

Power Supply 230V AC, 50 Hz, Approx 4VA

Model

Display

Size(HXWXD)

Panel Cutout

Input

Output

Indication

MVC-72N

72 X 72 X 45 mm

68 X 68 mm

2 Digit 7 seg 0.56” Red LED Display

NPN/PNP Proximity (Selectable)

Technical Specification

Connection Diagram

Technical Specification

Connection Diagram

MVC-72N

OPERATING MANUAL

Digital Vibrator Controller

1

3

2

5

6

7

8

94

LN

!

O/P

Vibrator

230V AC

50 Hz,4VA

+12V NPN

I/P

PNP

I/P

GND

5 AmP

FUSE

www.multispanindia.com

Made in India

www.multispanindia.com

Page - 2

MVC-72N

Product improvement and upgrade is a constant procedure. So for more updated operating information and support,

Please contact our Helpline : +91-9978991474/76/82 or Email at [email protected] Ver:2008

Working

1). Do all the wiring connections according to connection diagram &

Power on the instrument

2). When instrument is turn ON output arises according to indication of the display &

RUN (Green LED) will glow.

3). Output remains OFF until proxy pulse arises, STOP (Yellow LED) will glow & as soon

as the pulse goes OFF, output turns ON.

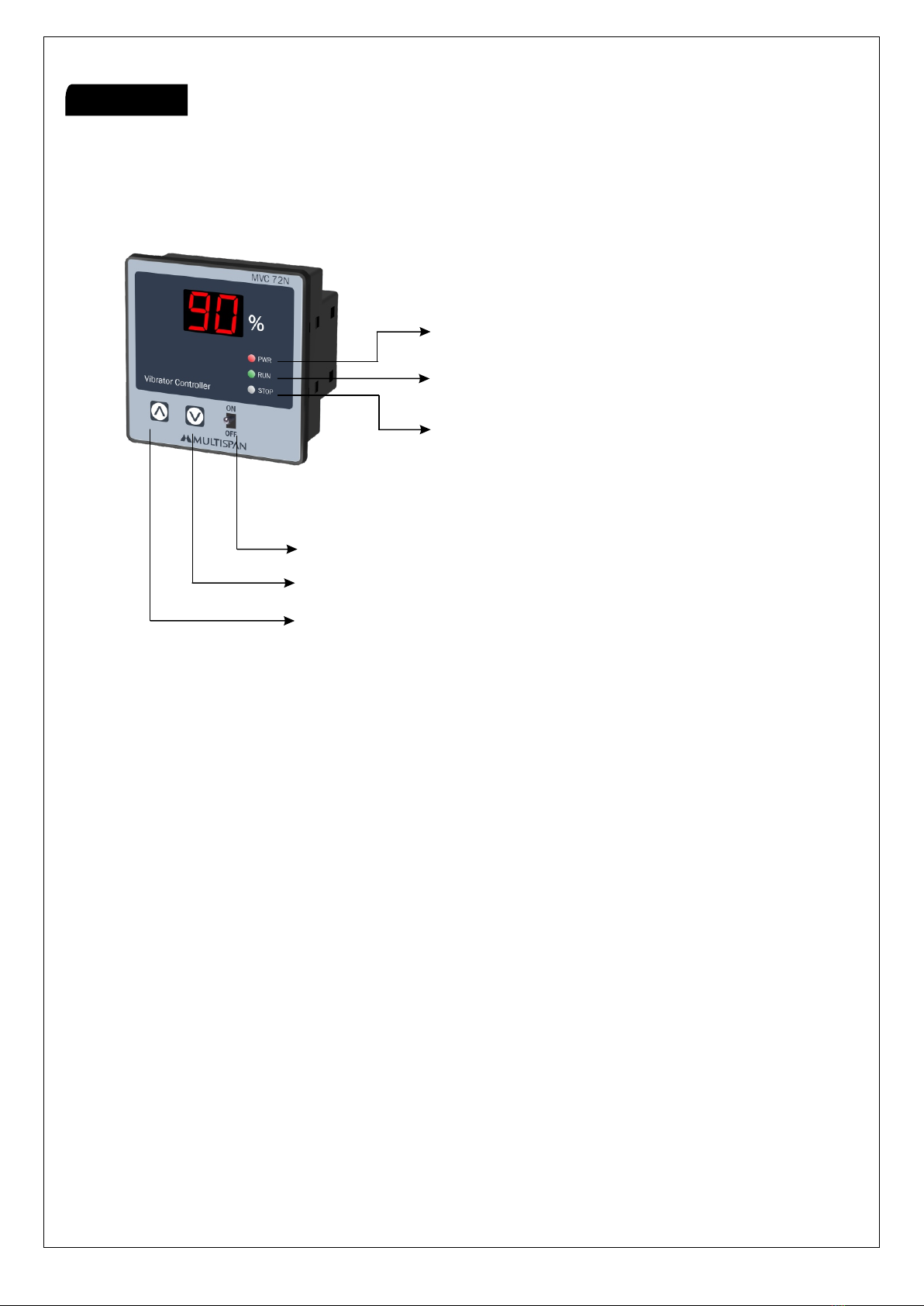

* Switch ON/OFF the instrument

* Decrease vibration output

* Increase vibration output

i.e

PWR (Red LED) - Power ON

RUN (Green LED) - Vibrator ON

STOP (Yellow LED) - Vibrator OFF

(Proxy Pulse ON = Output remains OFF) & indication of display actual Value

(Proxy Pulse OFF = Output remains ON) & indication of display will show actual

reading
