GETTING STARTED GUIDE

NI PXIe-7975R

NI FlexRIO™FPGA Module for PXI Express

This document explains how to install your NI FlexRIO system, comprised of the

NI PXIe-7975R (NI 7975R) FlexRIO FPGA module and an NI FlexRIO adapter module.

For information about the device specifications, refer to the NI PXIe-7975R Specifications,

available at Start»All Programs»National Instruments»NI FlexRIO, and at ni.com/

manuals.

For detailed information about the features and configuration options specific to the

NI FlexRIO FPGA module, refer to the NI FlexRIO Help, available at Start»All Programs»

National Instruments»NI FlexRIO, and at ni.com/manuals.

Contents

How to Use Your NI FlexRIO Documentation Set...................................................................2

Required Components...............................................................................................................3

Installing the Application Software and Driver........................................................................ 5

Installing the NI FlexRIO Devices............................................................................................6

Unpacking......................................................................................................................... 6

Preparing the Environment............................................................................................... 6

Installing the NI FlexRIO FPGA Module.........................................................................7

Confirming that Measurement & Automation Explorer (MAX) Recognizes the

Device......................................................................................................................... 8

Installing the NI FlexRIO Adapter Module...................................................................... 9

Installing PXI EMC Filler Panels........................................................................................... 10

NI FlexRIO FPGA Module Signals........................................................................................ 10

Compliance and Certifications................................................................................................12

Safety.............................................................................................................................. 12

Electromagnetic Compatibility....................................................................................... 12

CE Compliance .............................................................................................................. 12

Online Product Certification........................................................................................... 13

Environmental Management........................................................................................... 13

Electromagnetic Compatibility Guidelines.............................................................................13

Worldwide Support and Services............................................................................................ 14

How to Use Your NI FlexRIO Documentation Set

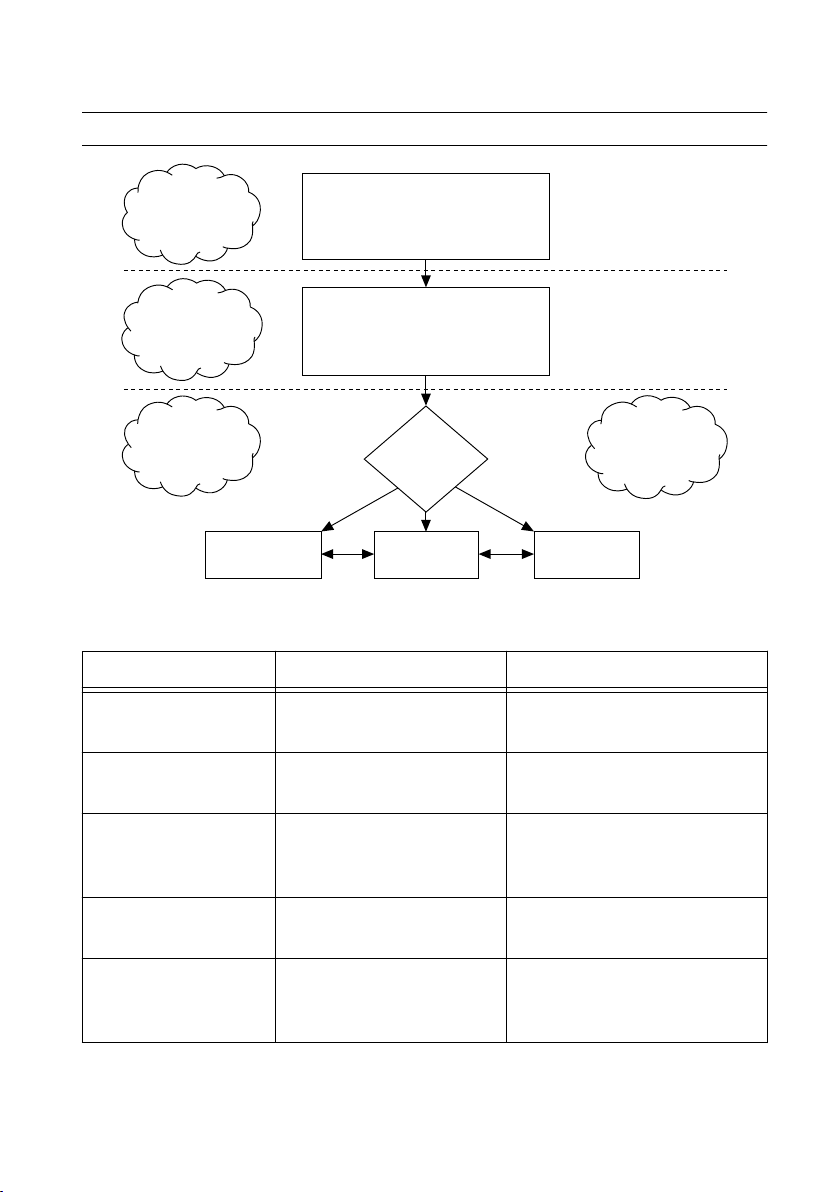

Figure 1. How to Use Your NI FlexRIO Documentation Set

LabVIEW FPGA

Module Help

NI FlexRIO

Help

LabVIEW

Examples

INSTALL Hardware

and Software

CONNECT Signals

and LearnAbout

Your AdapterModule

LEARN About

LabVIEW FPGA

Module

PROGRAM Your

NI FlexRIO System

in LabVIEW FPGA

Module

Specifications document

for your FPGA module

Specifications document

for your adapter module

Are

You New to

LabVIEW FPGA

Module?

Yes No

Getting Started Guide

for your adapter module

Getting Started Guide

for your FPGA module

Table 1. NI FlexRIO Documentation Locations and Descriptions

Document Location Description

Getting started guide for

your FPGA module

Available from the Start menu

and at ni.com/manuals.

Contains installation instructions

for your NI FlexRIO system.

Specifications document

for your FPGA module

Available from the Start menu

and at ni.com/manuals.

Contains specifications for your

NI 7975R module.

Getting started guide for

your adapter module

Available from the Start menu

and at ni.com/manuals.

Contains signal information,

examples, and CLIP details for

your adapter module.

Specifications document

for your adapter module

Available from the Start menu

and at ni.com/manuals.

Contains specifications for your

adapter module.

LabVIEW FPGA Module

Help

Embedded in LabVIEW Help

and at ni.com/manuals.

Contains information about the

basic functionality of the

LabVIEW FPGA Module.

2| ni.com | NI PXIe-7975R FPGA Module Getting Started Guide

Table 1. NI FlexRIO Documentation Locations and Descriptions (Continued)

Document Location Description

NI FlexRIO Help Available from the Start menu

and at ni.com/manuals.

Contains information about the

FPGA module, adapter module,

and CLIP configuration

information.

LabVIEW Examples Available in NI Example

Finder. In LabVIEW, click

Help»Find Examples»

Hardware Input and

Output»FlexRIO.

Contains examples of how to run

FPGA VIs and Host VIs on your

device.

IPNet ni.com/ipnet Contains LabVIEW FPGA

functions and intellectual property

to share.

NI FlexRIO product

page

ni.com/flexrio Contains product information and

data sheets for NI FlexRIO

devices.

Required Components

The following items are necessary to set up and use your NI FlexRIO system:

• The NI FlexRIO hardware device, comprised of the following items:

– NI 7975R

– NI FlexRIO adapter module

Note You can use the NI FlexRIO FPGA module without an adapter module for

coprocessing or peer-to-peer streaming. The adapter module installation instructions

in this document do not apply to these circumstances.

The following figure shows the combined module.

NI PXIe-7975R FPGA Module Getting Started Guide | © National Instruments | 3

Figure 2. Combining Your Adapter Module and FPGA Module

NI FlexRIO

Adapter Module + = NI FlexRIO Device

NI FlexRIO

FPGA Module

• The following software packages:

– LabVIEW

– LabVIEW FPGA Module

– NI FlexRIO Support

Note The most recent version of NI FlexRIO Support is available at

ni.com/downloads. Search for flexrio to download the latest version of

NI FlexRIO Support.

– NI FlexRIO Adapter Module Support1

Note The most recent version of NI FlexRIO Adapter Module Support is

available at ni.com/downloads. Search for flexrio adapter module

support to download the latest version of NI FlexRIO Adapter Module

Support. You do not need this software if you are not using an adapter

module.

– (Optional) LabVIEW Real-Time Module.

• A PXI Express/CompactPCI Express chassis

• One of the following controllers:

– PXI Express/CompactPCI Express embedded controller

– MXI kit and a PC

• One of the following operating systems:

– Windows 8

– Windows 7

1The NI 1483 adapter module requires the NI-IMAQ instrument driver instead of NI FlexRIO

Adapter Module Support.

4| ni.com | NI PXIe-7975R FPGA Module Getting Started Guide

– Windows Vista

– Windows XP Pro x32 Service Pack 2 or Service Pack 3

• At least one cable for connecting signals to the NI FlexRIO device. Refer to your adapter

module documentation for a list of applicable cables and accessories for your NI FlexRIO

system.

Related Information

Installing the Application Software and Driver on page 5

Installing the Application Software and Driver

Before installing your hardware, you must install the application software and instrument

driver. Visit ni.com/info and enter rdsoftwareversion as the Info Code to determine

which minimum software versions you need for your device. Install the software in the

following order:

1. Install LabVIEW.

Refer to the LabVIEW Installation Guide for installation instructions for LabVIEW and

system requirements for the LabVIEW software. Refer to the LabVIEW Upgrade Notes

for additional information about upgrading to the most recent version of LabVIEW for

Windows. Documentation for LabVIEW is available at ni.com/manuals and by selecting

Start»All Programs»National Instruments»LabVIEW»LabVIEW Manuals.

2. Install the LabVIEW FPGA Module.

Refer to the LabVIEW FPGA Module Release and Upgrade Notes for installation

instructions and information about getting started with the LabVIEW FPGA Module.

Documentation for the LabVIEW FPGA Module is available at ni.com/manuals and by

selecting Start»All Programs»National Instruments»LabVIEW»LabVIEW

Manuals.

3. (Optional) Install the LabVIEW Real-Time Module.

Refer to the LabVIEW Real-Time Module Release and Upgrade Notes for system

requirements, installation instructions, and additional information about using the

LabVIEW Real-Time Module.

4. Install NI FlexRIO.

Refer to the NI FlexRIO Readme on the NI FlexRIO installation media for system

requirements and installation instructions for NI FlexRIO Support. Documentation for

NI FlexRIO Support is available at ni.com/manuals and by selecting Start»All

Programs»National Instruments»NI FlexRIO.

Note If you are not using an adapter module, skip step 5.

5. Install NI FlexRIO Adapter Module Support.

Refer to the NI FlexRIO Adapter Module Support Readme on the NI FlexRIO Adapter

Module Support installation media for system requirements and installation instructions.

Documentation for NI FlexRIO Adapter Module Support is available at ni.com/manuals

NI PXIe-7975R FPGA Module Getting Started Guide | © National Instruments | 5

and by selecting Start»All Programs»National Instruments»NI FlexRIO»NI FlexRIO

Adapter Module Documentation.

Related Information

Required Components on page 3

NI FlexRIO FPGA Module Signals on page 10

Installing the NI FlexRIO FPGA Module on page 7

Installing the NI FlexRIO Devices

Note You must install the software before installing the hardware.

Unpacking

The NI 7975R modules ship in antistatic packages to prevent electrostatic discharge from

damaging module components. To prevent such damage when handling the modules, ground

yourself using a grounding strap or by holding a grounded object, such as your computer

chassis, and complete the following steps:

1. Touch the antistatic package to a metal part of the computer chassis before removing the

module from the package.

Caution Never touch the exposed pins of connectors.

2. Remove each module from the package and inspect it for loose components or any other

sign of damage.

Notify NI if the modules appear damaged in any way. Do not install a damaged module into

the chassis.

Preparing the Environment

Ensure that the environment you are using the NI 7975R in meets the following specifications.

............................................................................Operating temperature (IEC

60068-2-1, IEC60068-2-2)

0 °C to 55 °C

............................................................................Operating humidity

(IEC 60068-2-56)

10% to 90% RH, noncondensing

............................................................................Pollution Degree 2

............................................................................Maximum altitude 2,000 m at 25 °C ambient temperature

Indoor use only.

Note Refer to the NI PXIe-7975R Specifications at ni.com/manuals for complete

specifications.

6| ni.com | NI PXIe-7975R FPGA Module Getting Started Guide

Installing the NI FlexRIO FPGA Module

Note You must install the software before you install the hardware.

1. Power off and unplug the PXI Express chassis. Refer to your chassis manual to install or

configure the chassis.

2. Identify a supported PXI Express slot in the chassis. The figure below shows the symbols

that indicate the slot types in a PXI Express chassis.

Figure 3. Symbols for PXI Express/PXI Express HybridSlots

NI PXIe-1062Q

12 3 45

1. PXI Express System Controller Slot

2. PXI Peripheral Slot

3. PXI Express Hybrid Peripheral Slot

4. PXI Express System Timing Slot

5. PXI Express Peripheral Slot

Refer to the chassis documentation for specifications.

3. Remove the filler panel of an unused PXI Express slot.

4. Touch any metal part of the chassis to discharge any static electricity. Place the PXI

Express module edges into the module guides at the top and bottom of the chassis, and

slide the module into the chassis until the module is fully inserted, as shown in the figure

below.

NI PXIe-7975R FPGA Module Getting Started Guide | © National Instruments | 7

Figure 4. Installing an NI FlexRIO FPGA Module in the PXI Express Chassis

PXI-1000B

1. PXI Express Chassis

2. PXI Express System Controller

3. NI FlexRIO FPGA Module

4. Front-Panel Mounting Screws

5. Module Guides

6. Power Switch

5. Secure the device front panel to the chassis front panel mounting rail using the front panel

mounting screws.

6. Plug in and power on the PXI Express chassis.

Related Information

Installing the Application Software and Driver on page 5

Confirming that Measurement & Automation Explorer

(MAX) Recognizes the Device

Use Measurement & Automation Explorer (MAX) to configure your National Instruments

hardware. MAX informs other programs about which devices reside in the system and how

they are configured. MAX is automatically installed with NI FlexRIO Support.

1. Launch MAX by navigating to Start»All Programs»National Instruments»NI MAX or

by clicking the NI MAX desktop icon.

2. In the Configuration pane, double-click Devices and Interfaces to see the list of installed

devices. Installed devices appear under the name of their associated chassis.

8| ni.com | NI PXIe-7975R FPGA Module Getting Started Guide

3. Expand your Chassis tree item. MAX lists all devices installed in the chassis. Your

default device names may vary.

Note If you do not see your hardware listed, press <F5> to refresh the list of

installed devices. If the device is still not listed, power off the system, ensure

the device is correctly installed, and restart.

Installing the NI FlexRIO Adapter Module

Note Skip this step if you are not using an adapter module.

1. Gently insert the guide pins and the high-density card edge of the NI FlexRIO adapter

module into the corresponding connectors of the NI FlexRIO FPGA module, as shown in

the figure below.

Figure 5. Installing the NI FlexRIO Adapter Module

PXI-1000B

1. NI FlexRIO Adapter Module

2. Captive Screw

3. Guide Pin

4. PXI/PXI Express Chassis

5. NI FlexRIO FPGA Module

The connection may be tight, but do not force the adapter module into place.

2. Tighten the captive screws on the NI FlexRIO adapter module to secure it to the

NI FlexRIO FPGA module. NI recommends using the laser-tipped screwdriver (part

number 748677-01) included in the NI PXIe-7975R packaging.

3. Launch LabVIEW to begin configuring your NI FlexRIO system.

Note MAX only recognizes FPGA modules that are in the chassis. Your

adapter module will not appear in MAX.

NI PXIe-7975R FPGA Module Getting Started Guide | © National Instruments | 9

Installing PXI EMC Filler Panels

To ensure specified EMC performance, PXI EMC filler panels must be properly installed in

your NI FlexRIO system. The PXI EMC filler panels (National Instruments part number

778700-01) must be purchased separately.

1. Remove the captive screw covers.

2. Install the PXI EMC filler panels by securing the captive mounting screws to the chassis,

as shown in the figure below. Make sure that the EMC gasket is on the right side of the

PXI EMC filler panel.

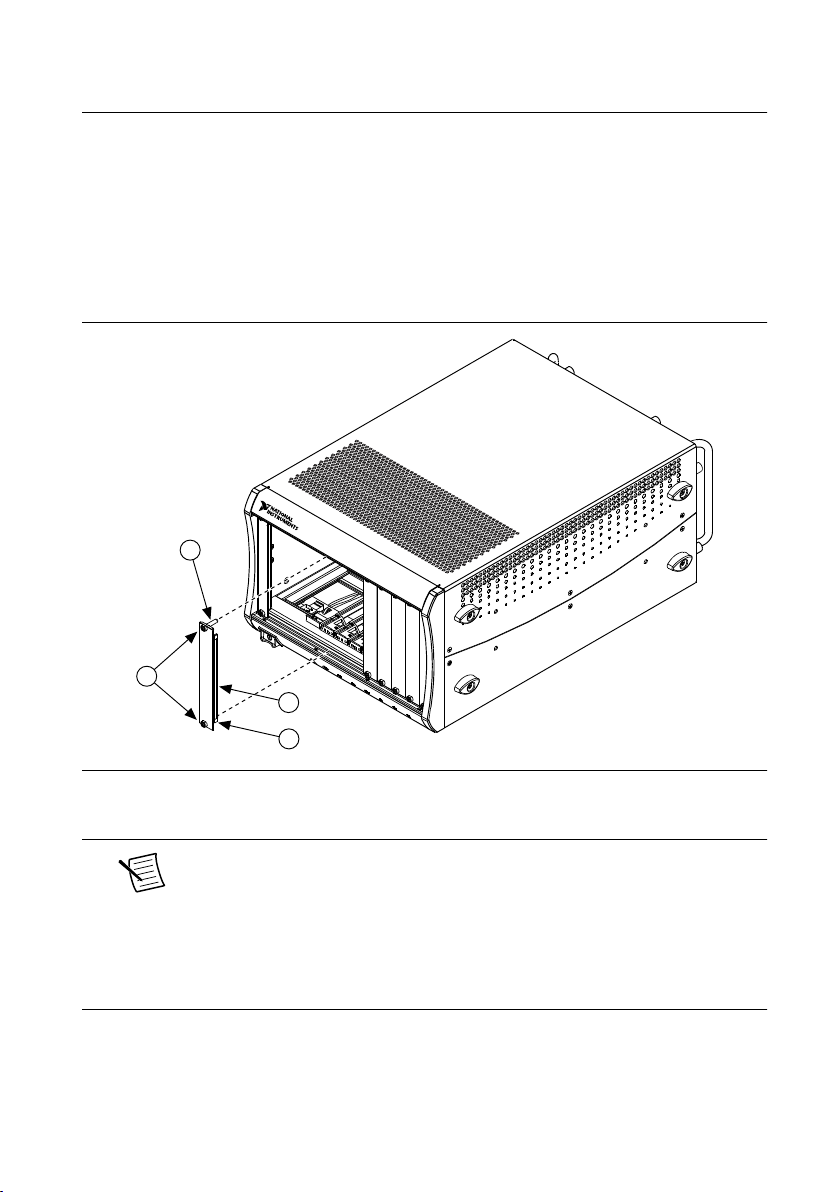

Figure 6. PXI EMC Filler Panels and Chassis

1. Captive Screw Covers

2. Captive Mounting Screws

3. EMC Gasket

Note You must populate all slots with a module or a PXI EMC filler panel to

ensure proper module cooling. Do not over tighten screws (2.5 lb · in.

maximum). For additional information about the use of PXI EMC filler panels

in your PXI system, visit ni.com/info and enter emcpanels.

NI FlexRIO FPGA Module Signals

The following figure shows the available signals on the NI FlexRIO FPGA module. Refer to

your adapter module specifications for your adapter module pinout.

10 | ni.com | NI PXIe-7975R FPGA Module Getting Started Guide

Indice

Altri manuali National Instruments Unità di controllo

National Instruments

National Instruments NI 9770 Manuale utente

National Instruments

National Instruments NI 9351 Manuale utente

National Instruments

National Instruments NI 9246 Manuale utente

National Instruments

National Instruments 6587 Manuale utente

National Instruments

National Instruments NI 9512 Manuale utente

National Instruments

National Instruments 7340 PCI Manuale utente

National Instruments

National Instruments SCC-CTR01 Manuale utente

National Instruments

National Instruments 9503 Manuale utente

National Instruments

National Instruments FD-11634 Manuale utente

National Instruments

National Instruments NI 9882 Manuale utente

National Instruments

National Instruments sbRIO-9651 Guida

National Instruments

National Instruments NI MID-7604 Guida all'installazione

National Instruments

National Instruments NI-9208 Manuale utente

National Instruments

National Instruments PXIe-4480 Manuale utente

National Instruments

National Instruments NI 9853 Manuale utente

National Instruments

National Instruments FIELDPOINT FP-1600 Manuale utente

National Instruments

National Instruments NI-9244 Manuale utente

National Instruments

National Instruments FlexRIO PXI-79 R Series Manuale utente

National Instruments

National Instruments NI 9264 Manuale utente

National Instruments

National Instruments NI-9208 Manuale utente

National Instruments

National Instruments NI 9802 Manuale utente

National Instruments

National Instruments NI 9226 Manuale utente

National Instruments

National Instruments CompactRIO cRIO-FRC Manuale utente

National Instruments

National Instruments Relay Module SCC-RLY01 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
