National Instruments REM-11178 Manuale utente

GETTING STARTED GUIDE

NI REM-11178

Digital Output Module for Remote I/O

This document explains how to connect to the REM-11178.

Note The guidelines in this document are specific to the REM-11178. The other

components in the system might not meet the same safety ratings. Refer to the

documentation for each component in the system to determine the safety and EMC

ratings for the entire system.

Caution Do not operate the REM-11178 in a manner not specified in this

document. Product misuse can result in a hazard. You can compromise the safety

protection built into the product if the product is damaged in any way. If the product

is damaged, return it to NI for repair.

Isolation Withstand Voltages

Test section Test voltage

5 V communications power (logic), 24 V supply (I/O) 500 VAC, 50 Hz, 1 min.

5 V supply (logic)/functional earth ground 500 VAC, 50 Hz, 1 min.

24 V supply (I/O)/functional earth ground 500 VAC, 50 Hz, 1 min.

Electromagnetic Compatibility Guidelines

This product was tested and complies with the regulatory requirements and limits for

electromagnetic compatibility (EMC) stated in the product specifications. These requirements

and limits provide reasonable protection against harmful interference when the product is

operated in the intended operational electromagnetic environment.

This product is intended for use in industrial locations. However, harmful interference may

occur in some installations, when the product is connected to a peripheral device or test object,

or if the product is used in residential or commercial areas. To minimize interference with

radio and television reception and prevent unacceptable performance degradation, install and

use this product in strict accordance with the instructions in the product documentation.

Furthermore, any changes or modifications to the product not expressly approved by National

Instruments could void your authority to operate it under your local regulatory rules.

Preparing the Environment

Ensure that the environment in which you are using the REM-11178 meets the following

specifications.

Operating temperature -25 °C to 60 °C

Operating humidity 5% RH to 95% RH, noncondensing

Pollution Degree 2

Maximum altitude 3,000 m

Indoor use only.

Note Refer to the device datasheet on ni.com/manuals for complete specifications.

2| ni.com | REM-11178 Getting Started Guide

Verifying the Kit Contents

Verify that the following items are included in the REM-11178 kit.

Figure 1. REM-11178 Kit Contents

12 3 4

1. NI REM-11178

2. Bus connector

3. Supply voltage connector

4. Spring-terminal block (x4)

Unpacking the Kit

Caution To prevent electrostatic discharge (ESD) from damaging the device,

ground yourself using a grounding strap or by holding a grounded object, such as

your computer chassis.

1. Touch the antistatic package to a metal part of the computer chassis.

2. Remove the device from the package and inspect the device for loose components or any

other sign of damage.

Caution Never touch the exposed pins of connectors.

Note Do not install a device if it appears damaged in any way.

3. Unpack any other items and documentation from the kit.

Store the device in the antistatic package when the device is not in use.

REM-11178 Getting Started Guide | © National Instruments | 3

Installing the REM-11178

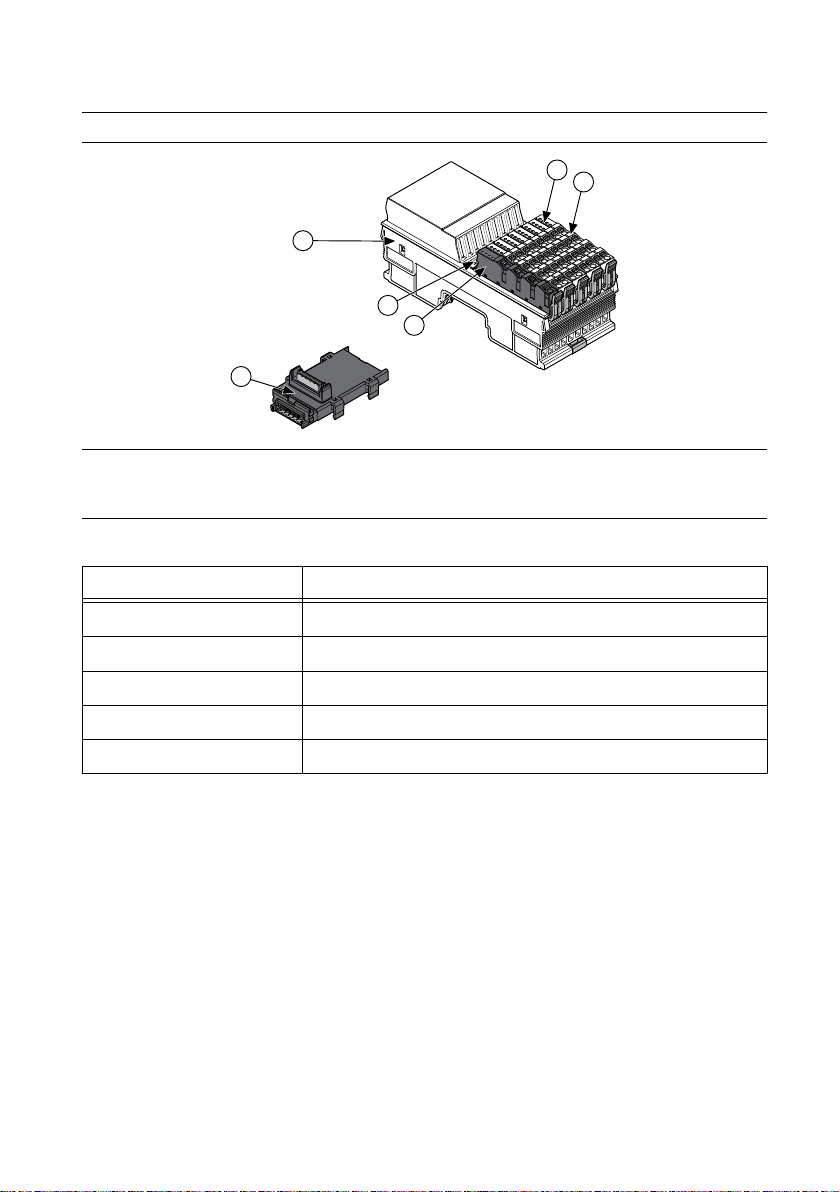

Figure 2. Structure of the REM-11178

1. Bus connector

2. REM-11178

3. Module function label

4. Supply voltage connector

5. Spring-terminal block

6. LED indicators

Table 1. Module Function Labels

Label Color Module Function

Blue Digital input

Red Digital output

Green Analog input, thermocouple

Yellow Analog output

White Bus coupler, power module

Installing Bus Connectors

What to Use

• Bus connector

• DIN rail

What to Do

Complete the following steps to install bus connectors on the DIN rail.

4| ni.com | REM-11178 Getting Started Guide

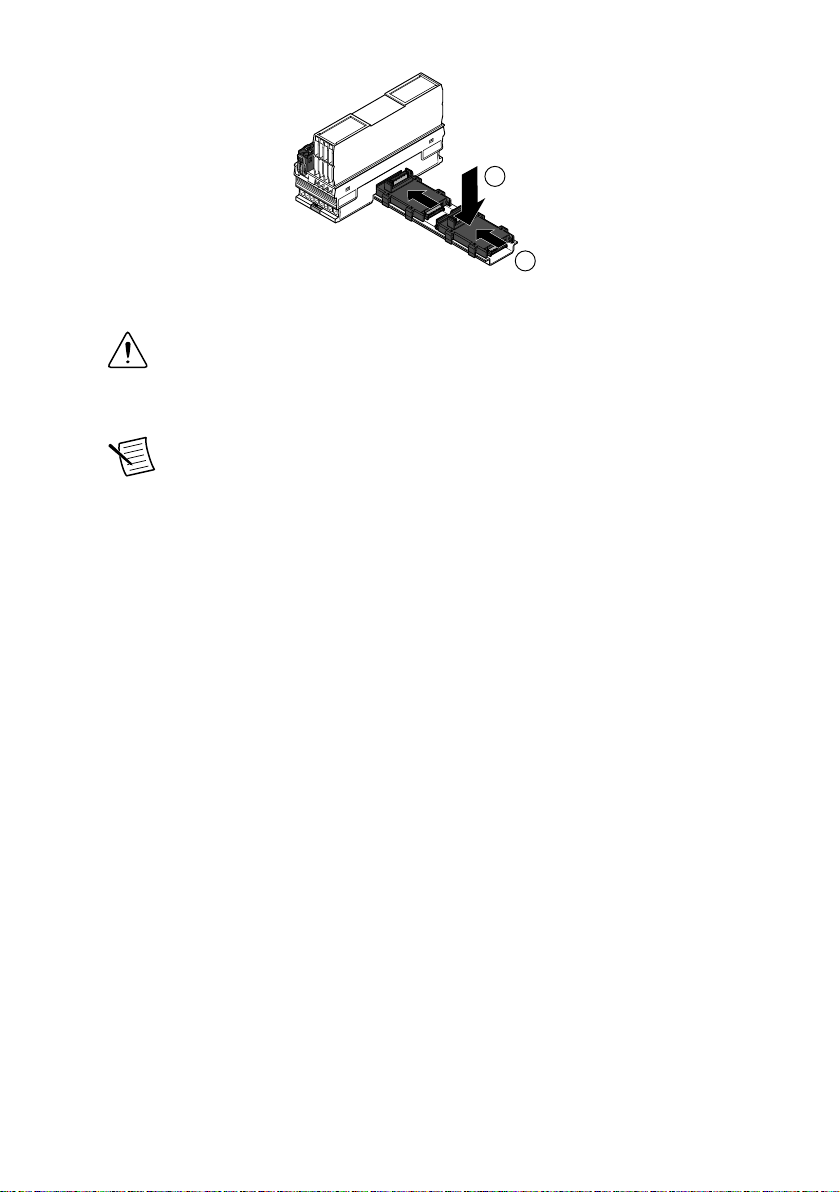

1. Insert the bus connector for the REM-11178 into the DIN rail.

Caution Verify that you are using the correct bus connector for the module

width.

2. Slide the bus connector along the DIN rail until it connects to the preceding bus

connector.

Note A bus connector will not attach to a preceding bus connector with a

mounted module. Remove the preceding module before installing additional

bus connectors.

3. Repeat Steps 2 and 3 for additional bus connectors.

Installing the Module

What to Use

• REM-11178

• Mounted bus connector

What to Do

Complete the following steps to install the REM-11178 on the DIN rail.

REM-11178 Getting Started Guide | © National Instruments | 5

1. Align the REM-11178 over the appropriate bus connector.

Note Verify that the bus connector socket aligns with the socket on the

underside of the module.

2. Press the REM-11178 directly onto the bus connector and DIN rail until it clicks into

place.

Caution Tilting the module when mounting it on the DIN rail will damage the

contacts.

Installing Spring-Terminal Blocks

What to Use

• REM-11178

• Spring-terminal block

What to Do

Align the spring-terminal block over the REM-11178 and press until it clicks into place.

6| ni.com | REM-11178 Getting Started Guide

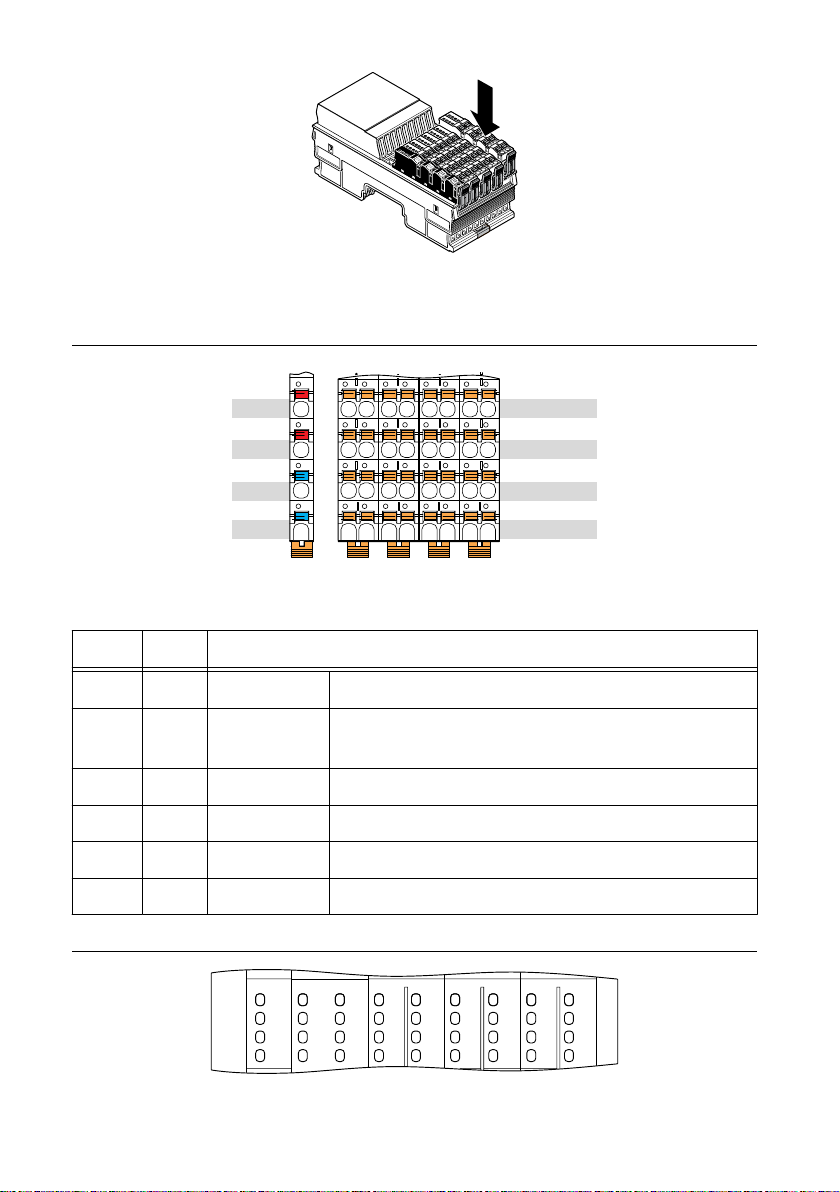

REM-11178 Pinout

DO0 to DO7

DO16 to DO23

DO24 to DO31

DO8 to DO15

24 VDC

GND

Table 2. REM-11178 Signal Descriptions

Signal Color Description

a1, a2 Red 24 VDC (UO) Supply to digital output modules (internally jumpered)

b1, b2 Blue GND Reference potential of the supply voltage (internally

jumpered)

00 to 07 Orange DO0 to DO7 Digital outputs 0 to 7

10 to 17 Orange DO8 to DO15 Digital outputs 8 to 15

20 to 27 Orange DO16 to DO23 Digital outputs 16 to 23

30 to 37 Orange DO24 to DO31 Digital outputs 24 to 31

Figure 3. REM-11178 LEDs

30 32 34 3631 33 35 37

20 22 24 2621 23 25 27

10 12 14 1611 13 15 17

00 02 04 0601 03 05 07

REM-11178 Getting Started Guide | © National Instruments | 7

Table 3. LED Indicators

LED LED Color LED Pattern Indication

Green

Solid The REM-11178 is ready for operation.

Flashing Data is invalid or unavailable.

Green/Yellow Flashing The REM-11178 cannot communicate with the

connected devices.

Yellow

Solid The REM-11178 did not detect a valid cycle after

power-on.

Flashing The REM-11178 is not part of the configuration.

Red

Solid The REM-11178 has lost connection to the Bus

Coupler.

Flashing The REM-11178 has lost connection to the preceding

adjacent module.

— Off The REM-11178 is in reset mode.

Green Solid Supply to digital output module present.

— Off No supply to digital output modules.

Red Solid Breakdown or overload/short-circuit of an output.

— Off No I/O error.

00...37

Red Solid Short-circuit/overload of the output.

Yellow Solid Output is set.

— Off Output is not set.

8| ni.com | REM-11178 Getting Started Guide

Connecting the REM-11178

24 VDC

DO (0:7)

DO (8:15)

DO (16:23)

DO (24:31)

Device

REM-11178

–

• Each channel supplies voltage to a single connection.

• DO terminals supply the digital output voltages.

• The output switches the load directly.

Caution To prevent device malfunction, make sure the output ground and the

ground for the power supply (UO), have the same voltage.

Note For information about fuse ratings for the REM-11178, refer to the device

datasheet on ni.com/manuals.

Connection Guidelines

• Make sure that devices you connect to the REM-11178 are compatible with the module

specifications.

• Push the wire into the terminal when using a solid wire or a stranded wire with a ferrule.

• Open the terminal by pressing a screwdriver into the spring lever when using a stranded

wire without a ferrule.

REM-11178 Getting Started Guide | © National Instruments | 9

Removing Components

Removing Spring Terminal Blocks

Complete the following steps to remove a spring-terminal block from the REM-11178.

1. Press the locking latch to release the spring-terminal block.

2. Tilt the block toward the center of the module.

3. Remove the connector from the module.

Removing the REM-11178

Remove all connections before removing the REM-11178, either by disconnecting the cables

or removing the spring-terminal block.

What to Use

• Flathead Screwdriver

What to Do

Complete the following steps to remove the REM-11178 from the DIN rail.

1. Insert the screwdriver and loosen the base latches on either end of the module.

2. Remove REM-11178 perpendicular to the DIN rail.

10 | ni.com | REM-11178 Getting Started Guide
