NetComm NetComm Gateway Series Manuale utente

NETCOMM GATEWAYTM SERIES

ADSL2+ Wireless N150

Modem Router

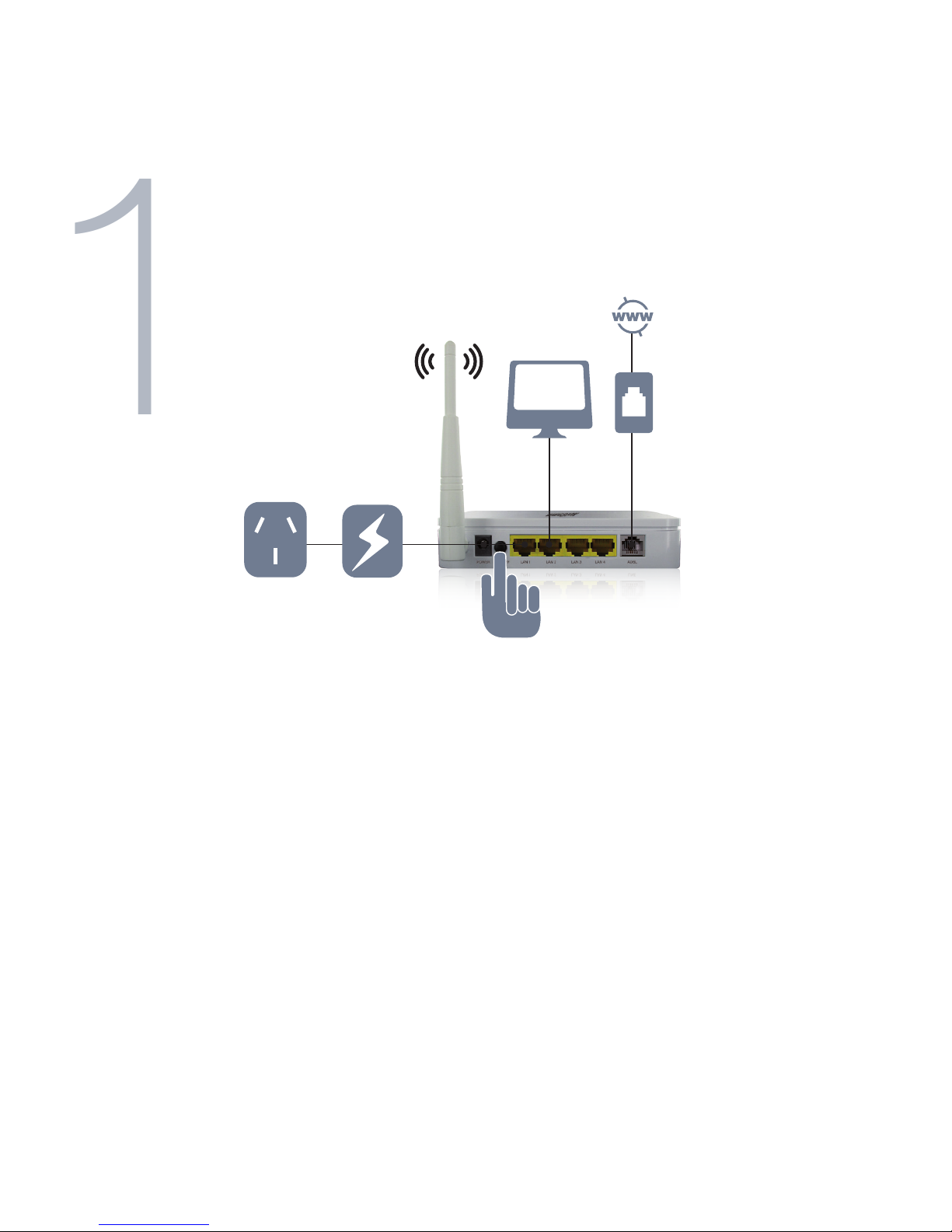

Connecting Your Device

• Connect the supplied RJ-11 cable to the ADSL port on the back of your router,

and then to the phone port that supplies your ADSL.

• Connect the supplied RJ-45 Ethernet cable to one of the LAN ports on the

back of your router and to the LAN port on your computer

• Connect the supplied power adapter to your router and press the on/off button

to power the router on.

Computer

Phone port

Power

Point

Power

Adapter

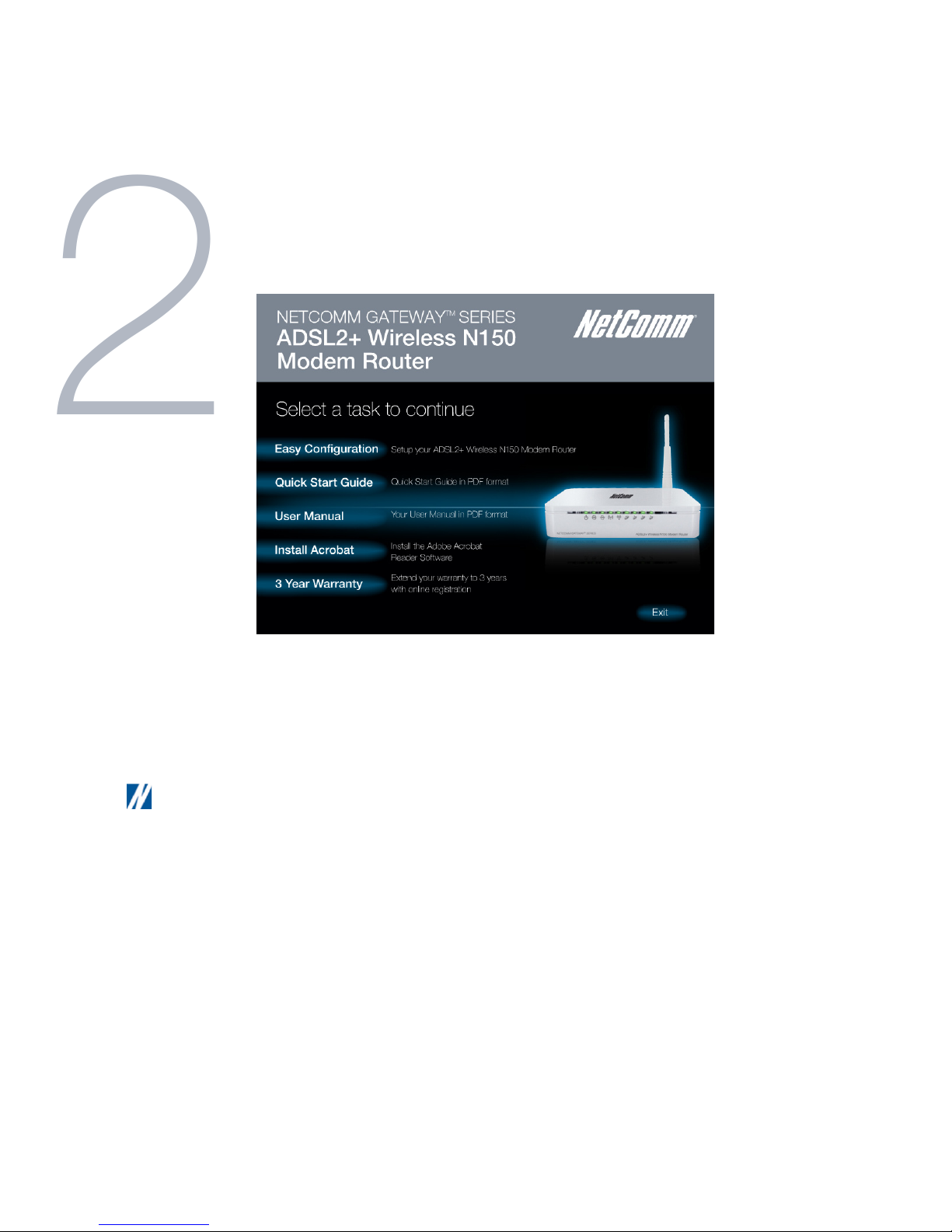

Easy Conguration

• Insert the provided CD into your PC

• The CD will autorun. Click on Easy Conguration

• If it does not autorun navigate to your CD/DVD drive and double click on the CD

icon . Alternatively you can also use the web user Interface as described in

Step 3.

Easy Conguration

• Follow the steps to enter the information from your ISP and setup your wireless

network

• Upon completion you will be shown a screen conrming that setup was

successful

Note: Use the web interface as an alternate Quick Start option and for all advanced congurations

• Open a web browser (Internet Explorer, Firefox, Safari) and type

192.168.1.1 into the address bar.

• At the login screen type admin into both the username and password elds.

Then click submit. This will take you into your web conguration page

Quick Setup

• From the top menu, click on Quick Start

• On the screen that appears select Run Wizard and follow the steps to setup

your ADSL connection

• Upon completion of the Quick Start Wizard, you will be able to access the

Internet and share your connection

Establishing Wireless Connection

You can connect multiple wireless devices, including laptops, desktops and PDA’s

to your NB14WN by following these two basic steps.

• Using your wireless device, scan the wireless networks in your area and select

the network that you named in the Quick Start Wizard.

The default is NetComm Wireless. Then click connect.

• Enter the wireless password that you also specied in the Quick Start Wizard.

Wireless N

150Mbps

PDA

Gaming

Console

Computer

Laptop

Switch

Power

Point

Power

Adapter

The default security key is a1b2c3d4e5

Troubleshooting

Cannot establish a wireless connection

• Make sure the wireless switch on your laptop is in the on position

• Ensure your device and wireless adapter are using the same wireless

security settings

Cannot connect to the Internet through the NB14WN

• Make sure that you have entered all of the correct details as supplied by

your ISP in the quick setup section when connecting to the Internet

• Double check all connections have been made into the correct ports

• To check the status of your connection, login to the web user interface as

previously mentioned.

NETCOMM VELOCITYTM SERIES

Accessory for your product

Wireless N150 USB Adapter (NP910n)

Featuring Wireless N150, the NP910n is perfect for users wishing to extend their network with the

convenience of a compact USB Adapter

* Maximum wireless signal rate and coverage values are derived from IEEE Standard 802.11g and 802.11n Draft 2.0 specications. Actual wireless

speed and coverage are dependent on network and environmental conditions included but not limited to volume of network trafc, building

materials and construction/layout.

NP910n
