NetComm NTC-5000 CallDirect Series

HSPA Cellular Routers

Quick Start Guide

2 NTC-5000 Series Quick Start Guide

YML-NTC5000 280610

Quick Start Guide

Thank you for choosing an industrial HSPA Cellular Router of NetComm’s

NTC-5000 CallDirect Series.

This guide covers the models NTC-5908 and NTC-5909

(collectively referred to in this document as the NTC-5000 series). This guide

will provide a series of step by step

instructions to ensure the conguration of your Cellular Router goes as

smoothly as possible.

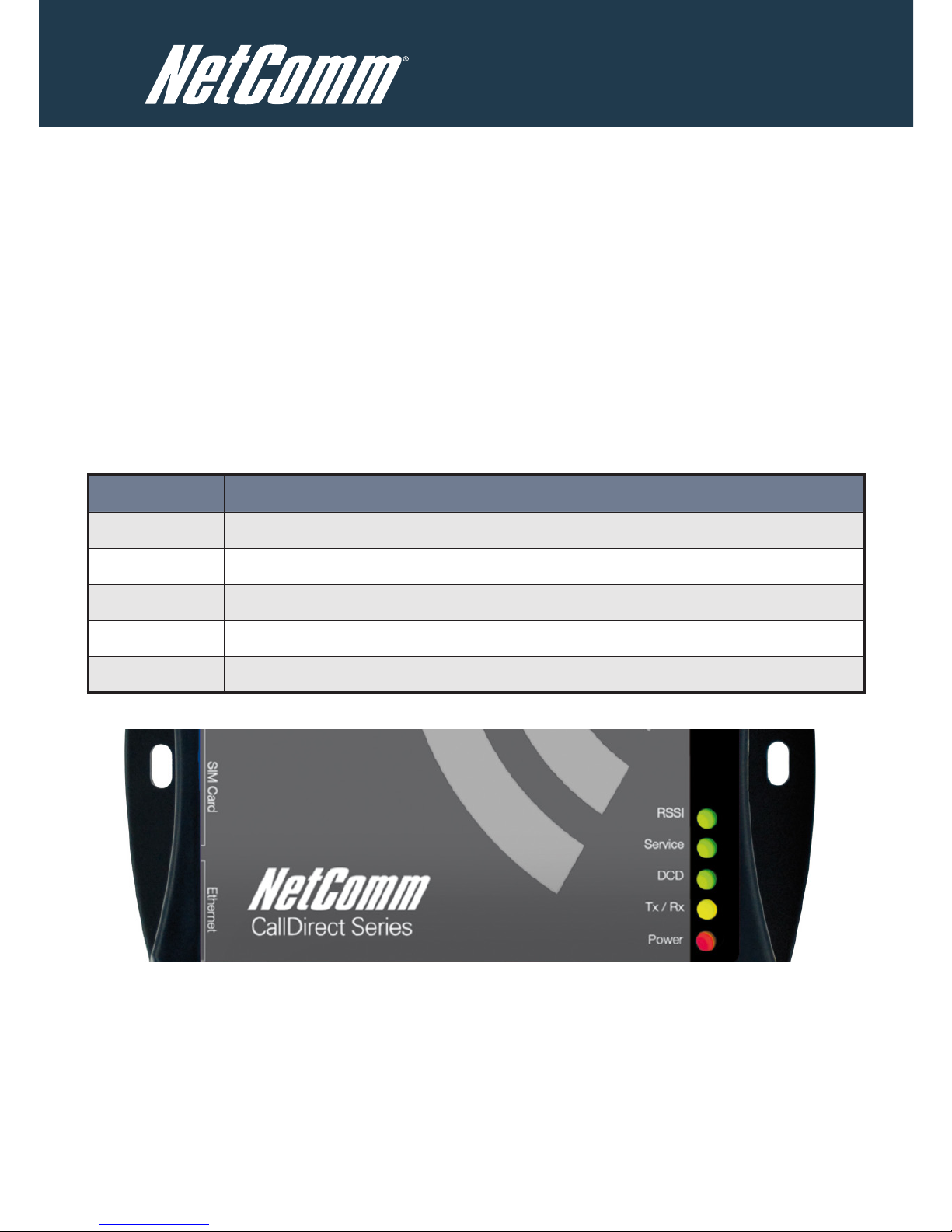

Firstly please check that you have received all the items in your package.

No. Description

1NTC-5000 Series HSPA Cellular Router

1Crossover Ethernet Cable

1Power Supply Unit

1Antennas

1Quick Start Guide

Overview of LEDs

NTC-5000 Series Quick Start Guide 3

YML-NTC5000 280610

NetComm CallDirect Series - NTC-5000 Series

Overview of Indicator Lights

LED Display Description

POWER (red) Solid ON The red Power LED indicates correct power is

applied to the DC power input jack.

Tx /Rx (amber) Solid ON The amber LED will light upon data being sent to or

received from the cellular network.

DCD (green) Solid ON The amber Carrier Detect LED illuminates to indicate

a Data connection.

Service Type (green) The green LED will illuminate when cellular network coverage is

detected.

Solid ON 3G: indicates UMTS/HSPA available coverage

Blinking EDGE: indicates EDGE available coverage

Off 2G: indicates GSM/GPRS available coverage only.

RSSI (green) This green LED indicates the Received Signal Strength. There are

three possible states that the RSSI LED can operate in, based upon

signal level.

Solid ON STRONG - Indicates the RSSI level is -86dBm, or

greater

Flashing

once per

second

MEDIUM - Indicates the RSSI level is -101dBm and

–86dBm, (medium)

Off POOR - Indicates the RSSI level is less than

-101dBm (poor)

4 NTC-5000 Series Quick Start Guide

YML-NTC5000 280610

Overview of the Cellular Router Interfaces

5 Indicator LEDs

Indicate visually the activities

and connection state for

power, service type, data

traffic, data carrier

Ethernet Port

Connect to a terminal

using RJ45 cable or a

number of terminals

through a hub or

network router

Reset Button

Resetting the router to

factory default values

SIM Card Reader

For insertion and

removal of SIM Card

2-Way Captive Power Terminal Block

Power terminal block and the wide voltage

range of 8-28V DC simplify the installation

in different industrial environments

Main Antenna Socket

SMA Female

+ -

NTC-5000 Series Quick Start Guide 5

YML-NTC5000 280610

NetComm CallDirect Series - NTC-5000 Series

Overview of the Cellular Router Interfaces

5 Indicator LEDs

Indicate visually the activities

and connection state for

power, service type, data

traffic, data carrier

Ethernet Port

Connect to a terminal

using RJ45 cable or a

number of terminals

through a hub or

network router

Reset Button

Resetting the router to

factory default values

SIM Card Reader

For insertion and

removal of SIM Card

2-Way Captive Power Terminal Block

Power terminal block and the wide voltage

range of 8-28V DC simplify the installation

in different industrial environments

Main Antenna Socket

SMA Female

+ -

6 NTC-5000 Series Quick Start Guide

YML-NTC5000 280610

Overview of Cellular Router Interfaces

Field Description

Antenna socket SMA Female

5 Indicator LEDs Indicate visually the activities and connection state for power,

service type, data trafc, data carrier connection and network

signal strength.

2-Way Captive Power

Terminal Block

Power terminal block and the wide voltage range of 8-28V DC

to simplify the installation in different industrial environments

Reset Button Resetting the router to factory default values

Ethernet Port For direct connection to your device or number of devices

through a hub or network router.

SIM Card Reader For insertion and removal of SIM Card

Conguring Your Router

You will need the following hardware components to set up the router:

Power Supply (8-28VDC)

Ethernet cable

Laptop or PC

Active SIM card

Before you power up the Cellular Router, please insert an active SIM card.

NTC-5000 Series Quick Start Guide 7

YML-NTC5000 280610

NetComm CallDirect Series - NTC-5000 Series

Step One: Inserting the SIM Card

Press the SIM Eject button to eject the SIM card tray. Place the SIM card in

the tray with the gold side facing up. Insert both into the bay with the gold

side facing down and in the direction as shown below.

Insert

SIM card

Press the SIM

Eject button

Step Two: Setting up the Cellular Router

Install the supplied antennas to the Cellular Router by screwing them onto

the antenna connectors. Connect the power adapter to the mains and plug

the output into the power jack of the router.

The red Power LED on the panel should illuminate.

8 NTC-5000 Series Quick Start Guide

YML-NTC5000 280610

Step Three: Preparing your Computer

Connect one end of the supplied Ethernet cable to the Ethernet port of your

router and connect the other end to the Ethernet port of your PC. The router

is congured using a web browser. In order for your PC to connect to the

router, congure your PC to obtain an IP address automatically from the

router using DHCP. Windows users may use the following procedure.

Conguring your Network Adapter in Windows

Follow the path Start -> Control Panel -> Network Connections. Right

click Local Area Connection and select Properties to open the

conguration dialogue box of Local Area Connection as below:

NTC-5000 Series Quick Start Guide 9

YML-NTC5000 280610

NetComm CallDirect Series - NTC-5000 Series

Find and click Internet Protocol (TCP/IP) from the protocol list box and

then click the Properties button The TCP/IP. Conguration window will pop

up as illustrated below.

Under General tab, select radio button Obtain an IP address automatically

and Obtain DNS server address automatically.

Then click OK button to close TCP/IP conguration window.

Click the Close button to complete the computer preparation.

10 NTC-5000 Series Quick Start Guide

YML-NTC5000 280610

Step Four: Accessing your Router’s Conguration Pages

There are two system management accounts for maintaining the system,

root and admin.

Each has slightly different levels of management capabilities.

The admin account allows a lower level of privileges suitable for managing

more common router settings excluding rmware upgrades, device

conguration backup, restore and reset to factory defaults.

The root manager account has full privileges to change all settings of the router.

To login to the Cellular Router in root manager mode, please use the

following login details:

http://192.168.1.1

Username: root

Password: admin

To login to the Cellular Router in admin manager mode, please use the

following login details:

http://192.168.1.1

Username: admin

Password: admin
