New-Flow OF100 Istruzioni operative
Trouble Shooting for OF100

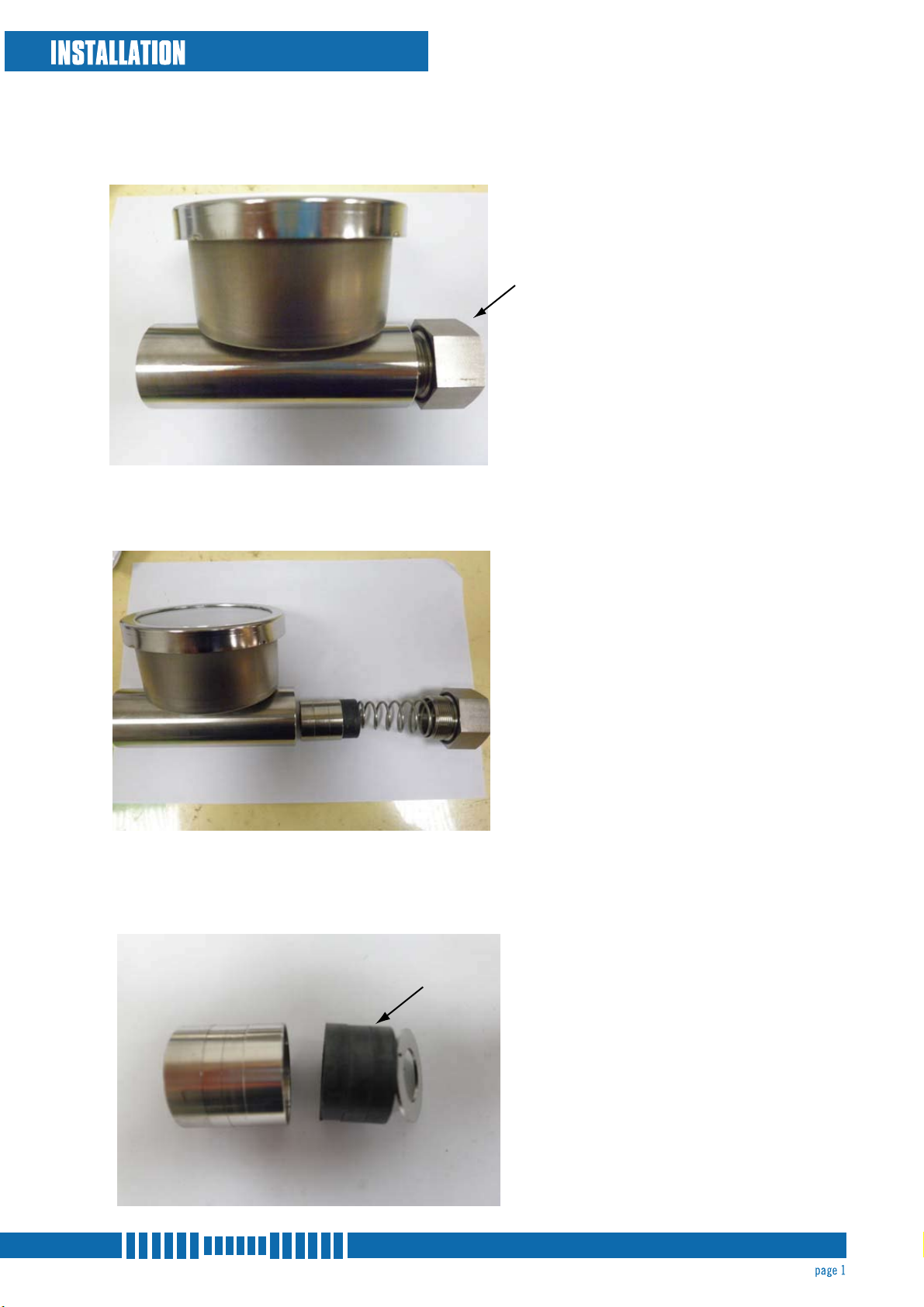

To dismantle the Hexagonal
head Counterclockwisely.
Trouble shooting for OF100:
Step 1:
Extract the four parts content of
OF100: 1. Float
3. Spring
4. Hexagonal head
To assembly the four parts
after clearing.
Step 2:
123
Magnet Parts There is magnet parts
in the float.
*The magnet can not be turnned
Step 3:
New-Flow Paddle Wheel Liquid Flow Meter Instruction Manual
4
2. Magnet
and not be separated.
New-Flow Flow Switch Instruction Manual
2
The picture of float
installation.
Step 4:
The order of assembly
installtion:
1. Float
3. Spring
4. Hexagonal head
and tight Hexagnal head
Step 5:
123
Adjustment the indicator
of zero. (Please adjustinpg
while the indicating pointer did
not indicate on zero at scale).
Step 6:
4
2. Magnet
New-Flow Flow Switch Instruction Manual
3
The model OF100 completed
picture.
Step 7:
Note.: IF indicator shows the scale over 100% flow after installing.
It means that is a wrong way. Please dismantle all parts and
overturn the magnet in 180˚. Then assembling as step 5 again.
