Norac UC7 Manuale utente
Rogator–ActiveWingRoll(2018+)
(900,1100,1300)
UC7BoomHeightControlSystem
InstallationManual
Copyright2019byNORACSystemsInternationalInc.
ReorderP/N:UC7‐BC‐RG12A‐INSTRevE(Rogator–ActiveWingRoll(2018+)(900,1100,1300))
NOTICE:NORACSystemsInternationalInc.reservestherighttoimproveproductsandtheirspecificationswithoutnoticeandwithouttherequirementtoupdate
productssoldpreviously.Everyefforthasbeenmadetoensuretheaccuracyoftheinformationcontainedinthismanual.Thetechnicalinformationinthismanual
wasreviewedatthetimeofapprovalforpublication.
WWW.NORAC.CA
PRECISIONDEFINED
Contents
1
Introduction..........................................................................................................................1
2
TechnicalSpecifications........................................................................................................2
3
PartsOverview......................................................................................................................3
4
Pre‐InstallationChecklist.......................................................................................................9
5
HydraulicInstallation...........................................................................................................10
6
UltrasonicSensorInstallation..............................................................................................18
7
ElectronicInstallation..........................................................................................................22
8
WingRollCylinderAirBleedProcedure..............................................................................27
9
SoftwareSetup....................................................................................................................28
10
CableSchematics.................................................................................................................29
WWW.NORAC.CA
PRECISIONDEFINED
Page1
Visitwww.solutions.norac.caformoresystem
installationandtroubleshootinginfo.
1 Introduction
CongratulationsonyourpurchaseoftheNORACBoomHeightControlSystem.Thissystemismanufactured
withtopqualitycomponentsandisengineeredusingthelatesttechnology to provide operating reliability
unmatchedforyearstocome.
Whenproperlyusedthesystemcanprovideprotectionfromsprayerboomdamage,improvesprayerefficiency,
andensurechemicalsareappliedcorrectly.
Please take the time to read this manual completely before attempting to install the system. A thorough
understandingofthismanualwillensurethatyoureceivethemaximumbenefitfromthesystem.
Your input can help make us better! If you find issues or have suggestions regarding the parts list or the
installationprocedure,pleasedon’thesitatetocontactus.
Everyefforthasbeenmadetoensuretheaccuracyoftheinformationcontainedinthismanual.Allparts
suppliedareselectedtospeciallyfitthesprayertofacilitateacompleteinstallation.However,NORACcannot
guaranteeallpartsfitasintendedduetothevariationsofthesprayerbythemanufacturer.
Pleasereadthismanualinitsentiretybeforeattemptinginstallation.
WWW.NORAC.CA
PRECISIONDEFINED
Page2
Visitwww.solutions.norac.caformoresystem
installationandtroubleshootinginfo.
2 TechnicalSpecifications
CANICES‐3(A)/NMB‐3(A)
ThisClassAdigitalapparatuscomplieswithCanadianICES‐003.
PursuanttoEMCDirective–Article9,thisproductisnotintendedforresidentialuse.
Table1:SystemSpecifications
SupplyVoltage(rated) 12VDC
SupplyCurrent(rated) 10A
HydraulicPressure(maximum) 3300psi
BaudRate 250kbps
OperatingTemperatureRange 0°Cto80°C
WWW.NORAC.CA
PRECISIONDEFINED
Page3
Visitwww.solutions.norac.caformoresystem
installationandtroubleshootinginfo.
3 PartsOverview

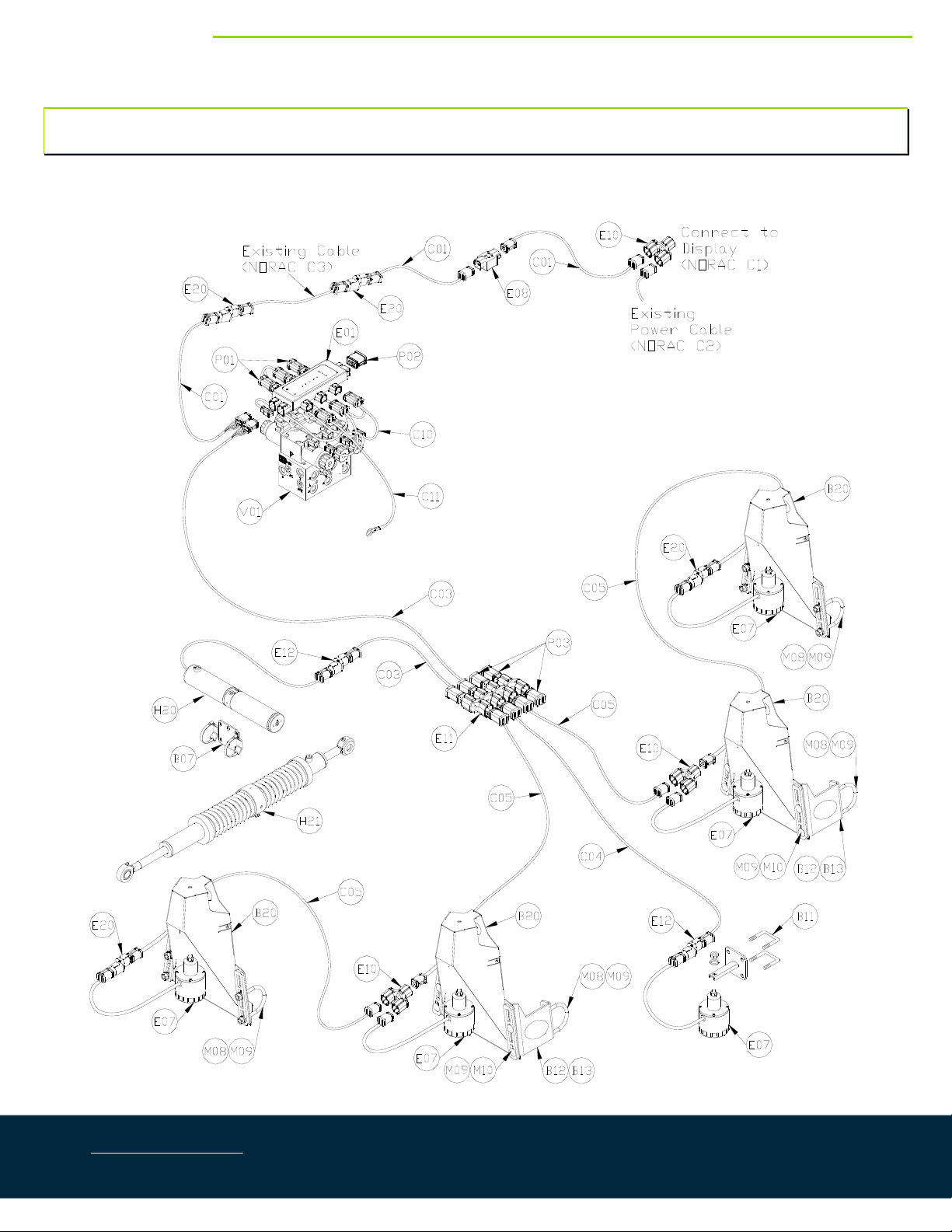

3.1. ElectronicInstallationOverview
Figure1:ElectronicInstallationOverview
WWW.NORAC.CA
PRECISIONDEFINED
Page4
Visitwww.solutions.norac.caformoresystem
installationandtroubleshootinginfo.
3.2. HydraulicPlumbingSchematic
Figure2:HydraulicPlumbingSchematic
WWW.NORAC.CA
PRECISIONDEFINED
Page5
Visitwww.solutions.norac.caformoresystem
installationandtroubleshootinginfo.
3.3. ListofParts
Item PartNumber Name Quantity
B05 44706‐01 KITCABLETIEBLACK10PCS21IN150PCS7.5IN 2
B07 44749 BRACKETWRC80MMV1 1
B11 44695‐4 MOUNTINGBRACKETUC3SENSOR6INLG 1
B12 411275 BRKT,MTGSENSORLPEXTRIGHT 2
B13 411276 BRKT,MTGSENSORLPEXTLEFT 2
B15 50920 MOUNTINGBRACKET90DEGMANIFOLD509 1
B20 44971‐01 SENSORMOUNTINGBRACKETLOWPROFILE16GA‐NOMOUNTINGHARDWARE 4
C01 43220‐0.5 CABLENETWORK14AWG0.5M 3
C03 43220‐05 CABLENETWORK14AWG5M 2
C04 43220‐01 CABLENETWORK14AWG1M 1
C05 43210‐15 CABLENETWORK18AWG15M 4
C10 50130‐01 CABLEVALVE4‐PINDTTO2‐PINDT 3
C11 50120‐01 CABLETEMPERATUREPROBE 1
E01 50000 HCM1MODULE 1
E07 50300 MAXSENSOR 5
E08 50200 CANBUSREPEATER 1
E10 43760 NETWORKCOUPLER3‐WAY 3
E11 43765 NETWORKCOUPLER8‐WAY 1
E12 43764 NETWORKCOUPLER2‐WAY 2
E20 43764T NETWORKCOUPLER2‐WAYWITHTERMINATOR 4
H01 44863‐47 HOSEASSEMBLY122R2‐06175INL6FORX6FORX 1
H02 44863‐25 HOSEASSEMBLY122R2‐06136INL6FORX6FORX 1
H03 44863‐48 HOSEASSEMBLY122R2‐0640INL6FORX906FORX 3
H04 44863‐46 HOSEASSEMBLY122R2‐0640INL6FORX908FORX 1
H06 44863‐31 HOSEASSEMBLY122R2‐06106INL6FORX6FORX 4
H10 44865‐54 HYDRAULICSFITTINGKIT‐RG6 1
H11 44865‐75 HYDRAULICSFITTINGKIT‐AWR1 1
H12 44868 ACCUMULATOR10CUINCH,0.161L,900PSI 2
H13 44862‐18 HOSEASSEMBLY122R2‐0418INL6FORX6FORX 2
H14 44917 COUPLINGHYD6MB‐6MORMACHINEDORB 2
H20 44981 WINGROLLCYLINDER80MMW/POSITIONSENSOR 1
H21 44792‐111 ROLLPOSITIONDAMPER40.86IARG 1
H22 44750‐10 HARDWAREMOUNTINGLINEARROLL‐ROGATORLTUPPER 1
H23 44750‐11 HARDWAREMOUNTINGLINEARROLL‐ROGATORLTLOWER 1
M02 UC7‐BC‐RG12A‐INST MANUALINSTALLATIONUC7ROGATOR‐ACTIVEWINGROLL120'(2012+) 1
M04 100594 BOLTHEXNCGR5PLTD1/2X1 2
M05 106706 MOUNTINGCLIPHCM1 2
M06 100868 NUTLOCKNYLONNCPLTD1/2IN 2
M07 106849 BUMPERRUBBER 2
WWW.NORAC.CA
PRECISIONDEFINED
Page6
Visitwww.solutions.norac.caformoresystem
installationandtroubleshootinginfo.
Item PartNumber Name Quantity
M08 106904
BOLT U 304SS .31-18 THD X 1.88 X 2.63
8
M09 106906 NUTLOCKNYLONSS3/8IN 24
M10 106905 BOLTCARRIAGESS3/8X1‐1/4 8
P01 106705 NETWORK4PINCAVITYPLUG 2
P02 106602 NETWORK12PINPLUG(A‐KEY)DT 1
P03 105882 NETWORK6PINPLUG 3
V01 50903 VALVEASSEM3STATIONCCPROPDT 1
3.3.1. MountingBracketsfor120’Boom
Iftheboomisanearly2012120’productionmodel,thelineardampermountingbracketsmaynothavebeen
installedatthefactory.Thefollowingmountingbracketsareneeded:
PartNumber Name Quantity
44750‐1 BRACKETMOUNTINGLINEARROLLROGATORLT‐UPPER 1
44750‐2 BRACKETMOUNTINGLINEARROLLROGATORLT‐LOWER 1
3.3.2. ToolsRequired
Thislistisintendedtobeaguidelineforwhatisrequiredforinstallation.Additionaltoolsmayberequiredor
mayworkbetter.
SAEWrenches(sizes7/16"to1")
Side‐CuttingPliers(forcableties)
PowerDrill
5/8"DrillBit
TapeMeasure
CenterPunchandSmallHammer(Optional)
WWW.NORAC.CA
PRECISIONDEFINED
Page7
Visitwww.solutions.norac.caformoresystem
installationandtroubleshootinginfo.
3.3.3. HydraulicFittingKitDetails(P/N:44865‐54)
Item PartNumber Name Quantity Picture
F02 104586 TEEADAPTER‐6FORXR6MORT 3
F03 104885 TEEADAPTER‐8FORXR8MORT 2
F05 105327 MALETOFEMALEADAPTER‐12FORX6MOR 4
F06 106136 PLUG‐12MORP 2
F07 44917 MALEADAPTER‐6MB6MOR 4
F08 104369 PLUG‐6MBP 2
F09 44928 ORIFICEINSERT.047INONEWAY 2
F11 106137 MALEADAPTER‐10MB8MOR 1
F12 105338 TEEADAPTER‐12FORXR12MORT 1
F13 105732 MALETOFEMALEADAPTER‐8MOR12FORX 1
F14 104884 MALETOFEMALEADAPTER‐6MOR8FORX 1
Notallfittingsareusedforthisinstallation.
6 M B - 6 M OR X 90
SIZE IN
1/16TH'S
GENDER: MALE
OR FEMALE
90° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
