Norcold 962 Manuale utente

PARTS LIST

962

962IM

963

963IM

982

982F

982IM

982FIM

983

983IM

PART NO.619701

NORCOLD 03/25/2008

900 SERIES

900 SERIES PARTS LIST - PAGE 2

DOOR - UPPER (FREEZER) - 900 SERIES

NO. PART # DESCRIPTION 96 96IM 98 98IM

1618128 PANELRETAINER-UPPERDOOR XXXX

2618511 HINGE-DOORSIDE/TOPRH/BTMLH/BLACK XXXX

3618144 HINGEBUSHING-DOORHINGE/BLACK XXXX

4618205 DOORLINERASSY-UPPER/GRAYDOORGASKET XXXX

620076 DOORLINERASSY-UPPER/WHITEDOORGASKET(USE619627) XXXX

5618160 CAP-HINGEPLUG/BLACK XXXX

6619569 BOLT-CAPSHOULDER/TORXHEAD XXXX

7618235 DOORHANDLEASSY-UPPERDOOR/RHSWING/BLACK(USE619574) XXXX

8618119 STORAGELATCH-DOOR/BLACK(USE619648) XXXX

9618510 HINGE-DOORSIDE/TOPLH/BTMRH/BLACK XXXX

10619006 BIN-DOORSHELF/SMALL/CLEAR XXXX

11619008 DIVIDER-DOORBIN/CLEAR XXXX

900 SERIES PARTS LIST - PAGE 3

DOOR - LOWER (FRESH FOOD) - 900 SERIES

NO. PART # DESCRIPTION 96 96IM 98 98IM

1 618132 PANEL RETAINER-LOWER DOOR X X

618129 PANEL RETAINER-LOWERDOOR XX

2619569BOLT-CAPSHOULDER/TORXHEAD XXXX

3618511HINGE-DOORSIDE/TOPRH/BTMLH/BLACK XXXX

4618144HINGEBUSHING-DOORHINGE/BLACK XXXX

5 618210 DOOR LINER ASSY-LOWER/6 FT/GRAY DOOR GASKET X X

620077 DOORLINERASSY-LOWER/6 FT/WHITEDRGASKET (USE619629) X X

618270 DOOR LINER ASSY-LOWER/8 FT/GRAY DOOR GASKET (USE 630255) X X

620081 DOORLINERASSY-LOWER/8 FT/WHITEDR GASKET (USE619631) X X

6618230DOORHANDLEASSY-LOWERDOOR/RHSWING/BLACK(USE619573) XXXX

7618119STORAGELATCH-DOOR/BLACK(USE619648) XXXX

8618160CAP-HINGEPLUG/BLACK XXXX

9618510HINGE-DOORSIDE/TOPLH/BTMRH/BLACK XXXX

10619005BIN-DOORSHELF/LARGE/CLEAR XXXX

11619006BIN-DOORSHELF/SMALL/CLEAR XXXX

12619008DIVIDER-DOORBIN/CLEAR XXXX

900 SERIES PARTS LIST - PAGE 4

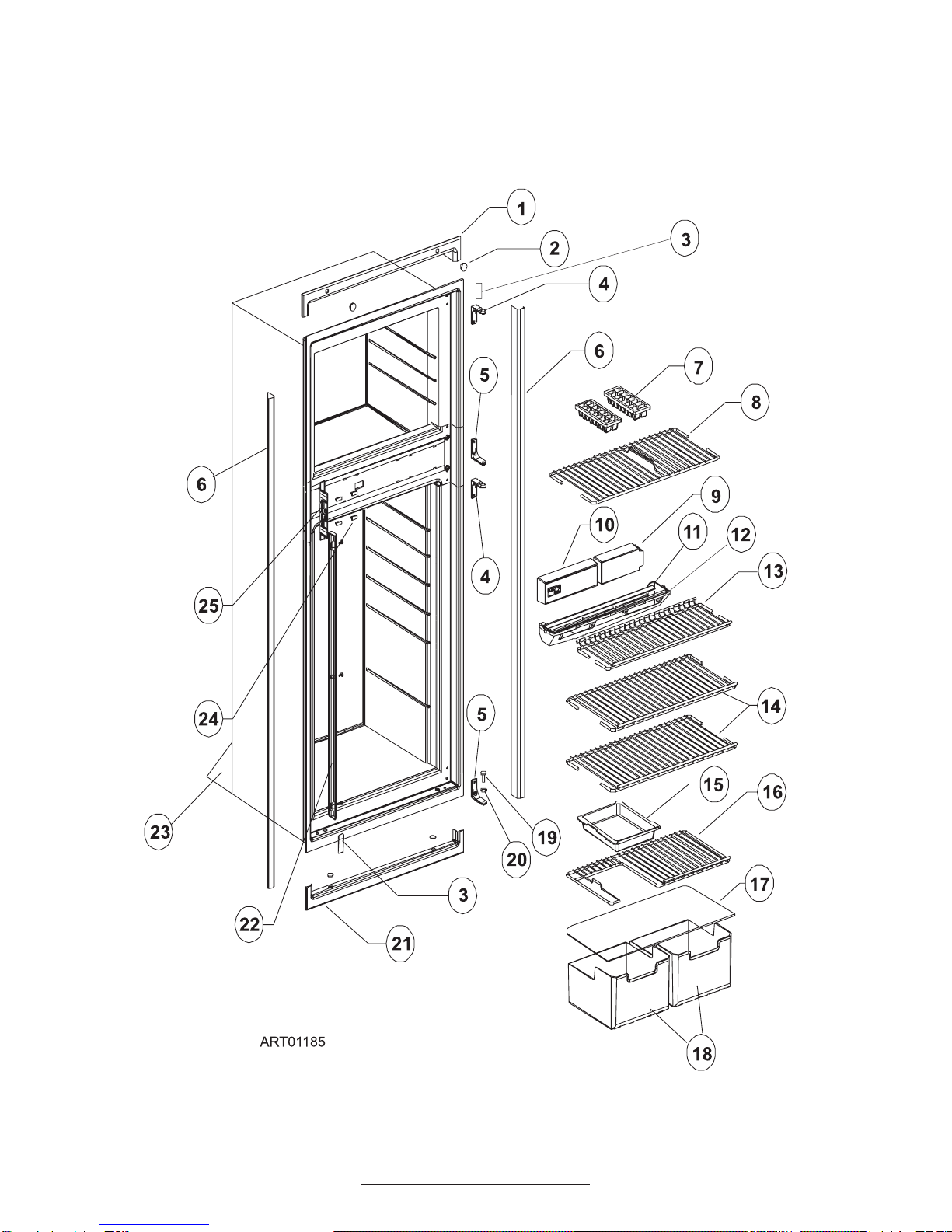

CABINET ASSEMBLY - FRONT VIEW - 900 SERIES

900 SERIES PARTS LIST - PAGE 5

CABINET ASSEMBLY - FRONT VIEW - 900 SERIES

NO. PART # DESCRIPTION 96 96IM 98 98IM

1618124TRIMPIECE-CABINET/TOP/WITHOUTBRASSINSERTS XXXX

619687 TRIM PIECEASSY-TOP/WITH INSERTS/BLACK (USE622319) XXXX

2618170HOLEPLUG-FORTOPTRIMPIECE/BLACK XXXX

3618171COVER-HINGEHOLE/WHITE/2POINT XXXX

619301COVER-HINGEHOLE/WHITE/3POINT XXXX

4618988HINGE-CABINETSIDE/FREEZER/SLOTTED/PAINTED XXXX

619336HINGE-CABINET/3POINT/TOPLH/BTMRH/BLACK XXXX

5618988HINGE-CABINETSIDE/FREEZER/SLOTTED/PAINTED XXXX

619335HINGE-CABINET/3POINT/TOPRH/BTMLH/BLACK XXXX

6 618133 TRIM PIECE-CABINET/SIDE/6' (USE622295) X X

618134 TRIM PIECE-CABINET/SIDE/8' (USE622296) X X

7 61630422 ICE CUBETRAY-PLASTIC X X

8618172SHELF-WIRE/FREEZER(USE620249) XXXX

9 618112 FRONT BOX XXXX

10 618245 CONTROL ASSY-OPTICAL/900 SERIES (USE625386 FOR EG2/ 625387 FOREG3) XXXX

11618176LOUVER-DRIPTRAY/WHITE(USE623250) XXXX

12618137DRIPTRAY-INSIDE(USE623250) XXXX

13618239SHELF-WIRE/SHORT(USE620269) XXXX

14618114SHELF-WIRE/FULL(USE620270) XXXX

15617756TRAY-SHELF/WHITE/CUTOUT XXXX

16618177SHELF-WIRE/CUTOUT(USE620268) XXXX

17618158CRISPERCOVER-GLASSSHELF XXXX

18619007BIN-ICE/CRISPER/CLEAR XXXX

19 618145 HINGEPIN-DOOR XXXX

20618144HINGEBUSHING-DOORHINGE/BLACK XXXX

21618136TRIMPIECE-CABINET/BOTTOM(USE622323) XXXX

22 618181 RETAINER-SHELF XXXX

2361586722BRACE-CABINET/BACK XXXX

24 618184 PLUG-FACADE/BLACK XXXX

619381HOLEPLUG-DIVIDER/BLACK XXXX

25618167STRIKEPLATE-BLACK XXXX

900 SERIES PARTS LIST - PAGE 6

CABINET ASSEMBLY - REAR VIEW - COOLING UNIT AREA - 900 SERIES

NO. PART # DESCRIPTION 96 96IM 98 98IM

1 632307 NSC SYSTEM PACK-COOLING UNIT (BACKERHEATER) X X

632314 NSC SYSTEM PACK-COOLING UNIT (BACKERHEATER) X X

NS618111BAFFLEDIFFUSER/WIREASSY-COOLINGUNIT(NOTSHOWN) XXXX

2 61505122 HOSECLAMP XXXX

3 618217 DRAINHOSE-26" (USE622390) X X

618242 DRAIN HOSE-32" (USE622391) XX

461710922DRIPCUP-REAR/METAL(USE622546) XXXX

561712637COVERASSY-BURNERBOX XXXX

6 61695322 BASE-BURNER BOX XXXX

7 621702 HEATER-AC/96 SERIES (COOLING UNIT SERIAL# 11231023 & BELOW) X X

HEATER-AC/98 SERIES (COOLING UNIT SERIAL# 11232007 & BELOW) X X

630811 HEATER-AC/BACKER/96 SERIES (COOLING UNIT SERIAL# 11231024 & ABOVE) X X

HEATER-AC/BACKER/98 SERIES (COOLING UNIT SERIAL# 11232008 & ABOVE) X X

8 626832 HEATER-DC/96 SERIES (COOLING UNIT SERIAL# 11231023 & BELOW) EG3 EG3

HEATER-DC/98 SERIES (COOLING UNIT SERIAL# 11232007 & BELOW) EG3 EG3

630812 HEATER-DC/BACKER/96 SERIES (COOLING UNIT SERIAL# 11231024 & ABOVE) EG3 EG3

HEATER-DC/BACKER/98 SERIES (COOLING UNIT SERIAL# 11232008 & ABOVE) EG3 EG3

961695022CAP-HEATDEFLECTOR XXXX

1061586722BRACE-CABINET/BACK XXXX

11 61686823 FINS XXXX

900 SERIES PARTS LIST - PAGE 7

CONTROLS - REAR VIEW - 900 SERIES

NO. PART # DESCRIPTION 96 96IM 98 98IM

1618186BASE-POWERBOARD XXXX

2 618198 POWER BOARD-EG2 (USE625386) EG2 EG2 EG2 EG2

618224 POWER BOARD-EG3 (USE625387) EG3 EG3 EG3 EG3

3618185COVER-POWERSUPPLY XXXX

4618287WIRE-WHITE/6"/GASVALVE(USE621448) XXXX

561694022BRACKET-MOUNTING/GASVALVE XXXX

661551822GASVALVE-ASCO(USE621444) XXXX

621444 KIT-GAS VALVE/BURNER TUBE ASSY XXXX

761546822CONNECTOR-MALE(NOTSHOWN) XXXX

861694622UNIONTUBE(NOTSHOWN) XXXX

961694922MANUALSHUTOFFVALVEASSY-KINCOBALON(USE621444) XXXX

1061445322PLUG-1/8"/FORPRESSURETAP XXXX

11 61594422 PRESSURETAP XXXX

12 618252 BURNER TUBE XXXX

13 618283 ORIFICE-JEWELED/.015" (USE621957) X X

618284 ORIFICE-JEWELED/.0155" (USE621957) X X

14 61705222 BURNER ASSY-5 SLOT (USE 621957) XXXX

15 61554422 CORD-AC POWER/BLACK X X

618406 CORD-AC POWER/IM IM IM

1661712637COVERASSY-BURNERBOX XXXX

17 61695322 BASE-BURNER BOX XXXX

1861692222ELECTRODE-SPARK/SENSE/SINGLEELECTRODE/0.25" XXXX

19 618516 DAUGHTER BOARD-EG3 (NOT SHOWN)(USE625387) EG3 EG3 EG3 EG3

NS 618606 WIRE-EG3/12 VOLT (NOT SHOWN) EG3 EG3 EG3 EG3

NS 618602 WIRE-EG3/GROUND (NOT SHOWN) EG3 EG3 EG3 EG3

NS 618605 WIRE-EG3/SENSE (NOT SHOWN) EG3 EG3 EG3 EG3

900 SERIES PARTS LIST - PAGE 8

INTERIOR LIGHT & THERMISTER ASSEMBLY - 900 SERIES

Continued on Page 13

NO. PART # DESCRIPTION 96 96IM 98 98IM

161629722LAMPBRACKETASSY XXXX

261628922LAMP-GE#214-2/DCLIGHTBULB XXXX

3618190COVER-LAMPBRACKET(USE621827) XXXX

461689122CLIP-THERMISTERMOUNTING/FIN XXXX

5618548LAMPTHERMISTERWIREASSY XXXX

900 SERIES PARTS LIST - PAGE 9

ICE MAKER PARTS - 900 SERIES

NO. PART # DESCRIPTION 96IM 98IM

1 61656822 COVER-FRONT/ICEMAKER IM IM

2 621266 ICE MAKER IM IM

3 61690822 CLAMP-TUBING/IM IM IM

4 617869 TUBE-WATER FEED/IM/68" (USE621429) IM IM

5 61346822 SNAP BUSHING IM IM

6 620038 FITTING-WATER TUBE/IM/4.63" (USE620659) IM IM

7 618407 WIRING HARNESS-IM IM IM

8 617831 BRACKET-MOUNTING/ICEMAKER/RELOCATED IM IM

9 619007 BIN-ICE/CRISPER/CLEAR IM IM

10 61656922 SHUT OFF ARM/IM IM IM

11 618172 SHELF-WIRE/FREEZER(USE620249) IM IM

12 61679622 GARDEN HOSEADAPTER-STRAIGHT/IM IM IM

13 61678722 NUT-COMPRESSION/WATER VALVEFITTING/IM (USE622991) IM IM

14 618253 WATER VALVE-BRACKET INCLUDED IM IM

15 618169 SPACER-WATER VALVE/NYLON IM IM

900 SERIES PARTS LIST - PAGE 10

FAN MODEL PARTS - 982F, 982FIM

PART # DESCRIPTION 982F 982FIM

618857 BRACKET-DC FAN FF

619016 BRACKET-FAN SUPPORT FF

61417922 CABLETIE-NYLON FF

618856 FAN-EXTERNAL DC FF

618093 THERMOSTAT-DC FAN/THERMO DISC FF

618950 WIREMOUNT-ADHESIVE FF

618700 WIRE-BLACK/24"/18 GA FF

619017 WIRE-BLACK/6"/18 GA FF

618701 WIRE-RED/36"/18 GA FF

618978 WIRE-RED/6"/18 GA/12V FAN FF

618699 WIRE-RED/60"/18 GA/WITH FUSEHOLDER FF
