Oki C5300n Manuale utente

Hard Disk Drive

Installation Instructions

HDD PART NUMBER

70043501

Every effort has been made to ensure that the

information in this document is complete,

accurate, and up-to-date. Oki Data assumes no

responsibility for the results of errors beyond its

control. Oki Data also cannot guarantee that

changes in software and equipment made by

other manufacturers and referred to in this guide

will not affect the applicability of the information

in it. Mention of software products manufactured

by other companies does not necessarily

constitute endorsement by Oki Data.

© 2003 by Oki Data Americas, Inc. All rights

reserved.

Written and produced by the Oki Data Training

& Publications Department. Please address any

comments on this publication:

by mail to:

Training & Publications Dept.

Oki Data Americas, Inc.

2000 Bishops Gate Blvd.

Mt. Laurel, NJ 08054-4620

or by email to: [email protected]

For the latest product information, printer

drivers, manuals, special offers, etc., go to

http://my.okidata.com.

1

Prepare the Printer

1. Turn off the printer and unplug the power

cord.

2. Detach the interface cable from the back of the

printer.

3. Open the top cover.

2

4. Loosen the thumbscrew holding the printer

side cover in place.

5. Open the front cover.

3

6. Remove the side panel from the printer.

4

Install the Hard Disk Drive

(HDD)

1. Locate the drive connector (1) on the control

board:

2. Remove the HDD from its shipping package.

5

3. Insert the HDD cable firmly into the

connector.

6

4. Mount the HDD: place the HDD in the slots

on the bracket, then push the handle against

the HDD to lock it in place.

7

Complete the Installation

1. Replace the side panel on the printer and

secure it in place with the thumbscrew.

2. Close the front cover and the top cover.

3. Reattach the interface cable, then plug the

power cord into the power outlet and turn on

the printer.

8

Check for Proper

Installation

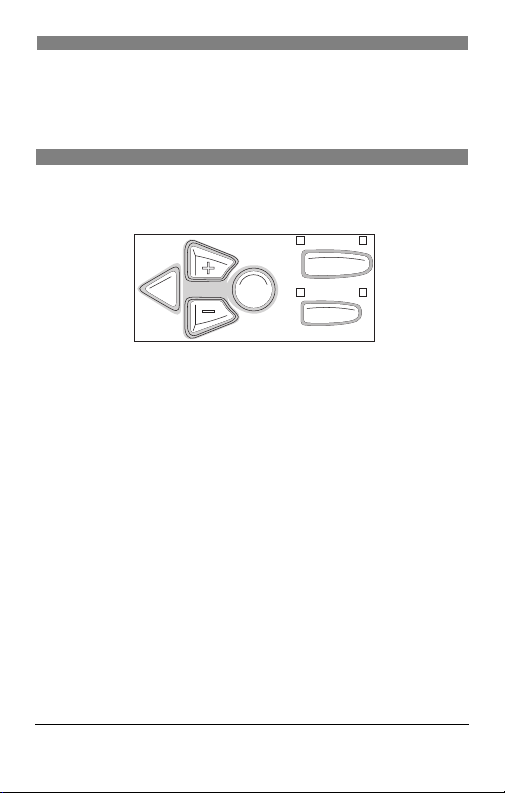

Generate a MenuMap printout:

1. Press +one or more times until

INFORMATION MENU appears on the display.

2. Press ENTER twice.

The MenuMap prints.

3. Check the top of the MenuMap printout to

verify that it shows “HDD installed.”

4. If “HDD uninstalled” still appears, remove the

printer’s side panel and make sure the

connection between the HDD and the printer

is secure, then replace the side panel and print

and check the MenuMap again.

BACK ENTER

OLN INE

CANCEL

MENU
