Read Me First!

Changing the Inverter Unit

for use with the 4-Tray Finisher

The inverter unit comes configured for the 5-tray

finisher option.

If you have the 4-tray version of the finisher

option, you must change the inverter unit before

installing the finisher:

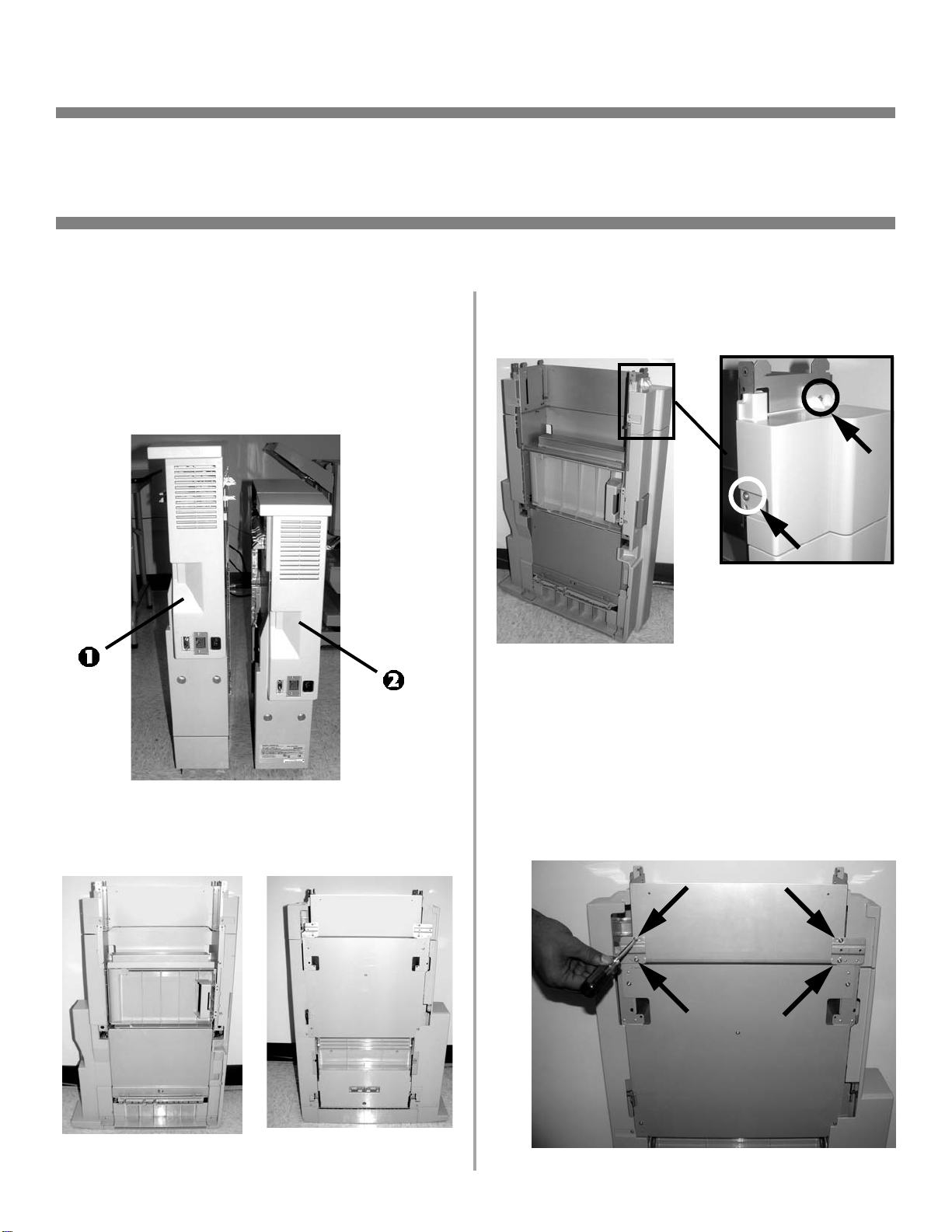

X

Inverter as supplied

Y

Inverter changed for use with 4-tray finisher.

Orientation:

Front Back

1. Remove the two bottom caps:

a.Turn the inverter over, then remove the

screws securing the bottom caps on either

side of the inverter.

b.Remove the end caps and store them

along with the four screws in case you

ever need to convert the unit back.

2. Turn the inverter around and remove the

screws holding the metal brackets in place.

Keep the screws and brackets handy: they

are used to help secure the extension plate

once it is repositioned.

3. Turn the inverter around and remove the two

screws holding the extension plate. Keep

them handy to reattach the plate once it is

repositioned.

4. Pull forward on the extension plate to

disengage the pins from the top channel

stops, then slide it down into the inverter

and push back to engage the pins on the

bottom channel stops.

5. Reattach the extension plate using the

screws you removed earlier.

6. Turn the inverter over and install the

brackets as illustrated below.

7. You are now ready to install the 4-tray

finisher. See the Finisher Unit Installation

Guide:

© 2005 Oki Data Americas, Inc. 58374301
