Omron M22 Manuale utente

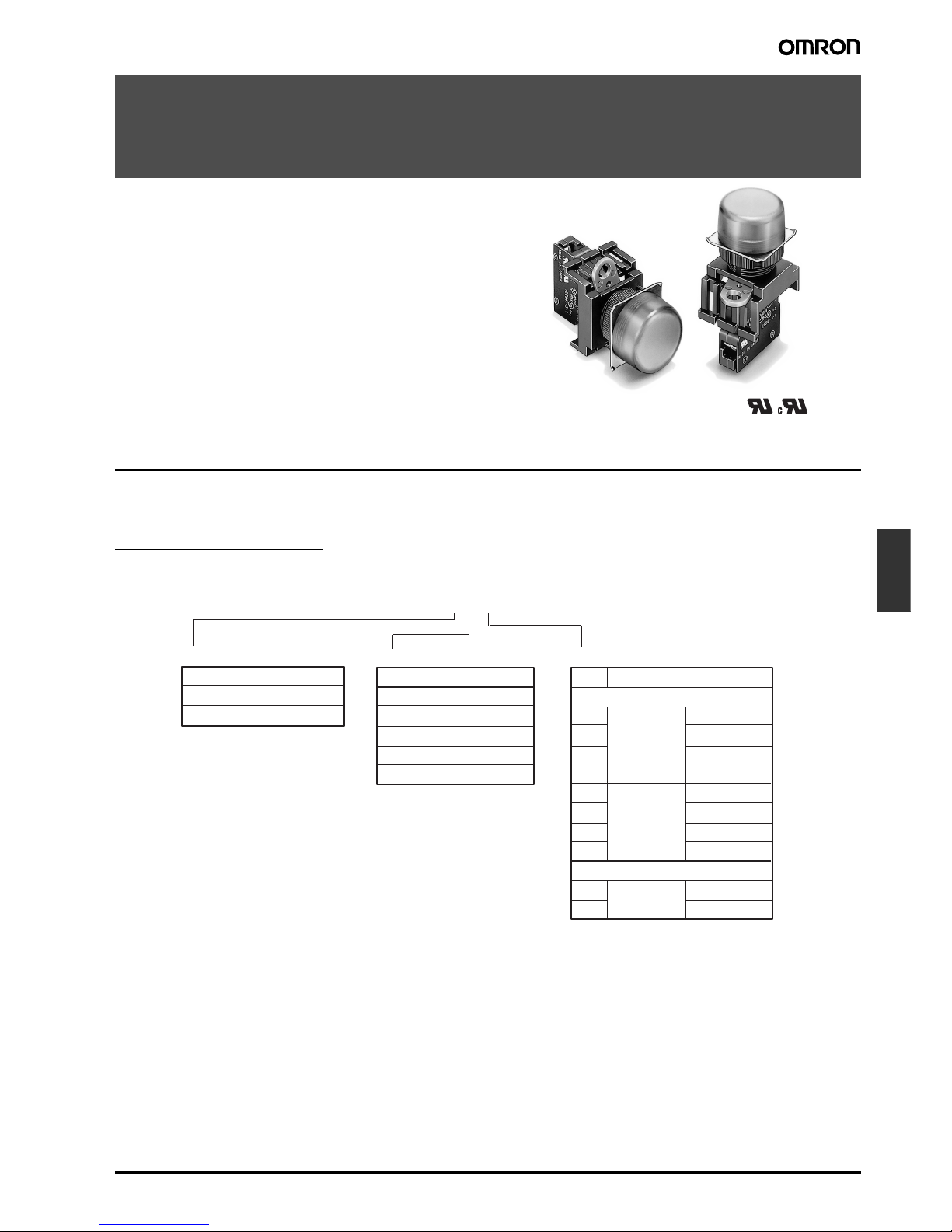

Indicator M22 G-137

Pushbutton

Switches

Indicator

M22

22-dia. and 25-dia. Round Indicator Series

• Easy mounting and removal of Socket Unit.

• Use 25-dia. ring to install in 25-dia. panel cutouts.

• Finger protection mechanism on Lamp provided as a standard

feature.

• UL and cUL approved (File No. E41515)

Model Number Structure

■Model Number Legend

Completely Assembled

Shipped as a set which includes the Display, Lamp, and Socket Unit.

1 2 3

6D 6 VDC

6A 6 VAC

12A 12 VAC/VDC

24A 24 VAC/VDC

5 5 VAC/VDC

12 12 VAC/VDC

24 24 VAC/VDC

H1 100 VAC/VDC

T1 110 VAC

T2 220 VAC

M22-@@-@

1 Flange Shape

Code Description

Round/Flat

Square/Projection

2 Illumination Color

Code Description

Red

Green

Yellow

White

Blue

3 Light Source

Code Operating voltage

LED

Without Voltage Reduction Unit

With Voltage Reduction Unit

Incandescent

lamp

Note: The LED lamp (24 VAC/VDC) can be lit by

directly applying 110 VAC/VDC (220 VAC/

VDC) to the lamp terminal. LED incorpo-

rates the 24-VAC/VDC type.

G-138 Indicator M22

Subassembled

The Display, Lamp, or Socket Unit can be ordered separately. Use them in combination for models that are not available as assembled Units. These

can also be used as inventory for maintenance parts.

1. Display

2. Lamp

3. Socket Unit

1 2

M22-@@

1 Flange Shape

Code Description

Round/Flat

Square/Projection

2 Cap Color

Code Description

Red

Green

Yellow

White

Blue

1 2

5 5 VAC (6 VAC)

12 12 VAC (14 VAC)

24 24 VAC (28 VAC)

H1 100 VAC (130 VAC)

6D 6 VDC (6 VDC)

6A 6 VAC (6 VAC)

12A 12 VAC/VDC (12 VAC/VDC)

24A 24 VAC/VDC (24 VAC/VDC)

A22-@@

2 Illumination Color

Code Description

None Incandescent lamp

Red

Green

Yellow

Blue

1 Operating Voltage (Rated Voltage)

Code Description

LED

Incandescent

T1 110 VAC

T2 220 VAC

M22-00-@

1 Voltage Reduction Unit

Code Description

None Without Voltage Reduction Unit

Indicator M22 G-139

Pushbutton

Switches

Ordering Information

■List of Models

Completely Assembled

Indicator

Appearance Lighting Operating voltage Model Illumination color

LED 6 VDC M22-F@-6D Insert one of the

following letters

into the box @.

R (red)

Y (yellow)

G (green)

W (white)

A (blue)

6 VAC M22-F@-6A

12 VAC/VDC M22-F@-12A

24 VAC/VDC M22-F@-24A

110 VAC M22-F@-T1

220 VAC M22-F@-T2

6 VDC M22-C@-6D

6 VAC M22-C@-6A

12 VAC/VDC M22-C@-12A

24 VAC/VDC M22-C@-24A

110 VAC M22-C@-T1

220 VAC M22-C@-T2

M22-F

Round/Flat

without Voltage

Reduction Unit

M22-F

Round/Flat

with Voltage

Reduction Unit

M22-C

Square/Projection

without Voltage

Reduction Unit

M22-C

Square/Projection

with Voltage

Reduction Unit

G-140 Indicator M22

Subassembled

Display

Appearance IP65 oil-resistant

Color of Display Model

Red M22-FR

Green M22-FG

Ye l l o w M 2 2 - F Y

White M22-FW

Blue M22-FA

Red M22-CR

Green M22-CG

Ye l l o w M 2 2 - C Y

White M22-CW

Blue M22-CA

Display

Socket Unit Socket Unit

Lamp Lamp

LED LED

Without Voltage Reduction Unit With Voltage Reduction Unit

Incandescent

lamp

Round/Flat

M22-F

Square/Projection

M22-C

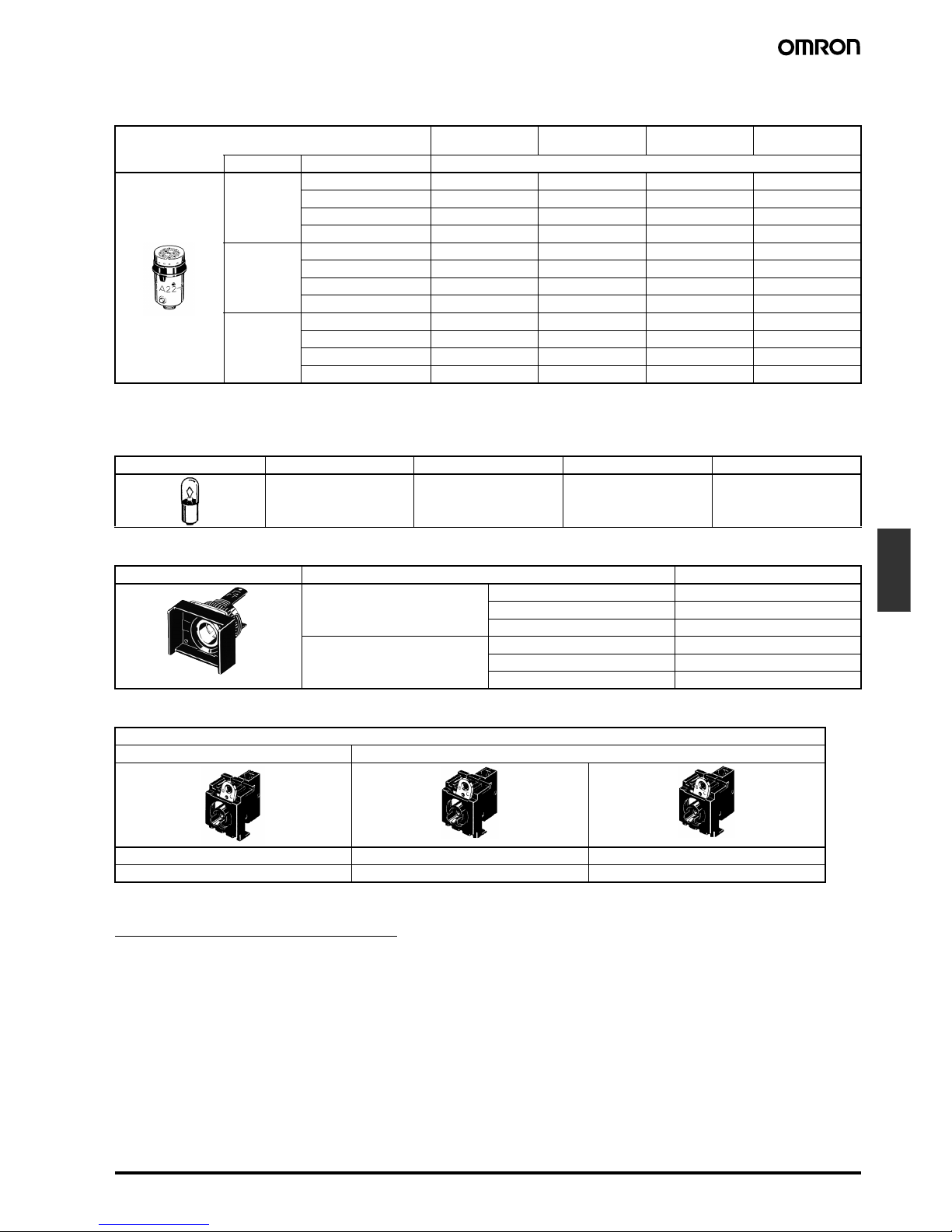

Indicator M22 G-141

Pushbutton

Switches

Lamp

LED

Note: 1. For voltage-reduction lighting, use the A22-24A@.

2. Used when the Display color is yellow or white.

Incandescent

Case

Socket Unit

Note: For voltage-reduction lighting, use the A22-24A@.

Accessories (Order Separately)

The M22 uses the same accessories as the A22. Refer to the relevant information in the corresponding section for the A22.

Operating voltage 6 V 12 V 24 V 24 V

Super-bright

Appearance AC/DC LED light Model

AC Red A22-6DR --- --- ---

Green A22-6DG --- --- ---

Yellow (see note 2) A22-6DY --- --- ---

Blue A22-6DA --- --- ---

DC Red A22-6AR --- --- ---

Green A22-6AG --- --- ---

Yellow (see note 2) A22-6AY --- --- ---

Blue A22-6AA --- --- ---

AC and DC Red --- A22-12AR A22-24AR A22-24ASR

Green --- A22-12AG A22-24AG A22-24ASG

Yellow (see note 2) --- A22-12AY A22-24AY A22-24ASY

Blue --- A22-12AA A22-24AA A22-24ASA

Operating voltage 6 VAC/VDC 12 VAC/VDC 24 VAC/VDC 100 VAC/VDC

A22-5 A22-12 A22-24 A22-H1

Appearance Type Model

IP40 Rectangular A16-CJM

Square A16-CAM

Round A16-CTM

IP65 oil-resistant Rectangular A165-CJM

Square A165-CAM

Round A165-CTM

Voltage-reduction circuits

Without Voltage Reduction Unit With Voltage Reduction Unit

Without Voltage Reduction Unit With Voltage Reduction Unit (110 VAC) With Voltage Reduction Unit (220 VAC)

M22-00 M22-00-T1 M22-00-T2

G-142 Indicator M22

Specifications

■Approved Standards

Note: cUL: CSA C22.2 No. 14

■Approved Standard Ratings

UL, cUL (File No. E41515)

2-6W, 120 V max.

■Ratings

LED Lamp

Note: The values in parentheses are for blue Indicators.

Super-bright LED Indicator

Incandescent Lamp

Voltage-reduction Lighting

■Characteristics

Note: 1. With no icing or condensation.

2. Malfunction within 1 ms.

Recognized

organization Standards File No.

UL, cUL (see note) UL508 E41515

Rated voltage Rated current Operating voltage

6 VDC 60 mA (20 mA) 6 VDC±5%

6 VAC 60 mA (20 mA) 6 VAC±5%

12 VAC/VDC 30 mA (10 mA) 12 VAC/VDC±5%

24 VAC/VDC 15 mA (10 mA) 24 VAC/VDC±5%

Rated voltage Rated current Operating voltage

24 VAC/VDC 15 mA 24 VAC/VDC±5%

Rated voltage Rated current Operating voltage

6 VAC/VDC 200 mA 5 V

14 VAC/VDC 80 mA 12 V

28 VAC/VDC 40 mA 24 V

130 VAC/VDC 20 mA 100 V

Rated voltage Operational voltage Applicable lamp

(BA9S/13@gold)

110 VAC 95 to 115 VAC LED lamp (A22-24@)

220 VAC 190 to 230 VAC

Item Indicator

M22

Insulation resistance 100 MΩmin. (at 500 VDC)

Dielectric strength 2,500 VAC, 50/60 Hz for 1 min between terminals of same polarity

2,500 VAC, 50/60 Hz for 1 min between terminals of different polarity and also between

each terminal and ground

Vibration resistance Malfunction (See note 2.): 10 to 55 Hz, 1.5-mm double amplitude

Shock resistance Mechanical 1,000 m/s2

Malfunction (See note 2.) 600 m/s2max.

Ambient temperature (See note 1.) Operating: −20°C to 55°C

Storage: −40°C to 70°C

Ambient humidity Operating: 35°C to 85°C

Degree of protection IP65

Electric shock protection class Class II

PTI (tracking characteristic) 175

Degree of contamination 3 (IEC947-5-1)

Indicator M22 G-143

Pushbutton

Switches

Nomenclature

Display

•Available Colors

Red, green yellow, white, blue

Lamp

•Light Source

Socket Unit

•Lighting Method

Lock Ring

LED lamp

Incandescent lamp

Lighted (without Voltage Reduction Unit)

Lighted (with Voltage Reduction Unit)

G-144 Indicator M22

Dimensions

Note: All units are in millimeters unless otherwise indicated.

■Indicators

■Accessories

The M22 uses the same accessories as the A22. Refer to the relevant information in the corresponding section for the A22.

■Terminal Arrangement (Bottom View)

■Terminal Connection ■Panel Cutouts (Top View)

Note: 1. When applying coating such as paint to the panel, the di-

mensions should be those after the application of coating.

Lock Ring is provided as a standard item.

2. Recommended panel thickness: 1 to 5 mm.

3. Use an A22Z-R25 Ring when mounting to a panel with 25-

mm holes.

Installation

The M22 uses the same installation method as the A22. Refer to the relevant information in the Installation section for the A22.

Precautions

The precautions for the M22 are the same as those for the A22. Refer to the relevant information in the Precautions section for the A22 and the

Technical Information for Pushbutton Switches (Cat. No. A143).

With/Without Voltage Reduction Unit

29.8 x 29.8

25.6 x 25.6

Round/Flat

M22-F

Square/Projection

M22-C

29.7 dia.

Lamp Socket

M3.5 screw

Without Voltage Reduction

Unit With Voltage Reduction Unit

Bottom view Top view

22.3+0.4 dia.

025+0.5 dia.

In the interest of product improvement, specifications are subject to change without notice.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. A131-E1-02
