Elite Series Barbecues

Assembly and Operating Instructions for Outback®

Sapphire 2 Burner, 3 Burner, 6 Burner Stainless Gas Barbecues

Photographs are not to scale.

Specifications subject to change

without prior notice.

WARNING

• For outdoor use only.

• Read instructions before using the appliance. Failure to follow instructions

could result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

• Retain these instructions for future reference.

• Leak test your barbecue annually. Check the hose connections are tight and

leak test each time you reconnect the gas bottle.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

0359

Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see ‘Hardware Reference Diagram’.

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

CODE PART QTY Outback® Sapphire

2 Burner Outback® Sapphire

3 Burner Outback® Sapphire

6 Burner

HOOD

A1 Hood Handle 1   

A2 Hood (Pre-Assembled to Body) 1   

A3 Hood Panel 1   

A4 Heat Indicator and Nuts 1   

BODY

B1 Barbecue Body 1   

B2 Burner 2 3 6

B3 Control Panel 1   

B4 Knob 2 3 6

B5 Drip Tray 1   

B6 Drip Pan 1 

B7 Foil Liner 1 

B8 Flame Tamer 2 2 4

B9 Grill 2   

B10 Griddle 1  

B11 Hose 1 

B12 Warming Basket 1   

TROLLEY

C1 L/H Side Shelf 1   

C2 Side Shelf Shield 1   

C3 Front Left Endcap 1   

C4 Rear Left Endcap 1   

C5 Utensil Tray 2   

C6 R/H Side Shelf 1   

C7 R/H Insert 1   

C8 Front Left Leg 1   

C9 Rear Left Leg 1   

C10 Front Right Leg 1   

C11 Rear Right Leg 1   

C12 Bottom Slat Assembly 1   

C13 BaseTray 1   

C14 Gas Bottle Holder 1   

C15 Trolley Foot 1   

C16 Hubcap 2   

C17 Wheel 2   

C18 Locknut 2   

C19 Axle 1   

C20 Retaining Rod 1   

C22 Side Shelf Hook 2   

HARDWARE

D1 Countersunk Screw, M4x15 4   

D2 Screw, M6x15 24   

D3 Washer 4   

D5 Screw, 1/4UNCx12 6   

C21 Gas Bottle Strap 1   

D4 Screw, M6x35 16   

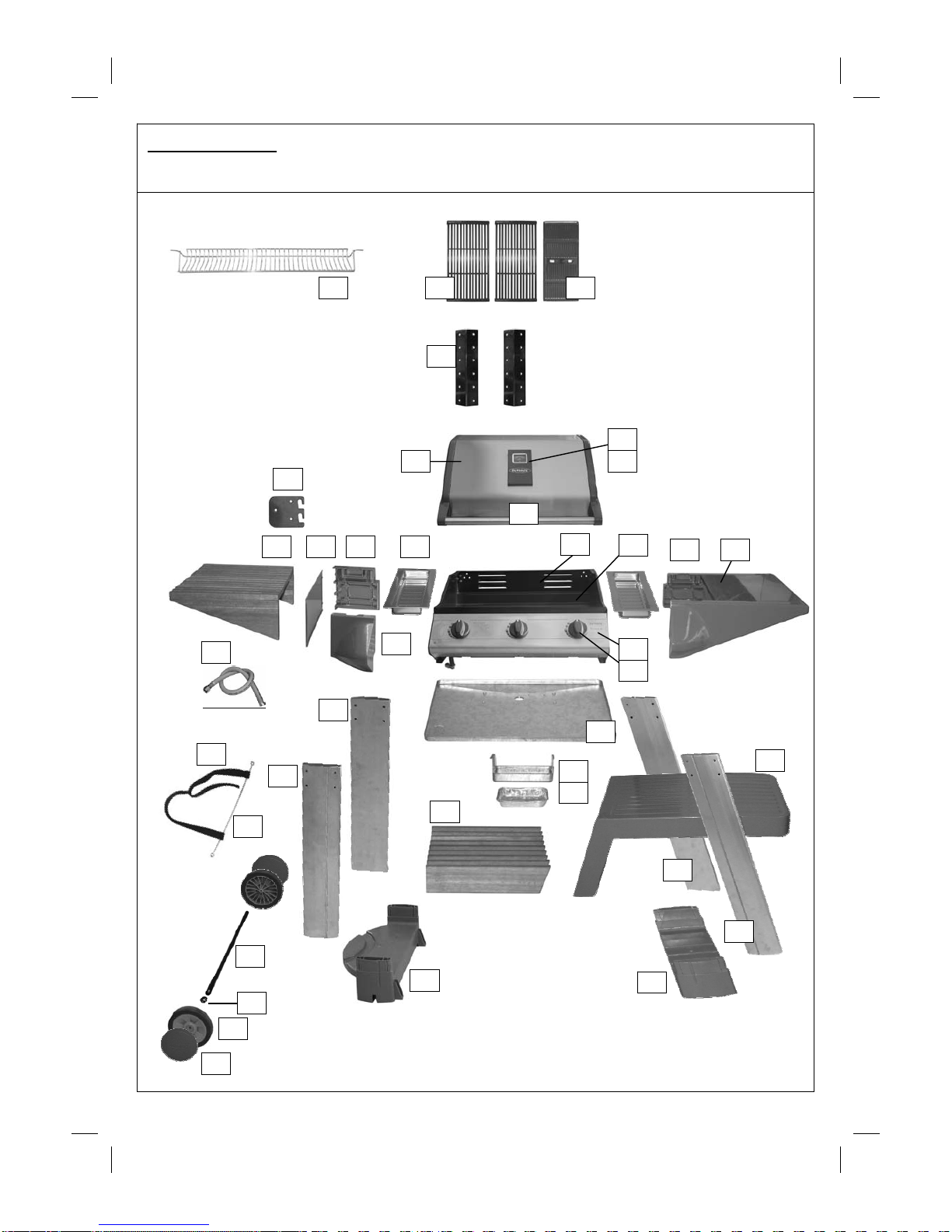

Parts Diagrams

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see ‘Hardware Reference Diagram.’

C5C4C1

C12

B10

B11

C15

C14

C16

C17

C18

C19

C11

C21

C20

C10

B12

C13

C22

Hardware Reference Diagram

Specifications subject to change without prior notice.

D2 (screw)

D3(washer)

Attach the Front Right Leg (C10) to the Trolley Foot (C15)

Assembly

IMPORTANT!

• Tools Required: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric

spanner set

• The assembly of this barbecue requires 2 people.

• Carefully unpack the parts from the box and remove all internal packaging before commencing assembly. All

loose items including the grills, griddle, flame tamers and warming basket must be removed from the body.

• The inlet connection of the gas rail assembly on the BBQ body is lower than the body. You must never allow

the pipe to rest on the ground during assembly as serious damage could result. We recommend the body is

left sitting in the box until required for assembly to trolley.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case

sharp edges are present.

Attach the Rear Right Leg (C11) to the Trolley Foot (C15). The legs are a push fit onto the trolley foot and

on the gas bottle holder. In case of difficulty, they may need tapping lightly with a soft face mallet. Take

care not to damage parts.

Attach the Bottom Slat Assembly (C12) to the Base Tray (C13) using the Screws (D2).

Attach the leg assembly to the Base Tray (C13) using the Screws (D2).

Align theGas Bottle Holder (C14) with the Slat Assembly (C12).

Attach the Front Left Leg (C8) and Rear Left Leg (C9) to the Gas Bottle Holder (C14).

Note: Threaded inserts must be facing in the direction shown!

Threaded

Insert

Attach theGas Bottle Holder (C14) to the Bottom Slat Assembly (C12) using the Screws

(D2) and Washers (D3).

Insert the axle (C19) through the clamping brackets on the gas bottle holder (C14) and tighten the clamp

screws. Take care not to over tighten these screws which will damage the plastic Gas Bottle Holder

Attach theGas Bottle Holder (C14) to the Bottom Slat Assembly (C12) using the Screws (D2)

and Washers (D3).

Place the Wheels (C17) onto the Axle (C19) and secure with Locknuts (C18).

Carefully turn the completed trolley over, right side up.

CAUTION! Care must be taken to ensure hood does not fall open

unexpectedly or that the hood surface is damaged when set on the ground.

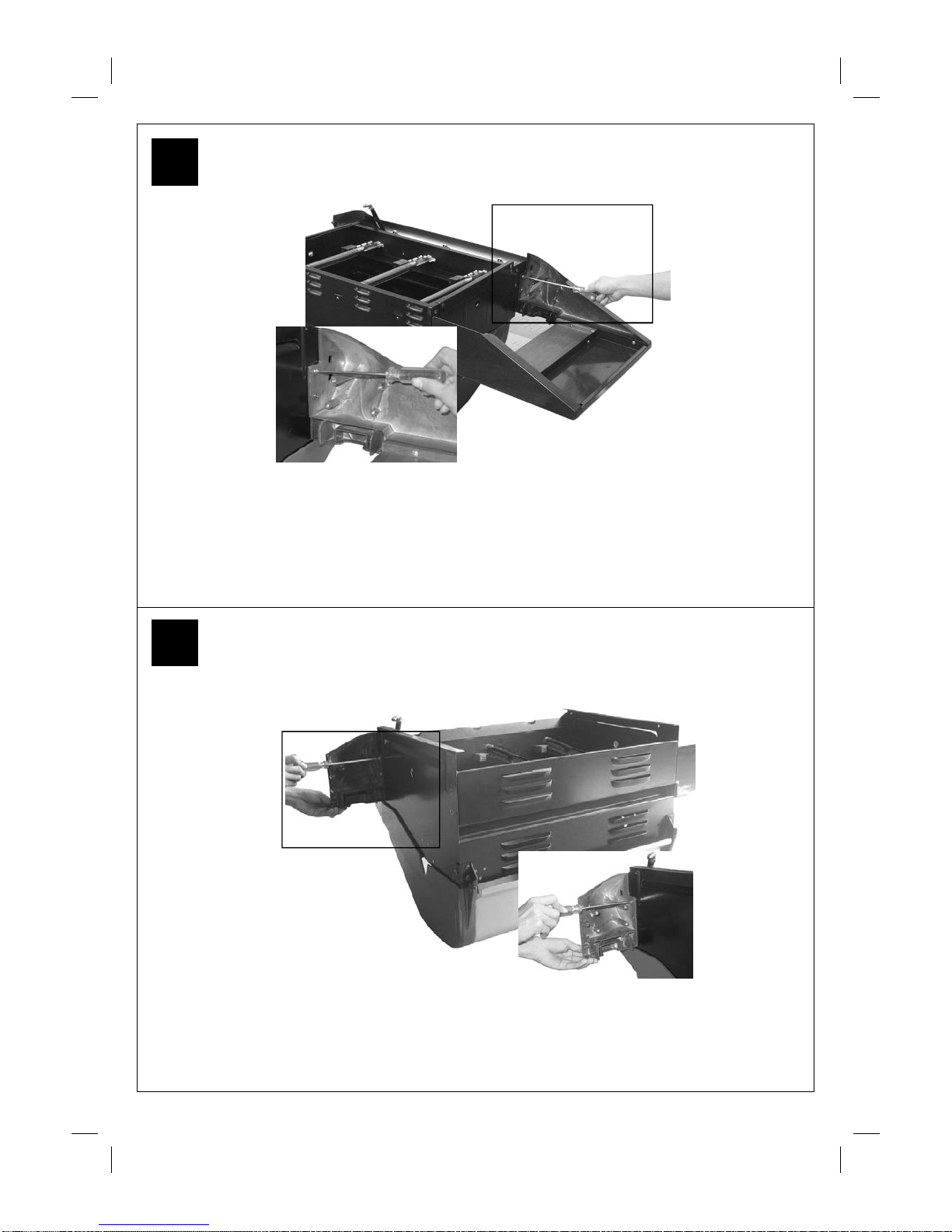

Carefully turn the Barbecue Body (B1) upside down and remove the Drip Tray (B5). Attach the

R/H Side Shelf (C6) to the Barbecue Body (B1) using the Screws (D2).

Attach the Front Left Endcap (C3) to the Body (B1) using the Screws (D2).
