Outback THG2302P-3 Manuale utente

Photographs are not to scale.

Specifications subject to change

without prior notice.

Assembly and Operating Instructions for Outback®

Spectrum Select Hooded 2 Burner and Spectrum Select Hooded 3 Burner Gas BBQ

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may be

dangerous and will invalidate your warranty. This does not affect your statutory rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

0359

THG2302P-3 THG3302P-3

Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see ‘Hardware Reference Diagram’.

CODE PART QTY Outback® Spectrum

Select Hooded 2 Burner

Gas BBQ

Outback® Spectrum

Select Hooded 3 Burner

Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1  

A2 Hood Handle 1  

A3 Heat Indicator 1  

A4 WarmingRack 1  

BODY

B1 Cooking Grill 1  

B2 Cooking Griddle 1  

B3 Lava Rock 1  

B4 Lava Rock Basket 1  

B5 Barbecue Body 1  

B6 Knob 23

B7 Control Panel 1  

B8 Burner 23

B9 Drip Tray 1  

B10 Drip Tray Left Bracket 1 

B11 Drip Tray Right Bracket 1 

B12 Drip Pan 1 

B13 Hose and Regulator Assembly 1 

C1 Left Side Shelf 1  

C2 Right Side Shelf 1  

C3 Left Front Leg 1  

C4 Left Rear Leg 1  

C5 Right Front Leg 1  

C6 Right Rear Leg 1  

C7 Screen 1  

C8 Front Fixing Support 1  

C9 Trolley Base 1  

C10 Rear Fixing Support 1  

C11 Leg Endcap 6  

C12 Axle 1  

C13 Wheel 2  

C14 Hubcap 2  

HARDWARE

D1 M5x15 Bolt 4  

D2 Washer 4  

D3 M5 Nut 4  

D4 M6x145 Bolt 8  

D5 Spacer 8  

D6 M6x22 Step Bolt 8  

D7 M6x25 Bolt 8  

D8 1/4-20UNCx12 Bolt 2  

D9 Axle Washer 2  

D10 Locknut 2  

TROLLEY

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

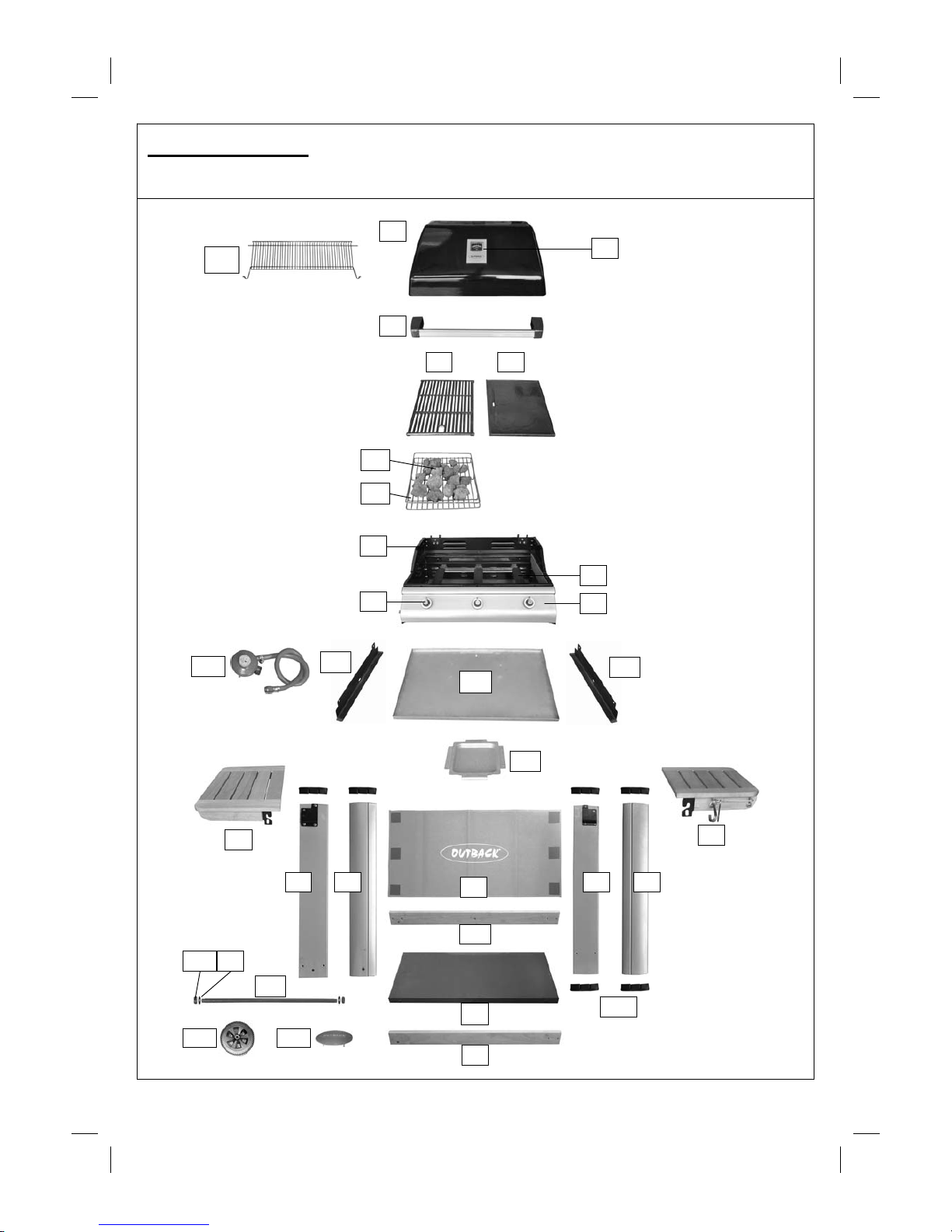

Parts Diagrams

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see hardware pack page.

B13

C3 C6

C12

C13 C14

C11

C4 C5

B10

B6 B7

B9 B11

B12

C10

D10

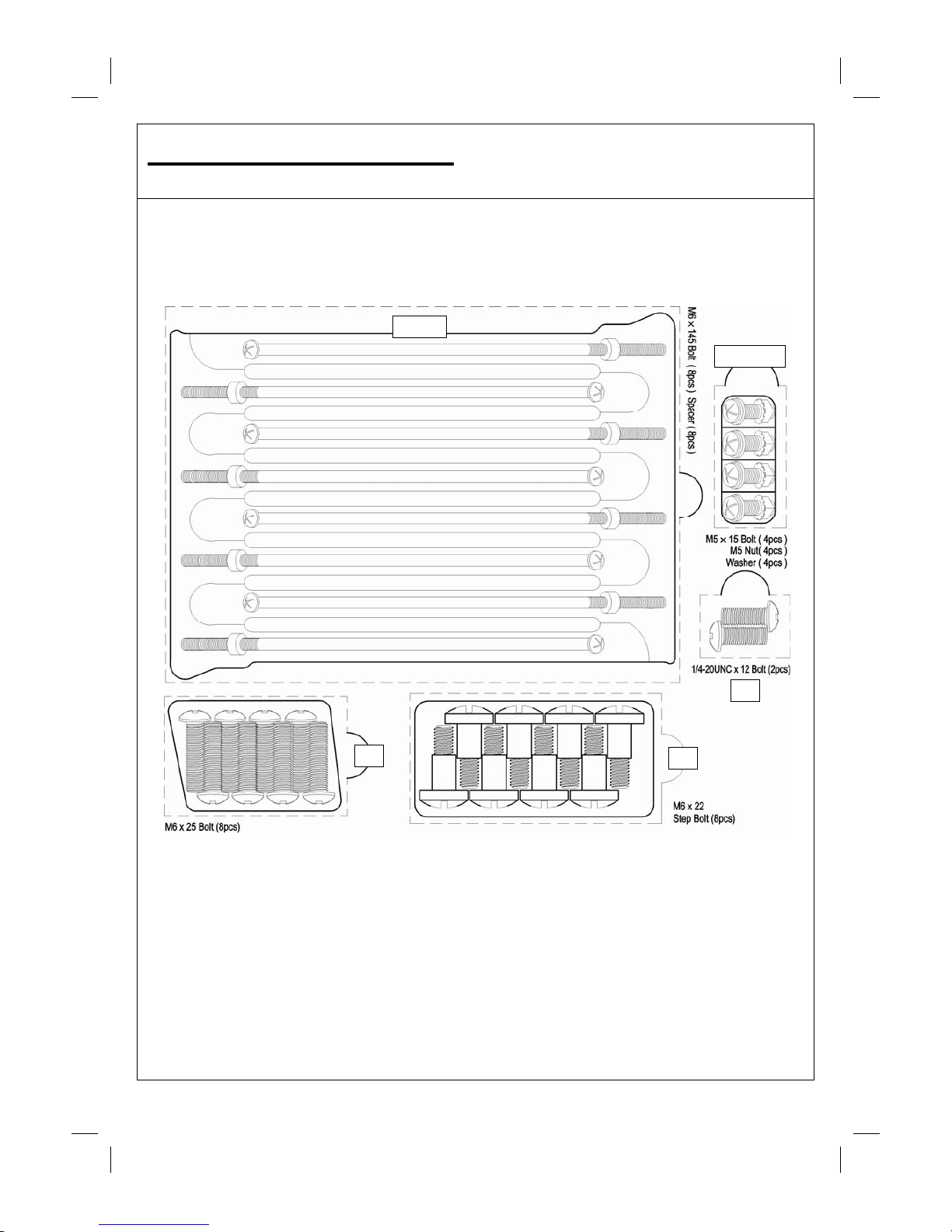

Hardware Reference Diagram

Specifications subject to change without prior notice.

D1,D2,D3

D4,D5

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• Remove any internal components or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

Attach the Front Fixing Support (C8) and Rear Fixing Support (C10) onto the Trolley Base (C9) by

aligning corresponding holes and fixing with the 1/4-20UNCx12 Bolts (D8). Then attach the Legs

(C3, C4, C5, C6) to the trolley base assembly using the M6x25 Bolts (D7). Ensure that the legs

with the Velcro attached to them are at the front of the barbecue, facing inwards.

Unscrew the Locknuts (D10) from both ends of the Axle (C12) and remove the Axle Washers

(D9). Slide the axle through the corresponding holes in the left legs. Place axle washers on each

end of the axle. Slide the Wheels (C13) over each end of the axle. Secure the wheels into place

with the locknuts. Place the wheel Hubcaps (C14) onto the outsides of the wheels.

D10

C13

C12

C14

(Photo depicts trolley

from the reverse side)

C4 C5

C10D8

Install a M6x22 Step Bolts (D6) on each leg, and then attach the Left Side Shelf (C1) and

Right Side Shelf (C2) onto left and right legs using the M6x22 step bolts. Hook the side

shelves onto the upper step bolts.

C1 C2

B1 B2

Remove all cast iron cooking components, lava rock, drip tray, and any internal packaging

from the barbecue body.

Insert M6x145 Bolts (D4) through the trolley legs, the Spacers (D5), and keep the tip of the bolts

inside the spacers. While holding the barbecue body into position (2 people required), screw the

bolts into the barbecue body as shown.

CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly

or becomes damaged when it is set on the ground.

When positioning the body of the barbecue, ensure the control panel is on the same side as the

legs with Velcro fastenings.

Attach Drip Tray Left Bracket (B10) to barbecue body using M5x15 Bolts (D1), Washers (D2)

and M5 Nuts (D3) as shown. Repeat above process for Drip Tray Right Bracket (B11).

NOTE: Ensure that the big tabs of the brakets which stop the drip tray are located at the

front of the barbecue.

D1 D2

Remove the plastic wrap from the Lava Rock (B3) and then place a uniform layer into Lava

Rock Basket (B4). Lay the lava rock carefully into the body ensuring it lies level within the

body. Lay the cooking grill (B1) and griddle (B2) into place.

2/3 burner model configuration: Left — Cooking Grill, Right — Cooking Griddle

NOTE: Ensure that the lava rock lies directly underneath the grills.

B1 B2

Insert the Drip Tray (B9) by sliding it underneath the barbecue body. Insert the Drip Pan(B12)

in position.

B12

Attach the Warming Rack (A4) to the Hood

(A1) and Barbecue Body (B5) as shown.

Make sure that the swing legs fix to the body

of the barbecue and the shorter fixed legs go

through the holes in the hood.

(Rear view of the barbecue trolley.)

Attach the screen (C7) to the front left/

right legs as shown.

Connect the Hose and Regulator Assembly (B13) to the barbecue.

Ensure the mating faces of the connection are clean and not damaged. Do not use

any sealing tape, paste, or liquid on the connection. The nut must be tightened with

the use of a spanner. Do not use force which may damage the assembly.

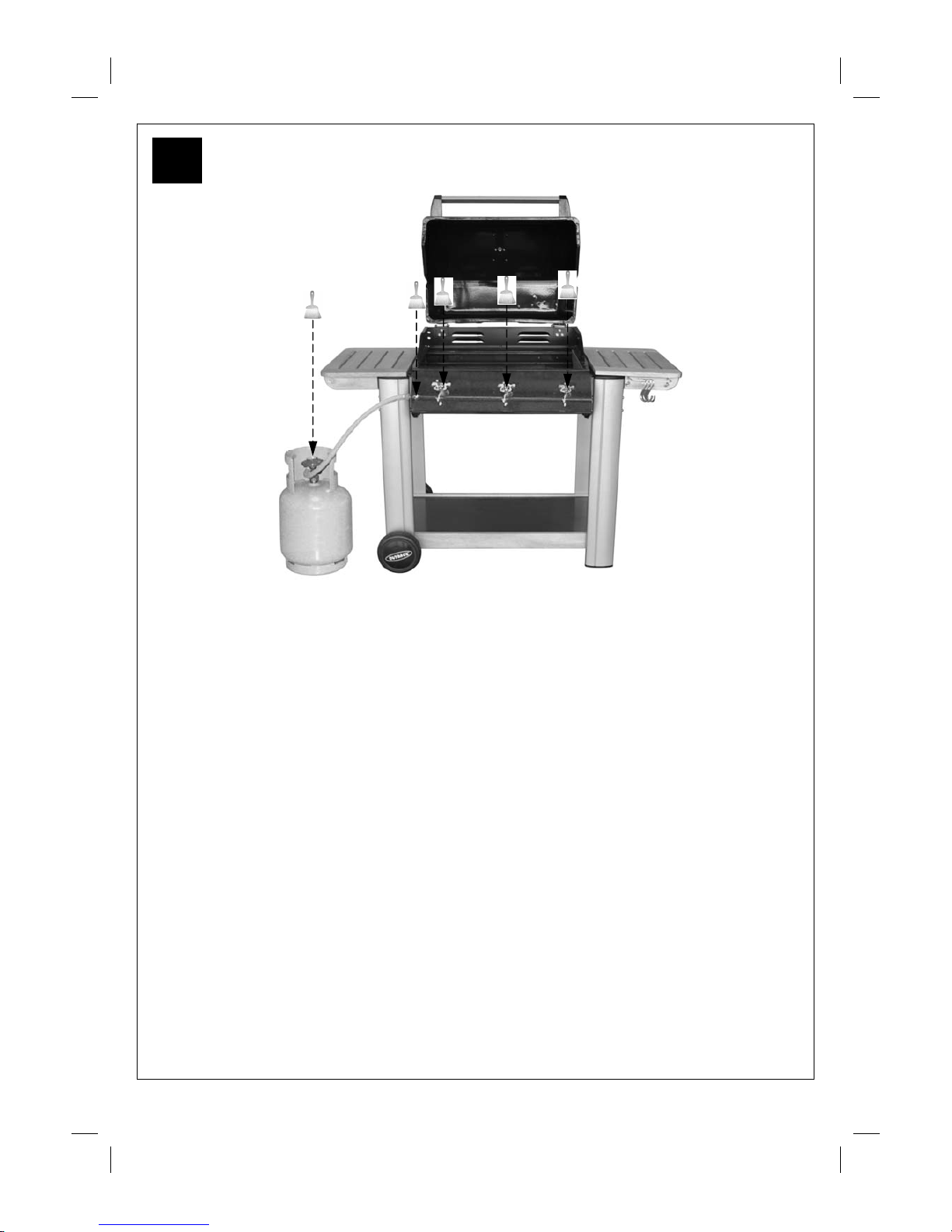

Leak Test Diagram

ASSEMBLY IS NOW COMPLETE.

PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND

MAINTENANCE

ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE

BARBECUE.

Leak test annually, and whenever the gas bottle is removed or replaced.

LEAK TESTING

Always perform a leak test in a well-ventilated area.

Step 1 - Confirm all control knobs are in the off position.

Step 2 - Detach the barbecue control panel located across the front of the barbecue body by

pulling off the control knobs and removing the control panel retaining screws.

Step 3 - Turn the gas on / open the gas control valve on the gas bottle or regulator.

Step 4 - Check for leaks by brushing a solution of ½ water and ½ liquid detergent / soap over

all the gas system joints, including all valve connections, hose connections, and regulator

connections.

Step 5 - NEVER USE AN OPEN FLAME to test for leaks at any time.

Step 6 - If bubbles form over any of the joints there is a leak

• Turn off the gas supply at the gas bottle

• Retighten all joints

• Repeat test

• If bubbles form again do not use the barbecue and contact your local Outback distributor for

assistance.

Always wipe the mixed solution (½ water and ½ liquid detergent / soap) from all joints and

connections after leak testing.
