OPERATIONS GUIDE
FIBER OWL 7 SERIES BI-DIRECTIONAL CERTIFIERS
MODEL #s:
F7BMS (MM / SM)
F7BMX (MM only)
F7BMV (MM / VFL)
F7BSX (SM only)
F7BSV (SM / VFL)
TABLE OF CONTENTS
INTRODUCTION
BEFORE YOU BEGIN 4
ABOUT THIS MANUAL 4
DESCRIPTION 5
APPLICATIONS
PAIR MODE 6
BIDI MODE 7
CERT MODE 8
LOSS MODE 9
OPTICAL POWER MEASUREMENT 10
OPTICAL LENGTH MEASUREMENT 11
TEST PATCH CORDS 12
GENERAL FEATURES
PRECAUTIONS 13
LABEL 13
GENERAL FEATURES 14
SPECIFICATIONS 15
WARRANTY INFORMATION 16
SUPPORTED CABLING STANDARDS 16
CONTACT INFORMATION 16
ROLES 17
TEST PROCEDURES
BEFORE YOU BEGIN 18
STEP 1: GATHER LINK SETUP INFORMATION 19
LINK PLANNING WORKSHEET 20
KEY TEST PARAMETERS 21
FIBER STANDARD 21
TEST MODE 21
FIBER TYPE 21
FIBER TYPE - LINK TYPES 22
TEST CORD TYPE 23
SPLICES 23
ENCIRCLED FLUX 24
FIBER PAIR GEOMETRY 25
REFERENCE METHOD 26
STEP 2: GATHER ACCESSORIES 27
REFERENCE CABLES AND MANDRELS 28
ADDITIONAL TEST CABLES 29
MATING SLEEVES 30
LINK WIZARD 31-40
ALPHA-NUMERIC / SPECIAL CHARACTER ENTRY 32
ENCIRCLED FLUX DIAGRAM 33
SET REFERENCE DIAGRAM 34
SETTING THE OPTICAL REFERENCE 35-37
CHECKING ADDITIONAL TEST CABLES 38-40
TEST PROCEDURE (BI-DIRECTIONAL) 41-50
TEST RESULTS SCREEN 46
2
TABLE OF CONTENTS
OPERATIONS/MAINTENANCE
MAIN MENU 51
OPERATIONS MENU
CONFIGURE SOURCE PORT 52
SYSTEM INFORMATION 52
ENTER OPM (OPTICAL POWER METER) MODE 52
SETUP MENU
SET OPERATING PARAMETERS 53
SET USER INFORMATION 53
SET DISPLAY OPTIONS 53
SET POWER OPTIONS 54
CONFIGURE CUSTOM STANDARD 54
UTILITIES MENU
SET SYSTEM CLOCK 55
RE-SET TO FACTORY DEFAULTS 55
WORKING WITH STORED DATA 56
UNIVERSAL DETECTOR PORT 57
CLEANING THE LIGHT SOURCE PORT 58
CLEANING THE OPM PORT 59
UPDATING FIRMWARE 60
RE-CHARGING THE DEVICE BATTERIES 60
3
INTRODUCTION
BEFORE YOU BEGIN
All personnel testing optical bers should be adequately trained in the eld of ber optics before using any ber optic test
equipment.
If the user is not completely familiar with testing ber optics, they should seek competent training. Such training can be acquired
from a variety of sources, such as local hands-on training classes.
Valuable information about ber optic testing can also be gathered from reading printed literature carefully or by thoroughly reading
supplied operations manuals.
Fiber optic testers vary from other types of test equipment due to issues such as:
1) standards-based testing
2) proper ber optic test procedures (FOTPs)
3) “zeroing” or referencing of power levels
4) determining the correct link budget to pass or fail by
Complete understanding of each of these issues is critical for performing proper ber optic tests.
ABOUT THIS MANUAL
Throughout this manual you will nd various symbols that assist with understanding the procedures outlined in this manual. Below
is a list of these symbols and a short description of their purpose:
Shows a helpful tip that will make a procedure go more smoothly
Tells the user some useful information about the successful completion of a procedure
Warns the operator of a potentially dangerous condition
4
5
INTRODUCTION
DESCRIPTION
The Fiber OWL 7 BIDI is a high-accuracy, high-resolution, microprocessor-controlled optical loss test sets (OLTS) capable of
performing a wide variety of testing applications, from basic optical loss measurement up to simultaneous bi-directional, dual-
wavelength ber link certication. With a wide measurement range and NIST-traceable wavelengths, the Fiber OWL 7 BIDI is ideal
for both singlemode and multimode ber link certication.
Enclosed in an attractive hand-held case made from high impact plastic and protected by a protective rubber boot, test readings
and graphical help screens can be viewed on the color LCD, and an intuitive 10-key keypad allows for easy data entry.
Each Fiber OWL 7 BIDI is powered by re-chargeable lithium polymer batteries, typically allowing up to 50 hours of continuous use.
A built-in auto-shutdown feature further conserves battery life. Batteries are re-charged through the USB port via supplied battery
chargers.
The intuitive built-in Link Wizard prompts the user to enter key information used to calculate standards-based link budgets for ber
optic certication testing, and helpful diagrams guide the user through the setup and testing procedure.
Thousands of data points with descriptive link and ber run labels can be stored in internal memory. Stored information can be
selectively viewed, re-tested, or deleted from the device.
The data can also be downloaded to OWLView certication software to produce professional-looking formatted certication reports.
OWLView software includes a “tri-report” option that integrates power meter certication, OTDR traces, and endface analysis
results all on the same report (separate ber microscope and OWL OTDR required for tri-report).
6
APPLICATIONS
PAIR MODE

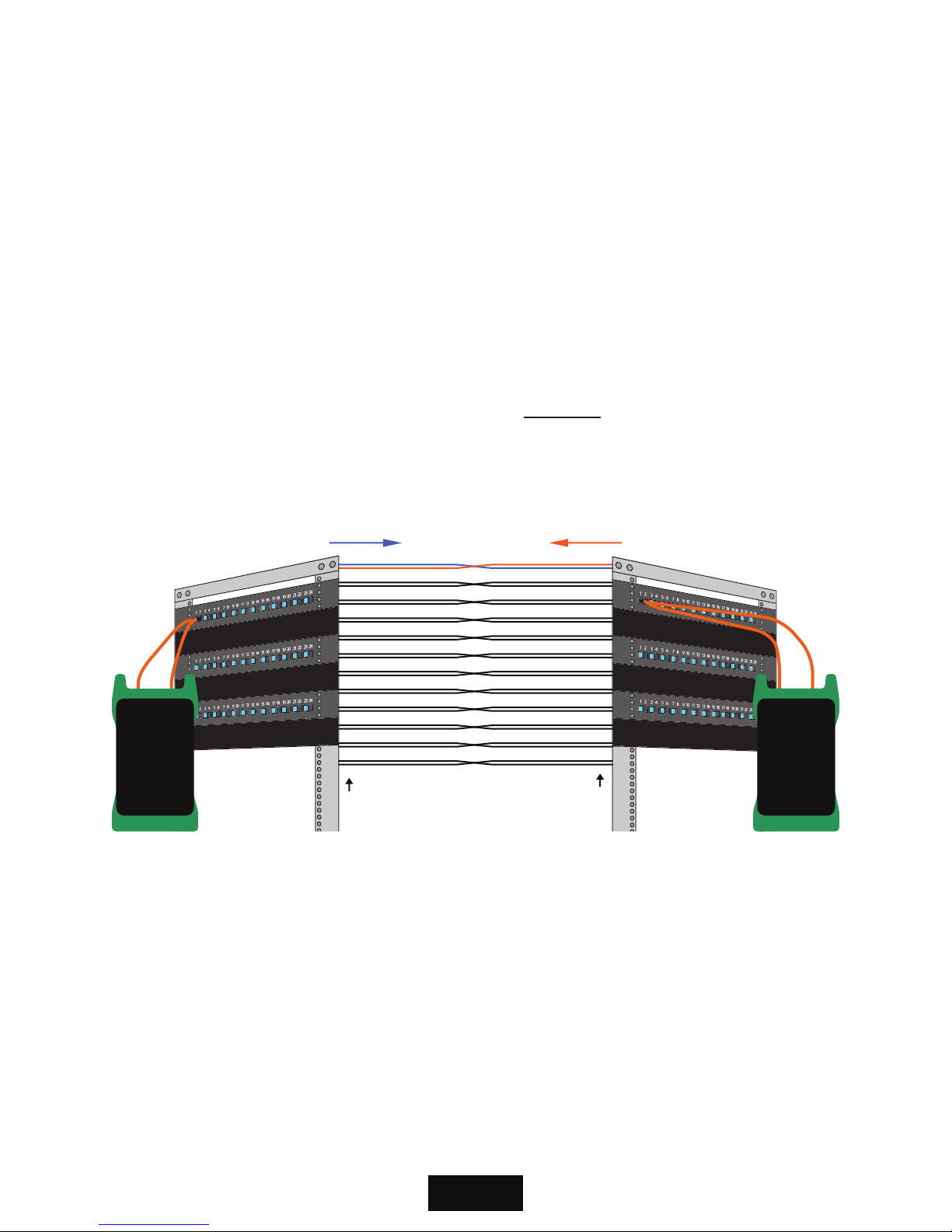

Fiber Optic Link Pair Certication. PAIR mode is the fastest, easiest, and most innovative way to certify a ber pair at up to two
wavelengths simultaneously, including length measurement with each test, since bi-directional testing is not required by cabling
standards; i.e. test direction does not matter.
PAIR mode is twice as fast as bi-directional link certication and much less confusing.
Testing bi-directionally requires a two-step process: test in one direction, swap ber ports, then test in the other direction. PAIR
mode cuts testing time in half by eliminating the second (not required) direction, and keeps things simple by eliminating the often-
confusing and error-prone step of swapping ber ports.
PAIR mode is twice as fast as traditional link certication.
Traditional link certication certies one ber at a time. PAIR mode tests two bers at a time, signicantly speeding up the
certication process. In addition, PAIR mode allows length measurement with each test, something that traditional link certication
cannot do.
The Link Wizard in the Fiber OWL 7 uses attenuation parameters from popular cabling standards to certify ber links, and shows
complete PASS/FAIL test results for both bers at both wavelengths, all on the same screen, right in the eld.
12 ber pairs 24 bers
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Blue test direction Orange test direction
7
APPLICATIONS
BIDI MODE
Bi-directional (BIDI) Fiber Optic Link Certication. Similar to PAIR mode, BIDI (bi-directional) mode allows users to quickly
and conveniently certify a ber pair in both directions at up to two wavelengths simultaneously, including length measurement with
each test. Keep in mind that while bi-directional testing is not a requirement of cabling standards, it may still be required by the
end user.
The Link Wizard in the Fiber OWL 7 uses attenuation parameters from popular cabling standards to certify ber links, and shows
complete PASS/FAIL test results for both bers at both wavelengths, all on the same screen, right in the eld.
12 ber pairs 24 bers
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Blue test direction Orange test direction
12 ber pairs 24 bers
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Blue test directionOrange test direction

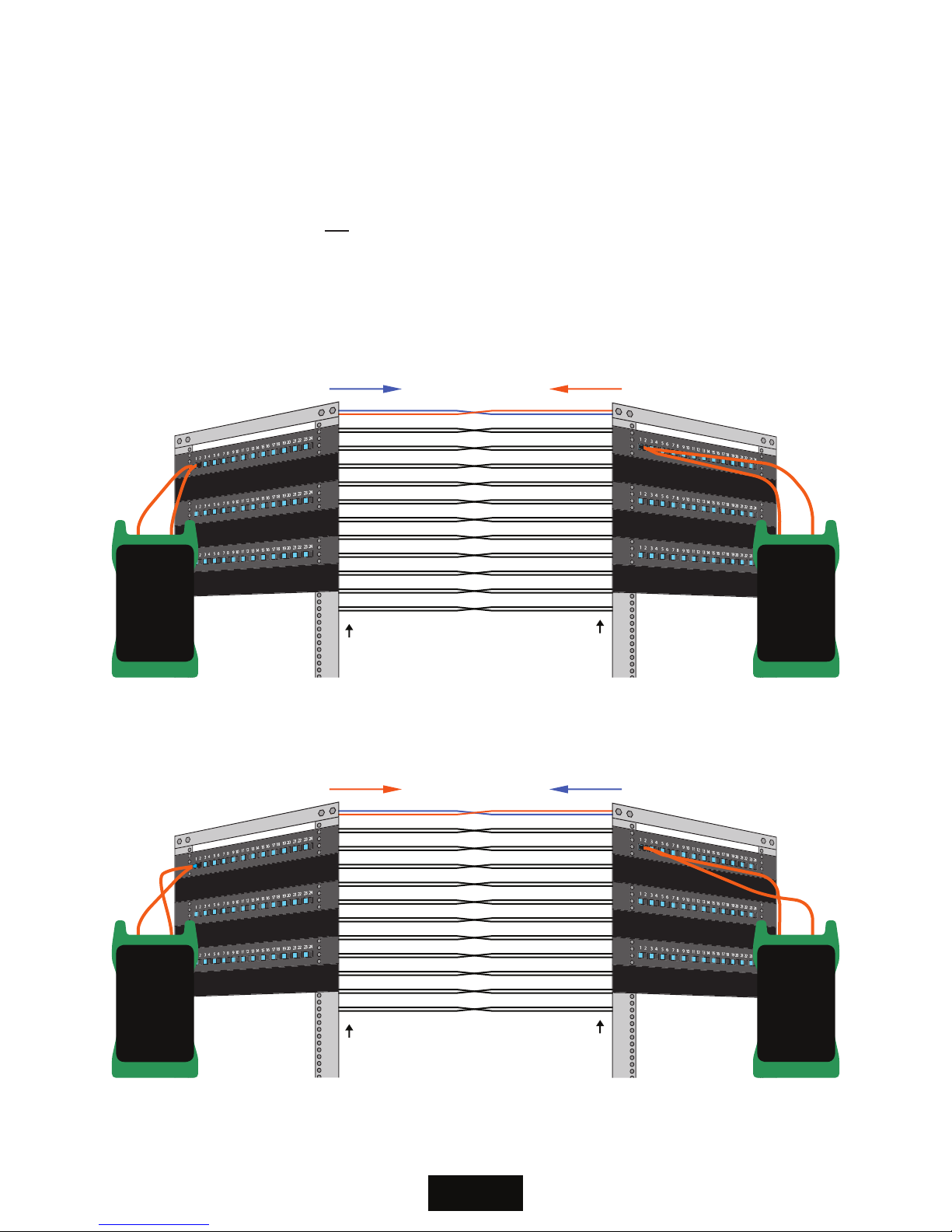

Connect patch cables straight in to test in rst direction
Cross patch cables to test in second direction
8
APPLICATIONS
CERT MODE
Traditional Single-ber Link Certication. When the remote is set as a stand-alone light source (or a separate stand-alone source
is available), CERT (certication) mode allows users to certify individual optical bers at up to two wavelengths simultaneously.
The Link Wizard in the Fiber OWL 7 uses attenuation parameters from popular cabling standards to certify ber links, and shows
a link’s PASS/FAIL status right in the eld.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Remote used as stand-alone light source
9
APPLICATIONS
LOSS MODE
Attenuation (Optical Loss) Measurements. After a ber cable has been installed and terminated, optical loss measurements can
be used to determine if the ber is installed according to standards and specications. A comparison between the actual power
measurement and the reference value determines how much optical power is lost through the link.
Loss mode requires the remote to operate as a stand-alone light source, or another stand-alone light source.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Remote used as stand-alone light source
10
APPLICATIONS
OPTICAL POWER MEASUREMENT
Optical Power Measurements. Optical power is an absolute measurement of the amount of light intensity; i.e. “brightness”, and
can be measured either at the output of a transmitter (transmit power), or at the input of a receiver (receiver sensitivity). When in
OPM mode, the Fiber OWL 7 can be directly attached to this equipment via a patch cord to check whether the transmitter is within
the manufacturer’s specied power range.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Measure transmitter power directly from the equipment port...
...or measure the transmitter power through the link.
