Panasonic KX-TGA750B Manuale utente

Thank you for purchasing a Panasonic product.

Please read this installation manual before using the unit and

save it for future reference.

For assistance, visit our Web site:

http://www.panasonic.com/help

for customers in the U.S.A. or

Puerto Rico.

This unit is an additional handset compatible with the following

series of Panasonic Digital Cordless Phone:

KX-TG4011/KX-TG4021/KX-TG4031/KX-TG4051/

KX-TG6511/KX-TG6521/KX-TG6531/KX-TG6541/

KX-TG7531

Youmustregisterthishandset with yourbaseunit beforeitcan

be used. This installation manual describes only the steps

needed to register and begin using the handset. Please read

the base unit’s operating instructions for further details.

Charge the batteries for about 7 hours before initial use.

Additional Digital Cordless Handset

Model No. KX-TGA750

Installation Manual

PNQX2420ZA DC0110DY0 (A)

Printed in China

TGA750(e).fm Page 1 Thursday, January 7, 2010 3:48 PM

2For assistance, please visit http://www.panasonic.com/help

Accessory information

Supplied accessories

*1 The handset cover comes attached to the handset.

Note:

LPlease read the base unit’s operating instructions for additional/

replacement accessories.

– Optional headsets: KX-TCA60, KX-TCA93, KX-TCA94,

KX-TCA400, KX-TCA430

Setting up

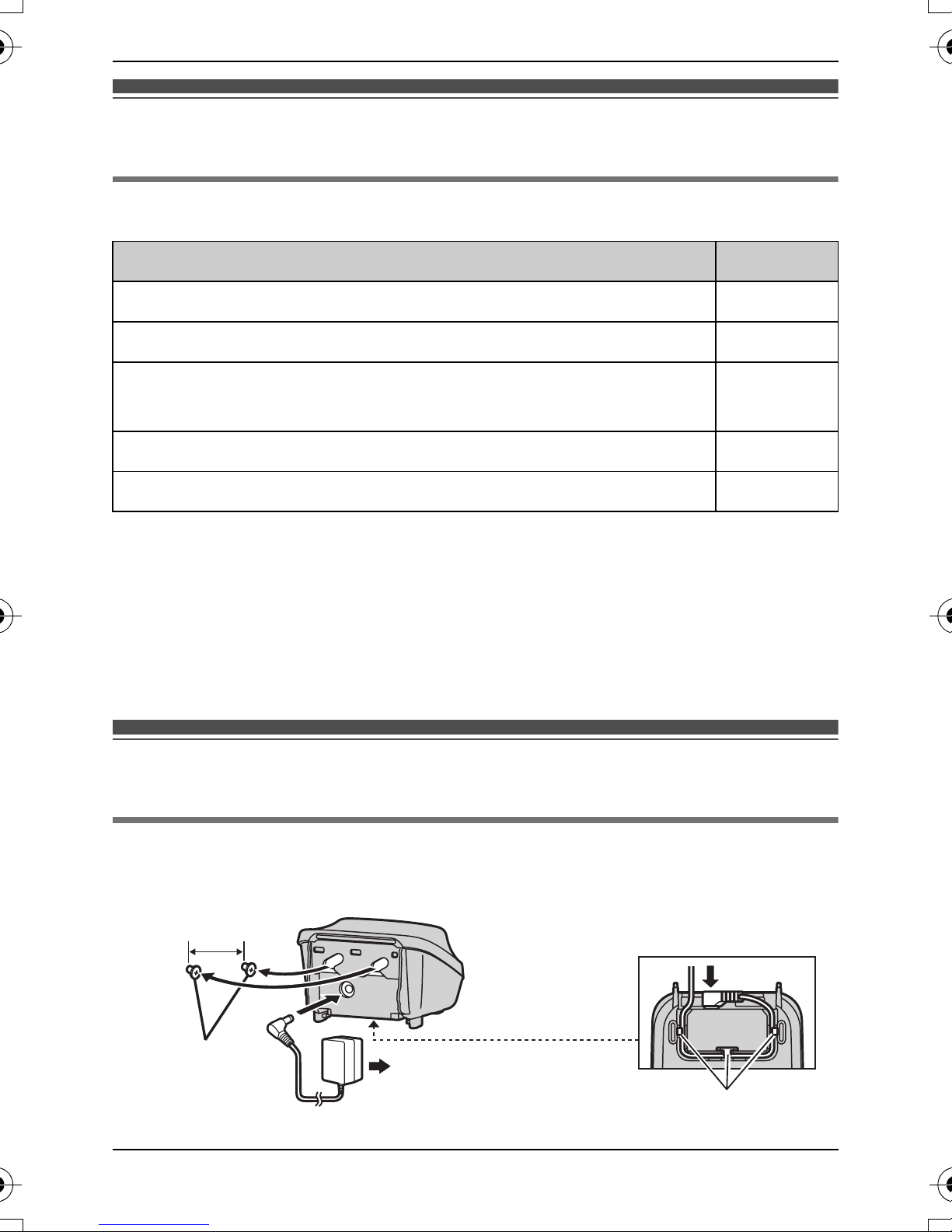

Connections/Wall mounting

Accessory item/Order number Quantity

Charger/PNLC1012ZB 1

AC adaptor/PQLV219Y 1

Rechargeable batteries/HHR-4DPA

(Part No. HHR-55AAABU or N4DHYYY00004) 2

Handset cover*1/PNYNTGA652BR 1

Belt clip/PNKE1054Z1 1

Hooks

25.4 mm

(1 inch)

(120 V AC, 60 Hz)

Screws

(Not supplied)

TGA750(e).fm Page 2 Thursday, January 7, 2010 3:48 PM

For assistance, please visit http://www.panasonic.com/help 3

Note:

LUse only the supplied Panasonic AC adaptor PQLV219.

LThe AC adaptor must remain connected at all times. (It is normal for

the adaptor to feel warm during use.)

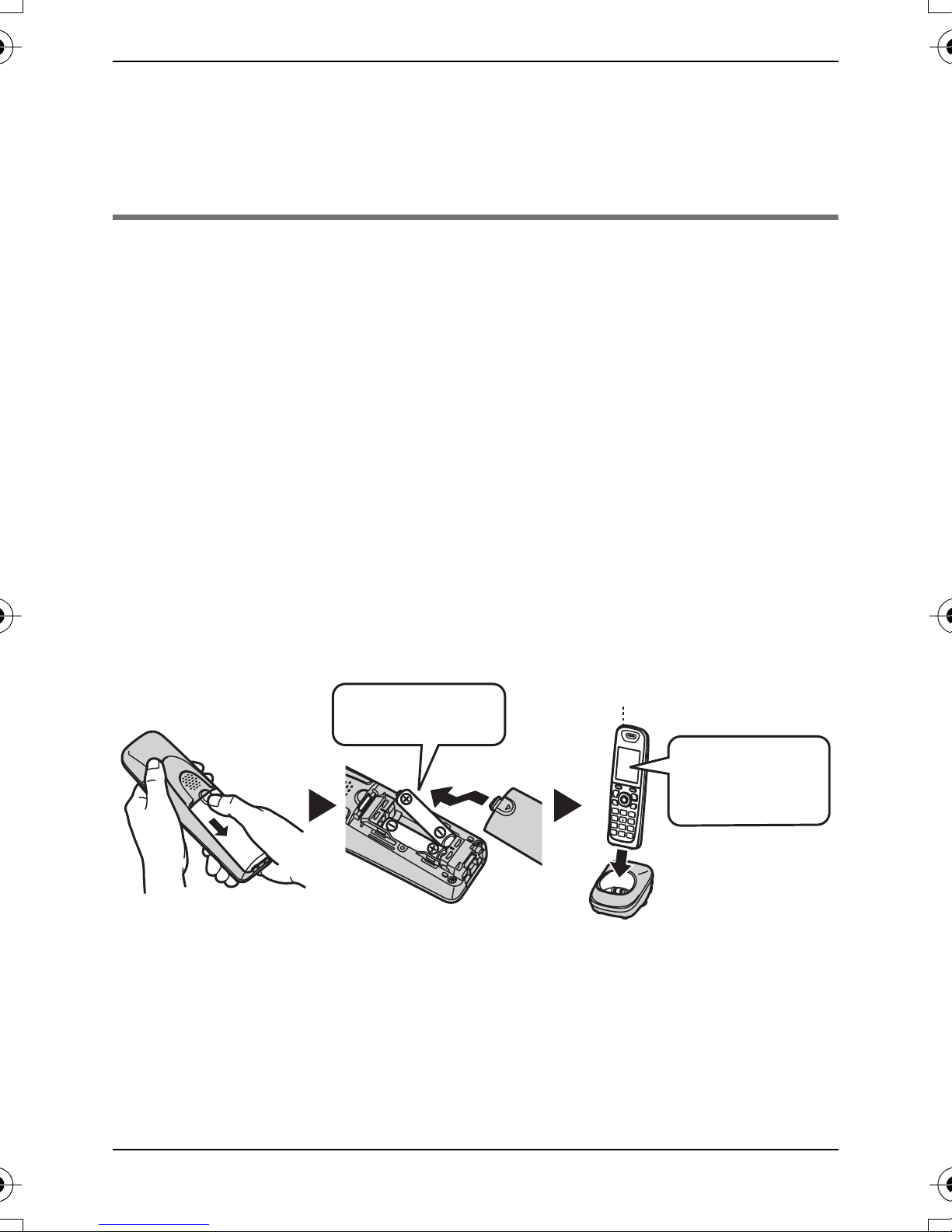

Battery installation/Battery charge

Important:

LUse the supplied rechargeable batteries. For replacement, we

recommend using the Panasonic rechargeable batteries noted on

page 2.

LWipe the battery ends (S, T) with a dry cloth.

LAvoid touching the battery ends (S, T) or the unit contacts.

LConfirm correct polarities (S, T).

LUSE ONLY Ni-MH batteries AAA (R03) size.

LDo NOT use Alkaline/Manganese/Ni-Cd batteries.

Charge for about 7 hours.

LWhen the batteries are fully charged, the charge indicator goes off and

“Fully charged”is displayed.

Note:

LIf the batteries are fully charged, but the operating time seems to be

shorter, clean the battery ends (S, T) and the charge contacts with a

dry cloth and charge again.

Charge indicator

Confirm

“Charging”

is displayed.

Rechargeable

Ni-MH ONLY

TGA750(e).fm Page 3 Thursday, January 7, 2010 3:48 PM

4For assistance, please visit http://www.panasonic.com/help

Panasonic Ni-MH battery performance (supplied batteries)

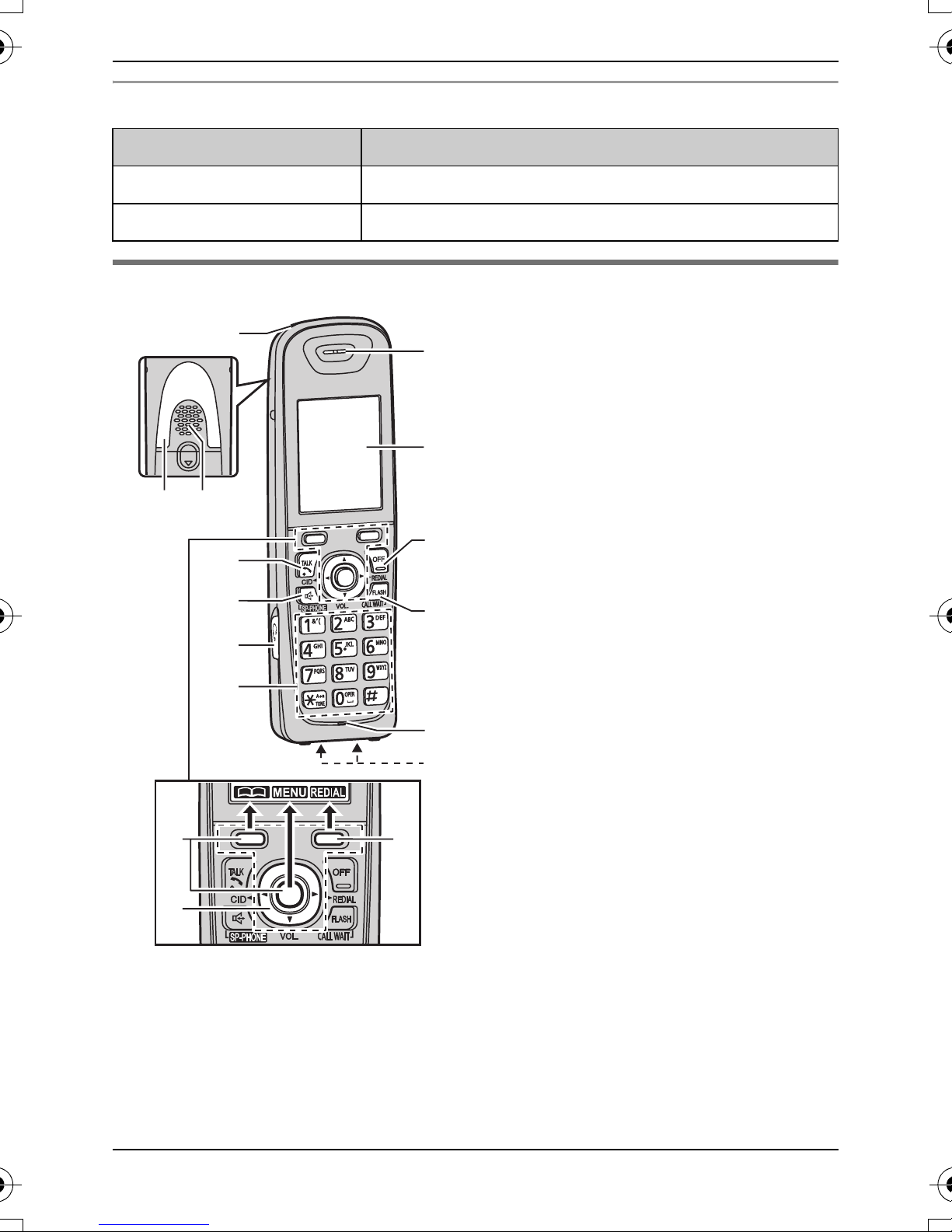

Controls

NControl type

ASoft keys

The handset features 2 soft keys and the center of the navigator

key. By pressing a soft key, or the center of the navigator key, you

can select the feature shown directly above it on the display.

Operation Operating time

In continuous use 13 hours max. (If Eco mode is on.)

Not in use (standby) 6 days max. (If Eco mode is on.)

ACharge indicator

Ringer indicator

Message indicator

BNonslip pad

LNonslip pad offers support

when you cradle the

handset between your

shoulder and ear.

CSpeaker

D{C} (TALK)

E{s} (SP-PHONE:

Speakerphone)

FHeadset jack

GDial keypad ({*}: TONE)

HReceiver

IDisplay

J{OFF}

K{FLASH}{CALL WAIT}

LMicrophone

MCharge contacts

B C

TGA750(e).fm Page 4 Thursday, January 7, 2010 3:48 PM

For assistance, please visit http://www.panasonic.com/help 5

BNavigator key

–{^}, {V}, {<}, or {>}: Scroll through various lists and items.

– VOL. (Volume: {^} or {V}): Adjust the receiver or speaker

volume while talking.

–{<}CID (Caller ID): View the caller list.

–{>}REDIAL: View the redial list.

Note:

LThe preset melodies used for the ringer tone in this product are used

For KX-TG4011/KX-TG4021 series users

NUsing the soft keys (operational differences between handsets)

KX-TGA750 features 3 soft keys, different to your original handset

which features keys with printed function names.

Press the soft key corresponding to the desired operation

(page 4: A).

Example: When selecting/setting the desired item in programming

LSome KX-TGA750 soft key names are different to the button names

described in your base unit’s operating instructions.

Registering a handset to a base unit

1Base unit:

NKX-TG4011/KX-TG6511 series

Press and hold {LOCATOR}for about 5 seconds. (No registration

tone)

NKX-TG4021/KX-TG4031/KX-TG4051/KX-TG6521/KX-TG6531/

KX-TG6541/KX-TG7531 series

Press and hold {LOCATOR}for about 5 seconds until the

registration tone sounds.

LIf all registered handsets start ringing, press the same button to

stop. Then repeat this step.

Original handset (printed key name) KX-TGA750 soft keys

{OK}{SELECT}{SAVE}

TGA750(e).fm Page 5 Thursday, January 7, 2010 3:48 PM

6For assistance, please visit http://www.panasonic.com/help

2Handset:

Place the handset on the base unit or charger, then wait until a long

beep sounds and wis displayed.

Note:

LIf an error tone sounds, or if _is displayed, register the handset

according to the base unit’s operating instructions.

Display language

1{MENU}i{#}{1}{1}{0}

2{V}/{^}: Select the desired setting.

3{SAVE}i{OFF}

Date and time

1{MENU}i{#}{1}{0}{1}iEnter the current month, date, and

year by selecting 2 digits for each. i{OK}

Example: For July 15, 2010, enter {0}{7}{1}{5}{1}{0}.:

2Enter the current hour and minute (12-hour clock format) by selecting

2 digits for each.

Example: For 9:30, enter {0}{9}{3}{0}.

3{AM/PM}: Select “AM”or “PM”. i{SAVE}i{OFF}

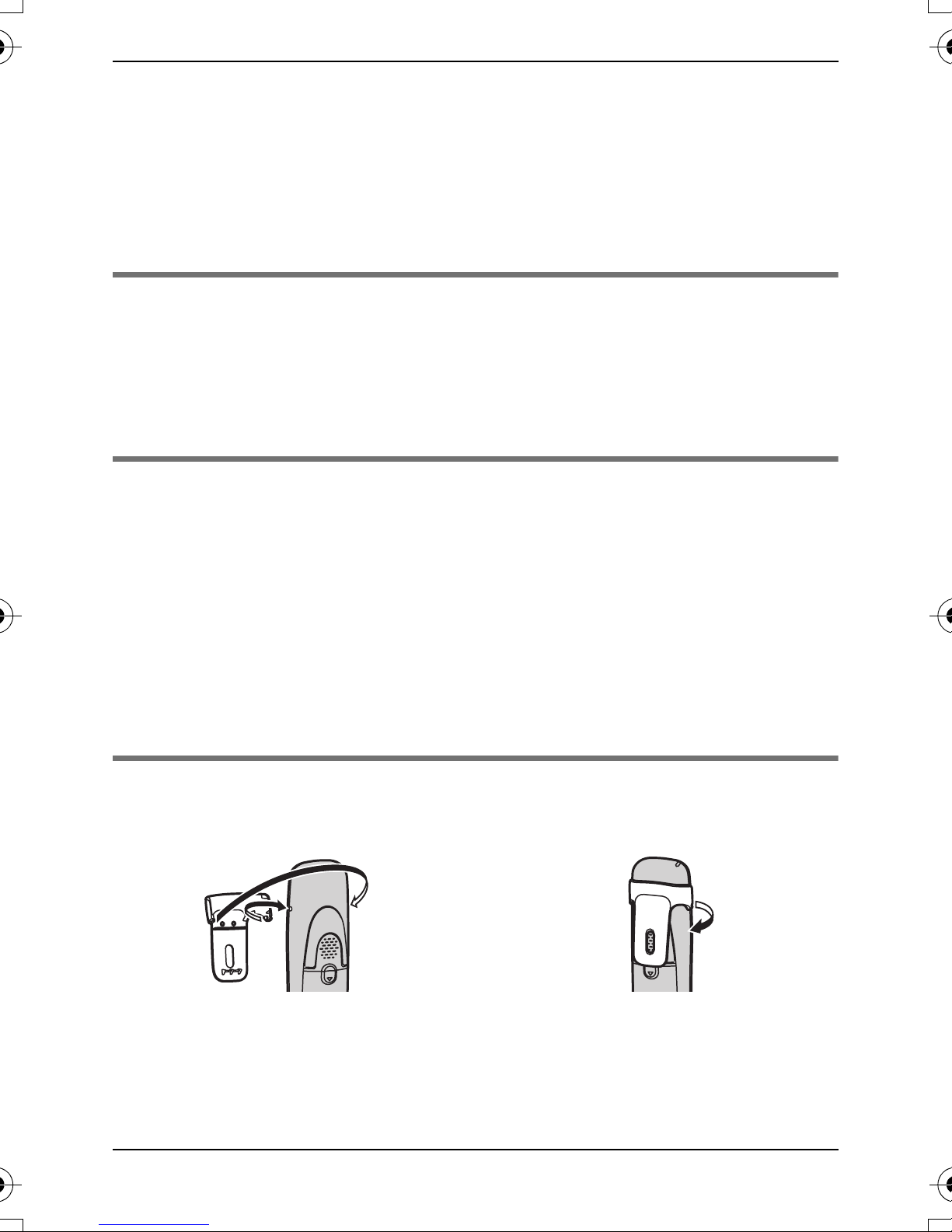

Belt clip

NTo attach NTo remove

TGA750(e).fm Page 6 Thursday, January 7, 2010 3:48 PM

For assistance, please visit http://www.panasonic.com/help 7

For KX-TG4031/KX-TG4051/KX-TG6511/

KX-TG6521/KX-TG6531/KX-TG6541

series users

There are some differences in the specification of your original handset

and the KX-TGA750. The feature differences are described in the chart

below.

Main feature differences

*1 KX-TG4031/KX-TG4051/KX-TG6521/KX-TG6531/KX-TG6541

series only

Operational differences in other features

NChanging group names in the shared phonebook

See “Changing group names” (page 11).

NEditing entries in the shared phonebook

See “Editing entries” (page 12).

Feature KX-TGA750 KX-TG4031/

KX-TG4051

series handset

KX-TG6511/

KX-TG6521/

KX-TG6531/

KX-TG6541

series handset

Display size 2.1 inches 1.8 inches 1.8 inches

Button size Large Extra large Large

Display mode

(page 8) r——

Message list

(page 9) r*1 ——

TGA750(e).fm Page 7 Thursday, January 7, 2010 3:48 PM

8For assistance, please visit http://www.panasonic.com/help

Features only available for KX-TGA750

Display mode

You can select to display either a single item or multiple items on one

screen at a time for the following features:

– handset main menu icons in function menu

– menu list, recorded message list, phonebook list, caller list, and redial

list

Select the desired setting:

–{MULTI}/“Multi items”: Multiple entries/all menu icons are shown

on one screen at a time.

–{SINGLE}/“Single item”: An entry/a menu icon is shown on one

screen in large characters at a time.

The default setting is “Multi items”.

NUsing soft key (Temporarily switching the display mode)

You can temporarily switch the display mode by pressing the right soft

key shown when viewing the lists or selecting menu icons.

NProgramming the display mode beforehand

1{MENU}i{#}{1}{9}{2}

2{V}/{^}: Select the desired setting. i{SAVE}i{OFF}

Note:

LWhen in multiple items display mode, you can move screens by

pressing {>}or {<}, without scrolling down or up through the list:

– Press {>}to go to the next screen.

– Press {<}to return to the previous screen.

LWhen in multiple items display mode, you can switch the screen to

confirm the detailed information by pressing {SINGLE}.

TGA750(e).fm Page 8 Thursday, January 7, 2010 3:48 PM

For assistance, please visit http://www.panasonic.com/help 9

Differences in the answering system operations

(KX-TG4021/KX-TG4031/KX-TG4051KX-TG6521/

KX-TG6531/KX-TG6541 series only)

Message list: Listening to messages from the message list

You can select the item to play back.

1{MENU}i{#}{3}{2}{9}

2{V}/{^}: Select the desired item from the message list. i{PLAY}

LYou can erase the selected message as follows: {ERASE}i

{V}/{^}: “Yes”i{SELECT}

3When finished, press {OFF}.

Note:

LIf the item has already been heard, “Q”is displayed, even if it was

heard using another handset.

LIf the unit cannot receive callerinformation, “Message”is displayed in

the message list.

LWhen you play a message from the message list, the playback

operations are as shown below:

– Ifyoupress {1}or{<},thecurrentlyplayingmessageisplayed back

from the beginning.

– If you press {2}or {>}, the unit stops message playback and the

display goes back to the message list.

TGA750(e).fm Page 9 Thursday, January 7, 2010 3:48 PM

10 For assistance, please visit http://www.panasonic.com/help

For KX-TG4011/KX-TG4021 series users

There are some differences in the specification of your original handset

and the KX-TGA750. The feature differences are described in the

following chart.

Main feature differences

*1 KX-TG4021 series only

Operational differences in other features

– Date and time (page 6)

– Chain dial (page 12)

– Voice guidance language (page 13)

– Selecting “Greeting only” (page 13)

– Calling back during playback (Caller ID subscribers only) (page 13)

Feature KX-TGA750 KX-TG4011/

KX-TG4021

series handset Page

Display size 2.1 inches 1.4 inches —

Phonebook settings

– Group

– All erase r— 11, 12

Message list r*1 —9

Message alert r— 13, 17

Display mode r—8

Alarm r—15

Silent mode r—15

Voice mail settings

– Voice mail access no.

– VM tone detection r—16

Time adjustment setting r—17

TGA750(e).fm Page 10 Thursday, January 7, 2010 3:48 PM

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Cornetta

Panasonic

Panasonic KX-TGEA40 Manuale utente

Panasonic

Panasonic KX-TGEA40S Manuale utente

Panasonic

Panasonic KXTGA630 - DIGITAL CORDLESS HANDSET INSTALL Manuale utente

Panasonic

Panasonic KX-HNH100 Manuale utente

Panasonic

Panasonic KX-TGA850EX Manuale utente

Panasonic

Panasonic KX-TGFA51 Manuale utente

Panasonic

Panasonic KXTGA750E Manuale utente

Panasonic

Panasonic KX-TGDA99 Manuale utente

Panasonic

Panasonic KX-TGA523 Manuale utente

Panasonic

Panasonic KX-TGWA41 Manuale utente

Panasonic

Panasonic KX-TGMA44 Manuale utente

Panasonic

Panasonic KX-TG2700 Manuale utente

Panasonic

Panasonic KX-TGA270S Manuale utente

Panasonic

Panasonic KX-HNH100C Manuale utente

Panasonic

Panasonic KX-TPA60 Manuale utente

Panasonic

Panasonic EBPH55S - CELL PHONE Manuale utente

Panasonic

Panasonic KX-TGA820EX Manuale utente

Panasonic

Panasonic KX-TGP60 Manuale utente

Panasonic

Panasonic KX-TGFA30E Manuale utente

Panasonic

Panasonic KX-TGA572C Manuale utente

Panasonic

Panasonic KX-TGA300B - Cordless Extension Handset Manuale utente

Panasonic

Panasonic KX-TGFA61 Manuale utente

Panasonic

Panasonic KX-TGA560B - Cordless Extension Handset Manuale utente

Panasonic

Panasonic KX-TGA800EX Manuale utente

Manuali Cornetta popolari di altre marche

Swissvoice

Swissvoice ePure HD Manuale utente

Philips

Philips TD6736/BH051P Manuale utente

ASCOM

ASCOM I62 - Manuale utente

LG-Ericsson

LG-Ericsson LIP-9010 Manuale utente

GE 1583 Manuale utente

iiNet

iiNet Handset Manuale utente

ASCOM

ASCOM 9p23 Manuale utente

AT&T

AT&T DLP70110 Manuale utente

AirCell

AirCell ST 3100 Manuale utente

Eaton

Eaton HHIR-LCD-PROG Istruzioni per il montaggio

Mitel

Mitel 112 Manuale utente

SBC

SBC SBC-381H Manuale utente

Mitel

Mitel 5602 Manuale utente

ASCOM

ASCOM d81 Messenger Istruzioni per l'installazione

SpectraLink

SpectraLink 7522 Manuale utente

Avaya

Avaya L100 Series Come usare

ooma

ooma HD2 Handset Manuale utente

Yealink

Yealink IPW56 Manuale utente
